Fampahalalana manan-danja momba ny fiarovana
Please read all instructions carefully before using this monitor. Keep this manual for future reference.
- Do not place the monitor near water or in humid environments.
- Hamarino tsara ny rivotra manodidina ny monitor mba hisorohana ny hafanana be loatra.
- Use only the power adapter provided with the monitor.
- Avoid exposing the monitor to direct sunlight or extreme temperatures.
- Aza manandrana manamboatra ny efijery samirery. Ampahafantaro ny mpiasa mahafeno fepetra ny fanamboarana rehetra.
- Diovy amin'ny lamba malefaka tsy misy volo ny efijery. Fadio ny mampiasa akora simika mahery vaika.
Fonosana fonosana
Azafady, hamarino fa tafiditra ao anatin'ny fonosanao ireto entana manaraka ireto:
- 31.5-inch 2K 120Hz Monitor (x1)
- Fitoeran'ny mpanara-maso (x1)
- Quick Start Guide (QSG) (x1)
- Cable HDMI (x1)
- Power adaptatera (x1)
- Tady herinaratra (x1)
An image showing the monitor's dimensions and a list of included accessories: monitor, QSG, HDMI cable, adapter, power cord, and monitor stand.
Hametraka
Monitor Assembly
Araho ireto dingana ireto mba hananganana ny fitoeran'ny monitor sy hametahana azy amin'ny tontonana fampisehoana:
- Esory amim-pitandremana ny fitaovana fanaraha-maso sy ajoro eo amin'ny fonosana.
- Attach the base to the stand column, securing it with the provided screw.
- Align the assembled stand with the mounting points on the back of the monitor panel.
- Gently push the stand into place until it clicks securely.

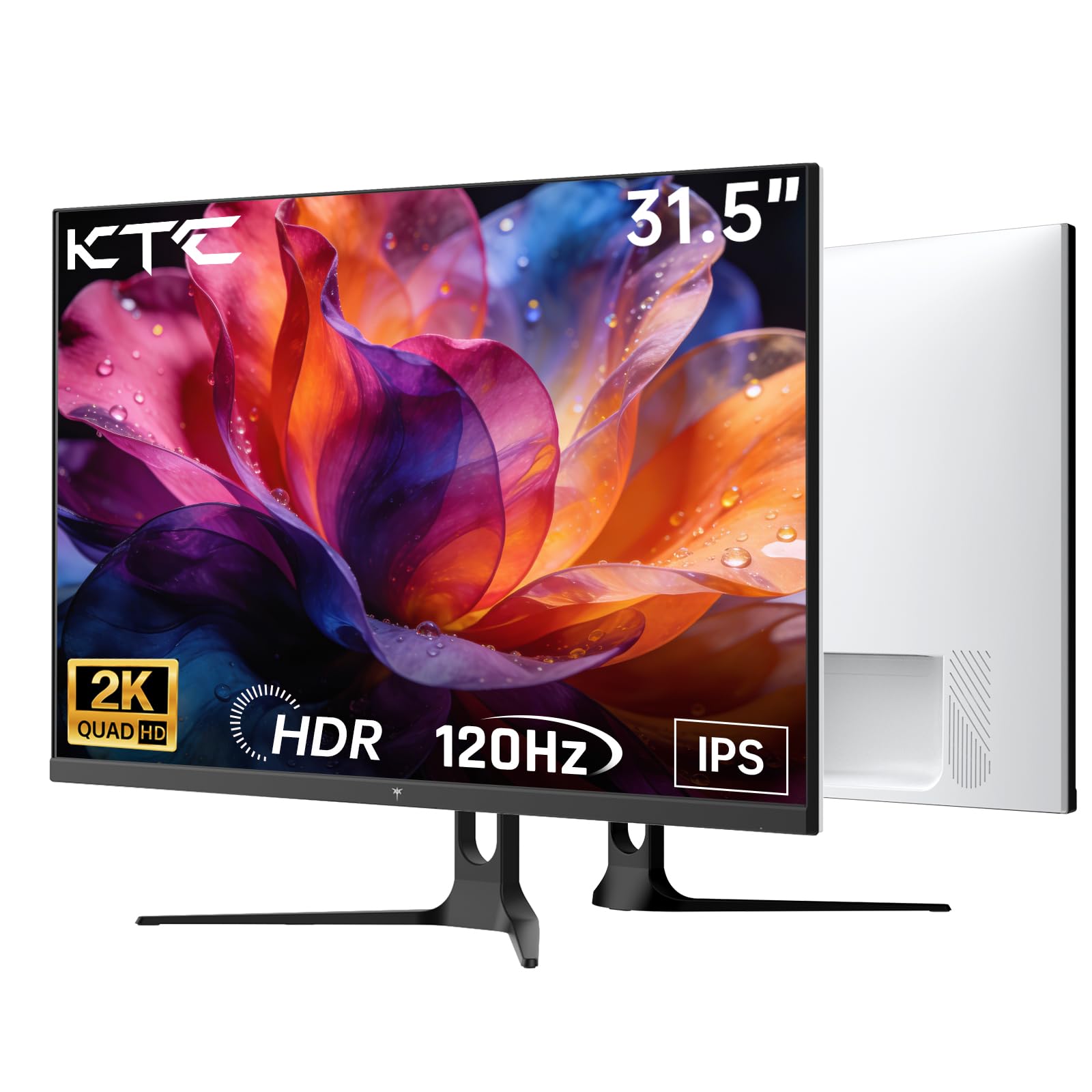

anoloana view of the KTC H32D6 31.5-inch monitor on its stand.
fifandraisana
Connect your monitor to a power source and your computer using the appropriate cables:
- Connect the power adapter to the monitor's DC input port, then plug the power cord into an electrical outlet.
- For video input, connect one end of the HDMI or DisplayPort cable to your computer's graphics card and the other end to the corresponding port on the monitor.
- If desired, connect headphones or external speakers to the earphone jack.
Close-up of the monitor's rear panel, highlighting the HDMI 2.0 ports (x2), DisplayPort 1.4 (x1), and earphone jack.
Ity vidéo ity dia manome vahanaview of the KTC 32 Inch 2K 120Hz Computer Monitor, showcasing its features and benefits in a dynamic presentation.
Torolàlana miasa
Power On/off
Press the power button (usually located on the back or bottom right of the monitor) to turn the monitor on or off. The power indicator light will illuminate when the monitor is on.
On-Screen Display (OSD) Menu Navigation
The monitor features an intuitive OSD menu for adjusting various settings. Use the joystick or buttons (depending on your model) on the back of the monitor to navigate the menu:
- Press the joystick/button to open the OSD menu.
- Move the joystick up/down or left/right to select menu options.
- Press the joystick/button again to confirm a selection or enter a sub-menu.
- To exit the OSD menu, navigate to the 'Exit' option or hold the joystick/button for a few seconds.
Fanitsiana ny fampiratiana
Ao anatin'ny menio OSD dia azonao atao ny manitsy ny toe-javatra toy ny:
- fanapahan-kevitra: Set to QHD (2560x1440) for optimal clarity.
- Havaozina: Adjust to 120Hz for ultra-smooth visuals.
- Famirapiratana & fifanoherana: Fine-tune for your preferred viewamin'ny traikefa.
- Fikirana loko: Adjust color temperature, gamma, and other color parameters.
An image demonstrating the superior clarity of QHD (2560x1440) resolution compared to FHD (1920x1080) on the monitor screen.
A visual representation of smooth motion on the monitor, illustrating the benefit of a 120Hz refresh rate for seamless visuals.
Adaptive Sync
This monitor supports Adaptive Sync technology (FreeSync, G-Sync Compatible) to eliminate screen tearing and stuttering during gaming or fast-paced video. Ensure Adaptive Sync is enabled in both your monitor's OSD settings and your graphics card control panel for optimal performance.
A side-by-side comparison showing the visual difference with Adaptive Sync ON (smooth image) and OFF (screen tearing) during fast-paced action.
Fanohanana HDR10
The monitor supports HDR10, providing a wider range of colors and contrast for a more immersive viewing experience. To utilize HDR10, ensure your content and graphics card support HDR, and enable it in your operating system display settings.
An image highlighting the enhanced color and contrast provided by HDR10 technology.
Toetra fikarakarana maso
The KTC H32D6 monitor includes Low Blue Light and Flicker-Free technologies to reduce eye fatigue during prolonged use. These features are designed to provide a more comfortable viewamin'ny traikefa.
An image illustrating the eye care features, including low blue light and flicker-free technology, designed to reduce eye strain.
Fanitsiana mitongilana
The monitor stand allows for tilt adjustment from -5° to 20°. Gently adjust the monitor panel to your desired viewangle ho an'ny fampiononana ergonomic.
An image demonstrating the wide 178-degree viewing angle provided by the IPS panel, ensuring consistent image quality from various positions.
fikarakarana
Ny fikojakojana araka ny tokony ho izy dia miantoka ny faharetana sy ny fampandehanana tsara indrindra ny monitor-nao.
- Manadio ny efijery: Fafao moramora amin'ny lamba malefaka sy maina ary tsy misy loko ny efijery. Ho an'ny marika mafy loha, moramora dampen the cloth with water or a screen-cleaning solution specifically designed for monitors. Never spray liquid directly onto the screen.
- Fanadiovana ny Casing: Mampiasà lamba malefaka sy maina hanadiovana ny casing. Halaviro ny mpanadio na solvents.
- Mamono rehefa tsy ampiasaina: Turn off the monitor when not in use to save energy and extend its lifespan.
- Avoid Obstructions: Ensure that the ventilation openings on the monitor are not blocked to prevent overheating.
Fanamboarana
Raha sendra olana amin'ny monitor-nao ianao dia jereo ireto olana sy vahaolana mahazatra ireto:
| OLANA | Vahaolana mety |
|---|---|
| Tsy misy sary eo amin'ny efijery | Ensure the power cable is securely connected and the monitor is turned on. Check that the video cable (HDMI/DP) is firmly connected to both the monitor and your computer. Select the correct input source via the OSD menu. |
| Image is flickering or unstable | Check the video cable connection. Ensure your graphics card drivers are up to date. Verify that the refresh rate is set correctly in your computer's display settings. Enable Adaptive Sync if supported by your graphics card. |
| Toa tsy mety ny loko | Adjust color settings (brightness, contrast, color temperature) in the OSD menu. Ensure HDR is correctly configured in your operating system if you are using HDR content. |
| Monitor not recognized by computer | Restart your computer. Try a different video port or cable. Update your graphics card drivers. |
fepetra arahana
Key technical specifications for the KTC H32D6 monitor:
| endri-javatra | famaritana |
|---|---|
| Marika | KTC |
| Laharana modely | H32D6 |
| Haben'ny efijery | 31.5 santimetatra |
| vahaolana | QHD Wide 1440p (2560 x 1440 Pixels) |
| Ny tahan'ny fanavaozana | 100 Hz (up to 120Hz overclocked) |
| Karazana fampisehoana | IPS |
| Fotoam-pamaliana | 7 Miliseconds |
| Aspect ratio | 16:9 |
| ny famirapiratry ny mazava | 350 Candela (cd/m²) |
| Contrast Ratio | 1000:1 |
| Viewamin'ny Angle | 178 degre |
| Color Gamut | 109% sRGB |
| Picture Quality Enhancement | HDR10 |
| fifandraisana | 2 x HDMI 2.0, 1 x DisplayPort 1.4, Earphone Jack |
| Adaptive Sync | FreeSync, G-Sync Compatible |
| Endri-javatra fanampiny | Eye Care, Flicker-Free, Tilt Adjustment, VESA 100x100mm Compatible |
| Fanjifana herinaratra | 48 Watts |
| Haben'ny singa (D x W x H) | 7.09" D x 28.23" W x 20.08" H |
Warranty sy fanohanana
Warranty Information
This KTC H32D6 monitor comes with a Garantie 3 taona amin'ny mpanamboatra. Ity fiantohana ity dia manarona ny lesoka amin'ny fitaovana sy ny asa amin'ny fampiasana mahazatra. Azafady, tehirizo ny porofon'ny fividiananao ho an'ny fitakiana fiantohana.
The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or external factors such as power surges.
Fanohanana ny mpanjifa
For technical assistance, warranty claims, or any other inquiries, please contact KTC customer support through the official website or the contact information provided with your purchase. You may also refer to the Quick Start Guide for additional support resources.
