GODOX ML80Bi LED Video Light Instruction Manual

1. Vokatra mihoatraview

The GODOX ML80Bi is a portable bi-color LED video light designed for photographers and filmmakers. It offers a balance of power and compact design, making it suitable for various shooting environments. Key features include a wide color temperature range, high color rendering accuracy, and multiple lighting effects.

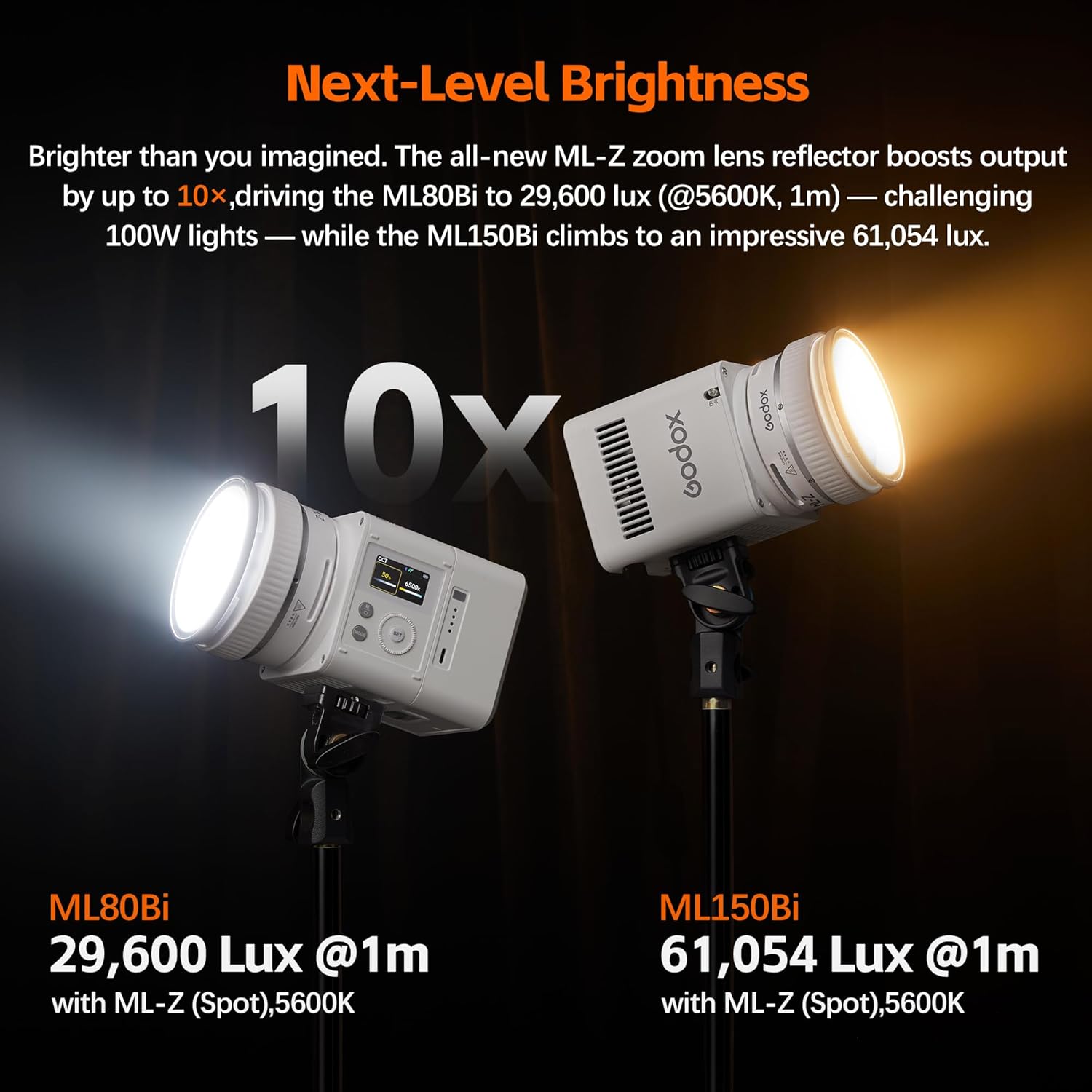

• Output mahery: Delivers up to 29600 Lux at 1 meter (5600K) with the ML-Z reflector.
• Quality Color Rendering: Features CRI 96+ and TLCI 97+ for natural and accurate colors, with a color temperature range of 2800K-6500K.
• 11 Built-in Lighting FX: Includes effects such as Flash, Lightning, Cloudy, TV, Candle, Fire, Fireworks, Bloom, Welding, SOS, and Broken Bulb.
• Fanaraha-maso APP: Wireless control via the Godox Light app with Bluetooth, offering precise lighting adjustments.
• Dual Power Supply System: Can be powered by the ML-BA battery, two NP-F970 batteries, a V-mount battery, or an AC power adapter.

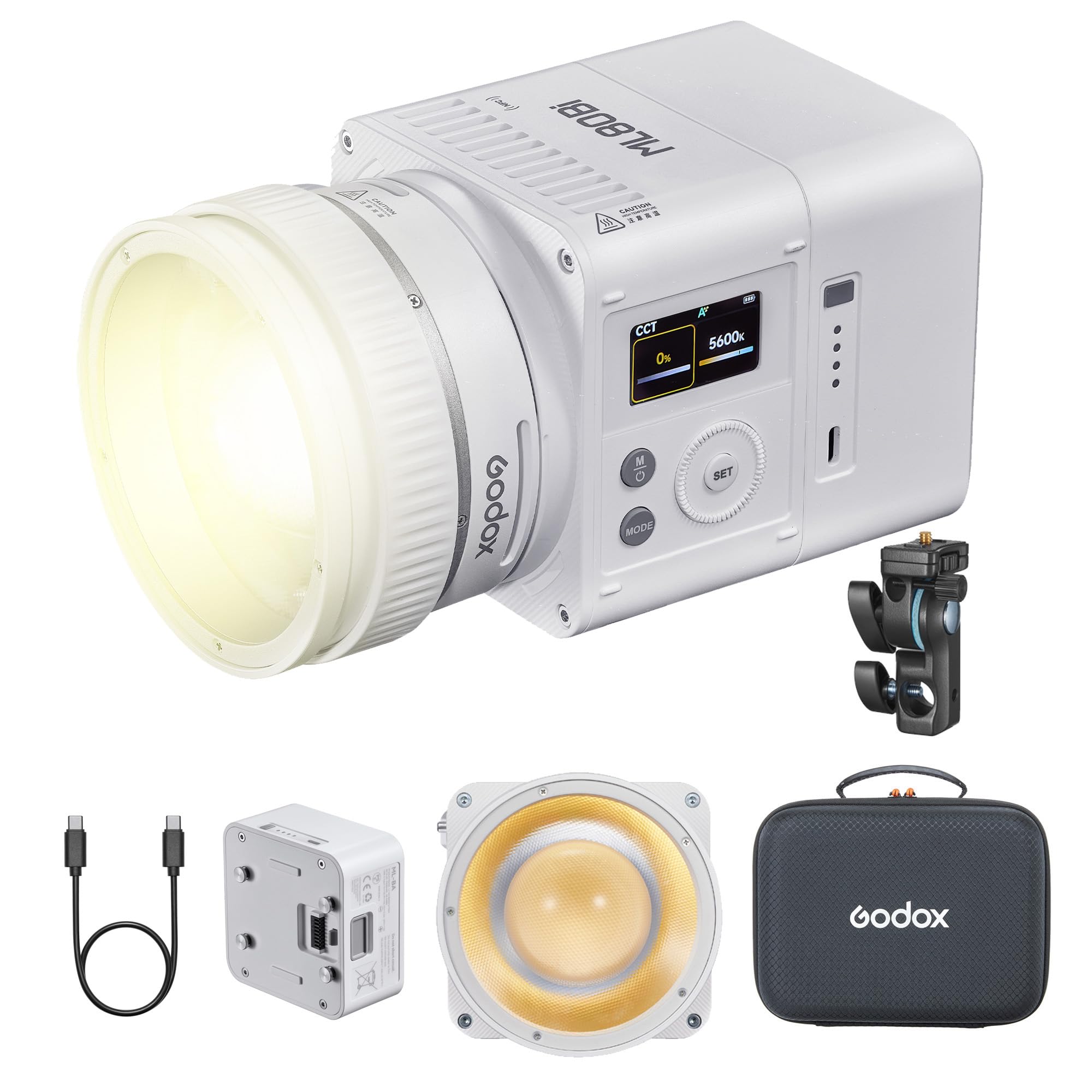

Figure 1: GODOX ML80Bi LED Video Light with key features highlighted.

2. Fametrahana sy Fivoriambe

The ML80Bi features a modular design, allowing for flexible configurations and easy attachment of accessories.

2.1 Famolavolana Modular

The light body, ML-BA battery, and ML-Z zoom lens reflector are designed to connect seamlessly. This modularity allows for quick setup and breakdown, adapting to various shooting needs.

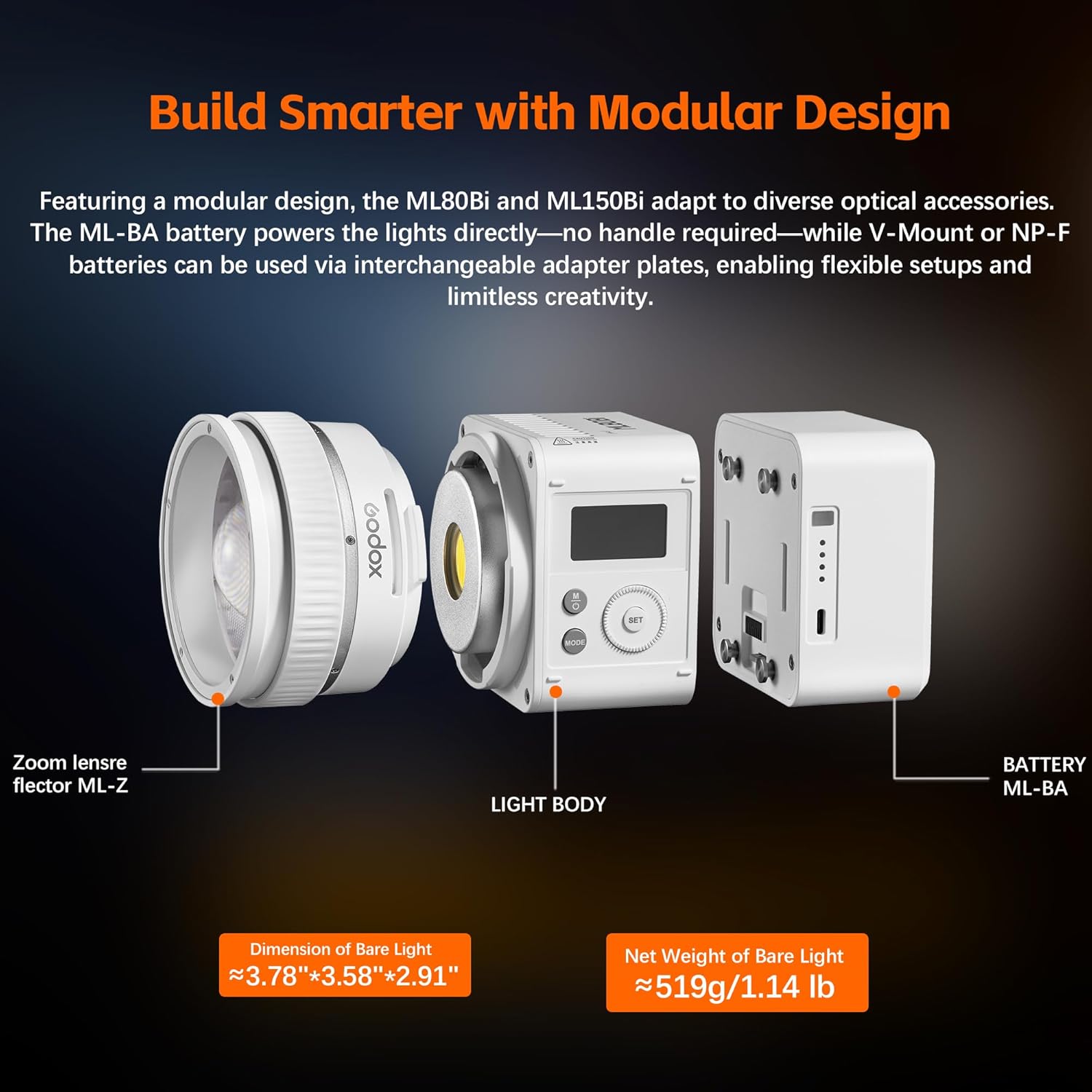

Sary 2: Nipoaka view of the GODOX ML80Bi showing its modular components: Zoom lens reflector ML-Z, Light Body, and Battery ML-BA.

2.2 Fampandehanana ny fitaovana

The ML80Bi offers multiple power options for both studio and outdoor use:

• ML-BA Battery: Provides over 60 minutes of full-power output.
• Batterie NP-F: Use with the ML-NPA adapter plate.
• V-Mount Battery: Use with the ML-VMA adapter plate.
• AC Power adaptatera: For continuous power in studio settings.

Figure 3: Different power configurations for the ML80Bi, including ML-BA battery, NP-F battery adapter, V-mount battery adapter, and AC power adapter.

3. Torolàlana miasa

3.1 Fampandehanana fototra

The ML80Bi can be controlled using the on-board rotary button and display. When powered on, the light retains the last settings used.

• Herim-batana / maty: Tsindrio ary hazòny ny bokotra herinaratra.
• Fanitsiana famirapiratana: Rotate the main dial to adjust brightness from 0-100%.
• Fanitsiana ny mari-pana amin'ny loko: Rotate the CCT dial to change color temperature from 2800K to 6500K.
• Fomba FX: Press the FX button to cycle through 11 built-in lighting effects.

Figure 4: The ML80Bi offers a color temperature range of 2800K-6500K for excellent color reproduction.

Figure 5: The ML80Bi includes 11 special scene effects like Lightning, Flash, and Candle to enhance creative shooting.

3.2 App Control (Godox Light App)

The ML80Bi supports wireless control via the Godox Light app, available for smartphones. This allows for convenient and precise adjustments of settings.

• NFC mampiaraka: Use NFC to quickly group and connect multiple ML80Bi lights to the app.
• Fanaraha-maso Bluetooth: Adjust brightness, color temperature, and FX modes wirelessly within a range of up to 90 feet.

Figure 6: NFC functionality allows for quick pairing and grouping of lights for app control.

4. Accessories and Mount Compatibility

The ML80Bi is designed to work with a range of GODOX accessories to expand its functionality.

• Godox Mount: The light features a proprietary Godox mount for direct attachment of compact accessories.
• Fitaovana magnetika: The ML-Z zoom lens reflector supports magnetic accessories for quick and easy light shaping.
• Bowens Mount Adapter (ML-GB): Allows compatibility with a wide range of Bowens mount modifiers, such as softboxes up to 90cm.

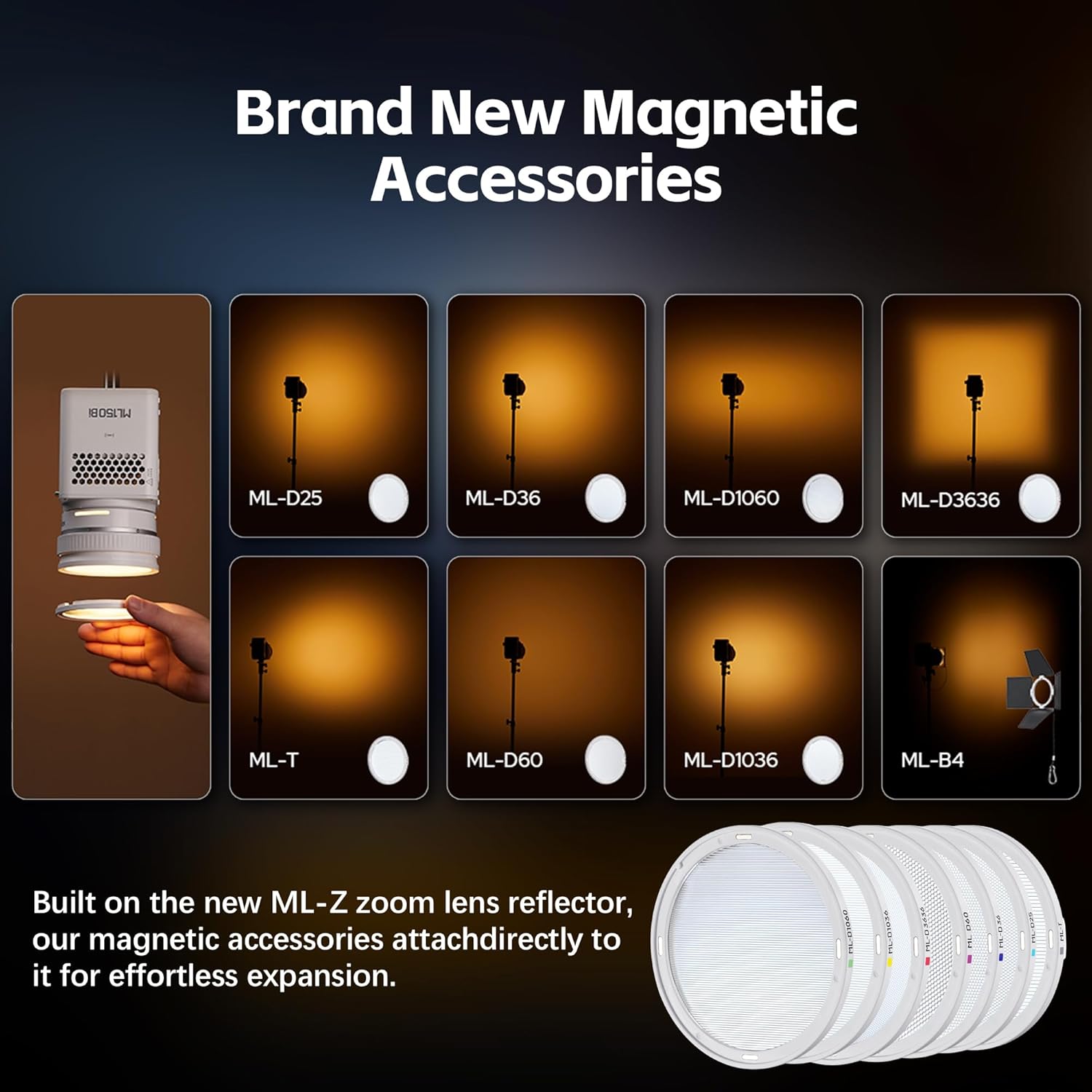

Figure 7: The ML80Bi supports various magnetic accessories for light modification.

5. Fikojakojana

Proper maintenance ensures the longevity and optimal performance of your GODOX ML80Bi LED Video Light.

• Fanadiovana: Use a soft, dry cloth to clean the light body and reflector. Avoid using harsh chemicals or abrasive materials.
• fitahirizana: Store the light in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided carrying case for protection during transport and storage.
• Fikarakarana bateria: If using rechargeable batteries, follow the manufacturer's guidelines for charging and storage to maximize battery life. Do not expose batteries to excessive heat or moisture.
• rivotra: Ensure the ventilation grilles on the light body are clear of obstructions to prevent overheating.

6. Famahana olana

If you encounter issues with your ML80Bi, refer to the following common troubleshooting steps:

• Jiro tsy mandeha: Check the power source. Ensure the battery is charged and properly connected, or that the AC adapter is securely plugged in.
• Tsy misy jiro mivoaka: Verify that the brightness setting is not at 0%. Check for any physical obstructions on the LED chip or reflector.
• Olana mifandray amin'ny fampiharana: Ensure Bluetooth is enabled on your smartphone and the light. Try restarting both the light and the app. Make sure the light is within the Bluetooth control range (approx. 90 feet).
• Fampitandremana amin'ny hafanana be loatra: If an overheating warning appears, turn off the light and allow it to cool down. Ensure proper ventilation and that the fan is not obstructed.
• Inconsistent Light Output: Check for loose connections or damaged cables. If using batteries, ensure they are fully charged and functioning correctly.

If problems persist after attempting these steps, please contact GODOX customer support for further assistance.

7. Famaritana

8. Inona no ao anaty boaty

The GODOX ML80Bi package includes the following items:

• Light body *1

Note: Additional accessories such as the ML-BA battery, Zoom Lens Reflector ML-Z, Holder AD-E2, USB-C Charging Cord, Protection Bag, and Instruction Manual are typically included or available separately depending on the specific product kit. Please check your product packaging for a complete list of included items.

9. Warranty sy fanohanana

For warranty information and customer support, please refer to the official GODOX website or the warranty card included with your product. You can also contact your retailer for assistance.

GODOX provides technical support and service for their products. Keep your purchase receipt as proof of purchase for any warranty claims.
