1. Fampidirana sy Fitohizanaview
The GODOX V480 TTL Camera Flash is a versatile and compact speedlite designed for Panasonic and Olympus cameras. It features a guide number of GN50 (ISO100, 105mm) and offers comprehensive exposure control with TTL auto flash and manual flash modes. The flash head provides flexible rotation and tilt for various lighting setups. Key features include an intuitive 2-inch touchscreen for easy parameter adjustment, real-time effective flash range display, and a built-in 2.4G wireless X system for multi-light setups. It supports multiple professional modes such as high-speed sync up to 1/8000s, 1st curtain sync, and 2nd curtain sync, along with stroboscopic flash. Powered by a 2200mAh rechargeable battery, it delivers approximately 650 full-power flashes with a quick 1.7s recycle time and supports USB-C charging. A 10-level 5300K LED modeling lamp is also integrated for pre-visualization.
- Fanaraha-maso mora: Equipped with a 2-inch touchscreen and physical switches for seamless control and quick adjustment of parameters.
- Effective Flash Range Display: The screen shows real-time effective flash distance, eliminating the need for exposure estimation.
- Built-in 2.4G Wireless X System: Supports up to 100 meters of wireless triggering or multi-light flashes.
- Multiple Professional Modes: Offers TTL, manual flash, stroboscopic flash, and high-speed sync up to 1/8000s.
- Bateria maharitra: 2200mAh rechargeable battery supports up to 650 full-power flash times and quick 1.7s recovery, with USB-C charging.
2. Inona no ao anaty boaty
- 1x GODOX V480 Flashlight
- 1x Flash Stand
- 1x Batterie azo averina
- 1x mitondra kitapo
- 1x Softbox
- 1x charger
- 1x User Manual
- 1x USB-C Charging Cable
3. Fametrahana
3.1 Fametrahana sy fiampangana bateria
The GODOX V480 is equipped with a built-in 2200mAh rechargeable lithium battery. To charge the battery, connect the provided USB-C charging cable to the flash unit and a compatible USB power source. The flash supports approximately 650 full-power flashes and has a quick 1.7s recycle time.
Image: The GODOX V480's 2200mAh rechargeable battery, showing USB-C charging capability and quick recycle time.
3.2 Fametrahana ny Flash
Slide the GODOX V480 flash onto your camera's hot shoe. Secure the flash by tightening the locking mechanism on the hot shoe mount.
3.3 Power On/off
Tsindrio ary hazòny ny bokotra herinaratra mba hampandeha na hamonoana ny fitaovana flash.
4. Torolàlana miasa
4.1 Intuitive Touchscreen and Buttons
The V480 features a 2.0-inch color touchscreen and tactile buttons for parameter adjustments. Tap, swipe, or press buttons to navigate menus and change settings quickly without interrupting your workflow.
Image: A close-up of the GODOX V480's intuitive touchscreen and physical buttons, showing a user adjusting flash parameters.
4.2 Flash Modes
- TTL Auto Flash: Automatically adjusts flash output for correct exposure based on camera metering.
- Tselatra tanana: Allows manual control over flash power output for precise lighting.
- Stroboscopic Flash: Mandefa andiana tselatra haingana mba handraisana fihetsehana maromaro ao anaty sary tokana.
- Fandrindrana haingam-pandeha (HSS): Enables flash synchronization at shutter speeds up to 1/8000s, useful for overpowering ambient light.
- Fomba fampifanarahana: Supports 1st curtain sync and 2nd curtain sync for creative effects with moving subjects.
Sary: Eksamples of professional flash modes in use, demonstrating the versatility of the GODOX V480 for various photographic scenarios.
4.3 Flexible Bounce Head

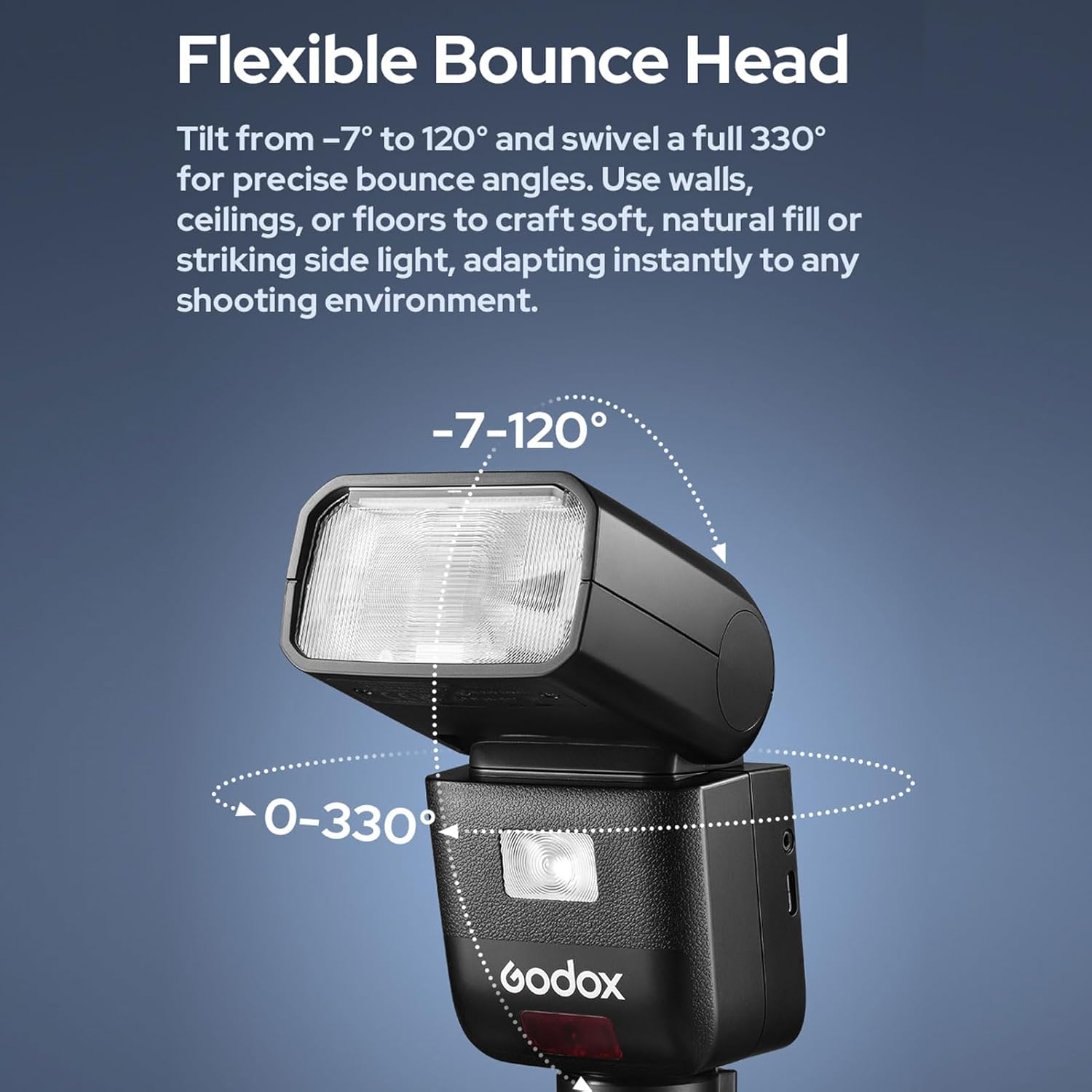

The flash head can tilt from -7° to 120° vertically and swivel 0° to 330° horizontally. Use the flexible head to bounce light off walls or ceilings for softer, more natural illumination, adapting instantly to any shooting environment.
Image: Diagram illustrating the flexible tilt (-7° to 120°) and swivel (0° to 330°) capabilities of the GODOX V480 flash head.
4.4 Smart Distance Readout
The V480's display shows the real-time effective flash range, assisting in determining optimal subject distance. This feature eliminates exposure guesswork, ideal for tight spaces, bounce applications, or fast-paced events.
Image: A photographer using the GODOX V480, with the display showing the smart distance readout feature in action.
4.5 10-Level Modeling Lamp
Activate the built-in 2W LED modeling lamp ny preview how light will fall on your subject and shape shadows. Adjust the brightness through 10 levels to fine-tune your setup before firing the main flash.
Image: A photographer using the GODOX V480's 10-level modeling lamp to pre-visualize lighting on a subject.
4.6 2.4G Wireless X System
The V480 can function as a master or slave unit within the Godox 2.4G wireless X system. It supports wireless triggering and multi-light setups with a transmission range of approximately 100m. The system features 32 channels and 01-32 groups with ID settings (OFF/01-99) for flexible control.
Video: An official GODOX video demonstrating the features and use of the GODOX V480 Wireless Camera Flash, including its lithium battery and various lighting applications.
5. Fikojakojana
- Keep the flash unit clean and dry. Use a soft, dry cloth for cleaning.
- Avoid exposing the unit to extreme temperatures, humidity, or strong magnetic fields.
- Store the flash in its carrying bag when not in use to protect it from dust and damage.
- Do not attempt to disassemble or repair the unit yourself. Contact authorized service personnel for repairs.
6. Famahana olana
6.1 Tsy Mirehitra ny Flash
- Check if the flash is securely mounted on the camera's hot shoe.
- Hamarino tsara fa voapetraka tsara ny bateria ary tafiditra tsara ao anatiny.
- Verify flash settings on both the flash unit and the camera.
- Check for any error messages on the flash display.
6.2 Inconsistent Exposure
- Review flash exposure compensation (FEC) settings.
- Ensure the flash mode (TTL/Manual) is appropriate for the shooting conditions.
- Jereo sao misy sakana eo anelanelan'ny flash sy ny zavatra aseho.
6.3 Wireless Triggering Issues
- Confirm that the master and slave units are set to the same channel and group ID.
- Ensure units are within the effective transmission range (approximately 100m).
- Check for interference from other 2.4G devices.
7. Famaritana
| Karazana entana | Wireless Camera Flash |
| Guide Number (1/1 Output, 105mm) | Approx. GN50 (ISO100, in meters) |
| Fandrakofana tselatra | Auto zoom (24-105mm), Manual zoom (24-105mm) |
| Fihodinana loha tselatra | Horizontal 0°~330°, Vertical -7°~120° |
| Faharetan'ny tselatra (t0.1) | 1/600s~1/20000s |
| Rafitra fanaraha-maso ny fampiratiana | TTL auto flash, manual flash |
| Fanombanana tselatra (FEC) | ±3 fijanonana amin'ny 1/3 fijanonana tsikelikely |
| Fomba fampifanarahana | High-speed sync (up to 1/8000s), 1st curtain sync, 2nd curtain sync |
| Stroboskopika Flash | Supports (max 100 times; max 100Hz) |
| Function Wireless | Master/Slave unit (2.4G wireless transmission) |
| Fitaovana fandefasana | Manodidina ny 100m |
| fantsona | 32 |
| Vondrona | 01~32 |
| ID | EFA/01~99 |
| Recycle Time | Approx. 1.7s |
| Flash Times (1/1 Output) | Approx. in-650 |
| Mitsitsy hery | Auto power off after idle use |
| Sync Triggering Mode | Kiraro mafana, tady sync 2.5mm |
| LED Lamp fahefana | 2W |
| LED Lamp Temperature loko | 5300K ± 300K |
| Batterie | 2200mAh (naorina) |
| Haben'ny entana | 166x71x49mm / 6.54x2.8x1.93in |
| mpanamboatra | Godox |
| Compatible Mountings | Panasonic and Olympus Cameras |
| Laharana modely | V480 |
8. Warranty sy fanohanana
Raha mila fanazavana momba ny antoka sy ny fanohanana ara-teknika, jereo azafady ny GODOX ofisialy. webtranokala na mifandraisa amin'ny mpaninjara eo an-toerana. Tehirizo ny tapakila fividiananao ho an'ny fitakiana fiantohana.
