1. Fampidirana

The ASUS Prime AP202 ARGB White mATX case is designed for compact, high-performance PC builds. It features a fully curved tempered glass panel, supports graphics cards up to 420mm, 360mm radiators, and includes a patented slot vent, easy-detach rail system, and three pre-installed ARGB fans. This manual provides detailed instructions to help you set up, operate, and maintain your PC case.

2. Endri-javatra fototra

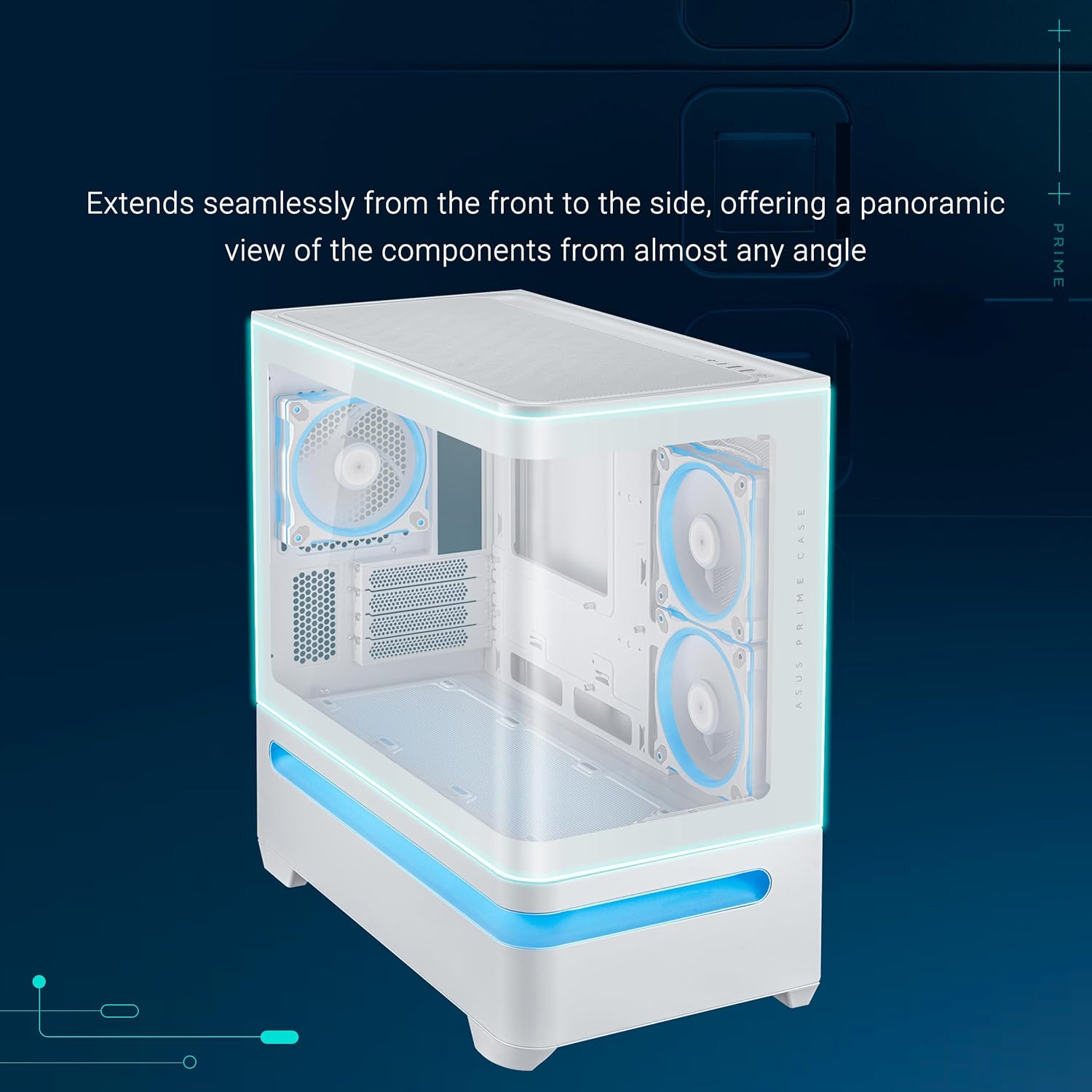

• Panoramic Curved Tempered Glass: A seamless curved tempered glass panel extends from the front to the side, offering an unobstructed view ny singa anatiny.
• Easy-Detach Rail System: Panels can be removed and reattached safely and simply, facilitating easy access for building and maintenance.
• Patented Slot Vent: An innovative design provides optimal cooling for graphics cards, enhancing thermal performance.
• Integrated ARGB Light Band: A light band near the bottom of the case offers spectacular lighting effects, compatible with Aura Sync for seamless adaptation to user scenarios.
• Pre-installed ARGB Fans: Three 120mm ARGB fans with extra-thick 28mm frames are included, providing optimal airflow and integrated with 20 addressable RGB LEDs for dual lighting.

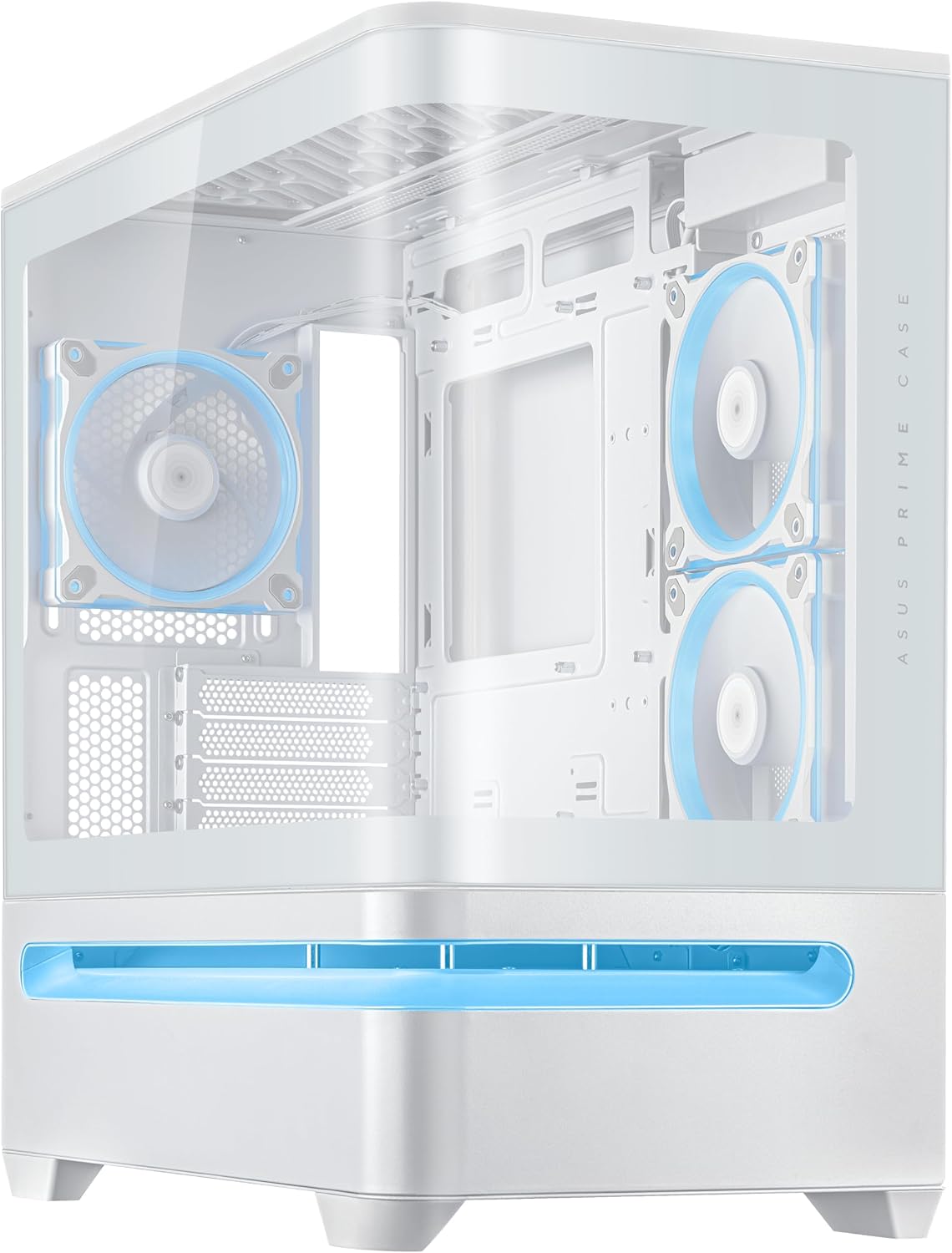

Figure 1: ASUS Prime AP202 ARGB White mATX PC Case with curved tempered glass and internal ARGB fans.

3. Fametrahana sy fametrahana

Follow these steps to assemble your PC components within the ASUS Prime AP202 ARGB White mATX PC case.

3.1. Fanesorana ny tontonana

The case features an easy-detach rail system for safe and simple panel removal. Gently pull the panels to detach them, providing full access to the internal chassis for component installation.

Sary 2: Nipoaka view illustrating detachable panels and components for easy assembly.

3.2. Fametrahana Motherboard

The ASUS Prime AP202 supports Micro-ATX and Mini-ITX motherboards. Secure your motherboard to the pre-installed standoffs using the provided screws.

3.3. Fametrahana Fan sy Radiator

The case supports radiators up to 360mm long. Three 120mm ARGB fans are pre-installed. Additional fans can be mounted for enhanced airflow. Ensure proper airflow direction (intake/exhaust) for optimal cooling.

Figure 3: Patented slot vent design for optimal graphics card cooling.

3.4. Fametrahana karatra sary

The case accommodates graphics cards up to 420mm in length. Install your graphics card into the appropriate PCIe slot on your motherboard and secure it with screws.

3.5. Fametrahana ny singa famatsiana herinaratra (PSU)

The case is compatible with PSUs up to 200mm in length. Install your PSU into its designated compartment, typically at the rear or bottom of the case, and secure it.

3.6. Fitantanana tariby

Ampiasao ny ample space behind the motherboard tray and the included cable ties to route and secure cables, ensuring clean aesthetics and unobstructed airflow.

Figure 4: Organized cable management for a clean build.

4. Torolàlana miasa

4.1. Power On/off

Press the power button located on the front I/O panel to turn the system on or off. The power LED will illuminate when the system is active.

4.2. Fanaraha-maso ny Jiro ARGB

The integrated ARGB light band and pre-installed fans are compatible with ASUS Aura Sync. Use the motherboard's software to customize lighting effects and synchronize them with other compatible components.

Figure 5: Integrated ARGB light band for customizable lighting effects.

Figure 6: Front I/O panel with power button and USB ports.

5. Fikojakojana

5.1. Fanadiovana ny sivana vovoka

Regularly clean the dust filters to maintain optimal airflow and prevent dust buildup inside the case. The filters are easily removable for cleaning.

5.2. Fanadiovana ankapobeny

Use a soft, dry cloth to wipe down the exterior of the case. For the tempered glass panel, use a glass cleaner and a microfiber cloth to avoid scratches.

6. Famahana olana

6.1. Tsisy Hery

• Ensure the power supply unit (PSU) is properly connected to the wall outlet and the power switch on the PSU is in the "ON" position.
• Verify all power cables from the PSU are securely connected to the motherboard and components.
• Jereo ny fifandraisan'ny switch power eo anoloana amin'ny motherboard.

6.2. Overheating Issues

• Ensure all case fans are spinning and properly oriented for optimal airflow (front/bottom for intake, rear/top for exhaust).
• Clean any dust buildup on fans, radiators, and dust filters.
• Verify CPU cooler and GPU fans are functioning correctly.

6.3. Tsy mandeha ny jiro ARGB

• Check all ARGB cable connections from the fans and light band to the motherboard's ARGB headers or a dedicated controller.
• Ensure ASUS Aura Sync software (or equivalent motherboard software) is installed and configured correctly.

7. Famaritana

8. Warranty sy fanohanana

For warranty information, technical support, or service inquiries, please visit the official ASUS support website or contact your local ASUS representative. Keep your purchase receipt for warranty validation.

Fanohanana ASUS Webtranokala: https://www.asus.com/support/
