1. Fampidirana
Thank you for choosing the JESLED 4FT T8 LED Tube Light. This product is designed to provide high-efficiency, bright, and long-lasting illumination for various applications. This manual provides essential information for safe installation, operation, and maintenance of your LED tube lights. Please read these instructions thoroughly before installation and retain them for future reference.
Image 1.1: JESLED 4FT T8 LED Tube Light, showcasing the G13 base and LED array.
2. Information momba ny fiarovana
To prevent electric shock, fire, or personal injury, always follow basic safety precautions when installing or using this product. This product should be installed by a qualified electrician in accordance with the National Electrical Code and local codes and ordinances.
- FAMPITANDREMANA: Mety hisian'ny fahatairana elektrika. Esory ny herinaratra eo amin'ny fuse na ny circuit breaker alohan'ny hametrahana na hanamboarana azy.
- FAMPITANDREMANA: Risk of fire. Do not install this product in a fixture that is not designed for its use.
- Ataovy azo antoka ny voltage supplied to the fixture is compatible with the LED tube light (110V).
- Do not attempt to modify or disassemble the LED tube light.
- Avoid looking directly into the light source when illuminated, as it may cause eye strain.
- Halaviro ny fitaovana mora mirehitra.
3. Toetran'ny vokatra
- Ultra-Bright 5200LM Output: Provides powerful illumination, consuming only 40W while delivering light equivalent to a 96W traditional tube.
- 6000K Cool White Color: Enhances clarity with a cool white light, offering higher shadow contrast suitable for tasks requiring color accuracy.
- Innovative D-Shape Design: Features a triple-row of premium LEDs for 300-degree wide-angle coverage, ensuring uniform brightness without shadows or dark spots.
- Dual-Mode (Type A+B) Installation: Compatible with both plug-and-play (with existing ballasts) and direct AC wiring (ballast bypass) for flexible setup.
- 50,000-Hour Long Lifespan: Designed for extended operation with zero flicker or hum, suitable for 24/7 use in various environments.
Image 3.1: Key specifications of the JESLED 4FT T8 LED Tube Light.
Image 3.2: Illustration of the D-shaped design providing wide-angle illumination.
4. Famaritana
| toetra | sarobidy |
|---|---|
| Marika | JESLED |
| Anarana modely | JDN0413TCDW |
| Karazana hazavana | LED |
| Wattage | 40 watts |
| Mitovitovy amin'ny incandescent Wattage | 96 Watts |
| ny famirapiratry ny mazava | 5200 Lumens |
| Temperature loko | 6000 Kelvin (Fotsy mangatsiaka) |
| Haben'ny endrika takamoa | T8 |
| Fony takamoa | G13 |
| BOKYtage | 110V |
| Beam Angle | 300 degre |
| Fiainana antonony | 50,000 ora |
| KEVITRA | VIRATY |
| Endri-javatra manokana | Energy Efficient, Eye-Friendly, Flicker-Free, High Efficiency |
5. Torolàlana fametrahana
The JESLED T8 LED Tube Light supports dual-mode installation (Type A+B), allowing for both plug-and-play with existing electronic ballasts or direct wiring (ballast bypass). Always ensure power is disconnected before beginning any installation.
5.1. General Pre-Installation Steps
- Vonoy ny herinaratra amin'ny fiatoan'ny faritra na ny boaty fuse.
- Remove the existing fluorescent tube(s) from the fixture.
- Identify the type of installation required: Type A (Plug & Play) or Type B (Ballast Bypass).
Image 5.1: Easy installation of the LED tube light.
5.2. Type A Installation (Plug & Play with Ballast)
This method allows the LED tube to work with your existing electronic ballast without rewiring. Ensure your ballast is compatible (refer to the compatibility list below).
- Confirm the fixture has a compatible electronic ballast.
- Insert the JESLED T8 LED tube light into the existing fixture sockets.
- Ensure the tube is firmly seated in the holders.
- Avereno ny hery ary andramo ny hazavana.
5.3. Type B Installation (Ballast Bypass / Direct Wire)
This method requires removing the existing ballast and directly wiring the fixture to AC power. This provides maximum energy savings and eliminates ballast-related issues.
- Tapaka ny hery: Ensure power to the fixture is OFF at the circuit breaker.
- Esory ny Balast: Open the fixture and locate the ballast. Cut all wires connected to the ballast and remove it.
- Remove Starter (if present): If your fixture has a starter, remove it.
- Avereno fehezina ny tariby: The JESLED T8 LED tube light is double-end powered. Connect the live (black) wire from the AC power to the pins on one end of the fixture's tombstone sockets. Connect the neutral (white) wire from the AC power to the pins on the other end of the fixture's tombstone sockets. Use wire nuts to secure all connections.
- Install LED Tube: Insert the LED tube light into the rewired fixture sockets. Ensure it is firmly seated.
- Ampodio hery: Avereno ny herinaratra amin'ny fiatoana ary andramo ny jiro.

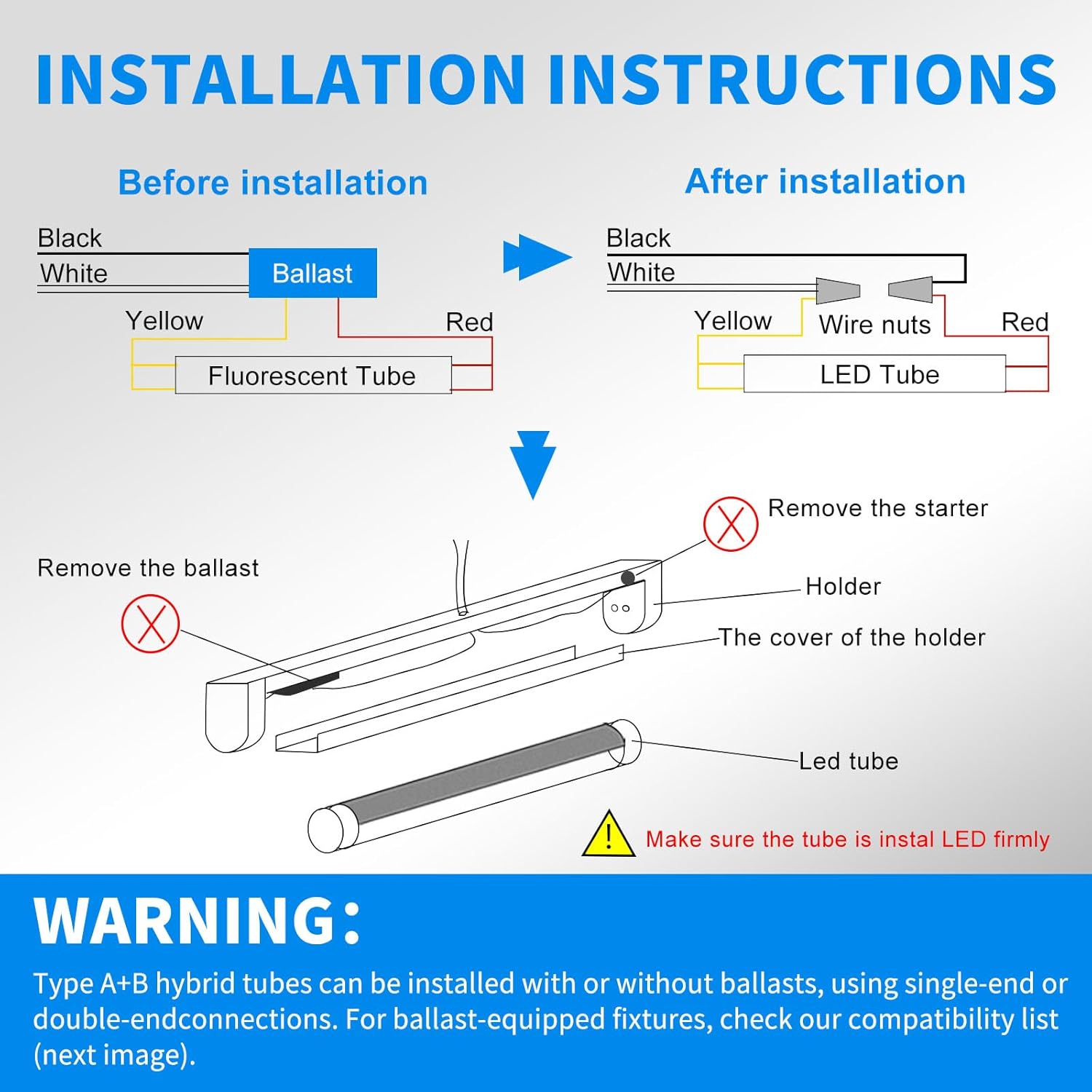

Image 5.2: Wiring diagram for Type B (Ballast Bypass) installation.
5.4. Ballast Compatibility List (for Type A Installation)
For Type A (Plug & Play) installation, it is crucial to verify your existing ballast is compatible. Using an incompatible ballast may cause damage or improper operation. The following is a partial list of compatible ballasts. If your ballast is not listed, consider Type B (Ballast Bypass) installation.
Image 5.3: Partial list of compatible ballasts for Type A installation.
5.5. Fametrahana Video Guide
For a visual guide on installation and product features, please refer to the video below:
Video 5.1: JESLED Product Overview and Installation Demonstration. This video provides a general overview of JESLED products and includes a brief demonstration of LED tube light installation.
6. Torolàlana miasa
Once properly installed, operating the JESLED T8 LED Tube Light is straightforward:
- Herim-batana / maty: Ampiasao ny bokotra mahazatra amin'ny rindrina mifandray amin'ny jiro mba hampirehitra na hamonoana ny jiro.
- The LED tube lights provide instant full brightness with no warm-up time or flickering.
7. Fikojakojana
The JESLED T8 LED Tube Light requires minimal maintenance due to its long lifespan and durable construction.
- Fanadiovana: Ataovy azo antoka fa maty ny herinaratra alohan'ny hanadiovana azy. Ampiasao lamba malefaka, maina, na somary maina.amp cloth to wipe the surface of the tube. Do not use abrasive cleaners or solvents.
- Fanaraha-maso: Periodically check the tube and fixture for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
- Fanoloana: Due to the long lifespan, replacement is infrequent. When replacement is necessary, ensure power is off and follow the installation instructions for safe removal and replacement.
8. Famahana olana
If you encounter issues with your JESLED T8 LED Tube Light, refer to the following common problems and solutions:
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tsy mirehitra ny jiro | No power to the fixture; Loose connection; Incompatible ballast (Type A); Incorrect wiring (Type B); Damaged tube. | Check circuit breaker/fuse; Ensure tube is firmly seated; Verify ballast compatibility or wiring; Replace tube if damaged. |
| Mitsilopilopy na miposaka ny hazavana | Incompatible or failing ballast (Type A); Loose connection; Voltage miovaova. | For Type A, check ballast compatibility or consider ballast bypass (Type B) installation; Check connections; Consult an electrician for voltage olana. |
| Manjavozavo ny hazavana | Incompatible ballast (Type A); Incorrect voltage. | For Type A, check ballast compatibility; Verify correct voltage famatsiana. |
| Ballast gets hot and shuts off (Type A) | Balast tsy mifanaraka. | This indicates the ballast is not compatible. It is recommended to perform a Type B (Ballast Bypass) installation to prevent damage to the ballast and ensure proper operation of the LED tube. |
9. Fampiharana
The JESLED 4FT T8 LED Tube Light is suitable for a wide range of indoor applications requiring bright, efficient, and consistent lighting.
Sary 9.1: Eksamples of JESLED LED tube lights in different environments.
Image 9.2: JESLED LED tube lights providing illumination in an office setting.
10. Warranty sy fanohanana
Manohana ny kalitaon'ny vokatra vokariny ny JESLED.
- antoka: This product is backed by a 3-year manufacturer's warranty.
- Exchange Service: A 30-day exchange service is provided.
- Fanohanana ny mpanjifa: JESLED offers 7*24H after-sales service. For any inquiries or support needs, please contact JESLED customer service.
- Certifications: This product is ETL certified, ensuring compliance with North American safety standards.
