ZEUSLAP Z18W 2x18.5" Dual Screen Portable Monitor User Manual

1. Fampidirana

Thank you for choosing the ZEUSLAP Z18W Dual Screen Portable Monitor. This device is designed to enhance your productivity and multimedia experience by providing two additional 18.5-inch displays for your compatible devices. This manual provides essential information for setting up, operating, and maintaining your monitor.

2. Vokatra mihoatraview

2.1 Lafin-javatra fototra

• Dual 18.5-inch Full HD IPS Displays: Enjoy vibrant colors and wide viewing angles with 1920x1080 resolution on each screen.
• 120Hz Refresh tahan'ny: Experience smooth visuals, ideal for gaming and fast-paced multimedia.
• Type-C Connectivity: Single cable solution for power and video transmission with compatible devices.
• 100% sRGB Color Gamut: Ensures accurate and rich color reproduction.
• 300 cd/m² Brightness: Provides clear visibility in various lighting conditions.
• Fonctionality écran mikasika: Mifandraisa mivantana amin'ny efijery mba hahazoana fifehezana mora ampiasaina.
• Wide Compatibility: Connects to Laptops, Desktops, Gaming Consoles, and Smartphones.

2.2 Ny votoatin'ny fonosana

Azafady, jereo ny fonosana ho an'ireto zavatra manaraka ireto:

• ZEUSLAP Z18W Dual Screen Portable Monitor
• USB-C to USB-C Cable (for video and power)
• USB-A to USB-C Power Cable (for additional power if needed)
• User Manual

This image shows the ZEUSLAP Z18W dual portable monitor set up next to a laptop, demonstrating its extended display capabilities for enhanced productivity.

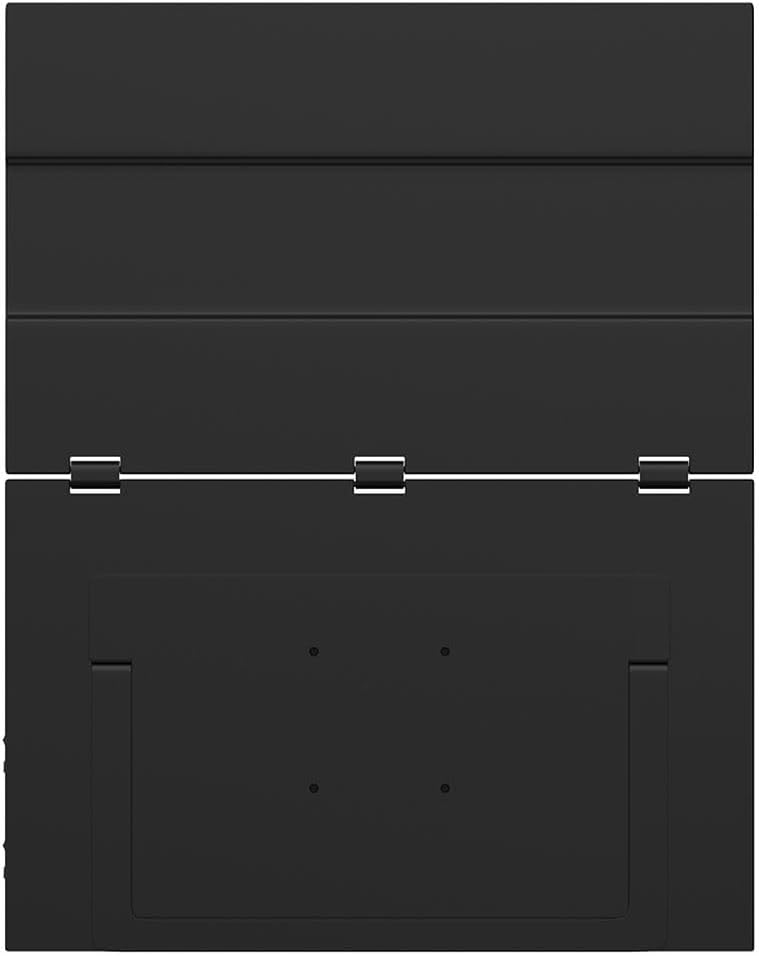

Ny lamosina view of the ZEUSLAP Z18W monitor highlights its robust hinge design and integrated stand, allowing for flexible positioning and stability.

3. Fametrahana

3.1 Mampifandray amin'ny fitaovana iray

The ZEUSLAP Z18W monitor supports various connection methods. Ensure your device has the necessary ports.

1. USB-C (Full-Featured): If your laptop, smartphone, or gaming console has a full-featured USB-C port (supporting DisplayPort Alternate Mode and power delivery), connect the monitor using the provided USB-C to USB-C cable. This single cable can transmit video, audio, and power to the monitor.
2. USB-C (Power Only) + HDMI (Video): If your device's USB-C port does not support video output, or if you are connecting to a device with an HDMI port, you will need two cables:
   • Connect an HDMI cable (not included) from your device to the monitor's HDMI input.
   • Connect the provided USB-A to USB-C power cable from a USB power source (e.g., laptop USB port, wall adapter) to the monitor's USB-C power input.

3.2 Mamelona/Mamono

• Herim-batana: Once connected to a compatible device and receiving power, the monitor should automatically power on. If not, press the Power button located on the side of the monitor.
• Mamono hery: Press and hold the Power button for a few seconds until the display turns off. Disconnect the cables when not in use.

4. Torolàlana miasa

4.1 Menu amin'ny efijery (OSD).

The OSD menu allows you to adjust various display settings. The monitor typically features a joystick or a set of buttons for navigation.

• Fidirana amin'ny OSD: Press the OSD button (or push the joystick) to open the menu.
• Fikarohana: Use the joystick or directional buttons to move through menu options.
• Fifidianana: Press the OSD button (or push the joystick in) to select an option.
• Fivoahana: Navigate to the 'Exit' option or press the 'Back' button to close the OSD menu.

Common OSD settings include Brightness, Contrast, Color Temperature, Input Source, Aspect Ratio, and Volume.

4.2 Fomba fampisehoana

When connected to a computer, you can configure the display mode through your operating system's display settings:

• Fomba fanitarana: Each monitor displays a separate desktop, allowing for more screen space and multitasking.
• Fomba dika mitovy: All monitors display the same content, useful for presentations or sharing your screen.

4.3 Touch Screen Functionality

The ZEUSLAP Z18W features a touch screen. For touch functionality to work, ensure your device supports touch input over the connected interface (typically USB-C) and that the necessary drivers are installed (usually automatically by the operating system).

• Fikasihana tokana: Tap to select or open items.
• Multi-Touch Gestures: Use gestures like pinch-to-zoom, two-finger scroll, etc., as supported by your operating system.

5. Fikojakojana

5.1 Fanadiovana ny Monitor

• Vonoy foana ny efijery ary esory ny tariby rehetra alohan'ny hanadiovana azy.
• Mampiasà lamba malefaka sady tsy misy sosotra moramora dampesorina amin'ny rano na mpanadio écran tsy mikosoka.
• Aza manipy mpanadio mivantana eo amin'ny efijery.
• Fadio ny mampiasa alikaola, amoniaka, na mpanadio mikikisana, satria mety hanimba ny velaran'ny efijery izany.

5.2 Fitehirizana

• Tehirizo ao amin'ny toerana mangatsiatsiaka sy maina lavitry ny tara-masoandro mivantana sy ny hafanana tafahoatra ny monitor.
• Use the original packaging or a protective case to prevent damage during transport or storage.

6. Famahana olana

7. Famaritana

8. Warranty sy fanohanana

The ZEUSLAP Z18W Dual Screen Portable Monitor comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including the warranty period and coverage details.

For technical support, troubleshooting assistance, or warranty claims, please contact the retailer where you purchased the product or visit the official ZEUSLAP webtranokala momba ny fifandraisana amin'ny serivisy mpanjifa.
