HAFELE Magic Corner Cabinet Pull-Out System

1. Vokatra mihoatraview

The HAFELE Magic Corner Cabinet Pull-Out System, model 548.16.202, is an innovative storage solution designed to maximize space in corner cabinets. This system features a robust steel construction with a polished chrome finish, ensuring durability and a sleek appearance. It is engineered for both left and right opening cabinets and includes a soft-close mechanism for smooth and quiet operation. The system has a total load capacity of 40 kg, making it suitable for storing various kitchen items.

• Designed for corner cabinets.
• Compatible with left or right opening configurations.
• Constructed from steel with a polished chrome finish.
• Equipped with a soft-close mechanism.
• Total load capacity of 40 kg.
• Requires a minimum cabinet height of 520 mm.
• Suitable for interior cabinet widths between 900 mm and 1000 mm.

Image 1.1: The HAFELE Magic Corner system partially extended from a white cabinet, showcasing ny endriny sy ny fiasany.

2. Anisan'izany ny singa

Azafady, hamarino fa misy ireto singa manaraka ireto ao anaty fonosanao alohan'ny hanombohan'ny fametrahana:

• 1 x Magic Corner pull-out hardware mechanism.
• 1 x Installation instruction manual (this document).
• 4 x Hanging baskets (dimensions: 305mm depth x 472mm width x 85mm height).

3. Fametrahana sy fametrahana

Careful installation is crucial for the proper function and longevity of your Magic Corner system. Refer to the detailed diagrams below for guidance. Professional installation is recommended.

3.1. Fanamarinana mialoha ny fametrahana

• Ensure your cabinet meets the minimum height (520 mm) and interior width (900-1000 mm) requirements.
• Confirm all components are present and undamaged.
• Gather necessary tools (e.g., drill, screwdriver, measuring tape, level).

3.2. Installation Steps (Refer to Image 3.1)

The installation process involves mounting the main mechanism within the corner cabinet. The diagrams illustrate the movement from a closed position to an open and tilted position for both right and left opening configurations.

1. Positioning the Mechanism: Carefully place the main pull-out mechanism inside the corner cabinet, ensuring it aligns with the cabinet's dimensions and intended opening direction (left or right).
2. Fiarovana ny fototra: Secure the base of the mechanism to the cabinet floor using appropriate fasteners. Ensure it is level and stable.
3. Attaching the Side Mounts: Attach any required side mounting brackets to the cabinet walls, following the specific instructions provided with the hardware.
4. Installing the Baskets: Once the main mechanism is securely installed, attach the four hanging baskets to the designated points on the pull-out frame.
5. Fanitsiana: Perform any necessary adjustments to ensure smooth operation and proper alignment of the pull-out system within the cabinet. Test the soft-close function.

Image 3.1: Installation diagrams illustrating the movement and positioning for both right and left opening configurations of the Magic Corner system.

4. Torolàlana miasa

The HAFELE Magic Corner system is designed for intuitive and smooth operation.

1. Opening the Cabinet: Open the cabinet door fully.
2. Pulling Out the System: Gently pull the front baskets forward. The mechanism will smoothly guide the rear baskets into an accessible position.
3. Accessing Items: Once fully extended, both sets of baskets will be accessible for loading or unloading items.
4. Closing the System: Push the baskets back into the cabinet. The soft-close mechanism will engage, ensuring a quiet and gentle return to the closed position.

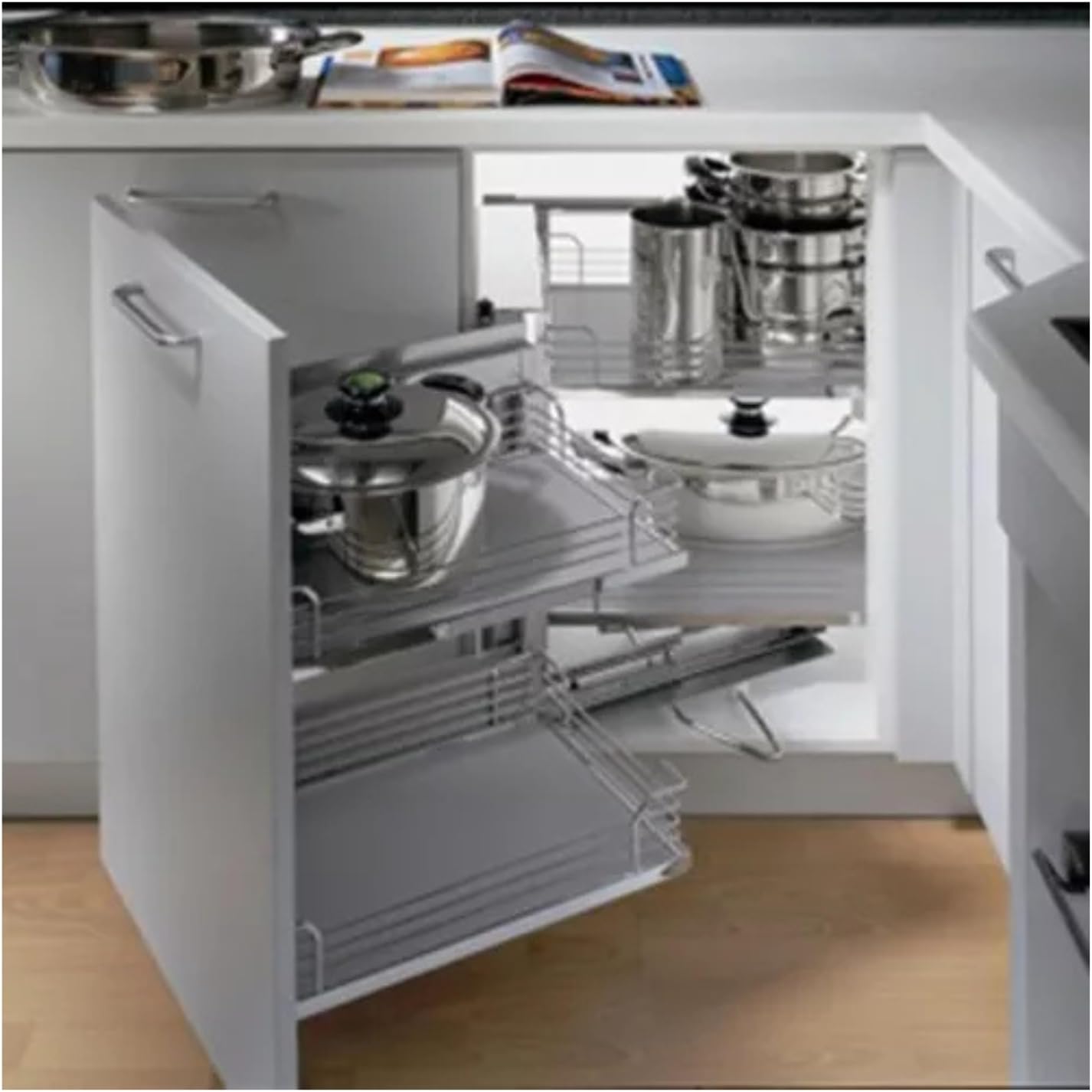

Image 4.1: The Magic Corner system partially extended, showcasing its capacity for pots and pans.

Image 4.2: The Magic Corner system fully extended, providing full access to stored kitchenware.

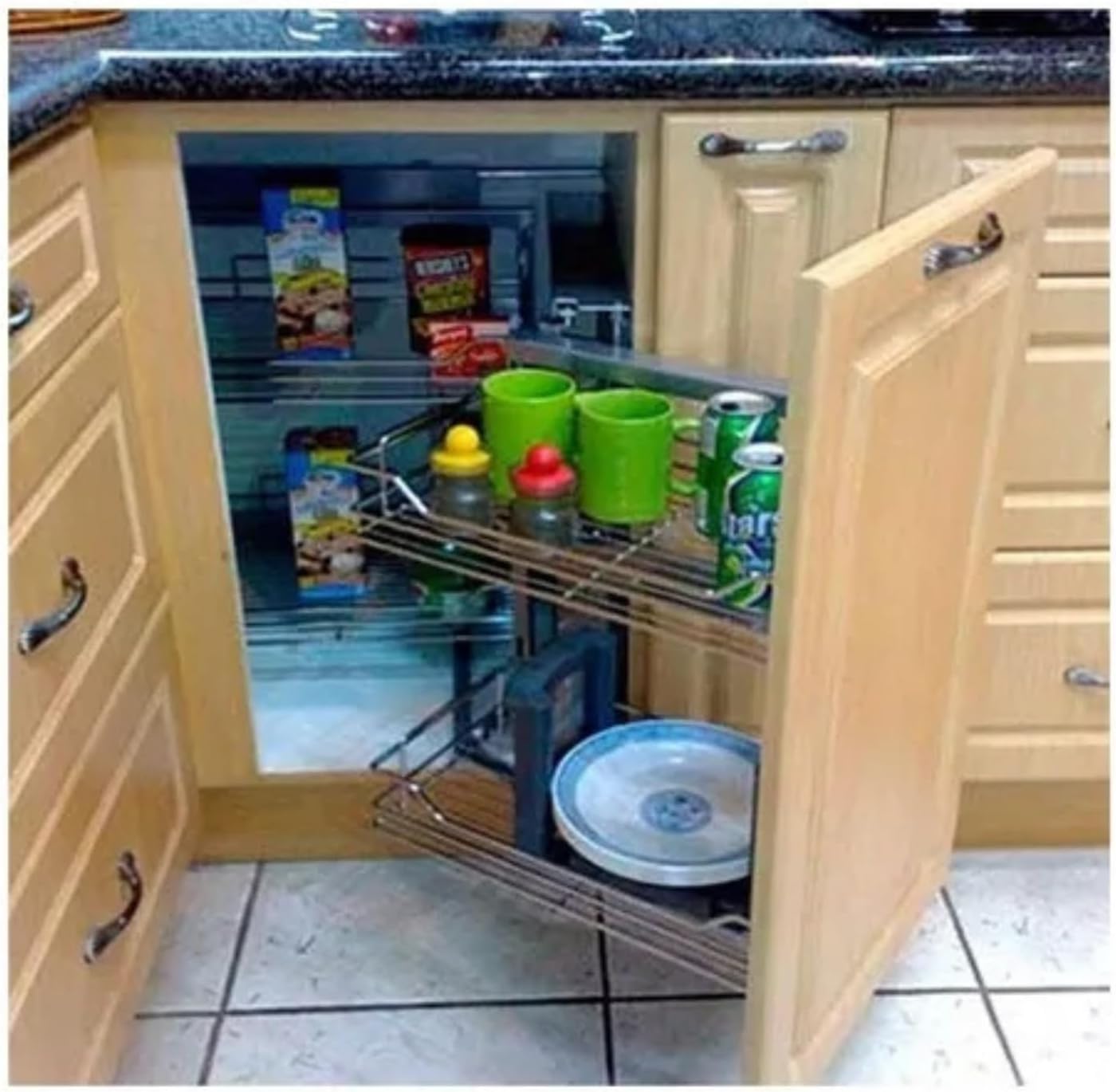

Image 4.3: The Magic Corner system in a wooden cabinet, demonstrating its versatility for storing different kitchen items.

5. Fikojakojana

To ensure the longevity and optimal performance of your HAFELE Magic Corner system, follow these simple maintenance guidelines:

• Fanadiovana: Wipe down the chrome-plated steel surfaces and baskets regularly with a soft, damp cloth. For stubborn stains, use a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads, which can damage the finish.
• fanosorana: Periodically check the moving parts and slides. If movement becomes stiff, apply a small amount of silicone-based lubricant to the runners. Do not use oil-based lubricants, as they can attract dust and grime.
• Weight Capacity: Do not exceed the maximum load capacity of 40 kg. Overloading can stress the mechanism and lead to damage.
• Fanamarinana fasteners: Occasionally check all mounting screws and fasteners to ensure they are tight. Retighten if necessary.

6. Famahana olana

If you encounter any issues with your Magic Corner system, consider the following common solutions:

• System is Stiff or Difficult to Pull Out/Push In:
  • Check for obstructions within the cabinet or along the runners.
  • Ensure the system is not overloaded. Remove some items and test again.
  • Apply lubricant to the runners as described in the Maintenance section.
• Soft-Close Mechanism Not Working:
  • Verify that the system is fully engaged when closing. Sometimes a gentle push is needed to activate the soft-close.
  • Inspect the soft-close damper for any visible damage or debris.
• Baskets are Uneven or Wobbling:
  • Check that all mounting screws are securely tightened.
  • Ensure the weight is evenly distributed across the baskets.
  • Verify that the cabinet itself is level and stable.

If these steps do not resolve the issue, please contact Hafele customer support for further assistance.

7. Famaritana

8. Warranty sy fanohanana

For warranty information, please refer to the documentation provided at the time of purchase or visit the official Hafele website. For technical support, spare parts, or any other inquiries, please contact Hafele customer service directly. Ensure you have your model number (548.16.202) available when contacting support.

Hafele Contact Information: Please refer to your regional Hafele webtranokala na fonosana vokatra ho an'ny antsipiriany momba ny fifandraisana farany indrindra.
