1. Fampidirana
Welcome to the user manual for your Alcatel F685 Trio Cordless Phone. This system includes a base unit with an integrated answering machine and multiple cordless handsets, designed for reliable communication in your home or office. The F685 offers essential features such as caller ID, a simple keypad, and a basic conference call function, all within an elegant black finish.
Key features include a 17-minute recording capacity answering machine and an impressive standby time of up to 240 hours.
Image: The Alcatel F685 Trio Cordless Phone, showing the handset docked in its base unit.
2. Fametrahana
2.1 Famoahana sy singa
Carefully unpack all items from the box. Ensure you have the base unit, three cordless handsets, three charging cradles (one integrated into the base), three power adapters (one for the base, two for cradles), three telephone line cords, and six rechargeable AAA NiMH batteries.
2.2 Fametrahana bateria
For each handset:
- Sokafy ny fonon'ny efitrefitra bateria ao ambadiky ny finday.
- Insert the two supplied AAA NiMH rechargeable batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
- Akatona tsara ny saron'ny efitrefitra bateria.
Sary: aoriana view of an Alcatel F685 handset placed in its charging cradle, illustrating the battery compartment area.
2.3 Charging the Handsets
Place each handset on its respective charging cradle or the base unit. The charging indicator on the handset will illuminate. Allow the handsets to charge for at least 15-20 hours before first use to ensure optimal battery performance and life.
2.4 Fampifandraisana ny Vondrona fototra
- Connect the power adapter to the 'POWER' socket on the base unit and then plug it into a standard wall electrical outlet.
- Connect one end of the telephone line cord to the 'LINE' socket on the base unit and the other end to your telephone wall socket.
Repeat the power connection for the additional charging cradles for the other two handsets.
2.5 Handset Registration
The handsets are typically pre-registered to the base unit. If a handset displays 'Unregistered' or similar, you may need to manually register it. Refer to the detailed instructions in the full product manual for the specific registration process, which usually involves pressing a button on the base unit and then a key sequence on the handset.
3. Torolàlana miasa
3.1 Fanaovana antso
- Pick up a handset or press the Antso Maitso bokotra.
- Antsoy ny laharan-telefaonina tianao amin'ny alalan'ny keypad.
- Tsindrio ny Antso Maitso bokotra indray hanombohana ny antso.
3.2 Mandray antso
Rehefa maneno ny telefaona dia tsindrio ny Antso Maitso button on any handset to answer the call.
3.3 Milina famaliana
The integrated answering machine has a 17-minute recording capacity for incoming messages.
- The base unit features a digital message counter, which displays the number of new messages (e.g., '08' in the image below).
- Use the playback controls (Play/Stop, Skip forward, Skip Backward) on the base unit to listen to and navigate through messages.
- To delete messages, press the Mamafa button (trash can icon) on the base unit.
Image: Close-up of the Alcatel F685 base unit's answering machine controls, showing the digital message counter and playback buttons.
3.4 ID mpiantso
The handset display shows the incoming caller's number if the Caller ID service is active and subscribed through your telephone service provider.
3.5 Fanakanana antso
The phone features an advanced call blocking function to filter unwanted calls.
- Fomba tanana: Block unwanted numbers one by one using the dedicated call block button (often represented by a shield icon or similar, located near the M1/M2 buttons on the handset).
- Fomba mandeha ho azy: Configure the phone to only ring for numbers stored in your phonebook, effectively blocking all other incoming calls.

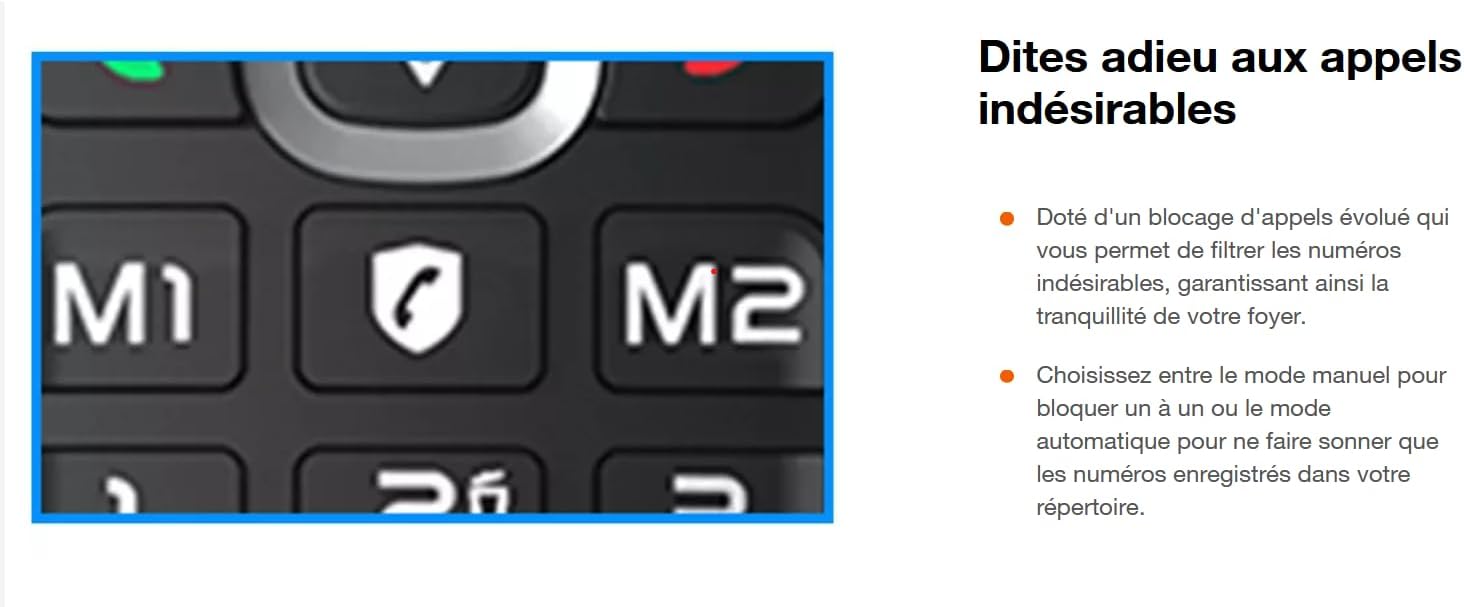

Image: Close-up of the Alcatel F685 handset keypad, highlighting the M1, M2, and call blocking (shield) buttons.
3.6 Conference Call
The system supports basic conference calls. Refer to the full product manual for specific steps on initiating a three-way call between an external caller and two internal handsets.
3.7 Backlit Display
Each handset features a large, backlit display for optimal readability, making it easy to view numbers, names, and messages in various lighting conditions.
Image: Close-up of the Alcatel F685 handset's backlit display showing a phone number.
4. Fikojakojana
4.1 Fanadiovana
Ampiasao malefaka, damp cloth to clean the handset and base unit. Do not use abrasive cleaners, solvents, or strong chemicals, as these can damage the surfaces.
4.2 Fikarakarana bateria
To prolong battery life, avoid leaving the handset on the charger for extended periods once fully charged. If the phone will not be used for a long time, remove the batteries from the handsets. Replace batteries when their performance significantly degrades.
4.3 Toetran'ny tontolo iainana
Keep the phone away from extreme temperatures, direct sunlight, and moisture. Ensure the base unit and charging cradles are placed on a stable, level surface.
5. Famahana olana
If you encounter issues with your Alcatel F685 Trio phone, try the following troubleshooting steps:
- Tsy misy tononkalo:
- Ensure the power adapter and telephone line cord are securely connected to the base unit and wall outlets.
- Hamarino raha efa voafahana ny bateria-n'ny finday.
- Test the telephone line with another phone if available to rule out a line issue.
- Tsy afaka mandray/manao antso an-tariby:
- Verify handset registration. If unregistered, follow the registration steps in the full manual.
- Check for any active call blocking settings that might be preventing calls.
- Answering Machine Not Recording:
- Ensure the answering machine function is turned on.
- Check if the memory is full. Delete old messages if necessary.
- Ratsy kalitao antso:
- Move closer to the base unit to improve signal strength.
- Ensure no other electronic devices (e.g., Wi-Fi routers, microwaves) are causing interference near the base unit or handset.
6. Famaritana
- marika: Alcatel
- Laharana modely: F685 TRIO
- loko: Mainty
- Karazana finday: Cordless (Wireless)
- Fitaovana: Plastika na metaly
- Batterie: 2 x AAA NiMH rechargeable batteries (included per handset)
- Rafitra famaliana: Digital, 17 minutes recording capacity
- Fitaovana mifanentana: Wired telephone networks
- Karazana keypad: Fitendry tokana
- Conference Call Capacity: fototra
- Fotoana mijoro: Hatramin'ny 240 ora
7. Warranty sy fanohanana
For detailed warranty information, please refer to the documentation provided at the time of purchase or contact your retailer directly. Information regarding spare parts availability and software updates for this product is not provided in the available product specifications.
For further assistance or technical support, please contact Alcatel customer service or your product retailer.
