KINGTORO Black Crystal Chandelier User Manual

1. Vokatra mihoatraview

The KINGTORO 16-inch Black Crystal Chandelier is an elegant lighting fixture designed to enhance various indoor spaces. It features 100% handcrafted water ripple glass, creating a unique and calming ambiance. The design blends rustic and industrial styles, making it suitable for diverse interior decors.

This chandelier is ideal for kitchen islands, dining rooms, living rooms, bedrooms, hallways, foyers, and entryways. Its adjustable chain allows for flexible height customization to fit different ceiling types, including flat, slanted, or vaulted ceilings.

Image: The KINGTORO 16-inch Black Crystal Chandelier, showcasing its elegant design with water ripple glass and black metal frame.

2. Information momba ny fiarovana

FAMPITANDREMANA: Before installing, cleaning, or replacing light bulbs, always ensure the power supply is cut off at the circuit breaker to prevent electric shock.

This product is designed for indoor use only. Ensure all connections are secure and follow local electrical codes.

3. Inona no ao anaty boaty

Hamarino fa misy ny singa rehetra alohan'ny hanombohan'ny fametrahana:

• Chandelier Frame with Bulb Sockets
• Water Ripple Glass Panels
• Rojo Adjustable
• Valin'ny valindrihana
• Fitaovana fametrahana (visy, voanjo tariby, sns.)
• Boky torolalana

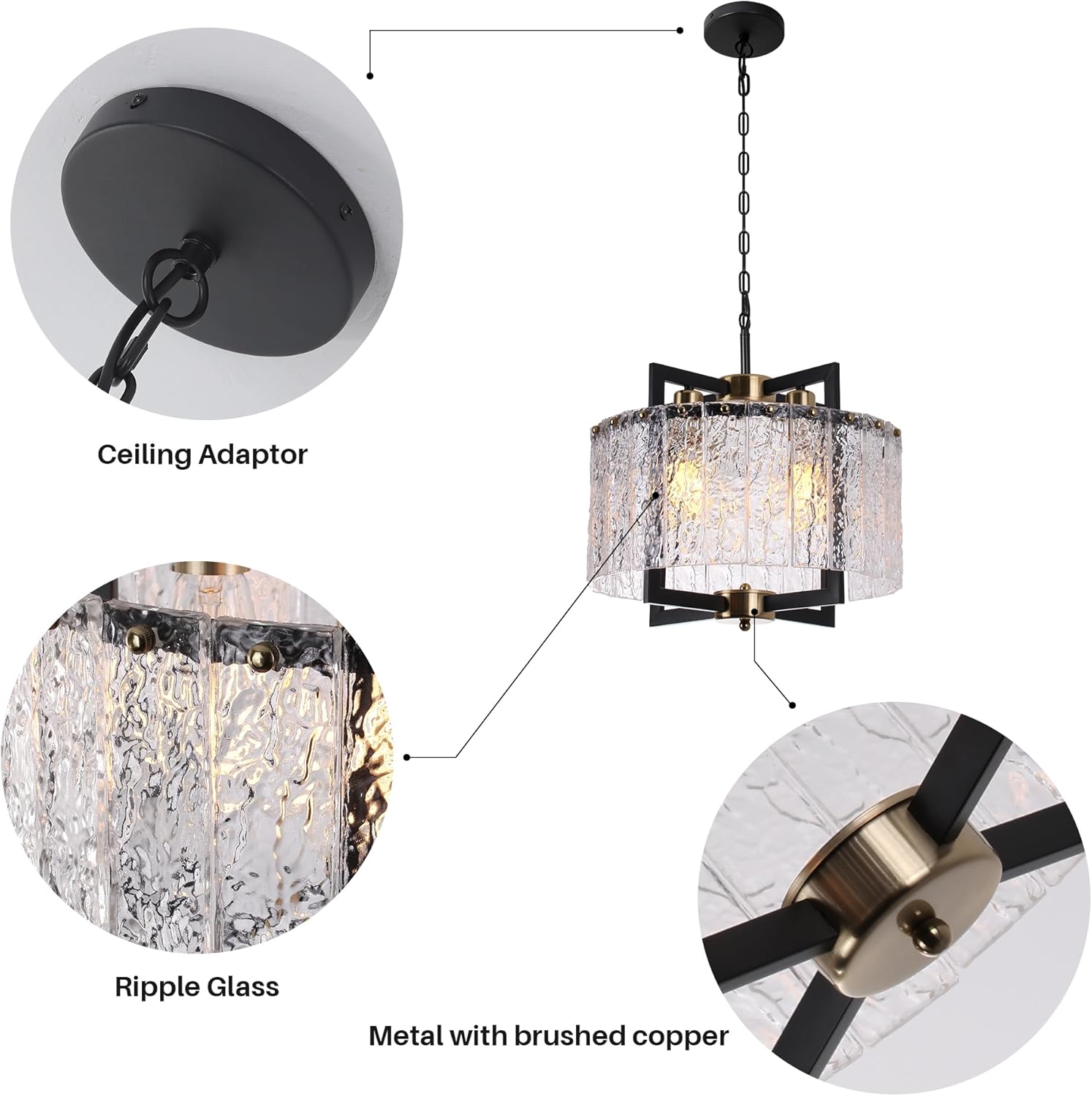

Sary: Detailed view of the chandelier's main components, including the ceiling adaptor, water ripple glass, and metal frame with brushed copper accents.

4. Fametrahana sy fametrahana

Follow these steps for proper installation. It is recommended to have a qualified electrician perform the installation if you are unsure.

1. Miomana amin'ny fametrahana: Turn off power at the main circuit breaker. Ensure the mounting surface is secure and can support the weight of the fixture.
2. Assemble the frame: Connect the main frame components as per the included diagram. Secure all screws tightly.
3. Wire the fixture: Connect the fixture's wires to your household electrical wires. Typically, black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground). Use appropriate wire connectors.
4. Tendrombohitra lakandrano (mount the canopy): Secure the ceiling canopy to the electrical box using the provided mounting hardware.
5. Attach the Chain: Adjust the chain length to your desired height. The total height can reach up to 46 inches, with an adjustable chain of up to 27 inches. Attach the chain to the canopy and the fixture.
6. Mametraka takamoa: Screw in the required E26 base bulbs (not included).
7. Attach Glass Panels: Carefully attach each water ripple glass panel to the frame using the small brass knobs. Ensure they are securely fastened.

For a visual guide on assembly and installation, please refer to the video below:

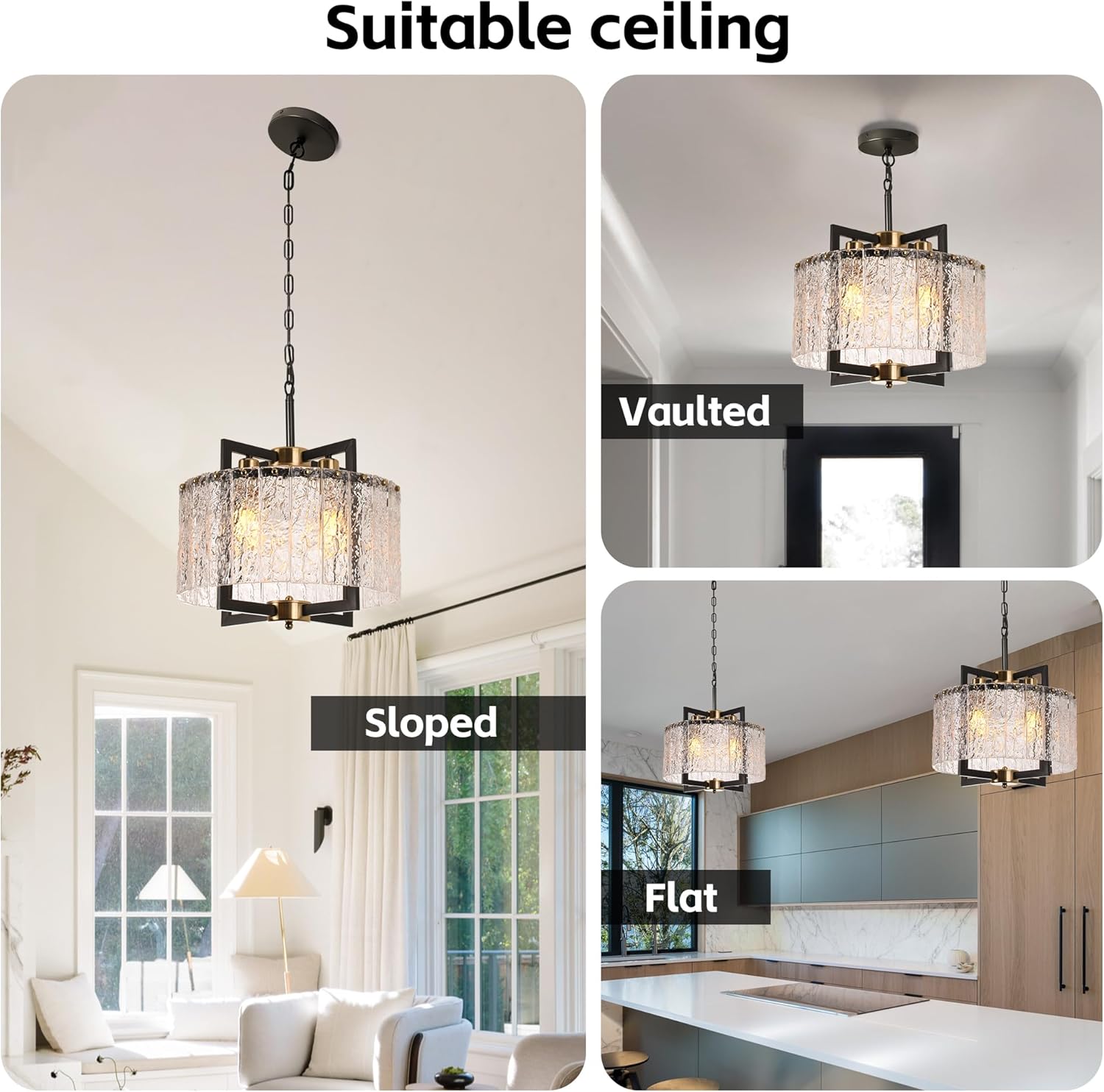

Sary: Eksamples of the chandelier installed on various ceiling types: sloped, vaulted, and flat, demonstrating its adaptability.

5. Torolàlana miasa

Once installed, the chandelier operates via a standard wall switch. It requires 4 E26 base bulbs, with a maximum wattage of 40W per bulb. Bulbs are not included with the fixture.

The chandelier is compatible with various bulb types, including:

• LED bulbs (dimmable and non-dimmable)
• Energy-saving bulbs
• Bulbs halogen
• Tungsten bulbs

For dimming functionality, ensure you use dimmable E26 bulbs and a compatible dimmer switch (sold separately).

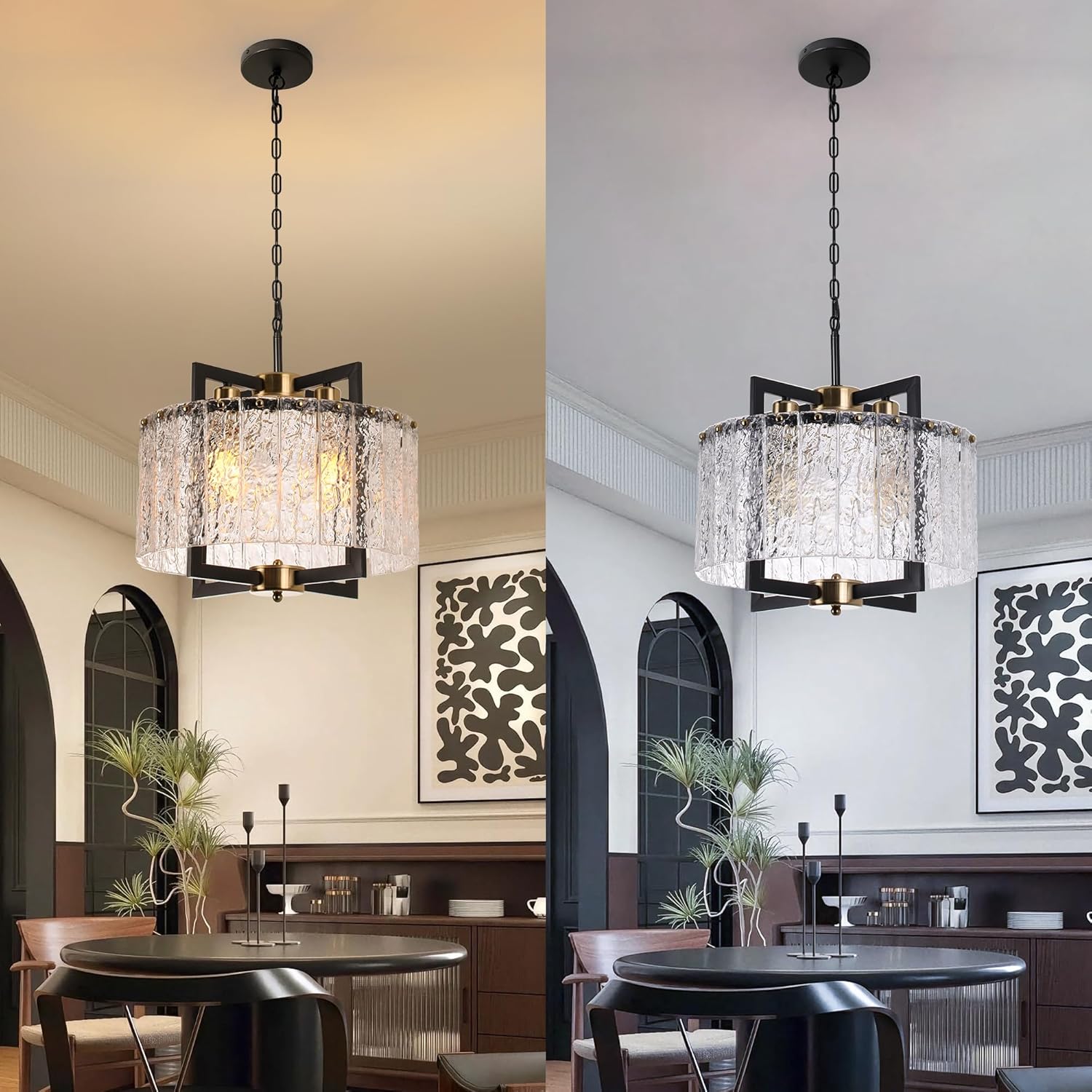

Image: Comparison of the chandelier illuminated with warm light bulbs versus white light bulbs, demonstrating different ambiance options.

6. Fikojakojana

To maintain the appearance and functionality of your chandelier, follow these guidelines:

• Fanadiovana: Always turn off the power supply before cleaning. Use a soft, dry cloth to wipe the metal frame. For the glass panels, a slightly damp cloth with a mild glass cleaner can be used, then dry immediately. Avoid abrasive cleaners or solvents.
• Fanoloana takamoa: Ensure the power is off and bulbs have cooled before replacing. Unscrew the old bulb and screw in a new E26 base bulb (max 40W).
• Glass Panel Replacement: If a glass panel needs replacement, carefully unscrew the small brass knobs holding it in place. Remove the damaged panel and insert a new one, securing it with the knobs.

For a visual guide on replacing the water glass crystal piece, please refer to the video below:

7. Famahana olana

If you encounter issues with your chandelier, consider the following common solutions:

• Jiro tsy mandeha:
  • Hamarino ny fanapahan-jiro mba hahazoana antoka fa mandeha ny herinaratra.
  • Verify that bulbs are securely screwed in and not burnt out.
  • Inspect wire connections for looseness or damage (ensure power is off before inspecting).
• Jiro mitsilopilopy (Flickering Lights):
  • Ensure bulbs are fully tightened.
  • If using dimmable bulbs, confirm compatibility with your dimmer switch.
  • Check for loose wiring connections (power off).
• Jiro tsy mirindra (uneven lighting):
  • Ataovy azo antoka fa mitovy karazana sy wat ny takamoa rehetratage.
  • Check if any glass panels are misaligned or dirty.

Raha mbola mitohy ny olana dia mifandraisa amin'ny serivisy ho an'ny mpanjifa.

8. Famaritana

Image: Diagram illustrating the product specifications, including dimensions, adjustable height, and bulb requirements.

9. Warranty sy fanohanana

KINGTORO is committed to customer satisfaction. All accessories for this chandelier can be replaced free of charge.

If you have any questions about your purchase, require assistance with installation, or need replacement parts, please do not hesitate to contact us. We aim to respond and provide support within 24 hours.

Our primary goal is to ensure you are completely satisfied with your KINGTORO product.
