ECOWELL MA03-Lulu Quick Clean Pro Cordless Wet/Dry Vacuum Wash User Manual

Sava lalana

Thank you for choosing the ECOWELL MA03-Lulu Quick Clean Pro Cordless Wet/Dry Vacuum Wash. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and retain it for future reference.

Torolàlana manan-danja momba ny fiarovana

Araho foana ny fepetra fiarovana fototra rehefa mampiasa fitaovana elektrika mba hampihenana ny mety hisian'ny afo, fahatafintohinana herinaratra, na ratra. Ity fitaovana ity dia natao ho an'ny fampiasana an-trano ihany.

• Do not use outdoors or on wet surfaces other than those intended for wet cleaning.
• Aza avela atao kilalao. Ilaina ny mijery akaiky rehefa ampiasaina na eo akaikin'ny ankizy.
• Ampiasao araka izay voalaza ato amin'ity boky ity ihany. Ampiasao ihany ny fametahana atolotry ny mpanamboatra.
• Aza ampiasaina amin'ny tady na plug simba. Raha toa ka tsy mandeha araka ny tokony ho izy ny fitaovana, nazera, simba, navela tany ivelany, na nalatsaka tao anaty rano, dia avereno any amin'ny foibe serivisy.
• Aza misintona na mitondra amin'ny alalan'ny tady, mampiasa tady ho tahony, manidy varavarana amin'ny tady, na misintona tady manodidina ny sisiny maranitra na zorony. Aza asiana fitaovana amin'ny tady. Atsaharo ny tady amin'ny faritra mafana.
• Aza esorina amin'ny fisintonana ny tady. Mba hanesorana ny plug, alao ny plug fa tsy ny tady.
• Aza mitantana plug na fitaovana amin'ny tanana mando.
• Aza asiana zavatra ao anaty varavarana. Aza ampiasaina amin'ny fanokafana voasakana; tazomy amin'ny vovoka, volo, volo, ary izay mety hampihena ny fikorianan'ny rivotra.
• Arovy ny volo, ny akanjo mivaha, ny rantsantanana ary ny faritra rehetra amin'ny vatana amin'ny fisokafana sy ny faritra mihetsika.
• Aza maka zavatra mirehitra na mifoka sigara, toy ny sigara, afokasoka, na lavenona mafana.
• Mitandrema tsara rehefa manadio tohatra.
• Aza ampiasaina haka ranon-javatra mora mirehitra na mirehitra, toy ny lasantsy, na ampiasaina amin'ny faritra misy azy.
• Aza maka fitaovana misy poizina, toy ny chlorine bleach, amoniaka, na mpanadio tatatra.
• Do not use in an enclosed space where vapors are present from oil base paint, paint thinner, some mothproofing substances, flammable dust, or other explosive or toxic vapors.
• Aza maka zavatra mafy na maranitra toy ny vera, fantsika, visy, vola madinika, sns.
• Aza ampiasaina raha tsy misy tanky sy sivana eo amin'ny toerany.
• Vonoy ny fanaraha-maso rehetra alohan'ny hanesorana.
• Esory amin'ny fivoahana rehefa tsy ampiasaina ary alohan'ny fanompoana.

Vita ny vokatraview

The ECOWELL MA03-Lulu is a cordless wet/dry vacuum and floor washer designed for efficient cleaning of various floor types, including hard surfaces and rugs. It features a self-propelled design, dual water tanks, edge-cleaning technology, and an intuitive digital display.

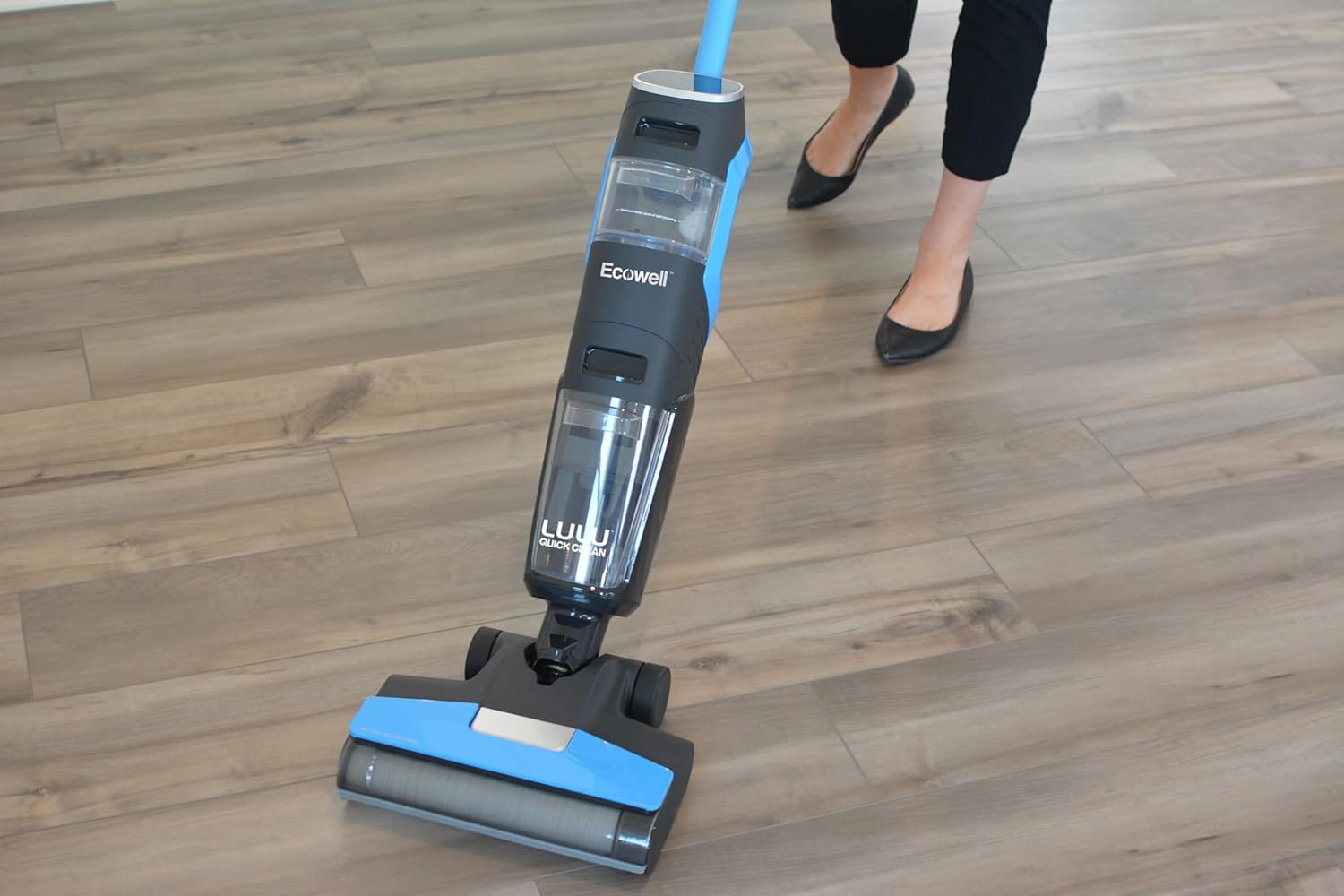

Image: The ECOWELL MA03-Lulu in operation, demonstrating its upright design and cleaning head on a wooden floor.

Hametraka

1. Unboxing sy Assembly

Carefully remove all components from the packaging. Ensure all parts are present before proceeding.

1. Insert the handle into the main body of the vacuum until it clicks securely into place.
2. Hamarino tsara fa mipetraka tsara ny fitoeran-drano madio sy ny fitoeran-drano maloto.

2. Fametrahana voalohany

Before first use, fully charge the appliance. Place the vacuum on its charging dock. The digital display will indicate charging status. A full charge provides approximately 30 minutes of runtime.

3. Famenoana ny fitoeran-drano madio

1. Esory ny fitoeran-drano madio amin'ny fitaovana.
2. Open the tank cap and fill with clean water. You may add a small amount of manufacturer-approved cleaning solution if desired. Do not overfill.
3. Securely close the cap and reinsert the tank into the appliance until it clicks.

Torolàlana miasa

1. Power On/off

Press the power button located on the handle to turn the appliance on or off. The digital display will illuminate.

Image: Close-up of the vacuum's handle, showing a hand pressing the power button, which also features a water droplet icon.

2. Fomba fanadiovana

The MA03-Lulu is designed for both wet and dry messes. The appliance automatically adjusts for optimal cleaning. The digital display will show the current mode.

Image: The vacuum head actively cleaning scattered dry debris on a light wooden floor.

Image: The vacuum head cleaning a spill containing both liquid and solid debris on a wooden floor, demonstrating its wet/dry capability.

3. Maneuverability and Edge Cleaning

The self-propelled design makes cleaning effortless. The appliance can tilt up to 160° backward and 45° left/right, allowing access to hard-to-reach areas. The edge-cleaning technology ensures thorough cleaning along walls and furniture.

Image: The vacuum head is shown in a low-angle position, demonstrating its ability to reach under furniture for cleaning.

Image: The vacuum head positioned against a wall, illustrating its edge-cleaning capability to clean close to baseboards.

4. Digital Display Indicators

The intuitive digital display provides real-time information:

• Tondro bateria: Mampiseho ny faharetan'ny bateria sisa.
• Fomba famantarana: Displays the current cleaning mode.
• Tanky rano madio Shortage famantarana: Alerts when the clean water tank needs refilling.
• Dirty Water Tank Full Indicator: Alerts when the dirty water tank needs emptying.
• Hair Removal Indicator: May indicate when the brush roll needs cleaning due to hair entanglement.

fikarakarana

Regular maintenance ensures optimal performance and extends the lifespan of your ECOWELL MA03-Lulu.

1. Ny asa fanadiovana tena

The charging unit includes a self-cleaning function for the brush roll. After each use, place the vacuum on the charging dock and activate the self-clean cycle as indicated in the display or manual. This helps remove debris and odors from the brush roll.

2. Fandroana ny Tobin-drano maloto

When the 'Dirty Water Tank Full' indicator illuminates, or after each use, empty the dirty water tank. Remove the tank, open the drain plug, and dispose of the contents. Rinse the tank with clean water and allow it to air dry before reattaching.

3. Cleaning/Replacing the Filter

The filter should be cleaned regularly to maintain suction power. Remove the filter as shown in the image, rinse it under running water, and allow it to air dry completely before reinserting. Replace the filter every 3-6 months, or as needed, depending on usage.

Image: A user's hands demonstrating the removal of the internal filter from the vacuum's main body.

4. Manadio ny borosy Roll

Periodically inspect the brush roll for tangled hair or debris. Use the provided cleaning tool (if applicable) or scissors to carefully remove any obstructions. Ensure the brush roll spins freely.

Fanamboarana

If you encounter issues with your ECOWELL MA03-Lulu, refer to the following common problems and solutions:

fepetra arahana

Warranty sy fanohanana

Warranty Information

The ECOWELL MA03-Lulu Quick Clean Pro Cordless Wet/Dry Vacuum Wash comes with a Warranty 2 taona from the date of purchase. This warranty covers manufacturing defects under normal household use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, neglect, accident, unauthorized repair, or normal wear and tear.

Fanohanana ny mpanjifa

For technical assistance, warranty claims, or to order replacement parts, please contact ECOWELL customer support. Refer to your purchase documentation or the ECOWELL official webtranokala ho an'ny fampahalalana mifandraika amin'izao fotoana izao.

When contacting support, please have your model number (MA03-Lulu) and purchase date readily available.
