This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your TOTAL Gasoline Pressure Washer, model TGT250105. Please read this manual thoroughly before operating the unit to ensure proper use and to prevent injury or damage.

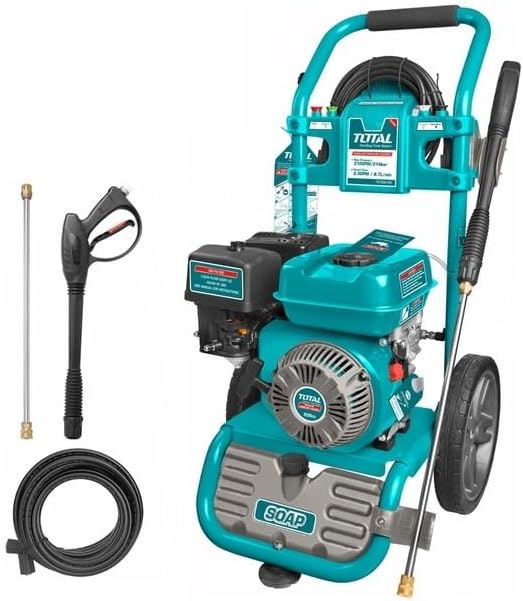

Image: The TOTAL Gasoline Pressure Washer TGT250105, showcasing the main unit, pressure hose, spray gun, and lance.
Information momba ny fiarovana
Always observe basic safety precautions when using this pressure washer to reduce the risk of fire, electric shock, and personal injury.
- Vakio ny toromarika rehetra alohan'ny hampiasana ny fitaovana.
- Do not direct the water stream at people, animals, electrical devices, or the unit itself.
- Manaova fitaovam-piarovana manokana, anisan'izany ny fiarovana ny maso sy ny fihainoana.
- Ensure the work area is clear of obstructions and well-ventilated.
- Use only unleaded gasoline for fuel and recommended engine oil.
- Never operate the pressure washer indoors or in poorly ventilated areas due to carbon monoxide fumes.
- Arovy ny ankizy sy ny biby fiompy lavitra ny faritra fandidiana.
- Always turn off the engine and relieve pressure before performing any maintenance or moving the unit.
Vokatra singa
The TOTAL Gasoline Pressure Washer TGT250105 comes with several key components and accessories to facilitate various cleaning tasks.
- Main Pressure Washer Unit (Engine, Pump, Frame)
- Fantsona Tsindry Avo (7.6m)
- Basy famafazana
- Metal Lance
- Nozzles (3 types for different spray patterns)
- Wheels for portability
- Detergent Tank (integrated "SOAP" tank)

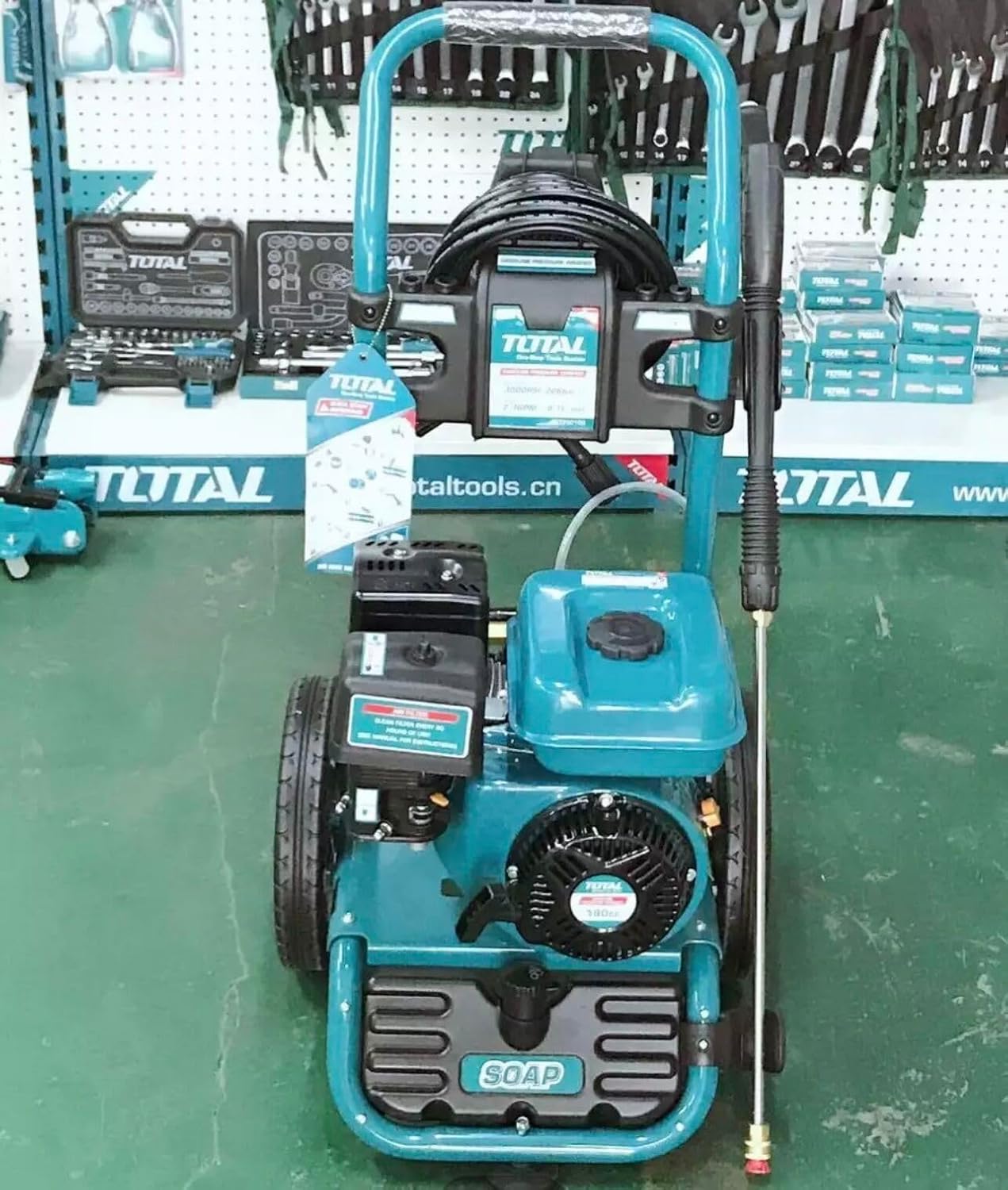

Sary: A antsipirihany view of the pressure washer unit and its included accessories, such as the spray gun, lance, and hose.
Setup sy Assembly
Araho ireto dingana ireto mba hananganana sy hanomanana ny milina fanasana misy tsindry ambony (pressure washer) ho an'ny fampiasana voalohany.
- Famoahana: Carefully remove all components from the carton box. Inspect for any shipping damage.
- Fihaonana mitantana: Attach the handle to the main unit frame. Ensure it is securely fastened with the provided hardware.
- Fametahana kodia: If not pre-assembled, attach the wheels to the axle.
- Ampio menaka motera: Before starting, fill the engine crankcase with 0.6L of recommended 4-stroke engine oil. Do not overfill.
- Ampio solika: Fill the fuel tank with unleaded gasoline (3.6L capacity). Ensure the fuel cap is securely tightened.
- Ampifandraiso amin'ny Hose High Pressure: Connect one end of the 7.6m high-pressure hose to the pump outlet and the other end to the spray gun. Tighten all connections firmly.
- Famatsiana rano mampifandray: Connect a garden hose (not included) to the water inlet on the pump. Ensure the water supply is turned on fully before starting the engine.
- Attach Lance sy Nozzle: Attach the metal lance to the spray gun. Select the desired nozzle and attach it to the end of the lance.
Image: Visual guide showing the unboxing and initial assembly steps, including attaching the handle.
Torolàlana miasa
Araho ireto dingana ireto mba hahazoana asa azo antoka sy mahomby amin'ny mpanasa fanerena anao.
- Fiomanana: Ensure all connections are secure and the water supply is fully open. Squeeze the spray gun trigger to purge air from the pump and hose until a steady stream of water emerges.
- Manomboka ny motera:
- Avereno amin'ny toeran'ny "ON".
- Sokafy ny valva solika.
- Move the choke lever to the "CHOKE" position (cold engine start).
- Tariho mafy ny tahon'ny "recoil starter" mandra-pirehitra ny motera.
- Once started, gradually move the choke lever to the "RUN" position.
- Using the Spray Gun: Aim the spray gun at the cleaning surface, maintaining a safe distance. Squeeze the trigger to begin spraying. Release the trigger to stop the flow.
- Nozzle Selection:
- Red Nozzle (0°): For pinpoint cleaning, tough stains, or hard-to-reach areas. Use with extreme caution.
- Yellow Nozzle (15°): For intense cleaning of smaller areas, such as removing paint or rust.
- Green Nozzle (25°): For general cleaning of larger areas, such as driveways, patios, or vehicles.
- Black Nozzle (Soap/Low Pressure): For applying detergent. Only operates at low pressure.
Always turn off the engine and relieve pressure before changing nozzles.
- Fampiharana fanadiovana: Fill the integrated detergent tank with pressure washer safe detergent. Attach the black (soap) nozzle. The pressure washer will automatically draw detergent when operating at low pressure.
- Mikatona:
- Alefaso ny trigger basy famafazana.
- Avereno amin'ny toeran'ny "OFF" ny switch motera.
- Vonoy ny famatsian-drano.
- Kitiho ny trigger basy famafazana mba hanamaivanana ny tsindry sisa tavela ao amin'ny rafitra.
- Esory ny fantson-dranon'ny zaridaina sy ny fantsom-pamokarana avo lenta.
Image: A user demonstrating the pressure washer in action, cleaning a vehicle, highlighting its practical application.
fikarakarana
Ny fikojakojana tsy tapaka dia miantoka ny faharetana sy ny fahombiazan'ny fanasan-damba fanerena anao.
- menaka maotera: Jereo ny haavon'ny menaka motera alohan'ny hampiasana azy tsirairay. Soloy ny menaka rehefa afaka 5 ora voalohany, avy eo isaky ny 25 ora na isan-taona.
- Sivana rivotra: Diovy na soloy tsy tapaka ny sivana rivotra, indrindra amin'ny toerana misy vovoka.
- Fitsipi-tsilaka: Jereo sy diovy isan-taona ny bougie. Soloy raha ilaina.
- Sivana solika: Check and clean the fuel filter periodically.
- Nozzles: Clean clogged nozzles using the provided nozzle cleaning tool or a thin wire.
- Sivana fidirana rano: Inspect and clean the water inlet filter screen before each use to prevent debris from entering the pump.
- fitahirizana: For long-term storage, drain all fuel from the tank and carburetor. Add fuel stabilizer if storing with fuel. Store in a dry, frost-free area.
Fanamboarana
Ity fizarana ity dia miresaka momba ireo olana mahazatra mety hatrehinao amin'ny milina fanasana vilia misy tsindry ambony (pressure washer)-nao.
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tsy manomboka ny motera | No fuel; Engine switch OFF; Choke not set; Low oil level; Clogged fuel filter; Faulty spark plug. | Add fuel; Turn switch ON; Adjust choke; Fill oil to proper level; Clean/replace fuel filter; Clean/replace spark plug. |
| Fanerena ambany | Tsy ampy ny rano; Vavony tsentsina; Rivotra ao anaty paompy; Tombo-kase paompy tonta. | Ensure full water flow; Clean nozzle; Purge air by squeezing trigger; Contact service for pump repair. |
| Pulsating pressure | Rivotra ao anaty paompy; Nozzle tsentsina; Famerana ny famatsian-drano. | Diovy ny rivotra; madio nozzle; Jereo ny fantson-drano raha misy kinks na fanakanana. |
| Mandeha mafy ny motera | Solila efa tonta; Sivana rivotra tsentsina; Boîte maloto. | Drain old fuel and add fresh; Clean/replace air filter; Clean/replace spark plug. |
fepetra arahana
Technical specifications for the TOTAL Gasoline Pressure Washer TGT250105.
| endri-javatra | sarobidy |
|---|---|
| Laharana modely | TGT250105 |
| Fifindran'ny motera | 208cc |
| Max Output | 6.0HP |
| Haingan'ny motera | 3600 RPM |
| Max Pressure | 214 Bar (3100 PSI) |
| Taham-pidirana | 8.7 L/min (2.3 GPM) |
| Karazana solika | Gasoline tsy misy firaka |
| Volavolan-tsolika | 3.6L |
| Volan'ny menaka | 0.6L |
| halavan'ny hose | 7.6 metatra |
| Lanja entana | 31 kg |
| refy (fonosana) | 59 x 54 x 51 cm |
Warranty sy fanohanana
For warranty information, technical support, or to purchase replacement parts, please contact Total Tools Official Store or refer to the warranty card included with your product. Keep your purchase receipt as proof of purchase.
Mety misy safidy fanalavam-potoana amin'ny fiantohana avy amin'ny mpamatsy antoko fahatelo. Azafady mba jereo amin'ny mpivarotra anao raha mila fanazavana fanampiny.
Raha mila fanazavana fanampiny dia azonao tsidihina ny Total Tools Official Store on Amazon.
