1. Fampahalalana manan-danja momba ny fiarovana
Please read all instructions carefully before using your new EUHOMY mini upright freezer. Keep this manual for future reference.
- Fiarovana herinaratra: Ensure the freezer is connected to a grounded power outlet. Do not use extension cords.
- Fametrahana: Place the freezer on a firm, level surface. Allow adequate ventilation around the unit (at least 4 inches on all sides and top) to ensure proper cooling and energy efficiency.
- Fametrahana voalohany: After transportation, allow the freezer to stand upright for at least 24 hours before plugging it in. This allows the refrigerant to settle, which is crucial for optimal freezing performance.
- Sakafo fiarovana: The freezer liner is made of food-grade material, ensuring healthy and safe storage for your items.
- Fiarovana ny ankizy: Supervise children when they are near the appliance.
2. Vokatra mihoatraview
The EUHOMY 1.1 Cu.Ft. Mini Upright Freezer is designed for compact spaces, offering efficient freezing capabilities with thoughtful features.
Figure 2.1: EUHOMY 1.1 Cu.Ft. Mini Upright Freezer.
Lafin-javatra fototra:
- Mirindra sy mitsitsy habakabaka: With dimensions of 17.5"D x 18.6"W x 19.5"H, this freestanding upright freezer is ideal for small homes, dorms, apartments, or offices.
- Varavarana azo averina: The door can be reversed to open from either the right or left side, providing flexibility for placement in various room layouts.
- Tongo-tongotra azo zahana: Miantoka ny fahamarinan-toerana eo amin'ny uneven surfaces.
- 7-Grade Temperature Control: Easily adjust the internal temperature from -7.6℉ to 6.8℉ (-14℃ to -22℃) to suit your freezing needs.
- Mitsitsy angovo: Designed for low energy consumption, helping to reduce electricity costs.
- Talantalana azo esorina: Customize the interior storage space to accommodate items of different sizes.
Sary 2.2: Tapitraview of key features including 360° uniform cooling, 0.5h quick freezing, 3x long-term freshness, and ±1°F precise temperature control.

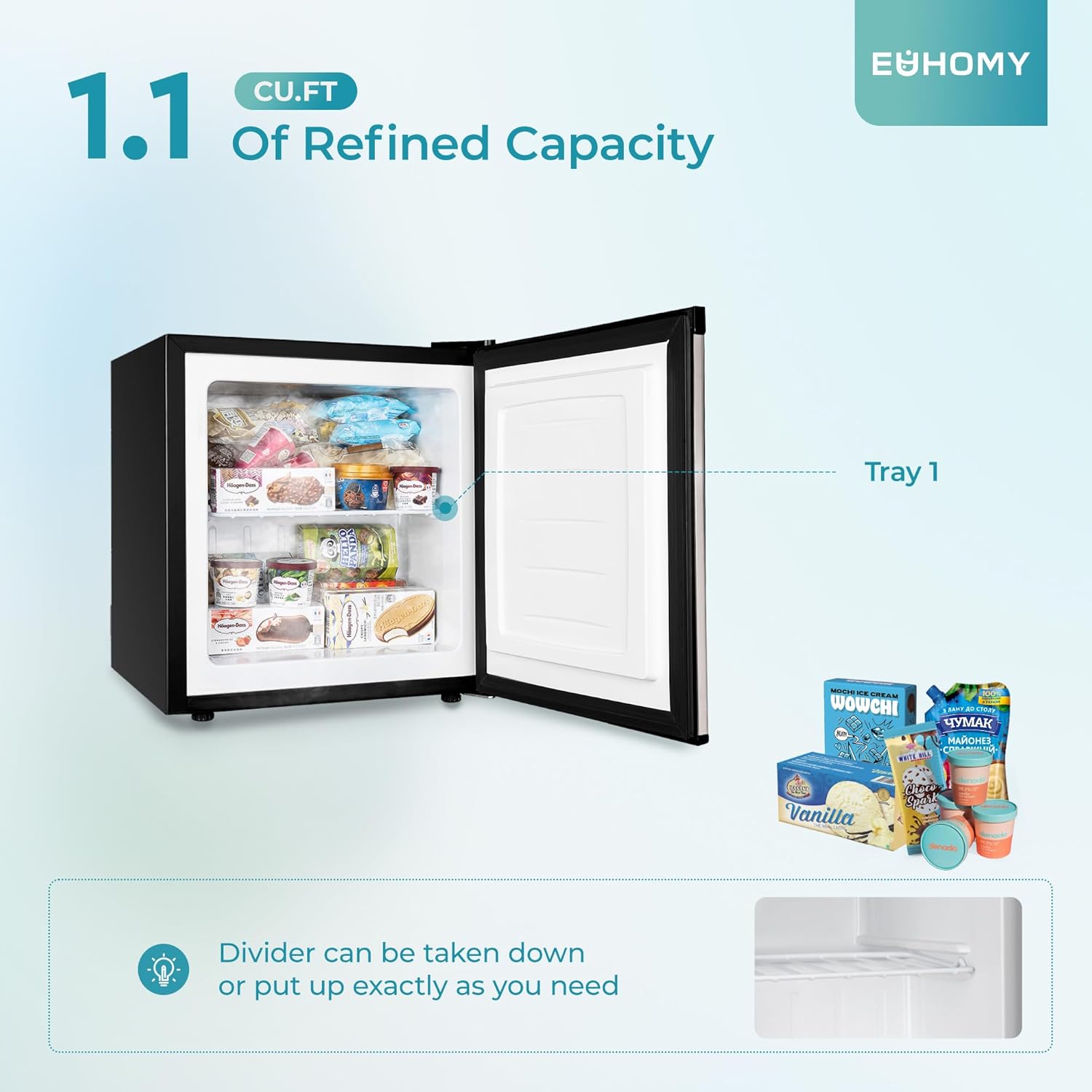

Figure 2.3: The 1.1 Cu.Ft. capacity interior with a removable tray for flexible storage.
Figure 2.4: Temperature guide for different food types, ranging from 6.8°F (-14°C) for freezing to -7.6°F (-22°C) for quick freezing.
Figure 2.5: Close-up of thoughtful design details including the built-in handle, reversible door mechanism, and adjustable leveling feet.
3. Torolàlana fananganana
3.1 Famoahana
Carefully remove the freezer from its packaging. Inspect the unit for any damage that may have occurred during shipping. Retain packaging materials for potential future transport or returns.
Video 3.1: Unboxing and initial setup of a similar EUHOMY upright freezer model. This video demonstrates the unpacking process and highlights the compact design and reversible door feature.
3.2 Fametrahana
- Choose a location with a solid, level floor that can support the weight of the freezer when fully loaded.
- Ensure the area is well-ventilated and away from direct sunlight or heat sources (e.g., oven, radiator).
- Adjust the leveling legs at the bottom of the freezer to ensure the unit is stable and level.
3.3 Fihodinana varavarana (tsy voatery)
The freezer door is reversible, allowing it to open from either the left or right side. Refer to the detailed instructions in the full user manual for the door reversal procedure. This feature provides flexibility for optimal placement in your space.
Video 3.2: Demonstration of the reversible door feature on a similar EUHOMY mini freezer. This video shows how the door can be opened from either side, enhancing placement versatility.
3.4 Fahefana voalohany
After placing the freezer in its desired location and ensuring it has been upright for at least 24 hours, plug it into a dedicated, grounded electrical outlet. Allow the freezer to run empty for several hours (e.g., 4-6 hours) to reach its operating temperature before loading it with food.
4. Torolàlana miasa
4.1 Fanaraha-maso ny maripana
Your EUHOMY mini freezer features a 7-grade temperature control system located at the back of the unit. Turn the knob to select your desired temperature setting. Settings range from -7.6℉ (-22℃) for quick freezing to 6.8℉ (-14℃) for standard freezing. Higher numbers typically indicate colder temperatures.
4.2 Fametrahana ny vata fampangatsiahana
Once the freezer has reached its operating temperature, you can begin loading it with frozen items. Avoid overloading the freezer, as this can restrict airflow and reduce cooling efficiency. Utilize the removable shelves to organize your items effectively.
Video 4.1: Interior view of the EUHOMY mini freezer, demonstrating storage capacity and how items like breast milk can be organized. The video also highlights the freezer's ability to maintain frozen temperatures effectively.
5. Fikojakojana
5.1 Fanadiovana
Regularly clean the interior and exterior of your freezer. Unplug the unit before cleaning. Use a soft cloth with a mild detergent and warm water. Avoid abrasive cleaners or sharp objects that could damage surfaces.
5.2 Fanafoanana
This freezer is a manual defrost model. When ice buildup on the interior walls reaches approximately 1/4 inch (6mm) thick, it is time to defrost the unit. To defrost:
- Esory ny vata fampangatsiahana amin'ny fivoahana herinaratra.
- Esory ny sakafo rehetra ary tehirizo ao anaty vata fampangatsiahana na vata fampangatsiahana hafa.
- Leave the door open to allow the ice to melt naturally. You can place towels at the bottom to absorb water.
- Rehefa voaesotra dia diovy sy maina tsara ny atiny alohan'ny hampidirana azy indray ary hamerina ny sakafo.
5.3 Torohevitra mitsitsy angovo
- Ensure the freezer door is closed properly and the seal is intact.
- Avoid placing hot food directly into the freezer.
- Aza manokatra ny varavarana matetika kokoa noho ny ilaina.
6. Famahana olana
If you experience issues with your freezer, consult the following common troubleshooting steps before contacting customer support.
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tsy miasa ny vata fampangatsiahana | Tsy tafiditra; tapaka lalan-dra; Ny fanaraha-maso ny maripana dia napetraka amin'ny 'OFF'. | Ataovy azo antoka ny plug; reset ny circuit breaker; amboary ny fanaraha-maso ny maripana. |
| Tsy mangatsiaka tsara ny vata fampangatsiahana | Door not closed properly; excessive door openings; warm food recently added; temperature control set too high. | Check door seal; reduce door openings; allow time for new food to cool; adjust temperature control to a colder setting. |
| Excessive noise or humming | Freezer not level; contact with wall/cabinet; normal compressor operation. | Adjust leveling legs; ensure clearance; slight humming is normal during operation. |
| Fiangonana ranomandry be loatra | Door left open; high humidity; frequent door openings. | Ensure door is sealed; defrost unit as needed; reduce door openings. |
7. Famaritana
| endri-javatra | antsipirihany |
|---|---|
| Haben'ny vokatra (D x W x H) | 18.6" x 17.5" x 19.5" |
| Anarana modely | UF001-11 |
| loko | Silver |
| Karazana fitaovana varavarana | Inôksa |
| Orientation varavarana | ahitsy |
| Karazana fametrahana | tokana |
| Lanja entana | 30.8 kilao |
| UPC | 850068328949 |
8. Warranty sy fanohanana
8.1 Fampahalalana momba ny fiantohana
This EUHOMY mini upright freezer comes with a Garantie voafetra 1 taona from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. It does not cover damage caused by misuse, accident, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
8.2 Fanohanana ny mpanjifa
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact EUHOMY Customer Support. Contact details can typically be found on the EUHOMY official webtoerana na eo amin'ny fonosana vokatra.
