Godox Litemons LP600R 60W RGB LED Light Panel Instruction Manual

1. Fampidirana

The Godox Litemons LP600R is a versatile 60W RGB LED light panel designed for various creative lighting applications. It offers soft, bright illumination with a wide range of color temperatures, diverse professional modes, and flexible control options. This manual provides essential information for the safe and effective use of your LP600R light panel.

2. Information momba ny fiarovana

Please read and understand all safety precautions before using this product. Improper use may result in product damage, property damage, or personal injury.

• Do not disassemble or modify the product. Unauthorized repairs will void the warranty.
• Tazomy maina ny vokatra. Aza ampiasaina amin'ny tanana lena na atsoboka anaty rano.
• Do not use the product in the presence of flammable gases or liquids.
• Ensure the power adapter and cables are undamaged before use.
• Fadio ny mijery mivantana ny jiro LED.
• Arovy amin'ny ankizy.
• Use only specified power adapters and accessories.
• Disconnect power before cleaning or when not in use for extended periods.

3. Inona no ao anaty boaty

Hamarino fa ao anatin'ny fonosanao ny entana rehetra:

• 1x Light Body (with Yoke)
• 1x adaptatera
• 1x Tady herinaratra
• 1x Barndoors
• 1x Carry Case

Image 3.1: Included components of the Godox Litemons LP600R. Shown are the light panel with yoke, detachable barndoors, power adapter, power cord, and a custom-fit carry case.

4. Fametrahana

Follow these steps to set up your LP600R light panel:

1. Attach Barndoors: Align the barndoors with the light panel and secure them. The barndoors are detachable for flexible light shaping.
2. Mametraka: The integrated yoke allows for 360-degree rotation. Attach the light panel to a light stand using the standard mounting receiver on the yoke. Tighten securely.
3. Fampifandraisana herinaratra: Connect the power cord to the adapter, then connect the adapter to the DC input port on the light panel. Plug the power cord into a suitable electrical outlet. Alternatively, insert NPF batteries (sold separately) into the battery slots.

Image 4.1: The Godox Litemons LP600R light panel with barndoors, ready for use on a light stand.

5. Safidy Hery

The LP600R offers flexible power solutions for both studio and on-location use:

• Loharano herinaratra DC: For continuous studio use, connect the included power adapter and cord to a wall outlet.
• NPF Battery Power: For portable outdoor use, the light supports NPF batteries (sold separately). Insert compatible NPF batteries into the designated slots on the back of the unit.

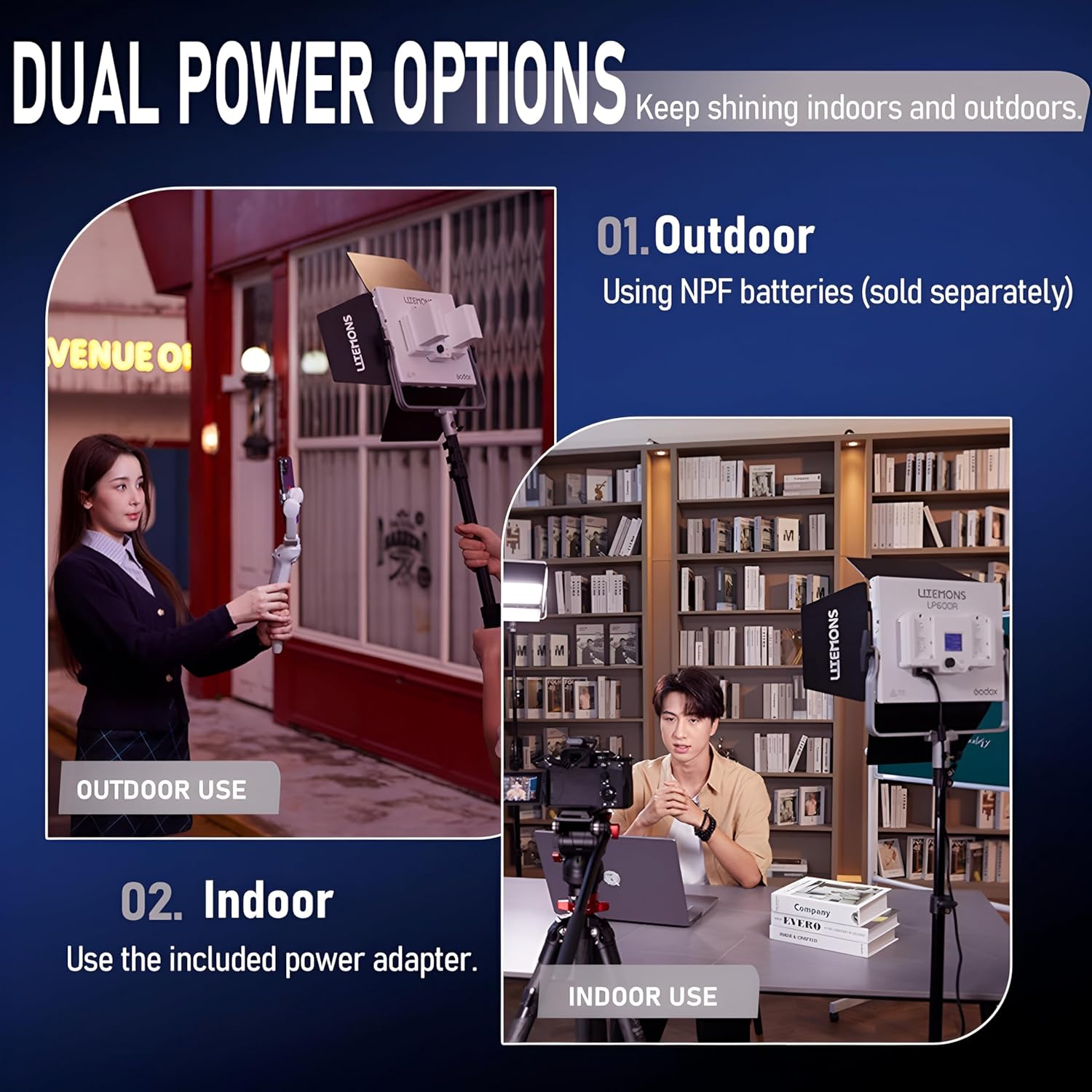

Image 5.1: The LP600R can be powered by NPF batteries for outdoor shooting or by the included AC adapter for indoor use.

6. Fomba fiasa

The LP600R features several professional lighting modes to suit various creative needs:

• Fomba CCT: Adjust color temperature from 1800K to 10000K for precise white balance matching.
• Fomba HSI: Access 36000 colors with 360-degree hue, saturation, and intensity control for vibrant color effects.
• Fomba RGBW: Mix red, green, blue, and white channels for custom color creation.
• Fomba GEL: Select from various popular color filter presets to simulate traditional gels.
• Fomba FX: Choose from 14 built-in special effects, including Flash, Lightning, Cloudy, Broken Bulb, TV, Candle, Fire, Firework, Explosion, Welding, Police Car, SOS, RGB Cycle, and Party.

Sary 6.1: Vitaview of the LP600R's professional full-color modes, offering extensive creative control.

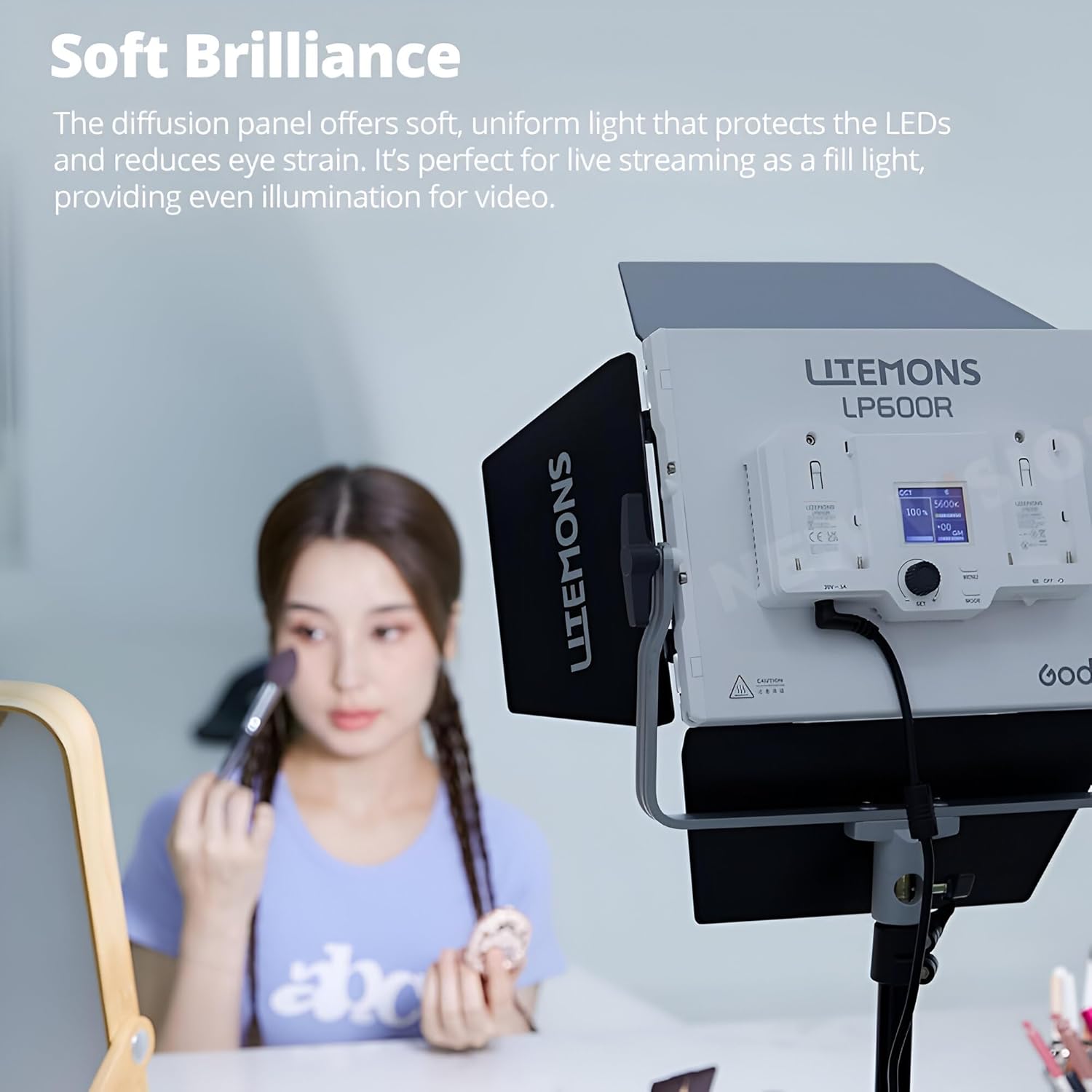

Image 6.2: The LP600R provides soft, uniform light, ideal for various applications like live streaming or portraiture.

7. Fomba fanaraha-maso

The LP600R can be controlled directly on the unit or remotely via the Godox Light App:

• Fanaraha-maso tontonana: Use the physical buttons and dials on the back of the light panel to navigate menus, adjust settings, and select modes. The integrated display shows current settings.
• Godox Light App Control: Download the Godox Light App to your smartphone or tablet. Connect via Bluetooth to control all light functions remotely, including mode selection, color adjustments, and effect parameters.

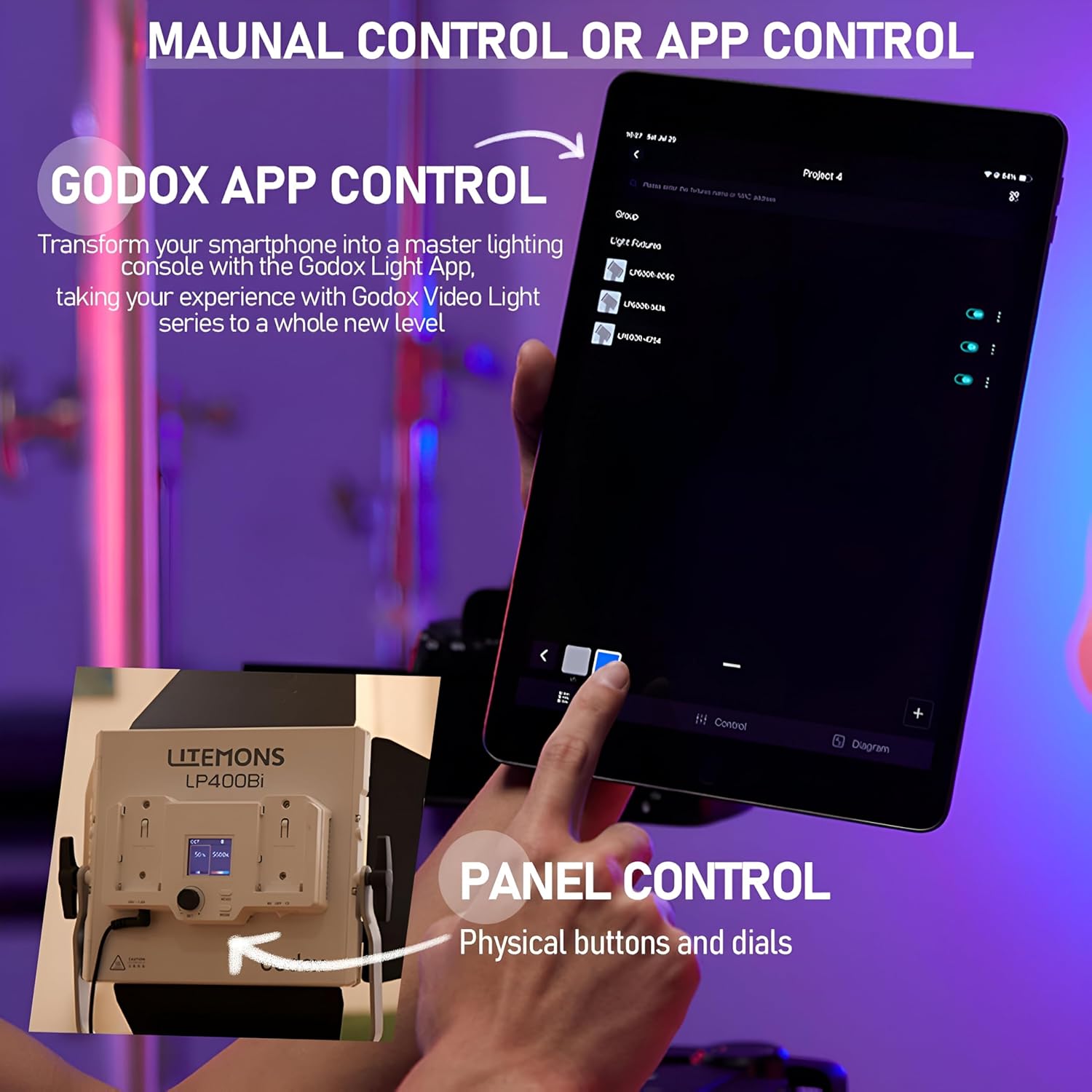

Image 7.1: The LP600R can be controlled directly using its onboard panel or remotely through the Godox Light App via Bluetooth.

8. Fikojakojana

Proper maintenance ensures the longevity and optimal performance of your LP600R light panel:

• Fanadiovana: Use a soft, dry cloth to clean the light panel. For stubborn dirt, a slightly damp azo ampiasaina ny lamba, arahin’ny fanamainana avy hatrany. Aza mampiasa akora simika mahery vaika na fanadiovana maloto.
• fitahirizana: When not in use, store the light panel in its carry case in a cool, dry place, away from direct sunlight and extreme temperatures.
• Fikarakarana bateria: If using NPF batteries, remove them if the light will not be used for an extended period. Store batteries in a cool, dry place and recharge periodically to maintain their health.

9. Famahana olana

10. Famaritana

11. Warranty sy fanohanana

Raha mila fanazavana momba ny garantie sy ny fanohanana ara-teknika, jereo azafady ny karatra garantie miaraka amin'ny vokatrao na tsidiho ny tranokala ofisialin'ny Godox. website. You may also contact Godox customer service directly for assistance with product operation, troubleshooting, or repair services.

Godox Ofisialy Webtranokala: www.godox.com
