WZRELB 1000W Pure Sine Wave Inverter User Manual

1. Fampidirana

This user manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your WZRELB 1000W Pure Sine Wave Inverter. This device converts 12V DC power to 110V/120V AC power, making it suitable for various applications including home backup, RVs, trucks, and camping. Please read this manual thoroughly before using the inverter to ensure proper function and safety.

2. Information momba ny fiarovana

Adhering to these safety guidelines is crucial to prevent injury and damage to the inverter or connected devices.

• Aza Be loatra: Ensure the total power consumption of connected appliances does not exceed the inverter's rated continuous power (1000W). For inductive loads (e.g., motors, compressors, microwaves, refrigerators), their startup power can be significantly higher (6-10 times) than their running power. Select an inverter with a capacity 3-7 times higher for most inductive loads, and up to 10 times higher for refrigerators.
• Fampitandremana amin'ny maripana: The inverter housing can become hot during operation. Do not touch the inverter housing while it is operating to avoid burns.
• rivotra: Ataovy izay hahazoana rivotra ampy tsara manodidina ny "inverter". Aza sakanana ny fivoahan'ny rivotra mangatsiaka.
• Tontolo maina: Do not expose the inverter to water, rain, snow, or spray. Operate it in a dry environment.
• Fifandraisana mety: Always connect the inverter to a 12V DC power source with correct polarity. Reverse polarity can cause severe damage.
• Mpiasa mahafeno fepetra: Installation and maintenance should ideally be performed by qualified personnel.
• Ankizy sy biby fiompy: Keep the inverter out of reach of children and pets.
• Fitaovana mora mirehitra: Do not operate the inverter near flammable liquids or gases.

3. Vokatra mihoatraview

3.1 Lafin-javatra fototra

• Onja onja madio madio: Provides stable and high-quality AC power, ideal for sensitive electronics like TVs, laptops, phones, and CPAP machines.
• DC LED Display: Monitors DC input voltage in real-time, allowing easy tracking of the inverter's working status.
• Soft Starter Design: Smoothly increases AC voltage upon startup, reducing surge current impact and extending appliance lifespan.
• Output mahery: Delivers 1000W continuous power with 8.33 Amp maximum capacity, featuring two standard 120VAC outlets.
• Rafitra fampangatsiahana mahomby: Features an all-aluminum housing for comprehensive heat dissipation and an integrated cooling fan to maintain optimal operating temperature.
• Fiarovana feno: Includes short circuit, over current, over voltage, ambanin'ny voltage, overload, reverse polarity, and over-temperature protection.

3.2 singa

Sary 3.2.1: Eo anoloana view of the WZRELB 1000W Pure Sine Wave Inverter, showing the DC LED display, two AC outlets, and the ON/OFF switch. The image also displays the included red and black battery cables and spare fuses.

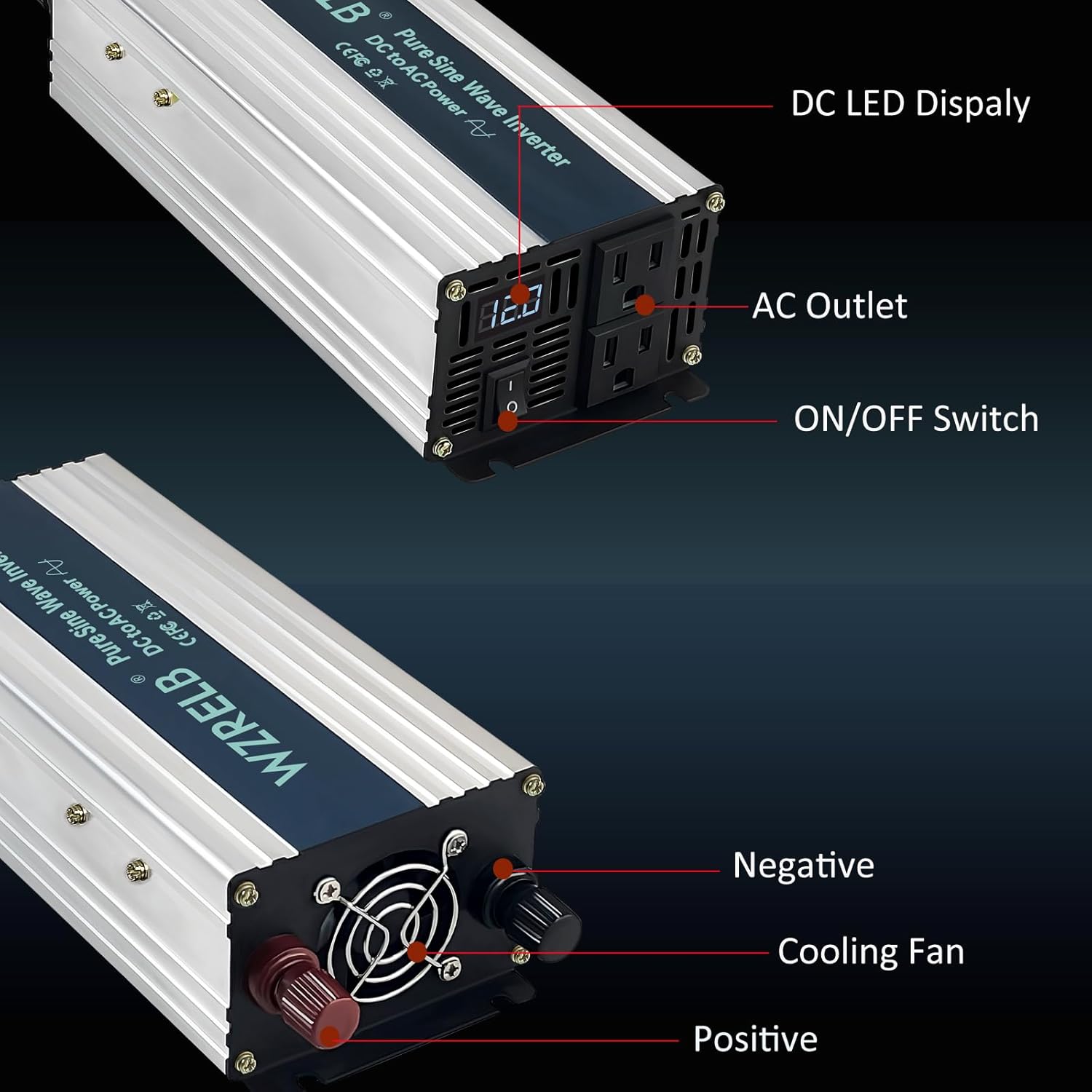

Sary 3.2.2: antsipirihany view of the inverter's front panel, highlighting the DC LED Display, AC Outlets, and ON/OFF Switch. The bottom view shows the cooling fan and the positive (red) and negative (black) DC input terminals.

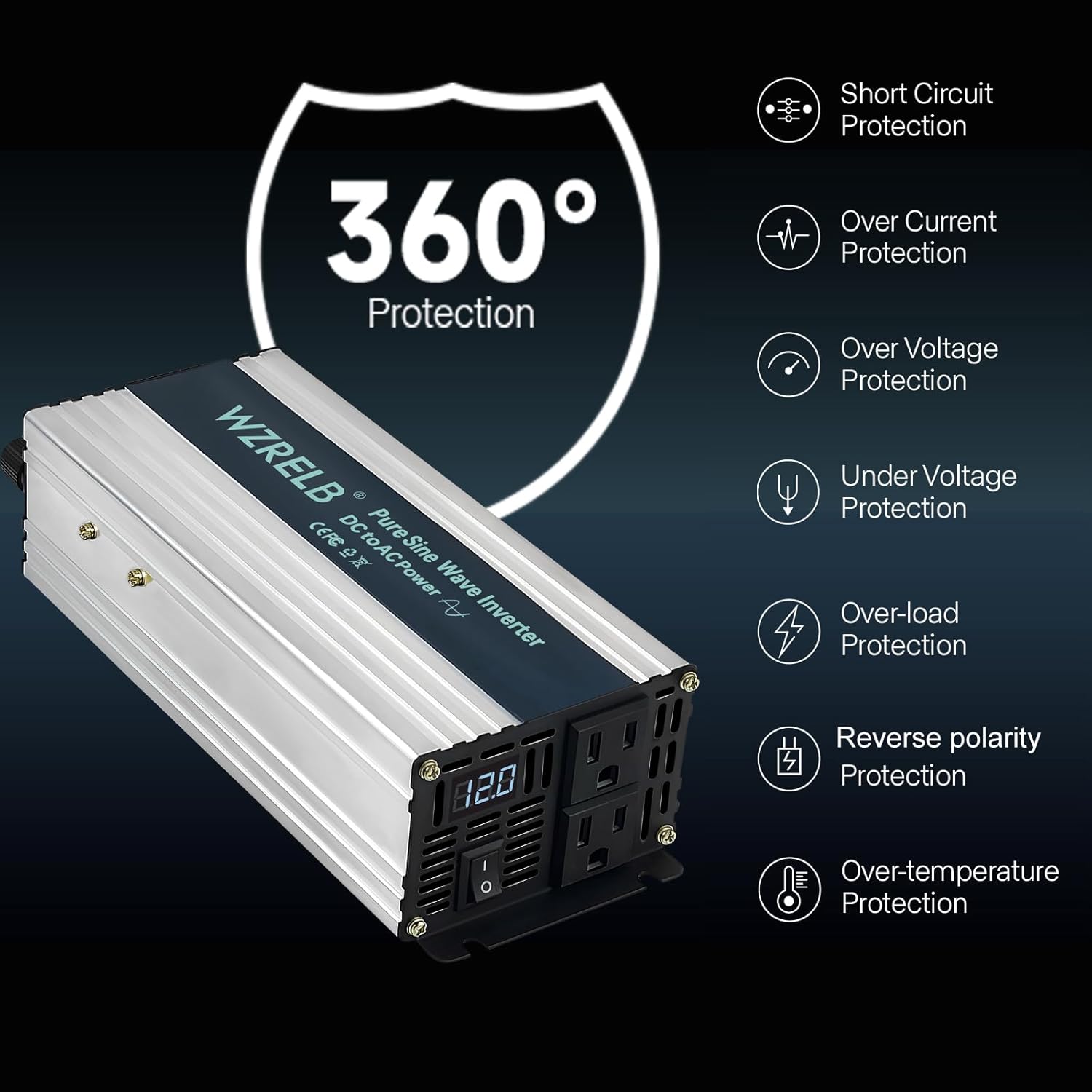

Figure 3.2.3: Illustration of the inverter's comprehensive 360-degree protection features, including short circuit, over current, over voltage, ambanin'ny voltage, overload, reverse polarity, and over-temperature protection.

Figure 3.2.4: The inverter features dual US standard AC outlets, capable of delivering a stable and full AC output with a maximum current of 8.33 Amps.

Figure 3.2.5: The compact, travel-sized design of the inverter, with dimensions of approximately 8.8 inches in height, 2.53 inches in depth, and 3.9 inches in width, making it highly portable.

Figure 3.2.6: The inverter offers universal compatibility, suitable for powering a wide range of devices up to 1000W, including smartphones, wireless earbuds, tablets, laptops, cameras, CPAP machines, razors, and breast pumps.

4. Fametrahana

1. Esory ary diniho: Carefully remove the inverter and all accessories from the packaging. Verify that all components listed in "What's in the Box" are present: Power Inverter, Cables, and Fuses. Inspect for any physical damage.
2. Misafidiana toerana iray: Select a dry, well-ventilated area for the inverter. Ensure there is sufficient space around the unit for air circulation, especially around the cooling fan and vents. Avoid direct sunlight or heat sources.
3. Connect DC Input Cables:
   • Ataovy azo antoka fa ao amin'ny toerana "OFF" ny bokotra ON/OFF an'ny inverter.
   • Connect the red (positive) cable to the positive (+) terminal on the inverter and the positive (+) terminal on your 12V DC battery.
   • Connect the black (negative) cable to the negative (-) terminal on the inverter and the negative (-) terminal on your 12V DC battery.
   • Tighten all connections securely to prevent loose contacts, which can cause overheating or arcing.
4. Fametrahana tany (tsy voatery fa atolotra): For enhanced safety, connect the inverter's grounding terminal (if present) to a proper earth ground.

5. Torolàlana miasa

1. Herim-batana: After ensuring all connections are secure, switch the inverter's ON/OFF switch to the "ON" position. The DC LED display will illuminate, showing the current DC input voltage.
2. Mampifandray fitaovana: Plug your AC appliances into the inverter's 120V AC outlets. Ensure the total wattage of all connected appliances does not exceed 1000W.
3. Fanaraha-maso ny asa:
   • Observe the DC LED display for input voltage. A stable voltage indicates normal operation.
   • The cooling fan will activate automatically when the internal temperature rises, ensuring efficient heat dissipation.
   • If an overload or fault condition occurs, the inverter's protection features will activate, and the unit may shut down. Refer to the Troubleshooting section.
4. Mamono hery: When you are finished using the inverter, first disconnect all AC appliances, then switch the inverter's ON/OFF switch to the "OFF" position.

6. Fikojakojana

• Fanadiovana: Regularly clean the exterior of the inverter with a dry, soft cloth. Ensure the cooling vents are free from dust and debris to maintain proper airflow. Do not use liquid cleaners.
• Fanamarinana fifandraisana: Periodically inspect all DC input cable connections to ensure they remain tight and free from corrosion. Loose connections can lead to power loss or overheating.
• Fanoloana fuse: The inverter is equipped with internal fuses for protection. If the inverter fails to power on or output AC, and all other troubleshooting steps have been exhausted, the fuses may need replacement. This should be done by a qualified technician. Use only fuses of the specified type and rating.
• fitahirizana: If storing the inverter for an extended period, ensure it is clean, dry, and stored in a cool, well-ventilated area.

7. Famahana olana

8. Famaritana

9. Warranty sy fanohanana

For warranty information, technical support, or service inquiries, please contact WZRELB customer support directly. Refer to the product packaging or the official WZRELB webtranokala ho an'ny antsipirian'ny fifandraisana farany indrindra.

You can also visit the official WZRELB Store on Amazon for more information and support resources:

Visit the WZRELB Store
