Sava lalana
This manual provides essential information for the safe installation, operation, and maintenance of your EGLO Fueva 6 LED Ceiling Light. Please read these instructions carefully before beginning installation and retain them for future reference.

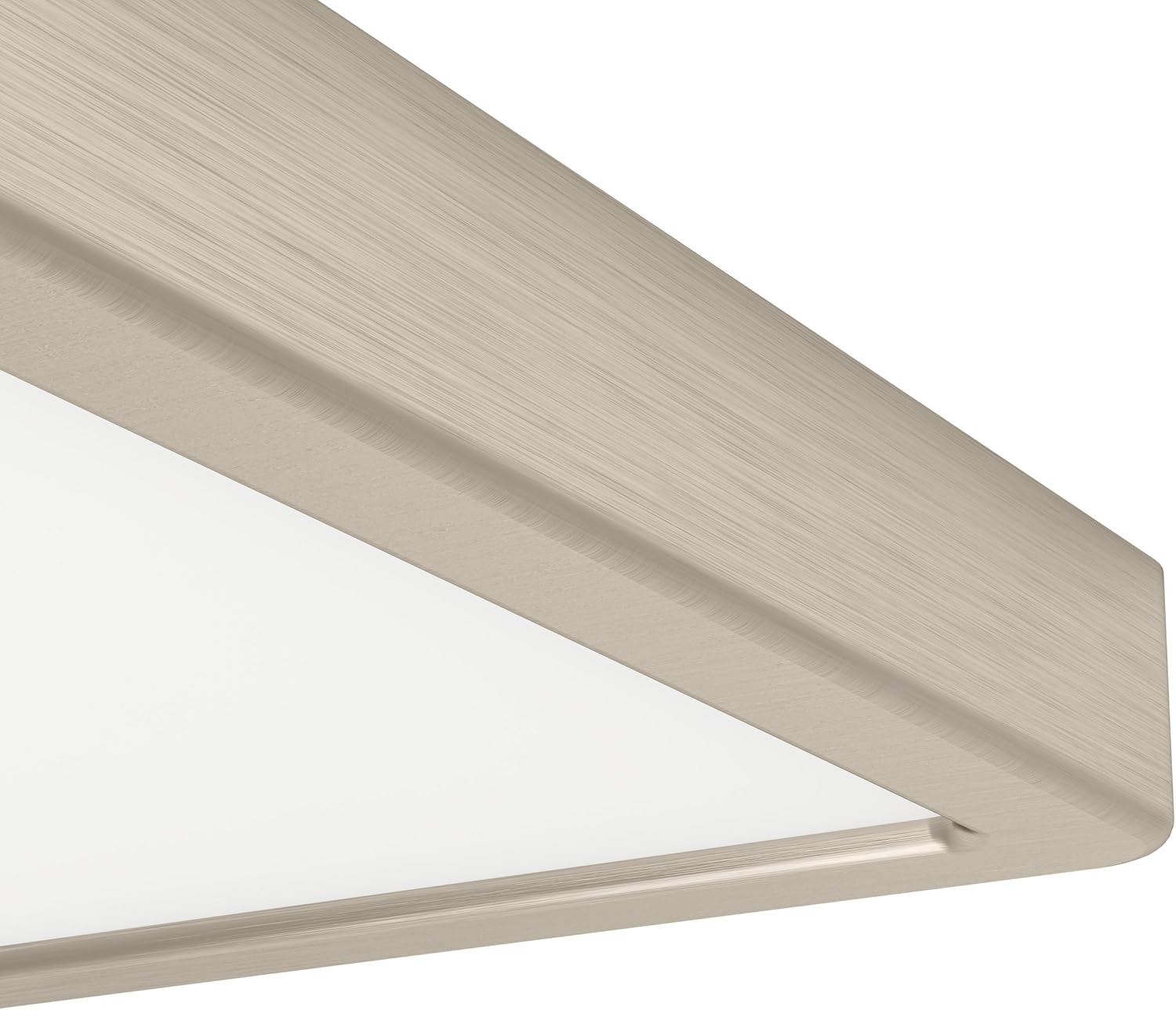

The EGLO Fueva 6 is a square LED ceiling light designed for indoor use. It features a brushed silver metal frame and a white plastic diffuser, offering adjustable color temperature to suit various lighting needs.
Information momba ny fiarovana
- Fametrahana herinaratra: Ny fametrahana dia tsy maintsy ataon'ny elektrisianina mahafeno fepetra mifanaraka amin'ny didy amam-pitsipika eo an-toerana.
- Fanapahan-jiro: Tapaho foana ny herinaratra amin'ny fiatoana lehibe alohan'ny fametrahana, fikojakojana na fanadiovana.
- BOKYtage: Ataovy azo antoka ny famatsiana voltage matches the light fixture's requirements (120 Volts AC).
- fahasimbana: Do not operate the light if any part is damaged. Contact customer support for replacement parts.
- Fampiasana anatiny ihany: Natao hampiasaina an-trano sy any amin'ny toerana maina ity vokatra ity. Aza atao amin'ny hamandoana na amin'ny mari-pana tafahoatra.
- hafanana: The LED light source generates heat. Ensure adequate ventilation around the fixture.
Fonosana fonosana
Hamarino fa misy ny singa rehetra alohan'ny hanombohan'ny fametrahana:
- 1 x EGLO Fueva 6 LED Ceiling Light fixture
- 1 x Mounting hardware kit
- 1 x boky fampianarana
Fametrahana
Zava-dehibe: Before proceeding, ensure the power supply to the installation area is turned off at the circuit breaker.
- Omano ny tampon'ny fametrahana: Identify the desired location on the ceiling. Ensure the surface is clean, dry, and capable of supporting the light fixture's weight.
- Access the Color Temperature Switch: Before mounting, locate the color temperature selection switch on the back of the light fixture. This switch allows you to choose between Warm White (2700K), Neutral White (4000K), or Cool White (6500K). Select your preferred setting now, as it will be inaccessible after installation.
- Install the Mounting Bracket/Transformer: The light fixture uses a mounting system where the transformer also acts as the mounting bracket. Secure this component to the ceiling using the provided screws. Ensure it is firmly attached.
- Wire the fixture: Connect the household electrical wires to the corresponding wires on the light fixture's transformer. Follow standard wiring practices: live to live, neutral to neutral, and ground to ground. Ensure all connections are secure.
- Attach the Light Fixture: Carefully align the light fixture with the installed mounting bracket/transformer. The connection between the transformer and the light fixture is often via a USB-C type connector or similar, which needs to be precisely centered. Gently push and slide the light fixture onto the bracket until it snaps securely into place. Avoid excessive force to prevent damage to the connection points.

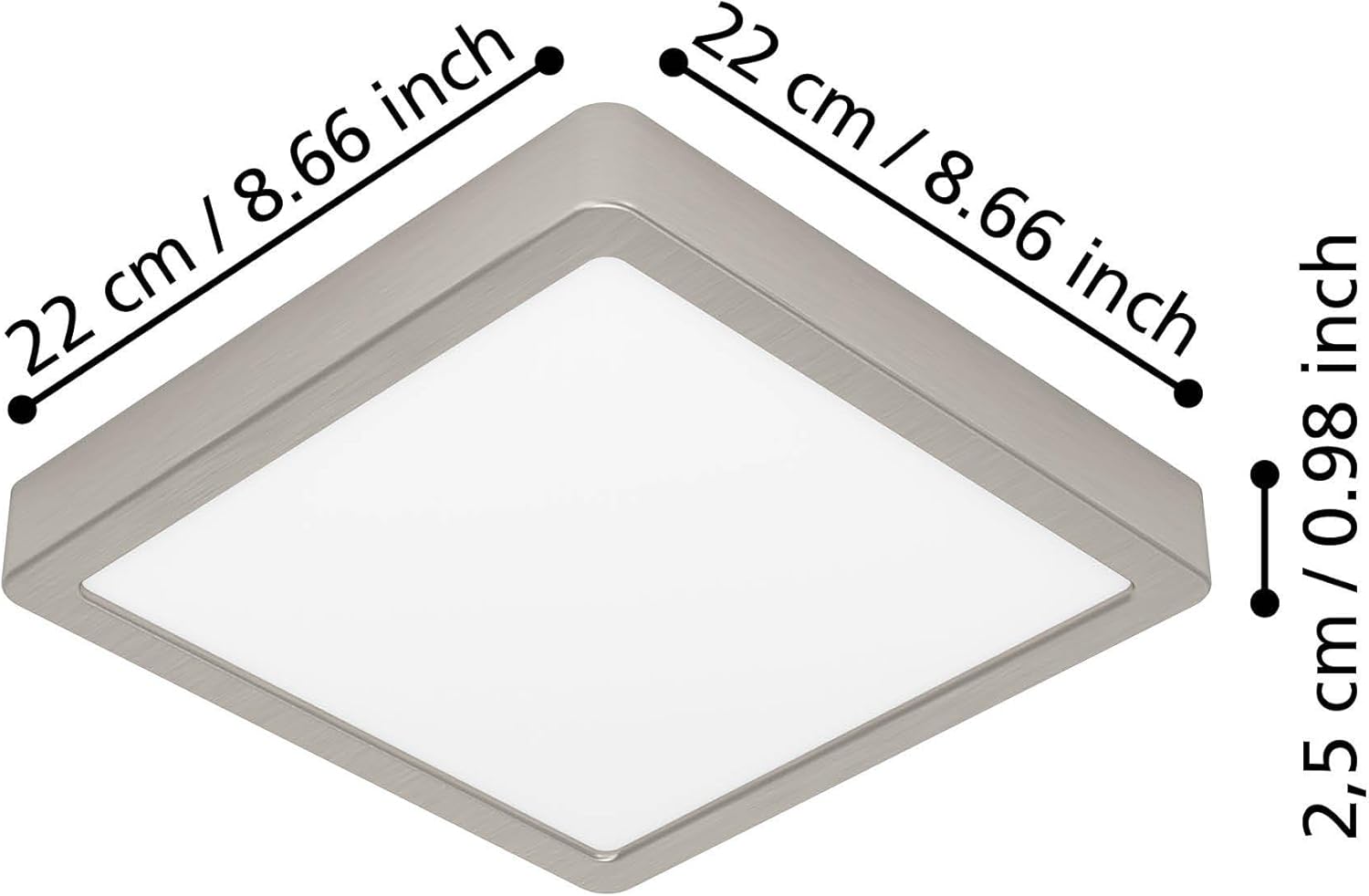

Figure 1: Dimensions of the EGLO Fueva 6 LED Ceiling Light (22x22x2.5 cm)
Figure 2: EGLO Fueva 6 LED Ceiling Light installed, emitting cool white light.
Figure 3: EGLO Fueva 6 LED Ceiling Light installed, emitting warm white light.
Torolàlana miasa
Once installed and power is restored, the EGLO Fueva 6 LED Ceiling Light operates via your standard wall switch. The light will turn on and off with the switch.
Fanitsiana ny hafanan'ny loko
The EGLO Fueva 6 allows you to select from three different color temperatures:
- Warm White (2700 Kelvin): Provides a cozy and inviting atmosphere (1600 lumens).
- Neutral White (4000 Kelvin): Offers clear, balanced light suitable for tasks (1700 lumens).
- Cool White (6500 Kelvin): Delivers a bright, invigorating light (1600 lumens).
To change the color temperature, you must access the switch located on the back of the light fixture. This requires temporarily detaching the fixture from its mounting bracket. Therefore, it is recommended to select your preferred color temperature during installation.
Figure 4: Color Temperature Options and Their Applications
fikarakarana
The EGLO Fueva 6 LED Ceiling Light requires minimal maintenance.
- Fanadiovana: Ataovy antoka fa maty ny jiro alohan'ny hanadiovana. Fafao ny fitaovana amin'ny malefaka, maina, na kely damp lamba. Aza mampiasa mpanadio mikikisana, solvents, na polish, satria mety hanimba ny famaranana na ny singa elektrika izany.
- Loharano maivana LED: The integrated LED light source is designed for long-term use and is not user-replaceable.
Fanamboarana
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tsy mirehitra ny jiro. | Tsy misy famatsiana herinaratra. Ny fifandraisana wiring malalaka. Fidin'ny rindrina diso. | Zahao ny fanapahana faritra. Ataovy azo antoka fa azo antoka ny fifandraisana tariby rehetra (vonoina aloha). Andramo ny switch amin'ny rindrina. |
| Malemy loatra na mamiratra loatra ny hazavana. | Incorrect color temperature setting for desired ambiance. | Adjust the color temperature switch on the back of the fixture (requires temporary removal). |
| Jiro mitsilopilopy. | Wiring malalaka. Switch dimmer tsy mifanaraka (raha ilaina, na dia tsy voafaritra ho azo dimmable aza ity modely ity). Mpamily LED tsy mandeha tsara. | Jereo ny fifandraisan'ny tariby (vonio aloha ny herinaratra). Ensure no dimmer switch is used unless explicitly stated as compatible. Contact customer support if flickering persists. |
| Difficulty mounting the fixture. | Misalignment of the fixture with the mounting bracket/transformer. Fragile connection points. | Ensure precise alignment of the fixture with the mounting bracket. Apply gentle, even pressure when snapping into place. Avoid forcing the connection. |
fepetra arahana
- Laharana modely: 901321
- marika: EGLO
- refy (L x W x H): 22 x 22 x 2.5 sm (8.66 x 8.66 x 0.98 santimetatra)
- Lanja: 740 g
- Fitaovana: Metal (brushed silver finish), Plastic (white diffuser)
- Loharano hazavana: LED Integrated
- Hery: 10.5 Watts
- Flux mamirapiratra: Up to 1700 lumens (depending on color temperature)
- Temperature loko: Adjustable (2700K Warm White, 4000K Neutral White, 6500K Cool White)
- BOKYtage: 120 Volts (AC)
- Karazana fametrahana: Ceiling Mount (Surface-mounted)
- Safidy fomba: Rotary (for color temperature selection, located on the back of the fixture)
- Fampiasana: an-trano
- Kilasy angovo: D
- Firenena nihaviana: CHINE
Warranty Information
EGLO products are manufactured to high-quality standards. Specific warranty terms and conditions are typically provided with your purchase documentation or can be found on the official EGLO website. Azafady, tehirizo ny porofon'ny fividiananao raha misy fitakiana fiantohana.
Fanohanana ny mpanjifa
For technical assistance, replacement parts, or further inquiries, please contact EGLO customer service. Contact details can usually be found on the EGLO official webtoerana na eo amin'ny fonosan'ny vokatrao.
EGLO Official Webtranokala: www.eglo.com
