XPG CORE Reactor II VE 850W Power Supply Unit User Manual

1. Fampidirana

This manual provides essential information for the installation, operation, and maintenance of your XPG CORE Reactor II VE 850W Power Supply Unit (PSU). Please read this manual thoroughly before installation and retain it for future reference. The XPG CORE Reactor II VE is an 80 Plus Gold certified power supply designed for stable and efficient power delivery to your computer system.

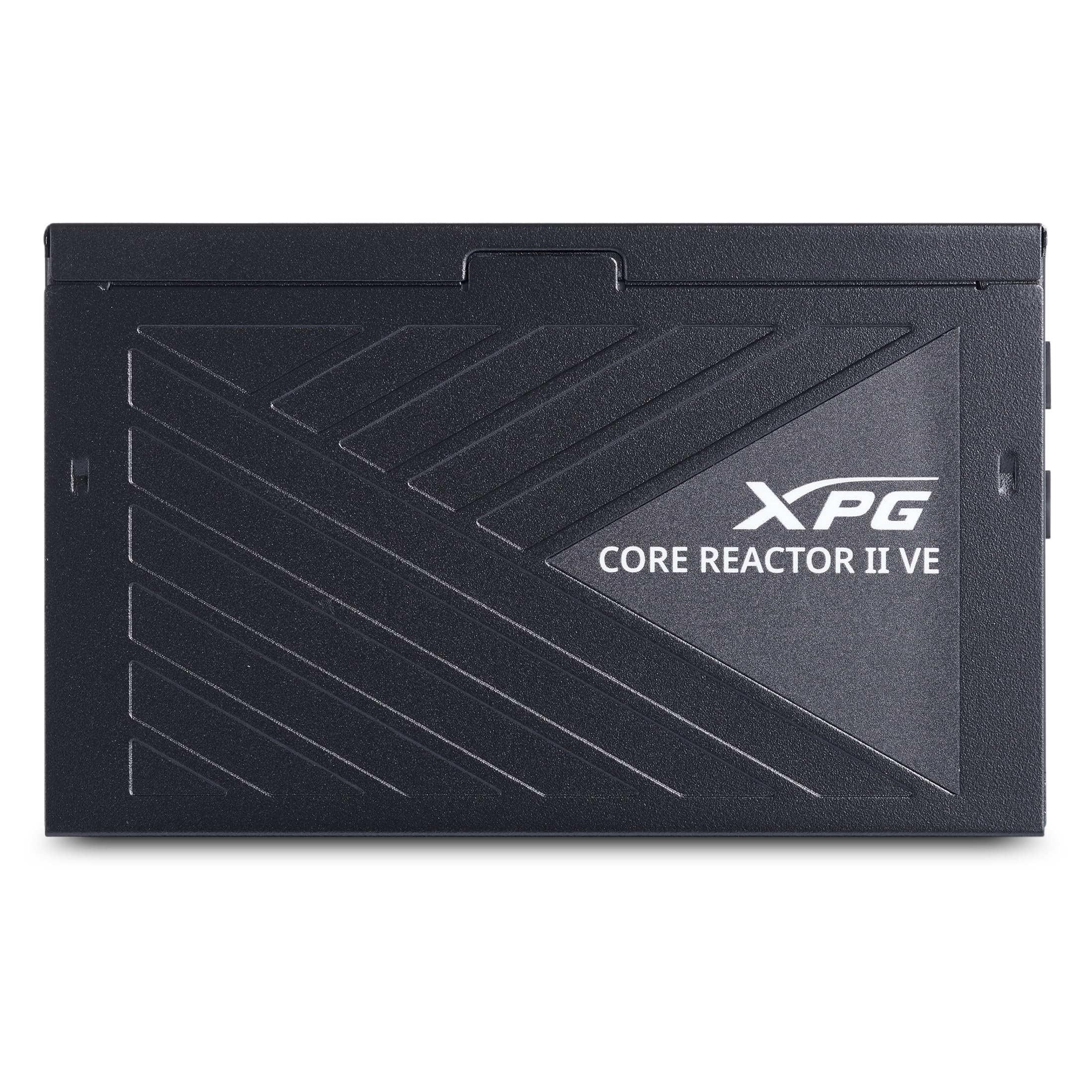

Image 1.1: XPG CORE Reactor II VE 850W Power Supply Unit, showcasing ny endriny mirindra.

2. Endri-javatra fototra

• 80 Plus Gold Certification: Ensures high power efficiency, reducing energy waste and operating costs.
• 12V-2x6 Connector: Provides direct and efficient power delivery to critical components, enhancing system stability and performance.
• DC-DC Circuit Design: Maximizes efficiency and reliability by converting power directly to the required output voltage, reducing heat and prolonging hardware lifespan.
• Low Ripple Noise Design: Features ripple levels below 60mV at +12V and below 40mV at +5V and +3.3V, ensuring stable power delivery and minimizing electrical interference.
• >15ms Hold Up Time: Exceeds Intel's standards for uninterrupted power delivery, ensuring reliable operation under challenging conditions.
• 8 Industrial Protections: Comprehensive protection suite including Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), Over-Power Protection (OPP), Over-Temperature Protection (OTP), Surge & Inrush Protection (SIP), and No Load Operation (NLO).
• Compact 140mm Halavany: Maximizes space efficiency for easy integration into various PC setups and chassis.

Image 2.1: Close-up of the 12V-2x6 connector for modern GPUs.

Image 2.2: Visual representation of the 8 industrial-grade protections.

3. Fametrahana sy fametrahana

Before installing the XPG CORE Reactor II VE PSU, ensure your computer system is powered off and disconnected from the main power outlet. Refer to your PC case and motherboard manuals for specific installation instructions.

3.1 Famoahana

Carefully remove the PSU and all included cables from the packaging. Verify that all components listed in the product documentation are present.

Image 3.1: XPG CORE Reactor II VE PSU with its modular cables.

3.2 Mounting the PSU

1. Position the PSU in the designated PSU bay of your PC case.
2. Align the screw holes on the PSU with those on the case.
3. Arovy ny PSU amin'ny alàlan'ny visy nomena.

3.3 Mampifandray tariby

The XPG CORE Reactor II VE is a fully modular PSU, allowing you to connect only the cables you need. This helps improve airflow and cable management within your PC case.

Image 3.2: Modular cable connection ports on the XPG CORE Reactor II VE PSU.

• Ampifandraiso amin'ny motherboard-nao ny tariby ATX 24-pin.
• Connect the 8-pin (4+4) EPS/CPU cable(s) to your motherboard.
• Connect the 6+2 pin PCIe cables to your graphics card(s). The 12V-2x6 connector is specifically designed for modern high-power GPUs.
• Connect SATA power cables to your storage drives (HDDs/SSDs) and other SATA-powered devices.
• Connect Molex cables to any peripherals requiring them.
• Ataovy azo antoka fa milamina sy mipetraka tsara ny fifandraisana rehetra.

4. Torolàlana miasa

Once the PSU is installed and all components are connected, you can power on your system.

1. Ensure the power switch on the back of the PSU is in the "OFF" (0) position.
2. Connect the AC power cord to the PSU and then to a wall outlet or surge protector.
3. Flip the power switch on the PSU to the "ON" (I) position.
4. Press the power button on your computer case to start the system.

The XPG CORE Reactor II VE is designed for continuous, stable operation. Its FDB 120mm fan provides efficient cooling while maintaining low noise levels.

5. Fikojakojana

Proper maintenance ensures the longevity and optimal performance of your PSU.

• Fanalana vovoka: Periodically clean the PSU fan and ventilation grilles to prevent dust buildup, which can impede airflow and lead to overheating. Use compressed air for this purpose, ensuring the system is powered off and unplugged.
• Fitantanana tariby: Ensure cables are neatly routed and do not obstruct airflow within the PC case.
• Fepetra ara-tontolo iainana: Operate the PSU in a well-ventilated area, away from direct sunlight, excessive heat, and moisture.

6. Famahana olana

If you encounter issues with your XPG CORE Reactor II VE PSU, refer to the following common troubleshooting steps:

• Tsy misy hery:
  • Hamarino raha mifandray tsara amin'ny PSU sy ny faladiany amin'ny rindrina ny tariby herinaratra AC.
  • Ensure the PSU's power switch is in the "ON" (I) position.
  • Verify that the 24-pin ATX and 8-pin EPS/CPU cables are correctly seated in the motherboard.
  • Andramo amin'ny fitaovana hafa ny faladiany mba hahazoana antoka fa manana herinaratra izy.
• Ny tsy fahatomombanan'ny rafitra/fianjerana:
  • Ensure all power connectors to components (motherboard, CPU, GPU, drives) are firmly connected.
  • Check for any loose cables or short circuits within the case.
  • If possible, test the PSU with a different set of components or in another system to isolate the issue.
• Fitabatabana be loatra:
  • Check if the PSU fan is obstructed by dust or cables.
  • Ensure the PSU is securely mounted to prevent vibrations.
  • If the noise persists and is unusual, contact customer support.

If troubleshooting steps do not resolve the issue, contact XPG customer support for further assistance.

7. Famaritana

8. Warranty sy fanohanana

The XPG CORE Reactor II VE 850W PSU comes with a Garantie mpanamboatra 7 taona. For warranty claims or technical support, please visit the official XPG webtranokala na mifandray amin'ny departemantan'ny serivisy mpanjifany.

Raha mila loharanom-baovao fanampiny sy fampahalalana momba ny vokatra dia azonao atao ny mitsidika ny Fivarotana XPG ao amin'ny Amazon.

9. Lahatsary vokatra

Below are relevant product videos for the XPG CORE Reactor II VE Power Supply Unit. These videos provide additional visual information regarding the product's features and installation.
