Teknix THSBS1791INX American Side by Side Door Fridge Freezer User Manual

1. Fampidirana

Thank you for choosing the Teknix THSBS1791INX American Side by Side Door Fridge Freezer. This appliance is designed to provide efficient and reliable food storage with advanced features such as Frost Free technology and a non-plumbed water dispenser. This manual provides essential information for the safe and effective use, installation, and maintenance of your new appliance. Please read it thoroughly before operation and retain it for future reference.

Sary 1.1: Eo anoloana view of the Teknix THSBS1791INX Fridge Freezer.

2. Information momba ny fiarovana

Your safety and the safety of others are paramount. Please read and follow all safety instructions carefully to prevent injury or damage. This section highlights general safety precautions. For detailed safety information, refer to the full user manual included with your appliance.

• Fiarovana herinaratra: Ensure the appliance is connected to a properly grounded power outlet. Do not use extension cords or adapters.
• rivotra: Tazony tsara ny rivotra manodidina ny fitaovana mba hisorohana ny hafanana be loatra. Aza sakanana ny fisokafan'ny rivotra.
• Fikarakarana: The appliance is heavy. Use appropriate lifting techniques and assistance during installation to avoid injury.
• Fitaovana mora mirehitra: Aza mitahiry zavatra mipoaka na zavatra mora mirehitra ao anaty na akaikin'ny fitaovana.
• Ankizy: Arovy ny ankizy amin'ny fitaovana, indrindra rehefa misokatra ny varavarana.

3. Toetran'ny vokatra

The Teknix THSBS1791INX is equipped with a range of features designed for convenience and efficiency:

• Stainless vy vita: The appliance features a premium stainless steel exterior, providing a modern and stylish aesthetic that complements any kitchen decor. This durable finish is also easy to clean and maintain.


  Sary 3.1: Angled view asehocasing the stainless steel design.

• Frost Free Technology: This appliance incorporates revolutionary Total No Frost technology, eliminating the need for manual defrosting in the freezer compartment. This prevents ice build-up, ensuring consistent cooling and optimal storage conditions.


  Figure 3.2: Frost Free technology prevents ice accumulation.

• Fanaraha-maso nomerika: An intuitive digital display is integrated into the front of the door, allowing for precise temperature adjustments and control over various functions, enhancing the appliance's sleek design.
• Non-Plumbed Water Dispenser & Ice Maker: Enjoy chilled water and ice on demand without the need for a direct plumbing connection. The internal reservoir is manually filled, providing convenience and flexibility in placement. The dispenser is capable of making, storing, and dispensing ice.


  Figure 3.3: Non-plumbed water and ice dispenser.
• Drawers Crisper: The fridge section includes spacious crisper drawers designed to maintain optimal temperature and humidity levels, preserving the freshness and texture of fruits and vegetables for longer.

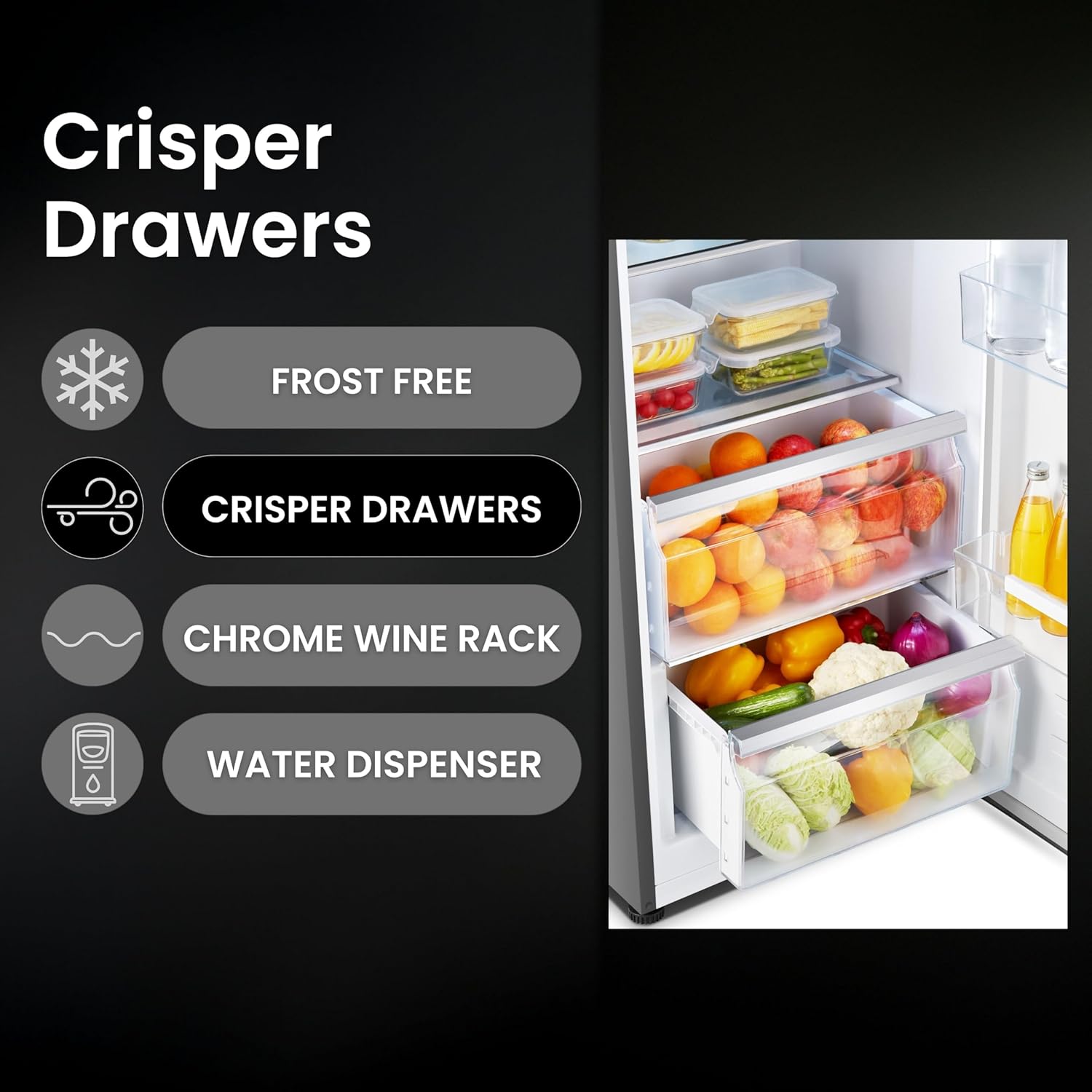

  Figure 3.4: Crisper drawers for optimal produce storage.

• Chrome Wine Rack: A dedicated chrome wine rack allows for secure and convenient storage of wine bottles and other beverages, preventing them from rolling when the door is opened.


  Figure 3.5: Integrated chrome wine rack.

• Jiro LED: Integrated automatic LED internal lights provide bright, energy-efficient illumination throughout the fridge and freezer compartments, activating automatically when the doors are opened.
• Fahaiza-manao malala-tanana: With a total capacity of 562 litres, including a 371L fridge volume and a 191L freezer volume, this appliance offers ample space for all your food storage needs.


  Figure 3.6: Capacity breakdown and dimensions.

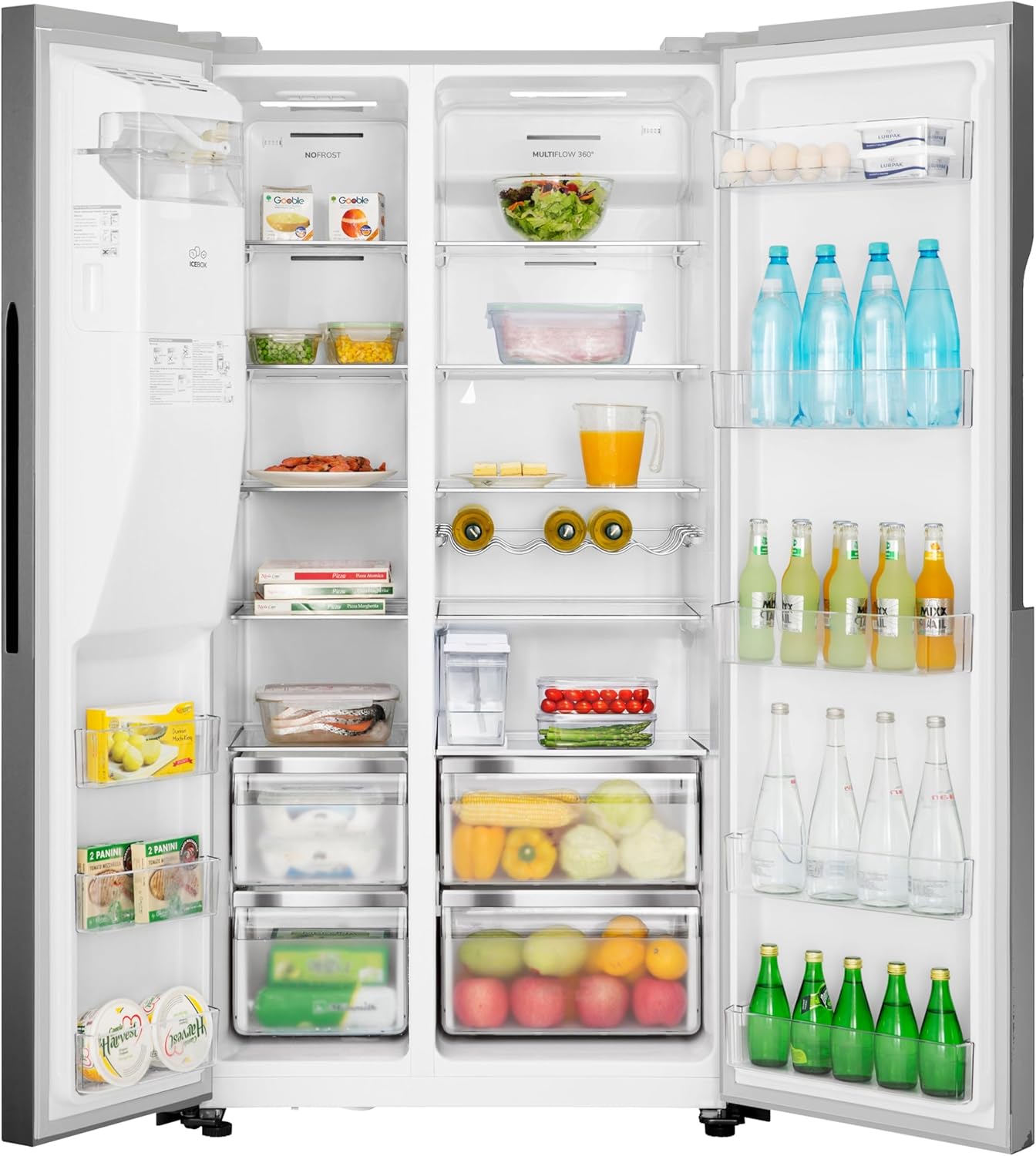

Figure 3.7: Organized interior with food items.

4. Fametrahana & Fametrahana

Proper installation is crucial for the performance and longevity of your appliance. Follow these steps carefully:

1. Famoahana: Carefully remove all packaging materials, including internal packing and protective films. Inspect the appliance for any transit damage.
2. Fametrahana: Choose a location with a solid, level floor that can support the appliance's weight (80 kg). Ensure there is sufficient space around the fridge freezer for proper ventilation (at least 10 cm at the back and sides, and 30 cm above). Avoid direct sunlight or heat sources.
3. Fanamafisana: Adjust the leveling feet at the bottom of the appliance to ensure it is stable and level. This prevents vibrations and ensures proper door alignment.
4. Fanadiovana voalohany: Before first use, clean the interior and exterior of the appliance with a mild detergent and warm water. Wipe dry thoroughly.
5. Fifandraisana elektrika: Plug the appliance into a dedicated, grounded power outlet. Allow the appliance to stand for at least 4 hours before plugging it in to allow refrigerants to settle.
6. Water Dispenser Setup (Non-Plumbed): Locate the water tank inside the fridge compartment. Fill it with potable water. Ensure the tank is securely placed to prevent leaks.

5. Torolàlana miasa

Familiarize yourself with the digital controls to optimize your appliance's performance:

• Herim-batana / maty: Press and hold the power button on the digital display to turn the appliance on or off.
• Fanitsiana ny maripana: Use the temperature control buttons on the display to set desired temperatures for the fridge and freezer compartments. Recommended temperatures are typically 4°C (39°F) for the fridge and -18°C (0°F) for the freezer.
• Fast Freeze/Cool: Activate the Fast Freeze or Fast Cool function for rapid chilling of newly added items. Refer to the full manual for specific button functions.
• Water/Ice Dispenser: To dispense water, place a glass under the dispenser nozzle and press the lever. For ice, select the ice option on the dispenser panel and press the lever. Ensure the water tank is filled.
• Torolàlana fitahirizana sakafo: Store raw meats on the lowest shelf to prevent dripping. Keep dairy products and cooked foods on upper shelves. Use crisper drawers for fruits and vegetables. Ensure all food is covered to prevent odor transfer and maintain freshness.

6. Fikojakojana sy fanadiovana

Regular cleaning and maintenance will ensure your appliance operates efficiently and hygienically:

• Fanadiovana ivelany: Wipe the stainless steel exterior with a soft cloth and a mild, non-abrasive cleaner. For stubborn marks, use a specialized stainless steel cleaner.
• Fanadiovana anatiny: Unplug the appliance before cleaning. Remove all food items, shelves, and drawers. Wash removable parts with warm, soapy water. Clean the interior surfaces with a solution of baking soda and water (one tablespoon of baking soda to one liter of water) to neutralize odors. Rinse and dry thoroughly.
• Water Dispenser Cleaning: Regularly clean the water tank and dispenser tray. For the non-plumbed system, periodically empty and clean the water tank to prevent algae or bacterial growth.
• Condenser coils: Periodically vacuum the condenser coils at the back or bottom of the appliance (if accessible) to remove dust and debris. This improves energy efficiency.
• Fanala mangatsiaka: The freezer compartment is Frost Free and does not require manual defrosting. If ice builds up in the fridge section, it may indicate a blocked drain or a faulty seal.

7. Famahana olana

Alohan'ny hifandraisana amin'ny serivisy mpanjifa, andramo ireto dingana famahana olana mahazatra ireto:

If the problem persists after attempting these solutions, please contact Teknix customer support.

8. Famaritana

Figure 8.1: Energy Label for THSBS1791INX.

9. Warranty & Fanohanana

The Teknix THSBS1791INX Fridge Freezer comes with a Two Years Parts and Labour Cover as standard, providing peace of mind. For any technical assistance, warranty claims, or further inquiries, please refer to the contact information provided in your purchase documentation or visit the official Teknix webtranonkala. Ataovy azo antoka fa vonona ny laharan'ny modely sy ny antsipirian'ny fividiananao rehefa mifandray amin'ny fanohanana ianao.

For more information on Teknix refrigeration products, you may visit www.teknix.co.uk/refrigeration.
