LOYALHEARTDY 200W LED Follow Stage Spot Light Instruction Manual

1. Fampidirana

This manual provides essential information for the safe and effective operation of your LOYALHEARTDY 200W LED Follow Stage Spot Light. Please read this manual thoroughly before installation and use, and retain it for future reference. This product is designed for professional stage lighting applications, offering powerful illumination and versatile color control.

2. Information momba ny fiarovana

Tandremo hatrany ireto fepetra fiarovana manaraka ireto mba hisorohana ny fahatapahan-jiro, ny afo, na ny ratra:

• Ataovy azo antoka ny famatsiana herinaratra voltage matches the product's requirements (110V AC).
• Aza sokafana ny fonony; tsy misy piesy azo amboarina ao anatiny. Ampahafantaro ny mpiasa mahafeno fepetra ny fanamboarana rehetra.
• Arovy amin'ny rano sy ny hamandoana ary ny hafanana tafahoatra ny fitaovana.
• Ensure proper ventilation to prevent overheating. Do not block cooling vents.
• Avoid direct eye exposure to the light source, as it can cause eye damage.
• Esory foana ny herinaratra alohan'ny hanadiovana na hanaovana fikojakojana.
• Use only the provided or recommended accessories and parts.

3. Ny votoatin'ny fonosana

Hamarino fa misy ny entana rehetra ao anaty fonosana:

• 1 x LOYALHEARTDY 200W LED Follow Spot Light
• 1 x Tripod Bracket
• 1 x English Instruction Manual (this document)

4. Toetran'ny vokatra

The LOYALHEARTDY 200W LED Follow Stage Spot Light offers advanced features for professional lighting needs:

• Fanazavana mahery vaika: Equipped with a 200W LED light source and a high-precision glass lens, providing an illumination distance of 32.8-65.6 feet.
• Loko azo ahitsy: Features a knob for selecting 6 colors: red, yellow, blue, rose red, cooling color, and white light.
• Haavo azo ovaina: The included tripod stand allows height adjustment from 3.84 to 6.6 feet for optimal positioning.
• Fanorenana maharitra: Made with a high-quality cast aluminum shell, stainless steel triangular bracket, and non-slip feet for stability and longevity.
• Fampangatsiahana mahomby: Integrated high-efficiency fan and dense heat-sink holes prevent overheating and extend the product's lifespan.
• Famolavolana portable: The foldable tripod bracket ensures easy storage and transport.

Image: The LOYALHEARTDY 200W LED Follow Stage Spot Light demonstrating its powerful illumination and high-precision glass lens.

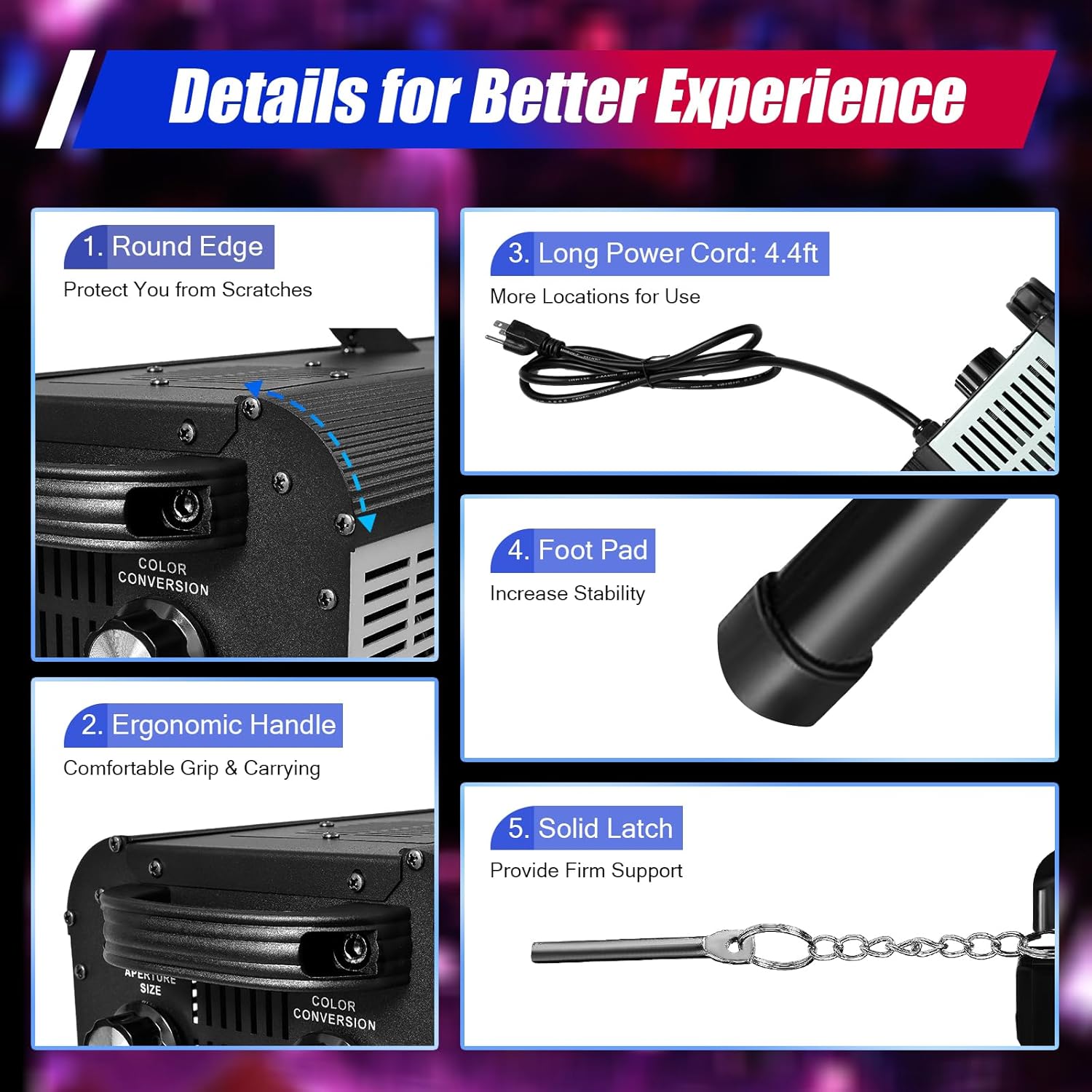

Sary: Detailed view highlighting features like round edges, ergonomic handle, long power cord, foot pad, and solid latch for enhanced user experience.

5. Fametrahana

1. Assemble ny tripod: Unfold the tripod legs and secure them firmly. Ensure the tripod is stable on a flat surface.
2. Mount the Spot Light: Attach the 200W LED Follow Stage Spot Light securely to the top of the tripod bracket using the provided screws and knobs. Ensure it is tightly fastened to prevent accidental dislodgement.
3. Ahitsio Haavo: Loosen the height adjustment knob on the tripod, extend the pole to the desired height (between 3.84-6.6 ft), and then tighten the knob to secure it. Insert the safety pin if available.
4. Hery mampifandray: Plug the power cord into the power input on the light unit, then connect the other end to a standard 110V AC power outlet.

Image: The spot light mounted on its adjustable tripod stand, illustrating the height range.

6. Fampandehanana

1. Herim-batana: Locate the power switch on the control panel of the light unit and flip it to the 'ON' position. The light will illuminate.
2. Ahitsio loko: Use the 'Color Conversion' knob to cycle through the available colors: red, yellow, blue, rose red, cooling color, and white light.
3. Adjust Strobe: Use the 'Strobe Adjustment' knob to control the strobe effect, from static to various flashing speeds.
4. Ahitsio fifantohana: Use the 'Focus Knob' to adjust the beam's sharpness and spread.
5. Adjust Aperture Size: Use the 'Aperture Size' slider to control the size of the light beam.

Image: The spot light showcasing its six selectable colors for various lighting needs.

Image: Diagram of the product's control panel, indicating the functions of each knob and switch.

Operation Video Guide

7. Fikojakojana

Regular maintenance ensures optimal performance and extends the lifespan of your spot light:

• Fanadiovana: Use a soft, dry cloth to clean the exterior of the unit. For the lens, use a specialized lens cleaning solution and cloth to avoid scratches. Do not use harsh chemicals or abrasive cleaners.
• rivotra: Periodically check that the cooling vents are free from dust and debris. Use compressed air to clear any blockages.
• fitahirizana: When not in use, store the light in a cool, dry place, protected from dust and extreme temperatures. The foldable tripod allows for compact storage.
• Fanoloana fuse: If the unit does not power on, check the fuse located near the power input. Replace it with a fuse of the same type and rating if necessary. (Refer to specifications for fuse type).

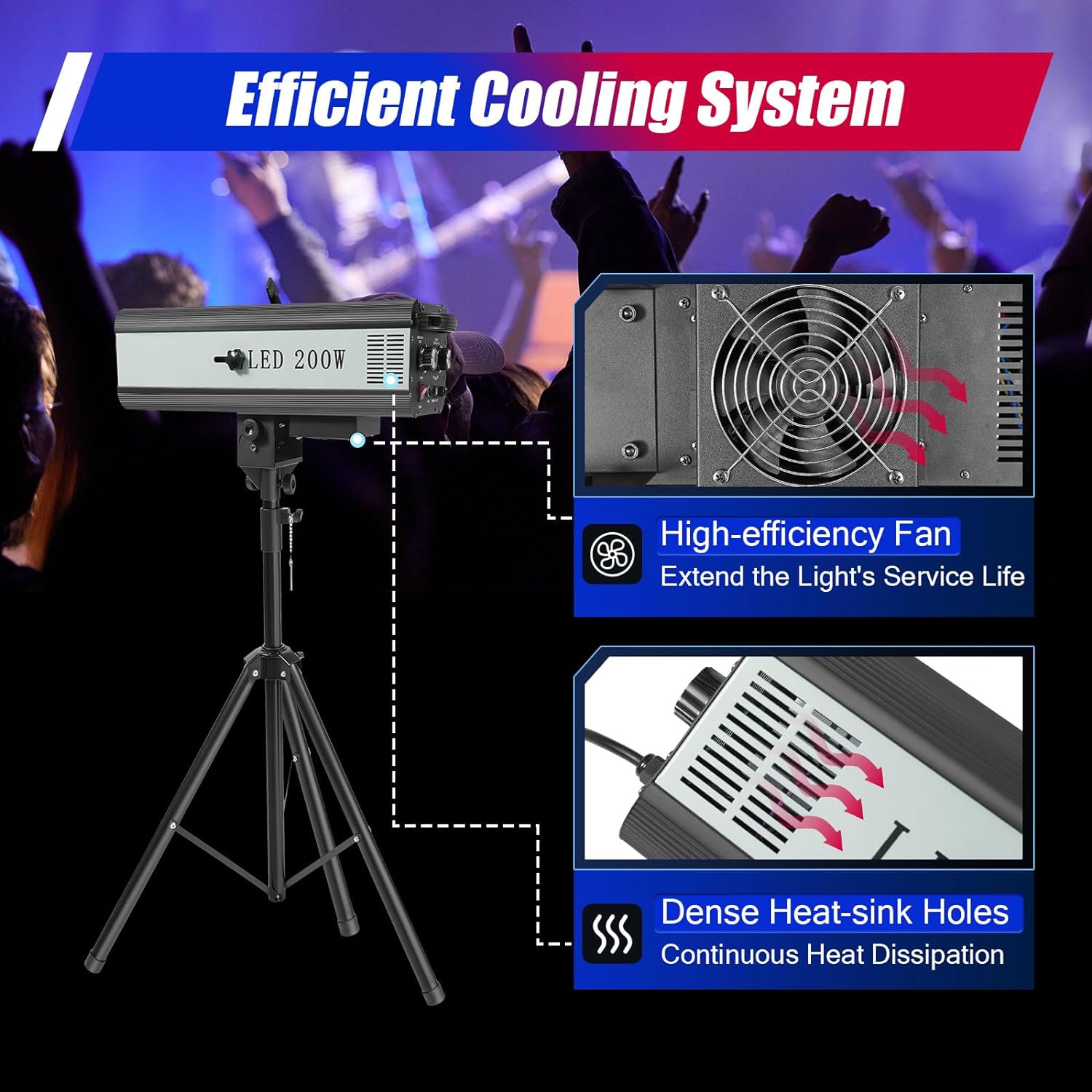

Image: Illustration of the efficient cooling system, highlighting the fan and heat-sink holes for continuous heat dissipation.

8. Famahana olana

Raha sendra olana ianao dia jereo ireto olana sy vahaolana mahazatra ireto:

9. Famaritana

10. Warranty sy fanohanana

For warranty information or technical support, please contact LOYALHEARTDY customer service through your retailer or the official brand website. Tehirizo ny tapakila fividiananao ho porofon'ny fividianana.
