LOYALHEARTDY 350W Follow Stage Fahazavana Spot

1. Fampidirana

This manual provides instructions for the safe and efficient operation of your LOYALHEARTDY 350W Follow Stage Spot Light. This high-intensity stage spotlight features both DMX and manual control options, an adjustable tripod, and a multi-color beam for various performance lighting needs. Please read this manual thoroughly before use and retain it for future reference.

2. Ny votoatin'ny fonosana

Hamarino fa ny entana rehetra voatanisa etsy ambany dia tafiditra ao anatin'ny fonosanao:

• 1 x 350W Stage Spotlight Unit
• 1 x Tripod Bracket
• 1 x Tariby famantarana
• 1 x Power Cable
• 1 x English Instruction Manual (this document)

3. Information momba ny fiarovana

Torolàlana momba ny fiarovana:

• Always connect the unit to a grounded power outlet.
• Ataovy azo antoka ny voltage matches the product's requirements (110-240V 50/60Hz).
• Aza ampiasaina ny fitaovana raha simba ny tariby herinaratra.
• Halaviro ny maso mivantana amin'ny taratra hazavana.
• Hamarino tsara ny rivotra manodidina ny fitaovana mba hisorohana ny hafanana be loatra.
• Arovy ny fitaovana amin'ny hamandoana sy ny hafanana tafahoatra.
• Ny mpiasa mahay ihany no tokony hanao fanamboarana.

4. Fametrahana

Follow these steps to set up your stage spot light:

1. Assemble ny tripod: Unfold the tripod legs and secure them firmly. Adjust the height using the adjusting knob to your desired level (47.24-59.84 inches).
2. Tendrombohitra ny jiro (mount the spotlight): Carefully place the spotlight unit onto the tripod's mounting pin. Secure it by tightening the knob on the tripod bracket. Ensure the unit is stable before proceeding.
3. Hery mampifandray: Insert the power cable into the power input port on the spotlight unit and then into a suitable power outlet.
4. Connect DMX (Optional): If using DMX control, connect a DMX cable from your DMX controller to the DMX IN port on the spotlight. If linking multiple units, connect from DMX OUT of the first unit to DMX IN of the next.

Sary: The adjustable tripod stand, showing the mechanism for setting the height of the spotlight unit.

5. Torolàlana miasa

The LOYALHEARTDY 350W Follow Stage Spot Light offers both manual and DMX control options.

5.1 Fanaraha-maso amin'ny tanana

The control panel on the unit allows for direct manual adjustments:

• Herim-batana / maty: Use the red switch labeled 'ON/OFF' to power the unit.
• Safidy loko: Press the dedicated buttons for White, Yellow, Orange, Green, Blue, or Red to select the desired light color.
• Anie: Use the 'STROBE' slider to adjust the strobe speed (1-7 times/second).
• Brightness/Dimming: Use the 'DIMMING' slider to adjust the light intensity.
• Fanitsiana aperture: Use the 'APERTURE' slider to control the size of the light beam, allowing for focused spot lighting.
• Color Temperature Correction: Adjust the color temperature between 5600K (Normal), 6000K (High), and 3200K (Low) as needed.
• Fanitsiana zoro: Loosen the knobs on the side of the spotlight unit to tilt and pan the light, then tighten to secure the position.

Sary: The control panel, illustrating the buttons for color selection, and sliders for strobe, dimming, and aperture adjustments.

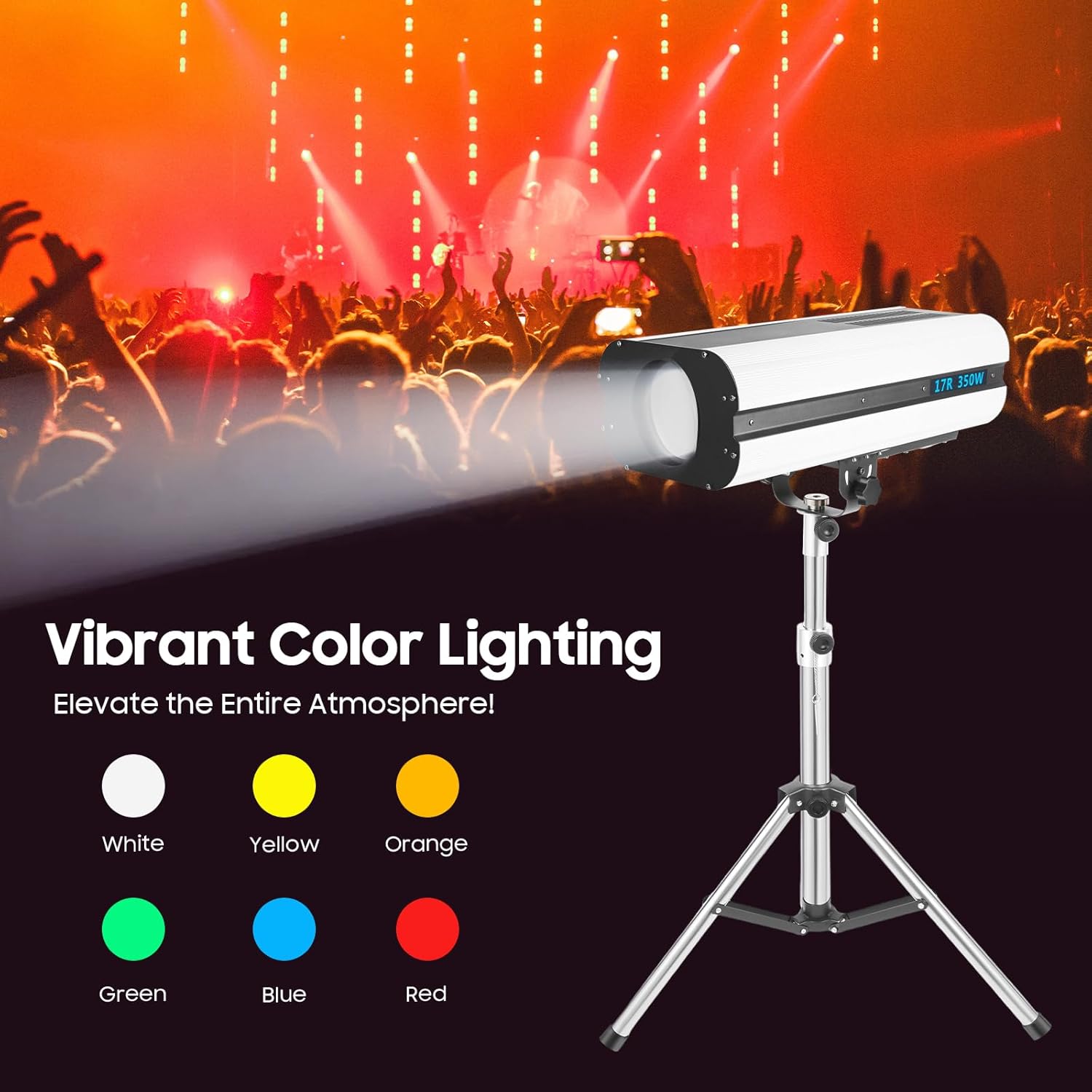

Sary: Demonstration of the vibrant color lighting capabilities, showing the available color options.

5.2 DMX Control

For advanced control, connect the unit to a DMX controller. Refer to your DMX controller's manual for specific programming instructions. The spotlight supports standard DMX protocols for remote control of color, strobe, dimming, and aperture functions.

6. Fikojakojana

Regular maintenance ensures optimal performance and longevity of your spotlight:

• Fanadiovana: Use a soft, dry cloth to clean the exterior of the unit. For the lens, use a specialized lens cleaning solution and cloth to avoid scratches.
• rivotra: Ensure the cooling vents are free from dust and obstructions. The unit features a high-intensity air cooling system.
• fitahirizana: When not in use, store the spotlight in a cool, dry place, protected from dust and physical damage.
• Lamp Fanoloana: The unit uses an OS-RAM SI-RIUS HRI 350W lamp. Lamp replacement should only be performed by qualified technicians.

7. Famahana olana

Raha sendra olana ianao dia jereo ireto olana sy vahaolana mahazatra ireto:

• Tsy misy hery: Check the power cable connection, ensure the power switch is ON, and verify the power outlet is functional.
• Tsy misy jiro mivoaka: Confirm the unit is powered on. Check if the lamp is functioning (if applicable, consult a technician). Ensure dimming is not set to minimum.
• Incorrect Color/Function: For manual control, verify button selections and slider positions. For DMX control, check DMX cable connections and controller settings.
• Mafana be loatra: Ensure ventilation fans are clear and operating. Do not block air vents. Allow the unit to cool down if it becomes excessively hot.

Raha mbola mitohy ny olana dia mifandraisa amin'ny fanohanan'ny mpanjifa mba hahazoana fanampiana.

8. Famaritana

Sary: Detailed product dimensions of the spotlight unit and the adjustable tripod.

9. Warranty sy fanohanana

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact the seller directly. For technical support or service inquiries, please reach out to LOYALHEARTDY customer service through the platform where the product was purchased.
