LENVII R800 Portable 2D Barcode Scanner User Manual

1. Fampidirana

Thank you for choosing the LENVII R800 Portable 2D Barcode Scanner. This device is designed for efficient and versatile barcode scanning, supporting both 1D and 2D barcodes. It offers multiple connection options including Bluetooth, 2.4G wireless, and wired USB, making it compatible with a wide range of devices and operating systems. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance.

Image 1.1: LENVII R800 Barcode Scanner and included accessories (USB cable, 2.4G wireless receiver).

2. Vokatra mihoatraview

Familiarize yourself with the components and features of your LENVII R800 scanner.

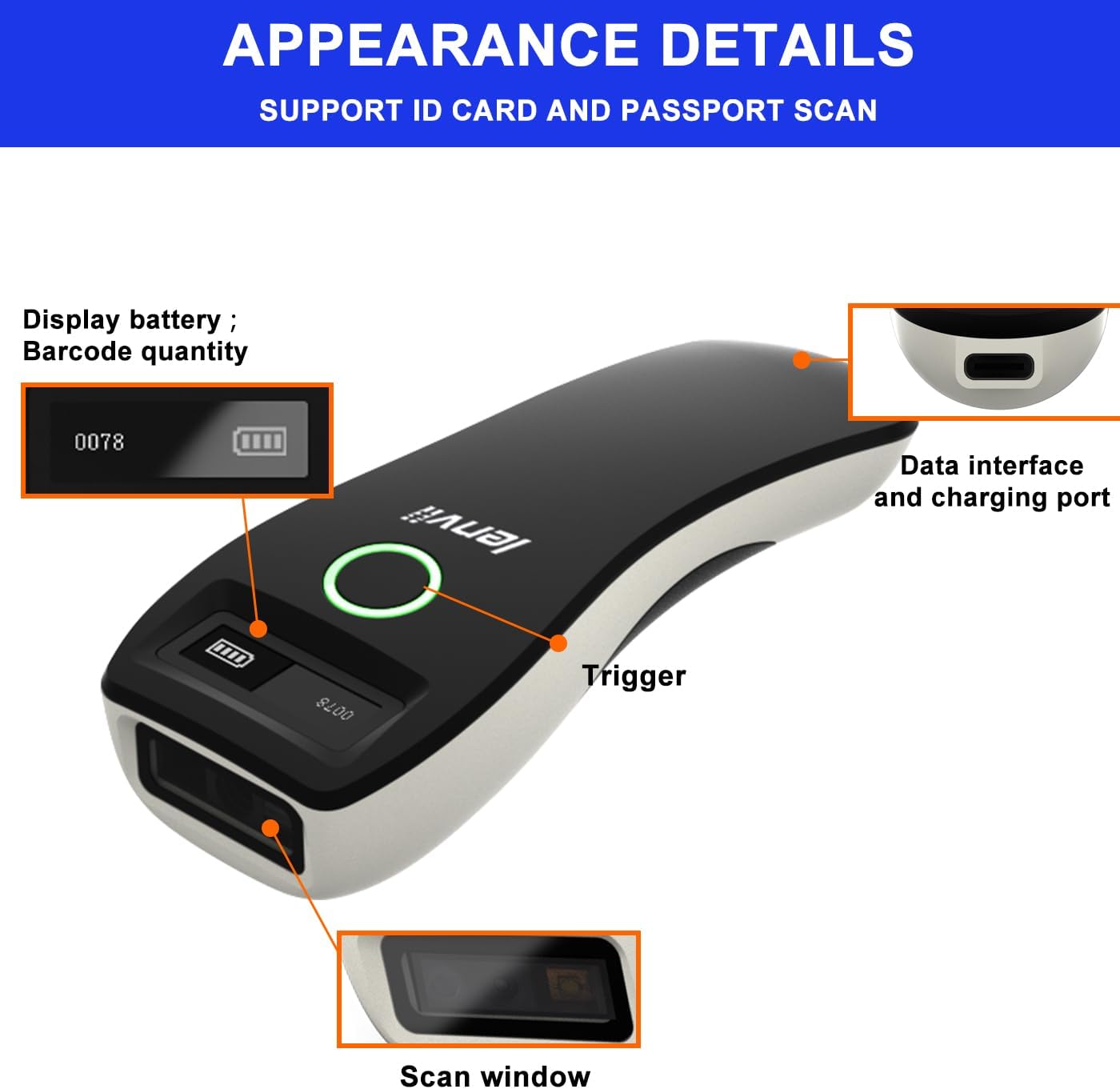

Sary 2.1: Misy antsipiriany view of the LENVII R800 scanner, highlighting the display (battery, barcode quantity), data interface/charging port, trigger button, and scan window.

• Aseho: Shows battery level and scanned barcode quantity.
• Data Interface/Charging Port: Type-C port for wired connection and charging.
• Trigger: Button to initiate scanning.
• Scan Window: Area through which barcodes are read.

3. Fametrahana

3.1 Famandrihana ny Scanner

Before first use, fully charge the scanner. Connect the provided Type-C USB cable to the scanner's charging port and the other end to a USB power source (e.g., computer USB port, USB wall adapter). The charging indicator light will show the charging status.

The scanner is equipped with a 1500mAh rechargeable lithium battery.

3.2 Fomba fifandraisana

The LENVII R800 offers three connection methods:

Image 3.1: Illustration of the three connection modes: 2.4GHz Wireless, USB Wired, and Bluetooth.

3.2.1 2.4G Wireless fifandraisana

1. Insert the 2.4G wireless receiver into a USB port on your computer or host device.
2. Turn on the scanner. It should automatically connect to the receiver.
3. A successful connection is indicated by a specific sound or light on the scanner.

3.2.2 Fifandraisana Bluetooth

1. Alefaso ny scanner.
2. Activate Bluetooth on your host device (e.g., smartphone, tablet, laptop).
3. Scan the Bluetooth pairing barcode (usually found in the full manual or quick start guide). The scanner will enter pairing mode.
4. On your host device, search for Bluetooth devices and select "LENVII R800" (or similar name) to pair.
5. A successful connection is indicated by a specific sound or light on the scanner.

3.2.3 Fifandraisana tariby

1. Connect the scanner to your computer using the provided Type-C USB cable.
2. The scanner will function as a wired device and also charge simultaneously.
3. No additional drivers are typically required for this plug-and-play connection.

3.3 Mifanaraka

The LENVII R800 scanner is compatible with various operating systems and devices:

Image 3.2: Compatibility icons for Windows, iOS, Android, Mac OS, and Linux, indicating broad device support.

• Rafitra fiasana: Windows XP/7/8/10, Mac OS, Windows Mobile, Android OS, iOS, Linux.
• Fitaovana: Laptops, PCs, mobile phones, tablets, iPhones, iPads, POS systems.

4. Torolàlana miasa

4.1 Fijerena fototra

1. Ensure the scanner is powered on and connected to your host device via your preferred method.
2. Open an application on your host device where you want the scanned data to appear (e.g., a text editor, spreadsheet, or inventory software).
3. Point the scan window of the scanner at the barcode.
4. Press the trigger button. A successful scan will be indicated by a beep and/or a light confirmation.
5. The scanned data will be transmitted to your host device.

4.2 Data Transfer Modes

Manohana fomba roa fandefasana angona ny scanner:

Image 4.1: Depiction of Instant Upload Mode (data sent immediately) and Offline Storage Mode (data stored for later upload).

• Fomba fandefasana eo noho eo: Barcodes are transmitted to the connected device immediately after scanning. This is the default mode.
• Storage Mode (Offline Mode): Barcodes are stored in the scanner's internal memory (up to 35,000 EAN 13 codes) and can be uploaded later. This mode is useful when working out of range of the host device. To switch to storage mode and upload data, refer to the full programming manual for specific barcode commands.

4.3 Karazana Barcode Tohanana

The LENVII R800 is capable of scanning a wide array of 1D and 2D barcode symbologies:

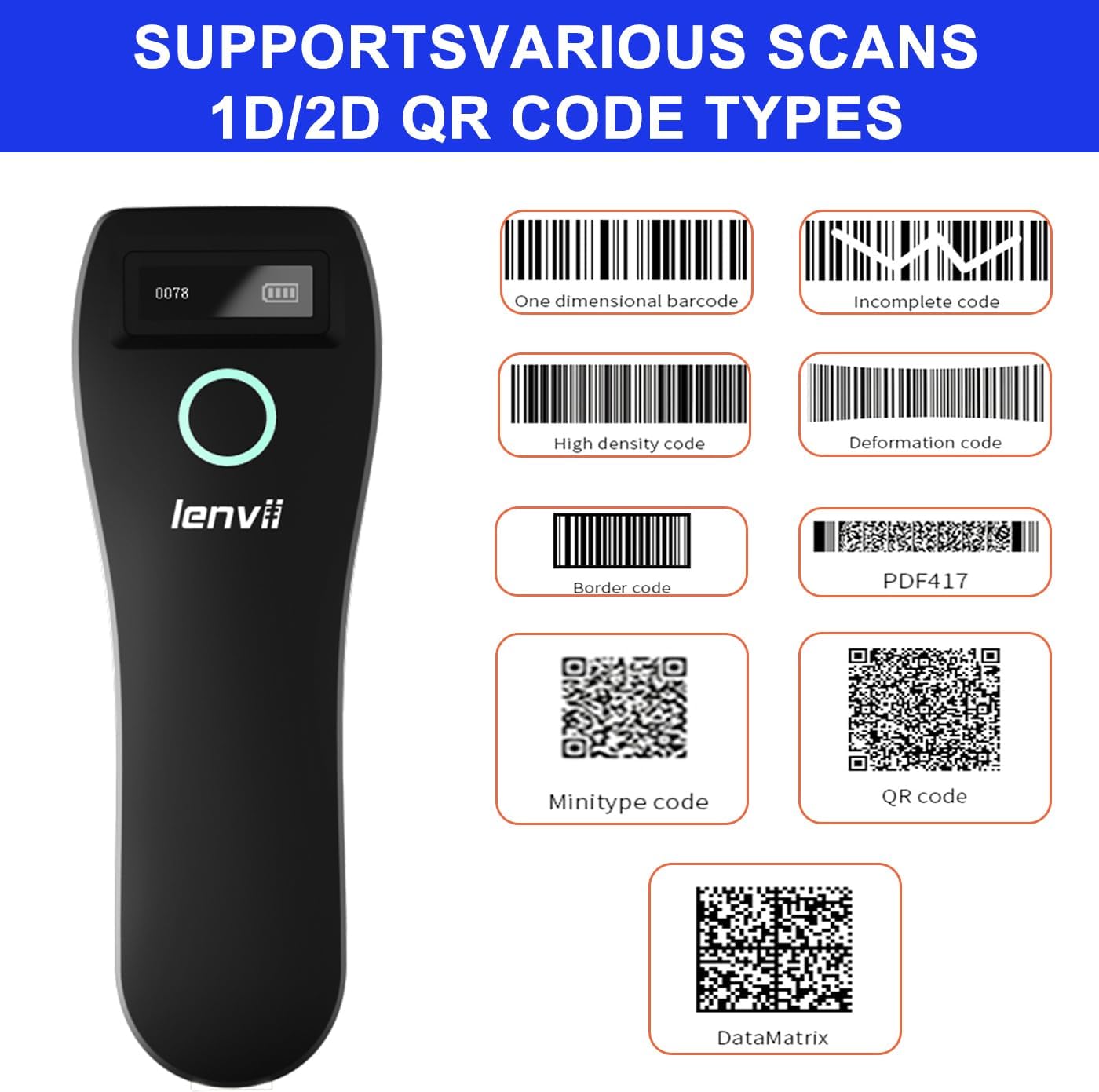

Sary 4.2: Eksamples of supported barcode types including 1D (e.g., Code 39, Code 128) and 2D (e.g., QR Code, Data Matrix, PDF417).

• Barcode 1D: UPC/EAN/JAN, UPC-A, UPC-E, EAN-8, EAN-13, JAN-8, JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF), Appendix 2 of 5 IATA code, MSI/Plessy, Chinese postal code, Code 32 (Italian Pharmacopoeia), RSS 14, RSS Limited, RSS Extension.
• Barcode 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar Stack.

4.4 Ergonomika sy Fahaiza-mitondra entana

The LENVII R800 is designed for comfortable, one-handed operation and easy portability, making it suitable for various mobile business applications.

Image 4.3: The compact LENVII R800 scanner shown in different environments, emphasizing its portability and suitability for retail, inventory, and field service.

5. Fikojakojana

• Fanadiovana: Use a soft, dry cloth to clean the scanner's exterior. For the scan window, use a soft, lint-free cloth lightly dampAfangaro amin'ny mpanadio malefaka sy tsy manimba. Fadio ny akora simika mahery vaika na fitaovana manimba.
• fitahirizana: Tehirizo ao amin'ny toerana mangatsiatsiaka sy maina lavitry ny tara-masoandro mivantana sy ny hafanana tafahoatra ny scanner.
• Fikarakarana bateria: Mba hanalavana ny androm-piainan'ny bateria dia aza ampiasaina matetika ny bateria mba tsy ho very tanteraka ny bateria. Raha tehirizina mandritra ny fotoana maharitra dia fenoy hatramin'ny 50% eo ho eo ny bateria ary fenoy isaky ny volana vitsivitsy.
• Fiarovana ara-batana: While designed to withstand drops from 2 meters, avoid unnecessary impacts.

6. Famahana olana

• Tsy mandeha ny scanner:
  • Ensure the battery is charged. Connect the scanner to a power source using the Type-C cable.
• Scanner not connecting to device:
  • Ho an'ny 2.4G Wireless: Ensure the USB receiver is properly inserted and the scanner is within range.
  • Ho an'ny Bluetooth: Ensure Bluetooth is enabled on your host device, the scanner is in pairing mode, and you have selected the correct device from the Bluetooth list.
  • For Wired: Check the USB cable connection. Try a different USB port or cable.
• Tsy mamaky kaody bara ny scanner:
  • Ensure the barcode is clean, undamaged, and within the scanner's reading range.
  • Check if the barcode type is supported by the scanner.
  • Ensure there is sufficient lighting on the barcode.
  • Clean the scan window if it is dirty.
• Scanned data not appearing on screen:
  • Ensure the scanner is successfully connected to your host device.
  • Verify that an active input field or application is open on your host device to receive the data.
  • Check if the scanner is in 'Storage Mode'. If so, switch to 'Instant Upload Mode' or upload stored data.

7. Famaritana

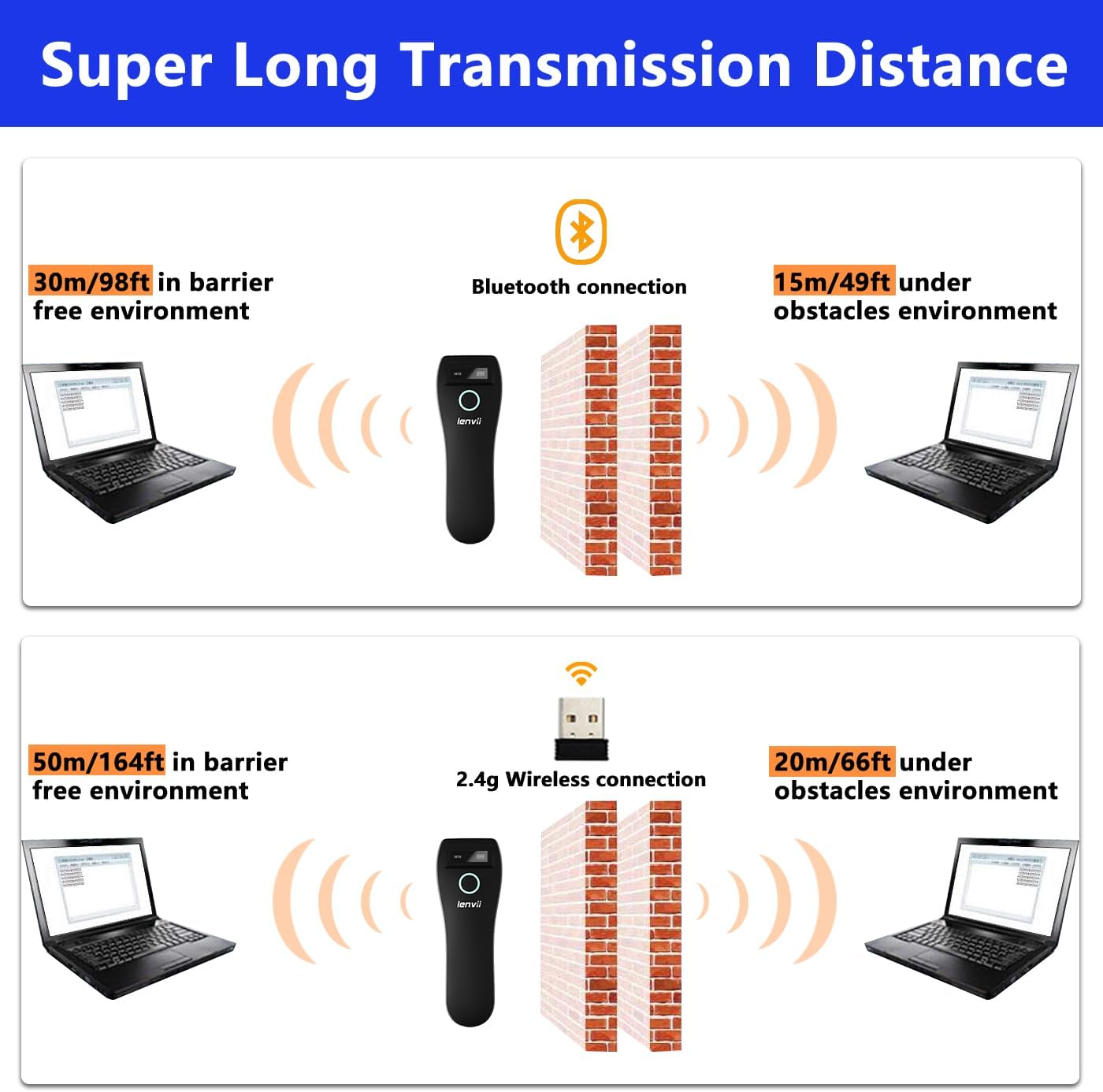

Image 7.1: Comparison of Bluetooth and 2.4G wireless transmission distances in barrier-free and obstacle environments.

8. Warranty sy fanohanana

LENVII products are manufactured to high-quality standards. For warranty information, please refer to the documentation included with your purchase or contact your retailer. For technical support or inquiries, please visit the official LENVII webtranokala na mifandray amin'ny departemantan'ny serivisy mpanjifany.

Afaka mahita fampahalalana bebe kokoa sy loharano fanohanana ianao amin'ny fitsidihana ny LENVII Store on Amazon.
