Electro-Harmonix Pico Triboro Bridge Overdrive, Distortion & Fuzz Pedal User Manual

1. Vokatra mihoatraview

The Electro-Harmonix Pico Triboro Bridge is a versatile multi-mode drive pedal designed to provide a wide range of tonal possibilities. It features three distinct modes: Overdrive, Distortion, and Fuzz, allowing musicians to bridge any gap in their gain requirements. With its powerful EQ capabilities, input contouring, and compact pico-sized footprint, the Triboro Bridge can serve as a foundational element for your tone or offer a fresh alternative to your existing drive pedals.

Lafin-javatra fototra:

• Wide range of saturation with Overdrive, Distortion, and Fuzz modes.
• Treble control boosts or cuts high end in Overdrive and Distortion modes.
• Bass control boosts or cuts low end in Overdrive and Distortion modes.
• Fuzz mode features a dedicated Gate control and a Low Pass Filter.
• Includes a power adapter for immediate use.

Sary: Angled view of the Electro-Harmonix Pico Triboro Bridge pedal, highlighting its compact size and control knobs.

2. Fametrahana sy fifandraisana

Follow these steps to connect your Pico Triboro Bridge pedal to your audio setup:

1. Fampifandraisana herinaratra: Connect the included 9V DC power adapter to the power jack on the top of the pedal. Ensure the power supply meets the pedal's specifications (9V DC, center-negative).
2. Fifandraisana fidirana: Connect your instrument (guitar, bass, etc.) to the INPUT jack on the right side of the pedal using a standard 1/4-inch instrument cable.
3. Fifandraisana Output: Ampifandraiso amin'ny anao ny jack OUTPUT eo amin'ny ilany havia amin'ny pedal amplifier or the next pedal in your signal chain using a standard 1/4-inch instrument cable.
4. Herim-batana: Once all connections are secure, plug the power adapter into a wall outlet. The pedal's LED will illuminate when active.

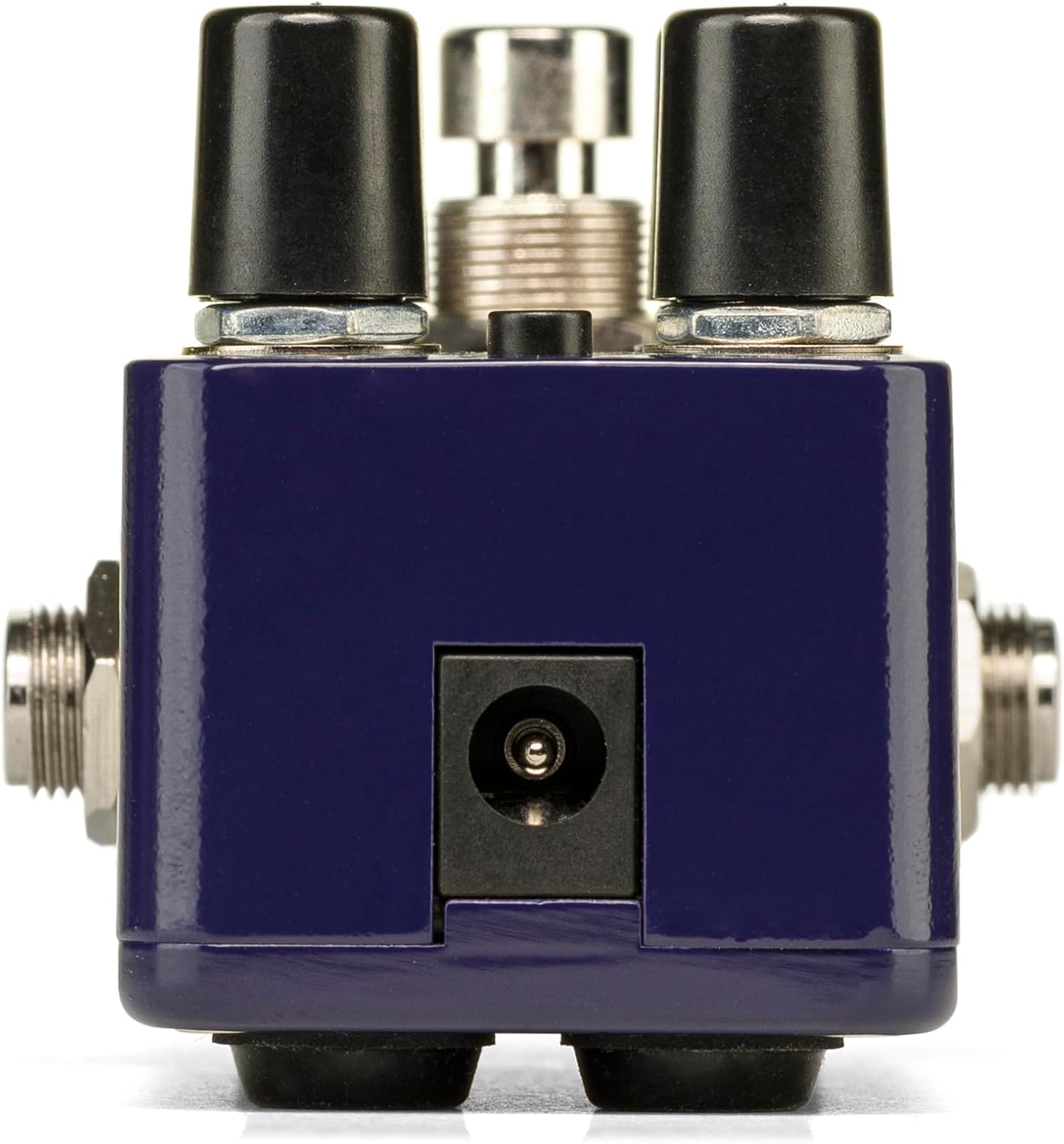

Sary: aoriana view of the Pico Triboro Bridge pedal, showing the power input jack for connecting the power adapter.

3. Controls and Operation

The Pico Triboro Bridge features intuitive controls for shaping your desired drive tone. Understanding each knob and button is key to unlocking its full potential.

Fanaraha-maso Knobs:

• VOL (Boky): Controls the overall output level of the pedal. Adjust this to balance the effect's volume with your bypassed signal or other effects.
• MAMPIASA: Controls the intensity of the drive, distortion, or fuzz effect. Higher settings result in more saturation and sustain.
• BASS / GATE:
  • In Overdrive and Distortion modes, this knob functions as a basse control, allowing you to boost or cut low frequencies.
  • In Fuzz mode, this knob functions as a VAVAHADY control, adjusting the noise gate threshold to eliminate unwanted noise and feedback.
• TREBLE / TONE:
  • In Overdrive and Distortion modes, this knob functions as a TREBLE control, allowing you to boost or cut high frequencies.
  • In Fuzz mode, this knob functions as a fihetseham-po control, specifically a Low Pass Filter, for extreme tonal variations and shaping the fuzz character.

TYPE Button:

The small button labeled "TYPE" at the top of the pedal is used to select between the three primary drive modes and to engage the Input Contour Mode.

• Safidy fomba: Pressing the TYPE button cycles through the Overdrive (green LED), Distortion (orange LED), and Fuzz (red LED) modes.
• Input Contour Mode: Press and hold the TYPE button to enable or disable the Input Contouring EQ. When active, this mode applies a specific EQ to the input signal for a tighter, more modern character across all drive modes.

Sary: Top view of the Pico Triboro Bridge pedal, illustrating the layout of the VOL, GAIN, BASS/GATE, TREBLE/TONE knobs, and the TYPE button.

4. Drive Modes Explained

The Pico Triboro Bridge offers three distinct drive modes, each with its unique sonic characteristics:

• Overdrive Mode (Green LED): This mode provides a gain spectrum ranging from low to mid-level saturation with an open voicing. It is ideal for use as a subtle "always-on" drive, adding warmth and grit, or as a solo boost to push your ampLifer.
• Distortion Mode (Orange LED): Engaging this mode provides additional gain-staging, delivering tones from crunchy rhythms to fully saturated leads. It offers a more aggressive and compressed sound compared to the Overdrive mode.
• Fuzz Mode (Red LED): This mode transforms the pedal into a high-gain fuzz effect with over-the-top saturation. The BASS knob becomes a GATE control, and the TREBLE knob becomes a Low Pass Filter, allowing for unique and extreme tonal variations specific to fuzz.

5. Famaritana

6. Fikojakojana

To ensure the longevity and optimal performance of your Pico Triboro Bridge pedal, follow these maintenance guidelines:

• Fanadiovana: Use a soft, dry cloth to clean the pedal's exterior. Avoid abrasive cleaners, solvents, or excessive moisture, as these can damage the finish or internal components.
• fitahirizana: Tehirizo ao amin'ny toerana mangatsiaka sy maina ny pedal, lavitry ny tara-masoandro mivantana, ny mari-pana tafahoatra ary ny hamandoana avo rehefa tsy ampiasaina.
• Fifandraisana: Jereo tsy tapaka ny fifandraisan'ny tariby rehetra raha simba na simba. Ataovy azo antoka fa tsy misy vovoka na poti-javatra ny jacks.
• Herin'aratra: Always use the recommended 9V DC center-negative power adapter. Using an incorrect power supply can damage the unit and void the warranty.

7. Famahana olana

If you encounter issues with your Pico Triboro Bridge pedal, refer to the following common troubleshooting steps:

• Tsy misy feo:
  • Check all cable connections (instrument to input, output to amp).
  • Hamarino tsara fa mifandray tsara ary miasa tsara ny adaptatera herinaratra.
  • Hamarino tsara fa ny fitaovanao sy ampmiasa tsara ny liifier.
  • Check the pedal's bypass status; if it's true bypass, sound should pass even if the pedal is off.
• Weak or Distorted Sound (unexpectedly):
  • Check the GAIN and VOL knob settings.
  • Ensure the correct drive mode (Overdrive, Distortion, Fuzz) is selected for your desired sound.
  • If in Fuzz mode, adjust the GATE and TONE (Low Pass Filter) knobs, as extreme settings can significantly alter the sound.
  • Test with different cables and power supplies to rule out faulty accessories.
• Tabataba/Feo mitabataba be loatra:
  • Ensure you are using a regulated, isolated power supply.
  • If in Fuzz mode, adjust the GATE knob to reduce unwanted noise.
  • Jereo raha misy tadivavarana amin'ny tany ao amin'ny fitaovanao.
  • Afindrao lavitry ny "transformers" na loharanon'ny fitsabahana elektromagnetika hafa ny pedal.

8. Warranty sy fanohanana

Electro-Harmonix products are designed for reliability and performance. For warranty information, product registration, or technical support, please refer to the official Electro-Harmonix webtranokala na mifandray amin'ny departemantan'ny serivisy mpanjifany. Tehirizo ny tapakila fividiananao ho porofon'ny fividianana ho an'ny fitakiana fiantohana.

Raha mila fanampiana fanampiny dia tsidiho azafady: www.ehx.com
