Boky Torolàlana ho an'ny Mpampiasa PC HP ProDesk 600 G3

1. Fampidirana

This manual provides essential instructions for setting up, operating, maintaining, and troubleshooting your HP ProDesk 600 G3 Desktop PC. This system is equipped with an Intel i5-6th Gen processor, 16GB DDR4 RAM, a 256GB SSD, and comes with a 22-inch monitor, gaming keyboard, mouse, and built-in WiFi, running Windows 11.

Image 1.1: Complete HP ProDesk 600 G3 Desktop PC setup.

2. Inona no ao anaty boaty

Azafady, hamarino fa tafiditra ao anatin'ny fonosanao ireto entana manaraka ireto:

• HP ProDesk 600 G3 Desktop PC Tower
• Monitor 22 santimetatra
• RGB Gaming Keyboard
• RGB Gaming Mouse
• mpandahateny
• Tady herinaratra
• Built-in WiFi Adapter (pre-installed)

Image 2.1: Included RGB Gaming Keyboard, Mouse, and Speakers.

3. Torolàlana fananganana

3.1 Identifying Ports

Before connecting, familiarize yourself with the available ports on your desktop PC.

Image 3.1: Front and Rear Port Layout.

Seranana anoloana: Power Button, Universal Audio Jack, USB 2.0 Ports, USB 3.0 Ports.

Seranana aoriana: Display Port, Ethernet RJ-45 Port, USB 2.0 Ports, USB 3.0 Ports, Power Connection.

3.2 Fampifandray ny periferika

1. Manara-maso: Connect the 22-inch monitor to a Display Port on the rear of the PC using a compatible cable.
2. Kitendry sy totozy: Plug the USB cables of the gaming keyboard and mouse into any available USB ports (preferably USB 3.0 for better performance) on the front or rear of the PC.
3. Mpandahateny: Connect the speakers to the Universal Audio Jack on the front of the PC.
4. Hery: Connect the power cord to the power connection port on the rear of the PC, then plug the other end into a wall outlet. Connect the monitor's power cord similarly.

3.3 Herin'ny voalohany

Press the power button located on the front of the PC tower. The system will boot up, and Windows 11 will load. Follow any on-screen prompts for initial setup, such as language selection and user account creation.

3.4 Mampifandray amin'ny WiFi

Your HP ProDesk 600 G3 has built-in WiFi. To connect to a wireless network:

1. Once Windows 11 has loaded, click on the network icon (usually a globe or WiFi symbol) in the taskbar.
2. Select your desired WiFi network from the list of available networks.
3. Ampidiro ny lakile fiarovana ny tambajotra (tenimiafina) raha asaina, dia tsindrio ny 'Connect'.

Image 3.2: Wireless WiFi connectivity.

4. Torolàlana miasa

4.1 Fampandehanana fototra

The HP ProDesk 600 G3 runs on Windows 11. Familiarize yourself with the operating system's interface, Start Menu, and basic navigation. For detailed information on Windows 11, refer to Microsoft's official documentation.

4.2 Dual Monitor Support

This system supports dual monitors, allowing for an expanded workspace. To set up a second monitor:

1. Connect the second monitor to an available Display Port on the rear of the PC.
2. Right-click on an empty area of your desktop and select 'Display settings'.
3. Windows 11 should automatically detect the second monitor. You can then arrange the displays, choose their orientation, and select display modes (e.g., Extend, Duplicate) within the display settings.

Image 4.1: Dual monitor setup for enhanced productivity.

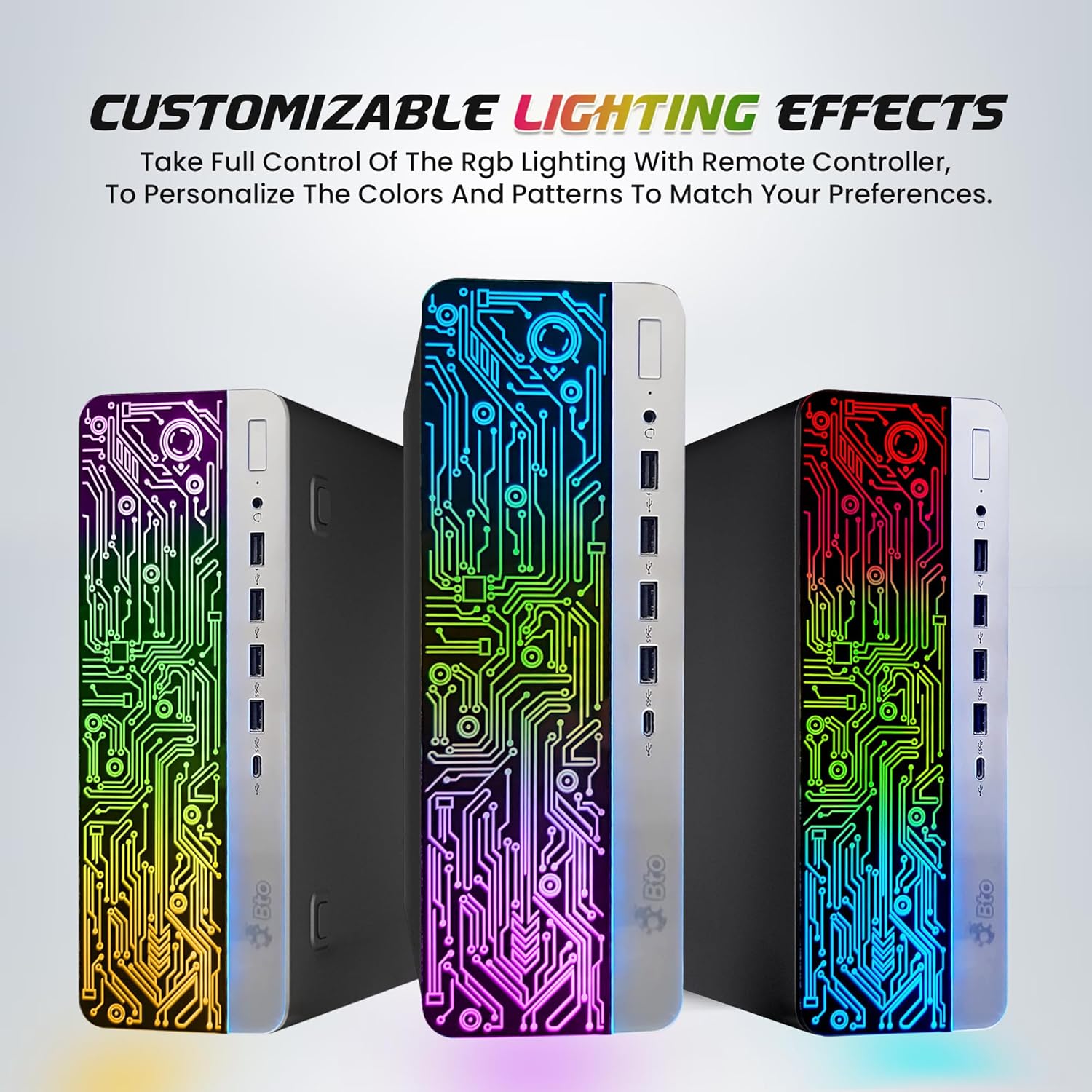

4.3 Customizable Lighting Effects

The HP ProDesk 600 G3 features customizable RGB lighting effects on the PC tower. Use the provided remote controller to adjust colors and patterns according to your preference.

Image 4.2: Customizable RGB lighting effects on the PC tower.

5. Fikojakojana

5.1 Fanadiovana

• Vonoy foana ary esory ny PC alohan'ny hanadiovana.
• Mampiasà lamba malefaka sady tsy misy loko kely dampened with water or a mild cleaning solution to wipe exterior surfaces. Avoid harsh chemicals.
• Use compressed air to clear dust from vents and ports periodically to ensure proper airflow and prevent overheating.
• Clean the monitor screen with a specialized screen cleaner and a microfiber cloth.

5.2 Fanavaozana rindrambaiko

Regularly update your Windows 11 operating system and drivers to ensure optimal performance, security, and compatibility. Windows Update typically handles this automatically, but you can manually check for updates via 'Settings > Windows Update'.

6. Famahana olana

6.1 Tsy misy hery

• Ensure the power cord is securely connected to both the PC and a working electrical outlet.
• Hamarino raha miasa ny fivoahan'ny herinaratra amin'ny alàlan'ny fampidirana fitaovana hafa.
• Verify the power button on the PC tower is fully pressed.

6.2 Tsy misy fampisehoana eo amin'ny efijery

• Confirm the monitor's power cord is connected and the monitor is turned on.
• Ensure the video cable (Display Port) is securely connected to both the PC and the monitor.
• Try connecting the monitor to a different video port on the PC, if available.
• If using multiple monitors, ensure the correct input source is selected on the monitor.

6.3 Tsy misy fifandraisana Internet

• Check if your router/modem is powered on and functioning correctly.
• Verify that the WiFi is enabled in Windows settings.
• Ensure you have entered the correct WiFi password.
• Restart your PC and your router/modem.

6.4 Tsy mamaly ny klavier/mouse

• Ensure the USB cables for the keyboard and mouse are securely plugged into the PC.
• Try plugging them into different USB ports.
• Avereno indray ny PC.

7. Famaritana

8. Warranty sy fanohanana

This product is a renewed item. For specific warranty details and support, please refer to the documentation provided by the seller or contact the seller directly through your purchase platform. Renewed products typically come with a limited warranty from the refurbisher or seller.
