RCYAGO Sprinkler Timer User Manual

Sava lalana

The RCYAGO Sprinkler Timer is an advanced, programmable water timer designed for efficient garden and lawn irrigation. Featuring two independent outlets, it allows for precise control over watering schedules, ensuring your plants receive optimal hydration while conserving water. This manual provides comprehensive instructions for installation, operation, and maintenance of your new sprinkler timer.

Endri-javatra fototra

• Dual Independent Outlets: Two large outlets, each with a maximum flow rate of 35 liters per minute, allowing separate watering schedules for different zones.
• Flexible Watering Duration: Set watering times from 1 minute to 5 hours 59 minutes per zone.
• Customizable Cycle Intervals: Program watering cycles every 1 to 7 days, or select specific days of the week (Monday to Sunday).
• Six Independent Programs: Each of the two outlets can be set with up to three distinct watering plans (P1, P2, P3) to meet varied plant needs throughout the day.
• Fomba fanondrahana tanana: Provides on-demand watering from 0 to 59 minutes, ideal for additional care without disrupting preset schedules.
• Asa fanemorana ny orana: Pause watering for 1 to 7 days based on local rainfall, preventing overwatering and saving water.
• Endrika maharitra sy tsy tantera-drano: IP55 waterproof rating with multiple sealing washers and threaded sealing tape to prevent leaks.
• Fametrahana mora: Features a 360° rotatable interface for quick and simple setup, compatible with 3/4" or 1/2" faucets.
• Fampisehoana mora ampiasaina: Equipped with a 2.5-inch LCD display and a low battery reminder for convenient operation.

Fametrahana sy fametrahana

1. Fametrahana bateria

The timer requires 4 new AA (1.5V) alkaline batteries (not included). Locate the battery compartment on the back of the unit. Open the cover, insert the batteries according to the polarity markings, and securely close the cover, ensuring the rubber ring is properly seated to maintain waterproofing.

Sary: Ny ambany view of the sprinkler timer, highlighting the battery compartment for 4 AA batteries and the IP55 waterproof rating, along with a stainless steel filter.

2. Mampifandray amin'ny Faucet

The timer is designed for easy connection to standard outdoor faucets. It includes thread reducers for compatibility with both 3/4" and 1/2" sized faucets. Ensure the O-ring is properly seated in the connector before attaching the timer to your faucet. The 360° rotatable interface allows for flexible positioning.

Image: A visual guide demonstrating the fast installation process for the sprinkler timer, showing connections to both 1/2" and 3/4" hose faucets using the O-ring, 360° rotating connector, and 1/2" garden hose male thread fittings.

3. Fampifandray Hoses

Connect your garden hoses to the two independent outlets at the bottom of the timer. Each outlet is compatible with any standard 3/4" or 1/2" garden outdoor hose. Use the provided threaded sealing tape and sealing washers to ensure a leak-proof connection.

hetsika

Fahatakarana ny fampisehoana sy ny fanaraha-maso

The timer features a clear 2.5-inch LCD display and intuitive buttons for programming. The display shows current settings, time, and program status. The main buttons include PROGRAM, OK, MANUA, -, +, DELAY, ZONE, and SET.

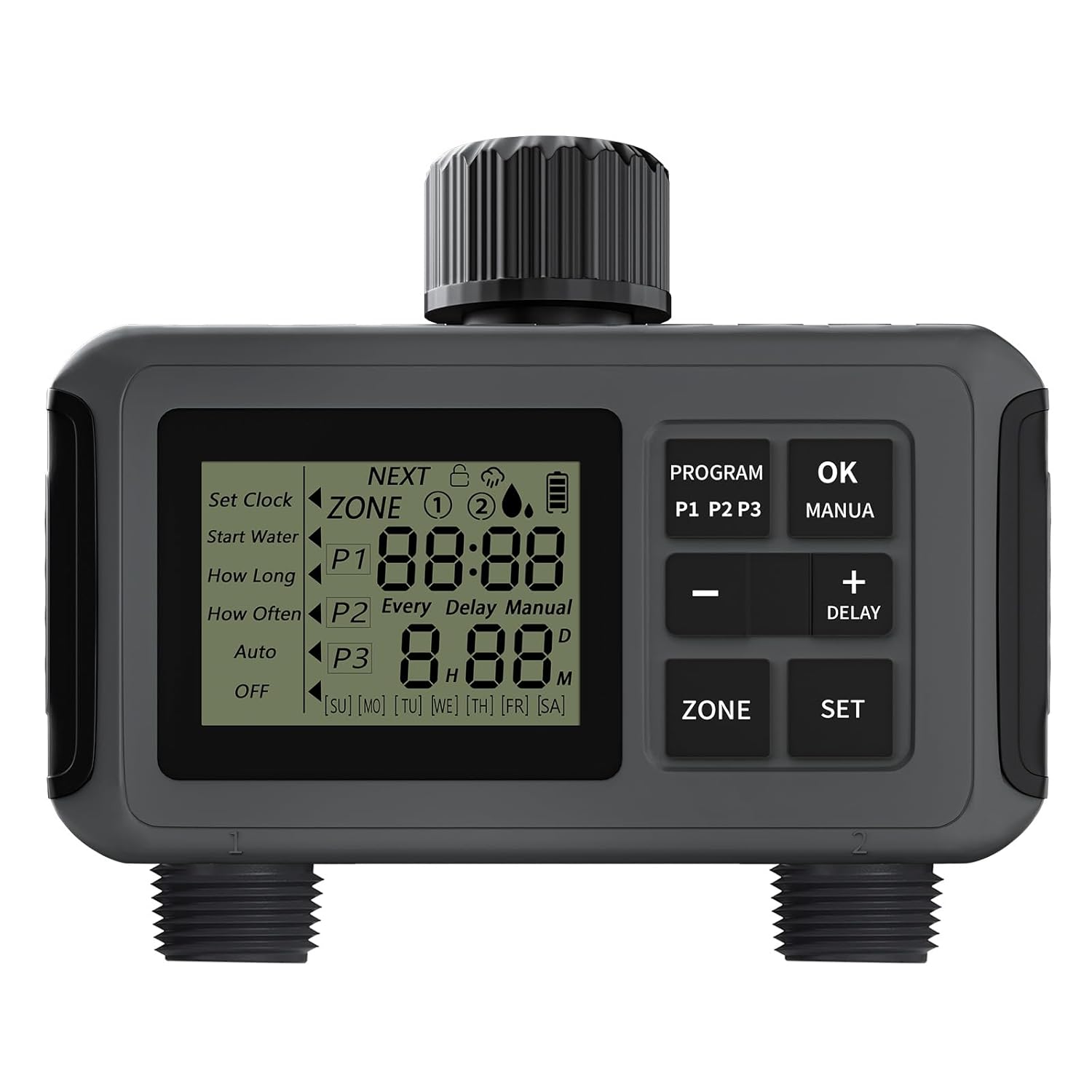

Image: The RCYAGO Sprinkler Timer showing its main LCD display, control buttons (PROGRAM, OK, MANUA, -, +, DELAY, ZONE, SET), and the two independent outlets.

Setting Watering Programs (P1, P2, P3)

The timer allows you to set up to three independent programs (P1, P2, P3) for each of the two zones. This enables highly customized watering schedules.

1. Faritra mifantina: Tsindrio ny ara-potoana button to switch between Zone 1 and Zone 2.
2. Ampidiro ny fomba fandaharana: Tsindrio ny FANDAHARAM-POTOANA button to cycle through P1, P2, P3, and Auto/Manual/OFF modes.
3. Mametraha ora fanombohana: When a program (P1, P2, or P3) is selected, use the + SY - buttons to adjust the start time. Press SET or OK hanamafy.
4. Set Watering Duration (How Long): Adjust the watering duration from 1 minute to 5 hours 59 minutes using the + SY - bokotra. mpanao gazety SET or OK hanamafy.
5. Set Watering Frequency (How Often): Choose the watering frequency (e.g., every 1-7 days or specific days of the week) using the + SY - bokotra. mpanao gazety SET or OK hanamafy.
6. Ampidiro ny programa: Ensure the timer is set to "Auto" mode for the programs to run automatically.

Image: The sprinkler timer connected to two hoses, illustrating how each zone (Zone 1 and Zone 2) can be independently programmed with three different watering plans (P1, P2, P3) for varied start times and durations.

Image: A visual representation of the automatic watering schedule, showing a calendar for setting cycle intervals (every 1 to 7 days or specific days) and sliders for adjusting start water time, watering duration, and watering frequency.

Fomba fanondrahana tanana

To initiate manual watering for either zone:

1. Tsindrio ny MANUA bokotra.
2. Ampiasao ny + SY - buttons to set the desired manual watering duration from 0 to 59 minutes.
3. mpanao gazety OK manomboka manondraka tanana.
4. Once the manual watering time ends, the timer will automatically revert to its preset Auto mode.

Fampiasana fanemorana ny orana

To temporarily pause your watering schedule due to rain:

1. Tsindrio ary hazòny ny mangataka andro bokotra (na + button for 5 seconds) until the delay option appears on the screen.
2. Ampiasao ny + SY - buttons to select the desired delay duration from 1 to 7 days.
3. mpanao gazety OK to confirm the rain delay. The timer will resume its scheduled programs automatically after the delay period.

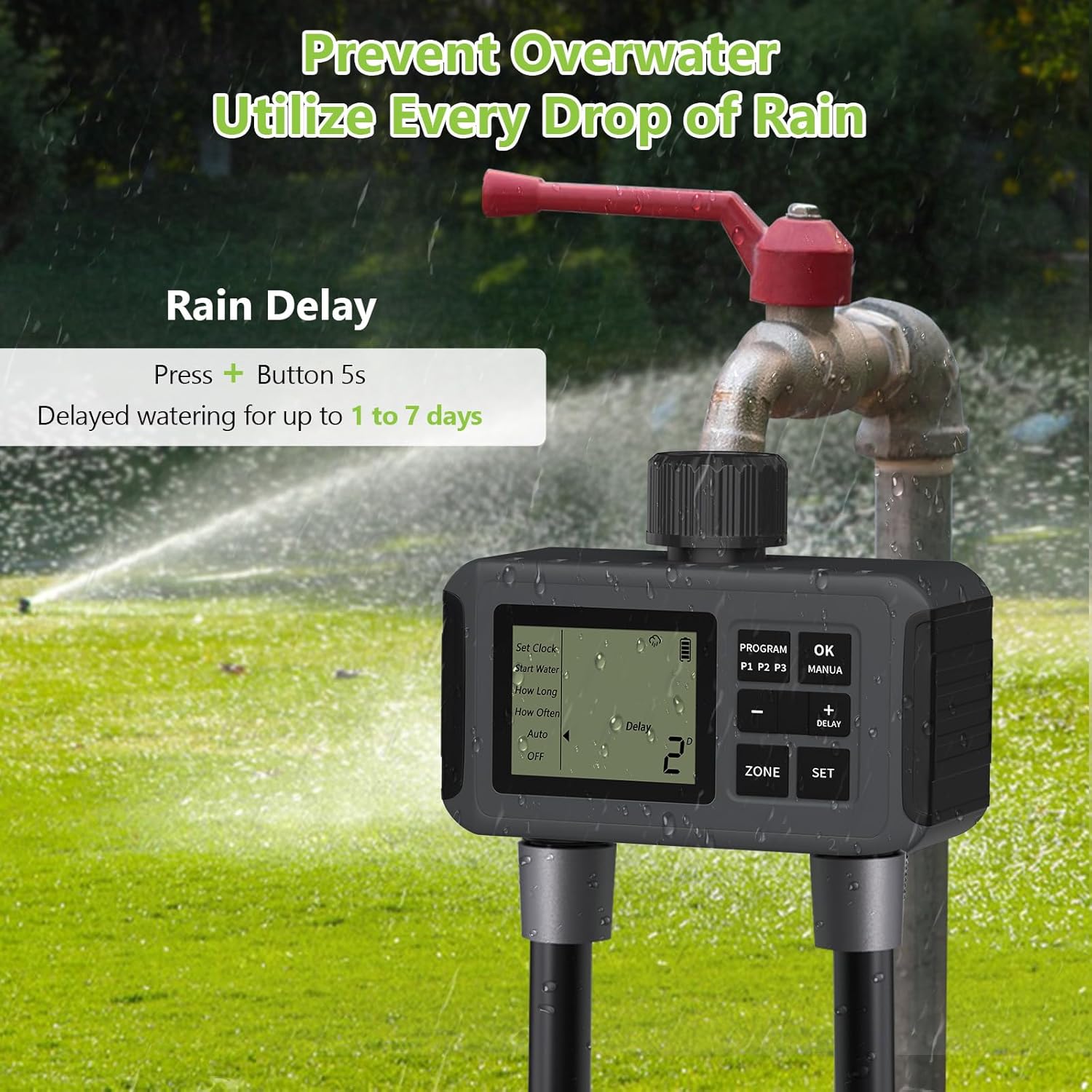

Image: The sprinkler timer connected to a faucet, displaying the rain delay function on its screen, indicating that watering can be delayed for up to 1 to 7 days to prevent overwatering.

fikarakarana

• Fanoloana bateria: Replace batteries when the low battery indicator appears on the LCD display to ensure continuous operation. Always use new AA alkaline batteries.
• Fisorohana ny leak: Regularly check the sealing washers and threaded tape at the connections to ensure they are intact and preventing leaks. Replace if worn.
• Fanadiovana sivana: The timer is equipped with a stainless steel filter at the inlet. Periodically remove and clean this filter to prevent debris from entering the timer and affecting water flow.
• ririnina fitehirizana: In freezing conditions, disconnect the timer from the faucet and store it indoors to prevent damage from ice expansion.

Fanamboarana

• Timer not watering: Check battery level. Ensure the timer is in "Auto" mode and not in "OFF" or "Delay" mode. Verify that the faucet is turned on.
• Tsy misy rano mandeha: Check for kinks in the hose. Ensure the stainless steel filter is not clogged. Verify water pressure from the faucet.
• Leaks at connections: Ensure all connections are tightened properly. Check that O-rings and sealing washers are correctly seated and not damaged. Apply new threaded sealing tape if necessary.
• Tsy mandeha ny fampisehoana: Replace batteries. Ensure batteries are inserted with correct polarity.

fepetra arahana

Warranty sy fanohanana

For warranty information or technical support, please refer to the product packaging or contact RCYAGO customer service directly. Keep your purchase receipt as proof of purchase.
