Torolàlana manan-danja momba ny fiarovana
Vakio tsara ny toromarika rehetra alohan'ny hametrahana sy hampiasaina. Tehirizo ity boky ity ho fanovozan-kevitra ho avy.
- Hamarino tsara fa tapaka ny herinaratra eo amin'ny circuit breaker alohan'ny hametrahana na hanamboarana azy.
- Tsy maintsy mifanaraka amin'ny fehezan-dalàna momba ny herinaratra nasionaly sy eo an-toerana ny tariby rehetra. Raha tsy mahazatra anao ny tariby dia manatona elektrisianina mahay.
- Mounting structure must be capable of supporting the weight of the fan.
- Aza ampiasaina ny mpankafy raha simba ny tariby na raha hita miharihary ny fahasimbany.
- Keep hands and objects clear of the fan blades during operation.
Vita ny vokatraview
The DLLT 18.5-inch Low Profile LED Dimmable Ceiling Fan combines lighting and air circulation in a modern, enclosed design. It features adjustable light color temperature, dimming capabilities, multiple fan speeds, a timer, and a reversible motor, all controllable via a remote.
Image: The DLLT 18.5-inch Low Profile LED Dimmable Ceiling Fan installed on a ceiling, showcasing its modern design and integrated light.
Lahatsary momba ny endri-javatra amin'ny vokatra
Video: Efa tapitraview of the DLLT Bladeless Ceiling Fan, demonstrating its lighting and fan functions, including color temperature changes, dimming, and fan speeds.
Fonosana fonosana
Hamarino fa misy ny singa rehetra alohan'ny hanombohan'ny fametrahana.
- Ceiling Fan Unit (with integrated LED light)
- Fanaraha-maso lavitra
- Fitaovana fametrahana (visy, voanjo tariby, sns.)
- Boky torolalana
Fametrahana sy fametrahana
This section provides step-by-step instructions for installing your DLLT ceiling fan. It is recommended to watch the installation video for visual guidance.
Installation Steps Video
Video: Installation steps for the DLLT Modern LED Enclosed Ceiling Fan. This video demonstrates the process of mounting the fan and connecting the wiring.
Torolàlana fametrahana amin'ny antsipiriany
- Miomana amin'ny fametrahana: Turn off power at the main circuit breaker. Ensure the mounting surface is clean and clear.
- Mametraka bracket: Secure the mounting bracket to the ceiling junction box using the provided screws. Ensure it is firmly attached and can support the fan's weight.
- Wiring fifandraisana: Connect the fan's electrical wires to the household wiring according to local electrical codes. Typically, this involves connecting live, neutral, and ground wires. Use wire nuts to secure connections. Ensure the LED power supply is correctly wired.
- Ampifandraiso amin'ny vatana mpankafy: Carefully lift the fan body and attach it to the mounting bracket. Secure it with the appropriate screws. Ensure all wires are tucked safely inside the canopy.
- Fivoriambe farany: If any decorative covers or additional components need to be attached, do so now. Ensure all parts are securely fastened.
Sary: Nipoaka view of the fan components, highlighting the stable base, 5 ABS fan blades, and acrylic lampalokaloka.
Torolàlana miasa
Your DLLT ceiling fan is controlled by the included remote. Familiarize yourself with its functions for optimal use.
Fifehezana lavitra

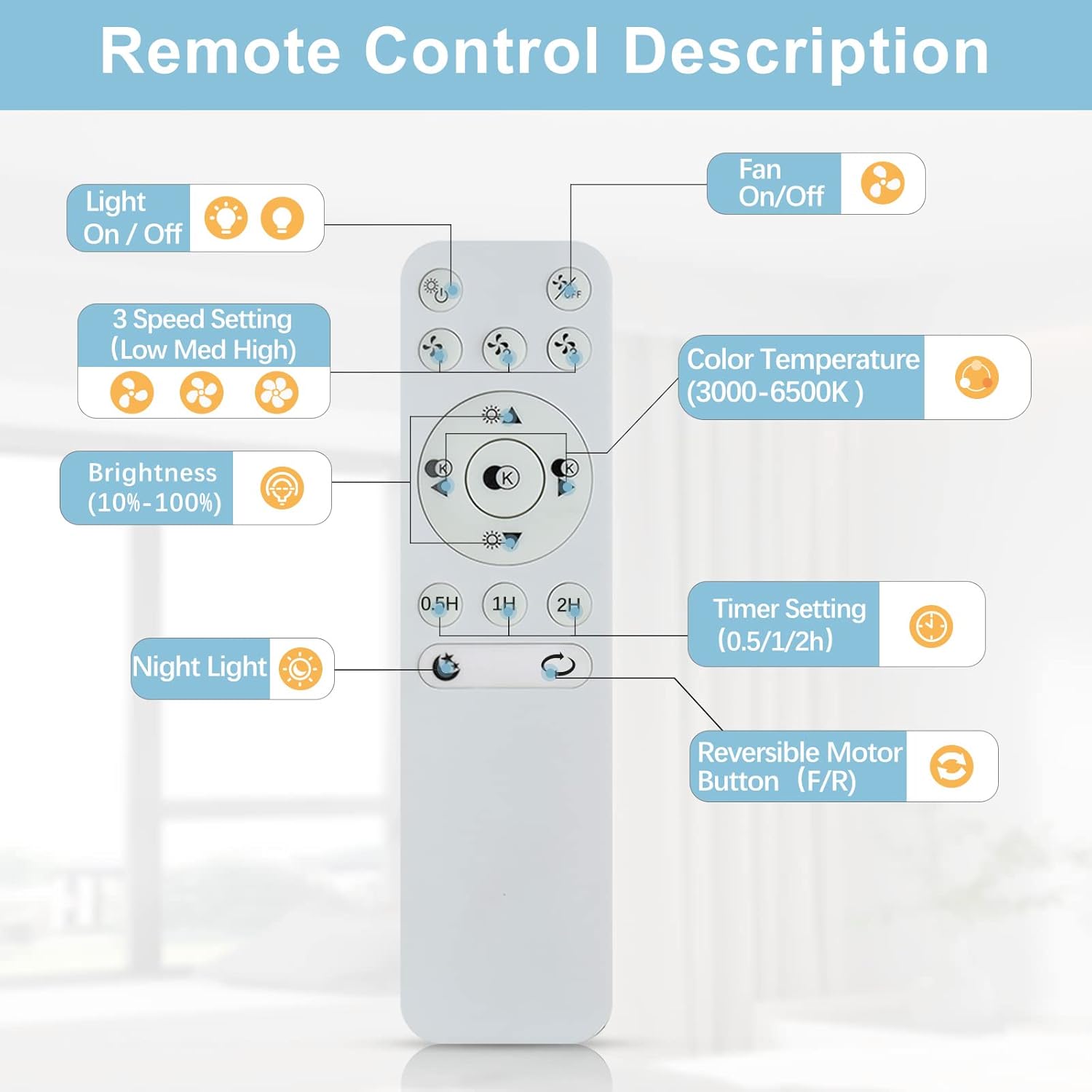

Image: Detailed diagram of the remote control and its various functions.
- Jiro Mirehitra/Maty: Tsindrio raha hampirehitra na hamono ny jiro.
- Mandeha/ miala ny fan: Tsindrio raha hamelona na hamono ny mpankafy.
- Fikirana hafainganan'ny mpankafy: Select from Low, Medium, or High speeds.
- Brightness Adjustment (10%-100%): Use the brightness buttons to increase or decrease the light intensity.
- Color Temperature (3000K-6500K): Cycle through Warm White (3000K), Natural Light (4000K), and Cool White (6500K) color temperatures. The fan remembers your last setting.
- Fametrahan-potoana: Apetraho ho azy ny fantson-drano rehefa afaka 0.5, 1, na 2 ora.
- Mode fahazavana amin'ny alina: Manetsika ny famirapiratry ny hazavana ambany.
- Reversible Motor (F/R): Changes the direction of the fan blades for summer (downdraft) or winter (updraft) operation.
Asa azo avadika amin'ny motera
The fan features a reversible motor for year-round comfort.
- Fomba fahavaratra (Downdraft): Mihodina mifanohitra amin'ny fihodin'ny famantaranandro ny lelany mba hamoronana rivotra mangatsiaka.
- Fomba ririnina (Updraft): Blades rotate clockwise to circulate warm air trapped near the ceiling, enhancing air circulation without creating a direct draft.
Image: Visual representation of summer (downdraft) and winter (updraft) modes.
fikarakarana
Ny fikojakojana tsy tapaka dia miantoka ny fahombiazana tsara indrindra sy ny faharetan'ny fantson-drivotrao.
- Fanadiovana: Wipe the fan and light fixture with a soft, damp lamba. Aza mampiasa mpanadio na solvents mikikisana. Ataovy azo antoka fa maty ny herinaratra alohan'ny hanadiovana azy.
- Blade Inspection: Periodically check the fan blades for dust accumulation. Clean as needed.
- Henjana ny fasteners: Check all screws and fasteners periodically to ensure they are secure.
Fanamboarana
If you encounter issues with your fan, refer to the following common problems and solutions.
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Fan tsy manomboka. | No power; loose wiring; remote control battery low. | Check circuit breaker. Ensure all wiring connections are secure. Replace remote control batteries. |
| Tsy mirehitra ny jiro. | No power; loose wiring; LED driver issue. | Check power supply. Verify wiring. If LED is integrated and not working, contact support. |
| Tsy mandeha ny fanaraha-maso lavitra. | Battery low/dead; remote not paired; obstruction. | Replace batteries. Ensure clear line of sight to fan. Refer to pairing instructions (if applicable, not provided in data). |
| Fan makes noise during operation. | Visy mivaha; lelany tsy mifandanja; olana amin'ny motera. | Check and tighten all mounting screws. Ensure blades are clean and free of debris. If noise persists, contact support. |
fepetra arahana
| Marika | DINGLILIGHTING |
| Anarana modely | WS-FPZ46-30C-BS |
| Ny refin'ny vokatra | 18.5" L x 18.5" W x 7.78" H |
| Lanja entana | 6.98 kg |
| KEVITRA | Acrylic + Fabric |
| loko | Black Argyle |
| Karazana loharanon-jiro | LED |
| Wattage | 30 watts |
| ny famirapiratry ny mazava | 3900 lumen |
| BOKYtage | 120 Volts (DC) |
| Fomba fanaraha-maso | mitokana |
| Endri-javatra manokana | Adjustable Color Temperature, Color Changing, Dimmable, Energy Efficient, Timer |
Image: Product dimensions and key technical specifications.
Warranty sy fanohanana
DINGLILIGHTING is committed to providing quality products and customer satisfaction.
- antoka: This product includes a 365-day warranty. A lifetime warranty is also mentioned for certain aspects (refer to product listing for specifics).
- Politika famerenana: Enjoy a 365-day refund and return policy.
- Fanohanana ny mpanjifa: For any questions or assistance with your purchase, please contact DINGLILIGHTING customer service.
