DEPOW Black Surge Protector Power Strip (Model: QT560-CU) Instruction Manual

Vita ny vokatraview

The DEPOW Black Surge Protector Power Strip (Model: QT560-CU) is designed to provide power and protection for multiple electronic devices. It features 5 grounded AC outlets and 4 USB ports (2 USB-A, 2 USB-C) to charge up to 9 devices simultaneously. The ultra-thin flat plug and 5-foot extension cord offer flexible placement options, while its 1700 Joules surge protection safeguards your electronics from power fluctuations.

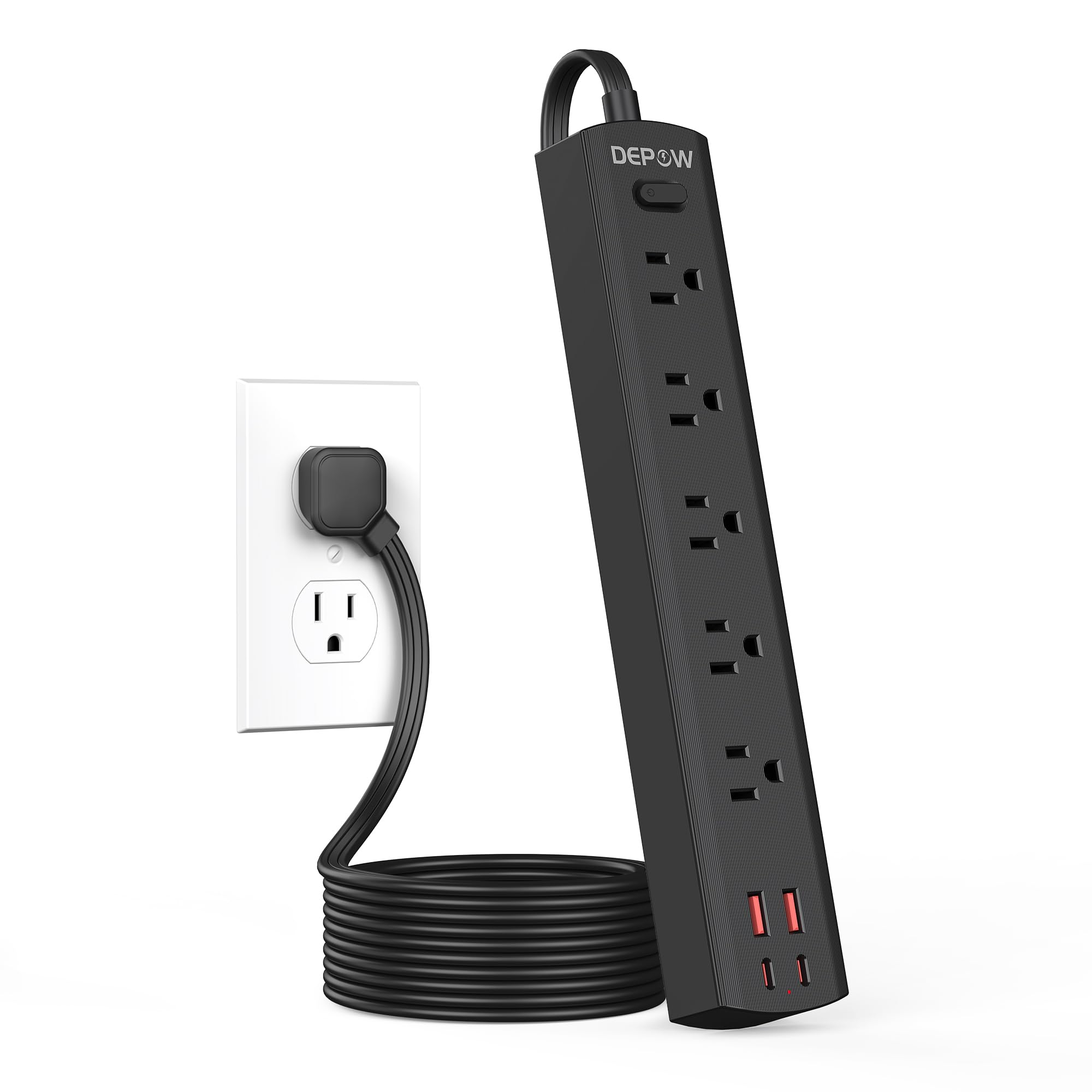

Image: The DEPOW Black Surge Protector Power Strip, showcasing its 5 AC outlets and 4 USB ports (2 USB-A, 2 USB-C) on a flat surface.

Lafin-javatra fototra:

• 9-in-1 Power Solution: 5 AC outlets and 4 USB ports (2 USB-A, 2 USB-C) for simultaneous charging.
• Fiarovana avo lenta: 1700 Joules rating protects devices from power surges and spikes.
• Famolavolana mitsitsy habakabaka: Ultra-thin flat plug (0.33-inch profile) with a 45° right-angle design allows placement behind furniture without blocking other outlets.
• Fametrahana flexible: 5-foot flat extension cord and wall-mountable design with 2 mounting holes.
• Smart USB Charging: USB ports deliver optimized charging (Max 3.4A/17W Shared) for smartphones, tablets, and other USB-powered devices.
• Fiarovana feno: Features overload, short-circuit, grounded, USB over-voltage, USB over-current, USB over-heat, and flame retardant protection.

Torolàlana fametrahana

Follow these steps to set up your DEPOW Surge Protector Power Strip:

1. Famoahana sy fisavana:

• Esory tsara amin'ny fonony ny "power strip".
• Inspect the unit for any signs of damage. Do not use if damaged.
• Ensure all components are present: power strip, mounting screws (if applicable).

Image: The underside of the DEPOW power strip, highlighting the two mounting holes and product dimensions (10.83in length, 1.97in width).

2. Choosing a Location:

• Select a dry indoor location away from water sources and heat.
• Consider using the wall-mount feature for a tidy setup, especially in offices or behind furniture.

3. Mampifandray amin'ny herinaratra:

• Plug the power strip's flat plug into a standard 125V AC wall outlet. The 45° right-angle design ensures it doesn't block adjacent outlets.
• The power indicator light on the strip will illuminate, confirming it is receiving power.

Image: A visual comparison demonstrating how the ultra-thin flat plug (0.33 inches) of the DEPOW power strip fits flush against a wall, unlike a thicker standard plug (2.04 inches).

4. Fametrahana amin'ny rindrina (tsy voatery):

• Identify the two mounting holes on the back of the power strip.
• Mark the desired screw locations on the wall, ensuring they align with the mounting holes.
• Drill pilot holes if necessary and insert the provided screws, leaving them slightly protruding.
• Align the power strip's mounting holes with the screws and slide the strip down to secure it.

Torolàlana miasa

This section details how to use your DEPOW Surge Protector Power Strip effectively.

1. Mamelona/Mamono:

• The power strip features an On/Off switch. Press the switch to toggle power to all connected devices.
• The switch also acts as an overload protection reset button. If the strip experiences an overload (exceeding 1625W), it will automatically shut off. Press the switch to reset after reducing the load.

Image: The DEPOW power strip in use, highlighting the 1625W overload switch and indicating 1700 Joules of surge protection.

2. Connecting AC Devices:

• Plug your AC-powered devices into any of the 5 grounded AC outlets.
• The widely spaced outlets accommodate larger power adapters without blocking adjacent ports.
• Ensure the total power consumption of all connected AC devices does not exceed 1625W (13A at 125V).

Image: The DEPOW power strip on a desk, with various devices like laptops, phones, and chargers plugged into its AC and USB ports, demonstrating its multi-device charging capability.

3. Using USB Charging Ports:

• Connect your USB-powered devices (smartphones, tablets, smartwatches, etc.) to the 2 USB-A or 2 USB-C ports.
• The USB ports provide optimized charging with a maximum shared output of 3.4A/17W.

Image: A close-up of the DEPOW power strip's USB ports, illustrating the charging capabilities for USB-A (12W Max) and USB-C (15W Max) with a total shared output of 17W.

4. Fampisehoana an-dahatsary:

fikarakarana

Proper maintenance ensures the longevity and safe operation of your power strip.

• Fanadiovana: Disconnect the power strip from the wall outlet before cleaning. Use a dry, soft cloth to wipe the surface. Do not use liquid cleaners or aerosols.
• fitahirizana: Rehefa tsy ampiasaina mandritra ny fotoana maharitra dia tehirizo ao amin'ny toerana mangatsiaka sy maina ny power strip.
• Fanaraha-maso tsy tapaka: Periodically check the power cord and the unit for any signs of damage, such as frayed wires, cracks, or loose connections. If any damage is found, discontinue use immediately.
• Aza be loatra ny entana: Always ensure the total wattage of connected devices does not exceed the maximum rating of 1625W to prevent tripping the overload protection.

Fanamboarana

If you encounter issues with your DEPOW Surge Protector Power Strip, refer to the following common problems and solutions:

Famaritana ara-teknika

Warranty sy fanohanana

Information momba ny fiantohana:

DEPOW products are designed for reliability and performance. This product comes with a standard manufacturer's warranty. Please refer to the product packaging or the official DEPOW webtranonkala hahazoana fepetra sy fifanarahana manokana momba ny fiantohana.

Fanohanana ny mpanjifa:

For technical assistance, troubleshooting, or warranty claims, please contact DEPOW customer support through the following channels:

• Online: Visit the official DEPOW webtranokala ho an'ny FAQ sy loharano fanohanana.
• mailaka: Jereo ny adiresy mailaka ho an'ny serivisy ho an'ny mpanjifa ao amin'ny fonosan'ny vokatrao.
• Telefaonina: Contact details may be available on the DEPOW webtranokala na antontan-taratasy momba ny vokatra.

Please have your model number (QT560-CU) and purchase information ready when contacting support.
