1. Fampidirana sy Fitohizanaview
The RockBoard QUAD 4.4 is a robust and versatile pedalboard designed to organize and transport your guitar effects pedals. Featuring a lightweight aluminum construction with a slotted design, it allows for efficient cable management and secure pedal mounting. This model measures 28.5 inches by 13 inches and is suitable for accommodating 9 to 18 standard-sized pedals. It comes complete with a durable gig bag for protection and portability.
anoloana view of the RockBoard QUAD 4.4 pedalboard, highlighting the brand and model identification.
2. Fametrahana
2.1 Famoahana
Carefully remove the pedalboard and gig bag from its packaging. Inspect all components for any signs of damage during transit. Retain the original packaging for future storage or transport if needed.
2.2 Pedal Mounting
The RockBoard QUAD 4.4 features a slotted design for flexible pedal placement. Use hook-and-loop fastener tape (not included) to secure your pedals to the board. Apply the hook side to the pedalboard surface and the loop side to the bottom of your pedals for a firm attachment.
Top view of the pedalboard, illustrating the slotted surface and adjustable mounting rails for pedal placement.
2.3 Fitantanana tariby
Utilize the slots and the space underneath the pedalboard to route your patch cables and power supply cables. This helps maintain a tidy setup and protects cables from damage. Cable ties (not included) can be used to bundle and secure cables.

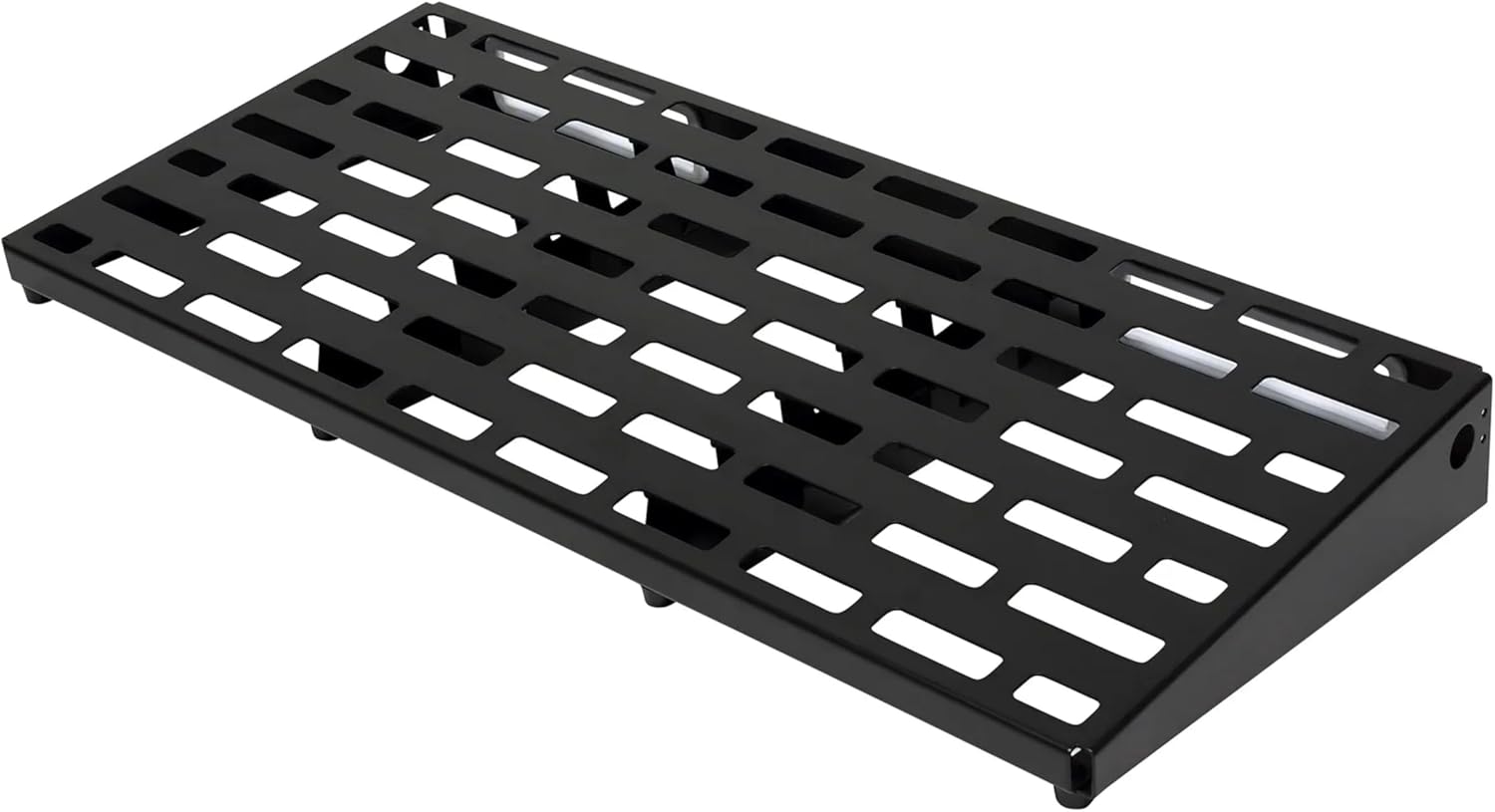

zorony view of the pedalboard, demonstrating the design that allows for efficient cable management underneath.
2.4 Fametrahana ny famatsiana herinaratra
Most standard pedal power supplies can be mounted underneath the RockBoard QUAD 4.4 using appropriate mounting hardware (not included) or hook-and-loop fastener tape. Ensure the power supply is securely attached and its cables are routed safely away from foot traffic.
2.5 Gig Bag Usage
Place the fully assembled pedalboard into the provided gig bag. Ensure all zippers are closed securely before transport. Use the handles or shoulder strap for comfortable carrying.

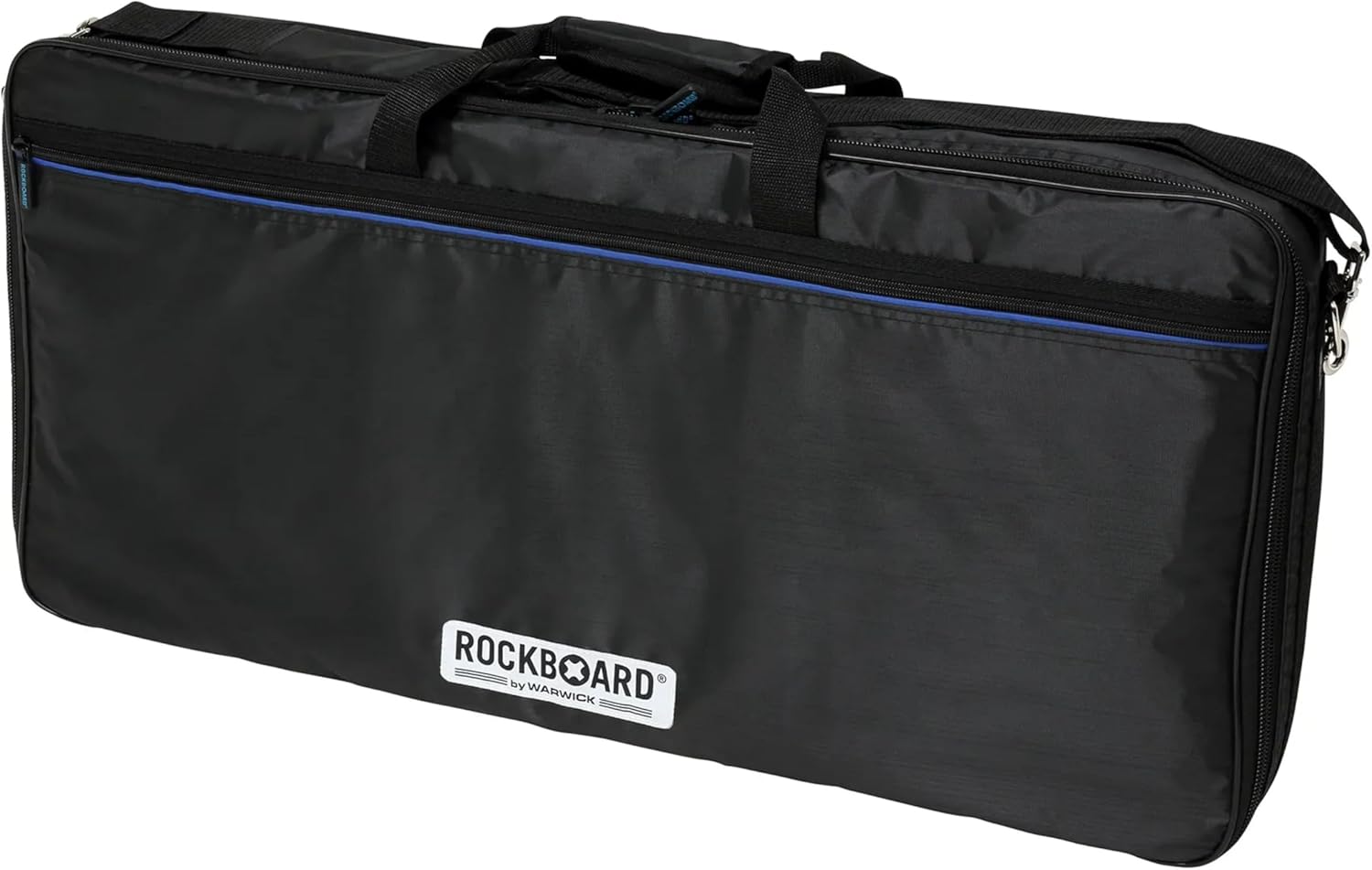

The included gig bag, featuring the RockBoard logo, provides protection and portability for the pedalboard.
3. Fiasana
The RockBoard QUAD 4.4 is a passive pedalboard designed to hold your effects. Its operation primarily involves the proper connection and use of the pedals mounted on it.
3.1 Connecting Your Setup
- Connect your instrument (e.g., guitar) to the input of the first pedal in your signal chain.
- Connect the output of each pedal to the input of the next pedal in your desired order.
- Connect the output of the last pedal to your ampLifier na audio interface tsara.
- Ensure all pedals are powered correctly by your power supply.
3.2 Transporting the Pedalboard
When transporting, always ensure all pedals are securely fastened to the board and all cables are neatly managed. Place the pedalboard into the gig bag and zip it completely. Use the reinforced handles or the shoulder strap for carrying. Avoid dropping or subjecting the gig bag to excessive force to prevent damage to your pedals and the board.
The gig bag with its main compartment zipper open, illustrating its readiness for the pedalboard.
4. Fikojakojana
4.1 Cleaning the Pedalboard
To clean the aluminum pedalboard, use a soft, dry cloth. For stubborn dirt, a slightly damp cloth with mild soap can be used, followed by thorough drying. Avoid abrasive cleaners or solvents, as these can damage the finish.
4.2 Gig Bag Care
The gig bag can be cleaned with a damp cloth and mild detergent. Allow it to air dry completely before storing the pedalboard. Regularly check zippers and straps for wear and tear.
4.3 Fanaraha-maso ankapobeny
Periodically inspect the pedalboard for any loose screws, bent components, or damage to the finish. Ensure that any mounting hardware for power supplies or other accessories remains secure.
5. Famahana olana
As the RockBoard QUAD 4.4 is a passive device, most troubleshooting will relate to the pedals and cabling mounted on it.
5.1 No Sound or Intermittent Signal
- Jereo tariby: Ensure all patch cables are fully inserted and not damaged. Try replacing cables one by one to identify a faulty one.
- Jereo ny hery: Verify that all pedals are receiving adequate power from your power supply. Ensure the power supply itself is functioning correctly.
- Pedal Order: Incorrect pedal order can sometimes lead to unexpected sound issues. Review your signal chain.
- Bypass Test: Remove all pedals from the board and connect your instrument directly to your amplifier. If sound is restored, the issue lies within your pedal setup.
5.2 Loose Pedals
If pedals become loose, re-apply or replace the hook-and-loop fastener tape. Ensure both surfaces (pedal bottom and pedalboard) are clean and dry before application for maximum adhesion.
6. Famaritana
| Laharana modely | RBO B 4.4 QUAD B |
| refy (L x W) | 28.5 santimetatra x 13 santimetatra (72.4 sm x 33 cm) |
| lanja | 7 kilao (3.18 kg) |
| KEVITRA | VIRATY |
| fahafahana | Fits 9-18 standard-sized pedals |
| Tafiditra Accessories | Gig Bag |
7. Warranty sy fanohanana
For warranty information and technical support, please refer to the official ROCKBOARD by Warwick webtranonkala na mifandraisa amin'ny mpivarotra nahazo alalana. Tazomy ny porofon'ny fividiananao ho an'ny fangatahana fiantohana.
