Misaotra anao nividyasing the KINGTORO 24" Chandelier Ceiling Fan. This modern fandelier combines the elegance of a chandelier with the functionality of a ceiling fan, featuring a matte black finish and five glass lampshades. It is designed to provide both illumination and comfortable airflow for various indoor spaces such as living rooms, kitchens, dining rooms, bedrooms, and study rooms. This manual provides detailed instructions for safe installation, operation, and maintenance of your new ceiling fan.
Image: The KINGTORO 24-inch Chandelier Ceiling Fan, showcasing its matte black finish, circular frame, and five clear glass lampshades with exposed bulbs, designed for both lighting and air circulation.
Information momba ny fiarovana
Please read all instructions carefully before beginning installation and keep this manual for future reference. Improper installation or use can lead to electric shock, fire, or personal injury.
- Ataovy azo antoka fa maty ny herinaratra eo amin'ny "circuit breaker" alohan'ny hametrahana na hanamboarana azy.
- All electrical connections must be in accordance with local codes, ordinances, and the National Electric Code (NEC).
- Miresaha amin'ny elektrisianina mahay raha tsy azonao antoka ny momba ny tariby na ny fametrahana azy.
- Tsy maintsy mahazaka ny lanjan'ny mpankafy (eo amin'ny 15.12 kilao eo ho eo) ny rafitra fametrahana.
- Do not bend the fan blades when installing or cleaning.
- Fadio ny mametraka zavatra eo amin'ny lalan'ny fantson-drano.
- Use only E26 bulbs, Max 40 Watts. Bulbs are not included.
Inona no ao anaty boaty
Hamarino fa misy ny singa rehetra alohan'ny hanombohan'ny fametrahana:
- Chandelier Ceiling Fan Unit
- Fanaraha-maso lavitra
- Fametrahana Hardware
- Downrods (3.9 inch, 7.8 inch, 13.8 inch)
- Glass Lampshades (5 pieces)
Fametrahana sy fametrahana
This ceiling fan is designed for easy installation with included mounting hardware and clear instructions. Please follow these steps carefully:
- Miomana amin'ny fametrahana: Turn off power at the main circuit breaker. Ensure the ceiling junction box is securely mounted and capable of supporting the fan's weight.
- Drill and Secure: Drill into the ceiling and insert rubber plugs as needed.
- Mount Hanging Board: Lock the hanging board to the ceiling using screws, then tighten with a wrench.
- Assemble Downrod: Select the appropriate downrod length (3.9, 7.8, or 13.8 inches) or combine them to achieve your desired height (maximum 34.5 inches). Tighten the fan lamp body center bar to the chosen downrod.
- Connect Wiring: Connect the fan's electrical wires to your household wiring according to the wiring diagram provided in the separate installation guide (not included in this manual, but typically with the product).
- Lock Chassis: Securely lock the fan chassis to the ceiling fan body.
- Mametraka alokaloka fitaratra: Carefully place each glass lampshade over the bulb sockets and secure them.
- Mametraka takamoa: Insert E26 base bulbs (not included, Max 40 Watts) into the sockets.

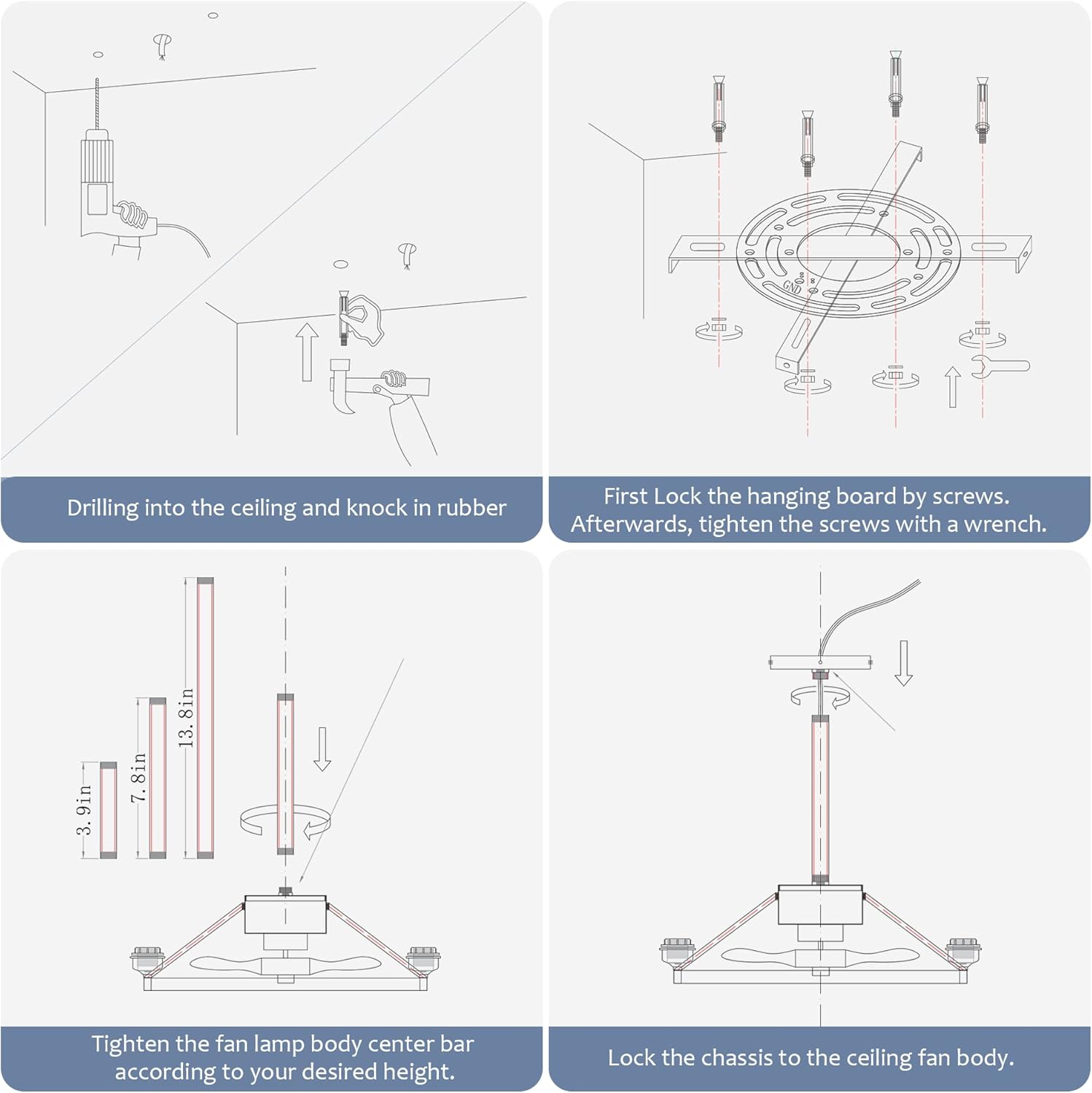

Image: A four-panel diagram illustrating the installation process, including drilling into the ceiling, securing the hanging board, assembling the downrod for adjustable height, and locking the chassis to the ceiling fan body.
Image: A detailed diagram showing the dimensions of the fan (24 inches diameter) and the three adjustable downrod lengths (3.9, 7.8, and 13.8 inches) that allow for a maximum fan height of 34.5 inches.
Torolàlana miasa
Your KINGTORO Chandelier Ceiling Fan comes with a convenient remote control for easy operation of both fan and light functions.
Fifehezana lavitra:
- Jiro Mirehitra/Maty: Control the chandelier lights independently from the fan.
- Hafaingan'ny mpankafy: Adjust between three wind speeds (Low, Medium, High) for optimal comfort.
- Fotoana asa: Set a timer for 1, 2, or 4 hours for automatic shut-off.
- Reversible Blade Direction: Change the fan's rotation direction to create downward airflow (cooling in summer) or upward airflow (circulating warm air in winter).
Image: A visual representation of the remote control and its functions, including light control, 3 wind speeds, timer settings (1H, 2H, 4H), reversible blade direction, low energy consumption, and powerful motor.
Image: An illustration demonstrating the fan's reversible motor function, showing "Forward Cool Airflow" for summer mode (downward air) and "Reverse Warm Airflow" for winter mode (upward air circulation).
Lahatsary vokatra ofisialy:
Video: Wheel Ceiling Fans match the dimmable bulb & switch-not incl.
Description: This video demonstrates the lighting capabilities of the KINGTORO chandelier ceiling fan, showing how the lights can be turned on and off. It highlights that the fan is compatible with dimmable bulbs and switches, though these are not included.
Video: KINGTORO Modern Black Ceiling Fan with Light Black
Description: A comprehensive overview fampisehoana videocasing the KINGTORO Modern Black Ceiling Fan with Light. It highlights the fan's design, lighting features, and general operation within a room setting.
fikarakarana
Ny fikojakojana tsy tapaka dia miantoka ny faharetana sy ny fahombiazan'ny fantson-drivotrao.
- Fanadiovana: The surface of the ABS blades is smooth and easy to clean. Use a soft, damp cloth to wipe down the fan and light fixture. Do not use abrasive cleaners or solvents.
- Fanoloana takamoa: Ensure power is off before replacing bulbs. This fixture uses E26 base bulbs, Max 40 Watts.
- Fisoloana alokaloka fitaratra: If a glass shade needs replacement, carefully unscrew the retaining ring, remove the old shade, insert the new one, and re-secure the ring.
Video: How to replace the glass shade of fandelier ceiling fan
Description: This video provides a step-by-step guide on how to safely remove and replace the glass shades on your fandelier ceiling fan, ensuring proper handling and reassembly.
Fanamboarana
If you encounter issues with your KINGTORO Chandelier Ceiling Fan, refer to the following common problems and solutions:
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Fan tsy miasa | Tsy misy herinaratra ho an'ny mpankafy; Tariby mivaha; Lany ny bateria fanaraha-maso lavitra. | Check circuit breaker and wall switch. Ensure all wire connections are secure. Replace remote control batteries. |
| Tsy mirehitra ny jiro | Bulbs are faulty or not installed correctly; Loose wire connections; Remote control issue. | Check and replace bulbs. Ensure bulbs are screwed in tightly. Verify light wiring connections. Check remote control functionality. |
| Mitabataba ny mpankafy | Loose screws on mounting bracket or fan housing; Fan blades are unbalanced. | Tighten all screws. Ensure fan blades are securely attached and balanced. Allow fan to run for a period to see if noise subsides. |
| Tsy mandeha ny fanaraha-maso lavitra | Low battery; Obstruction between remote and receiver; Remote not paired. | Replace remote battery. Ensure clear line of sight. Refer to remote pairing instructions (if applicable, usually in a separate remote manual). |
fepetra arahana
| endri-javatra | antsipirihany |
|---|---|
| Marika | KINGTORO |
| Anarana modely | A358BK-5 |
| loko | Black C |
| KEVITRA | Glass |
| Ny refin'ny vokatra | 24" L x 24" W x 34.5" H |
| Lanja entana | 15.12 kilao (6.87 kilao) |
| Fampiasana anatiny / ivelany | an-trano |
| Loharanon-kery | Corded Electric |
| Fomba fanaraha-maso | Fanaraha-maso lavitra |
| Karazana loharanon-jiro | LED (Tsy tafiditra ny takamoa) |
| Isan'ny loharanom-pahazavana | 5 |
| Fony takamoa | E26 |
| Max Wattage isaky ny Bulb | 40 Watts |
| BOKYtage | 110 Volts |
| Endri-javatra manokana | Motor azo averina |
| Ilaina ny fivoriambe | ENY |
| UPC | 759007444057 |
Warranty sy fanohanana
KINGTORO is committed to customer satisfaction. If you have any questions or require assistance with your product after receiving it, please do not hesitate to contact our customer service team. We aim to reply within 24 hours.
For support, please refer to the contact information provided with your purchase or visit the official KINGTORO store on Amazon: KINGTORO Store
