Dell Latitude 5421 Laptop User Manual

Sava lalana

This manual provides essential information for the Dell Latitude 5421 Laptop. It covers initial setup, operational guidelines, maintenance procedures, troubleshooting tips, and detailed product specifications. Please read this manual thoroughly to ensure optimal performance and longevity of your device.

Hametraka

1. Famoahana sy fisafoana voalohany

Carefully remove the laptop and all accessories from the packaging. Inspect for any signs of damage. Ensure all components are present: laptop, power adapter, and documentation.

2. Mampifandray ny Power Adapter

Connect the power adapter to the power connector on the laptop and then plug the power cable into a wall outlet. The battery will begin charging automatically.

Image: Left side of the Dell Latitude 5421 Laptop, showing the power input, USB ports, HDMI port, and Ethernet port.

3. Famelomana voalohany sy fametrahana ny rafitra fiasana

Open the laptop lid and press the power button. Follow the on-screen instructions to complete the Windows 11 Pro setup. This includes selecting your region, connecting to a network, and creating a user account.

4. Fampifandraisana periferika

Connect external devices such as a mouse, keyboard, or external monitor to the available ports. The Dell Latitude 5421 features various ports for connectivity:

• Seranana ankavia: SD card reader, Headset jack, USB 3.2 Gen 1 port, USB 3.2 Gen 1 port with PowerShare, HDMI 2.0 port, RJ45 Ethernet port.
• Seranana ilany havanana: Wedge-shaped lock slot, USB 3.2 Gen 1 port, USB 3.2 Gen 2 Type-C Thunderbolt 4 port with Power Delivery and DisplayPort, Smart card reader (optional).

Image: Right side of the Dell Latitude 5421 Laptop, showing the USB-C Thunderbolt 4 port, USB-A port, and lock slot.

Fampiasana ny solosainao finday

1. Keyboard and Touchpad Usage

The laptop features a full-sized keyboard and a precision touchpad. Use the touchpad for navigation and gestures. Refer to Windows 11 settings for customizing touchpad sensitivity and gestures.

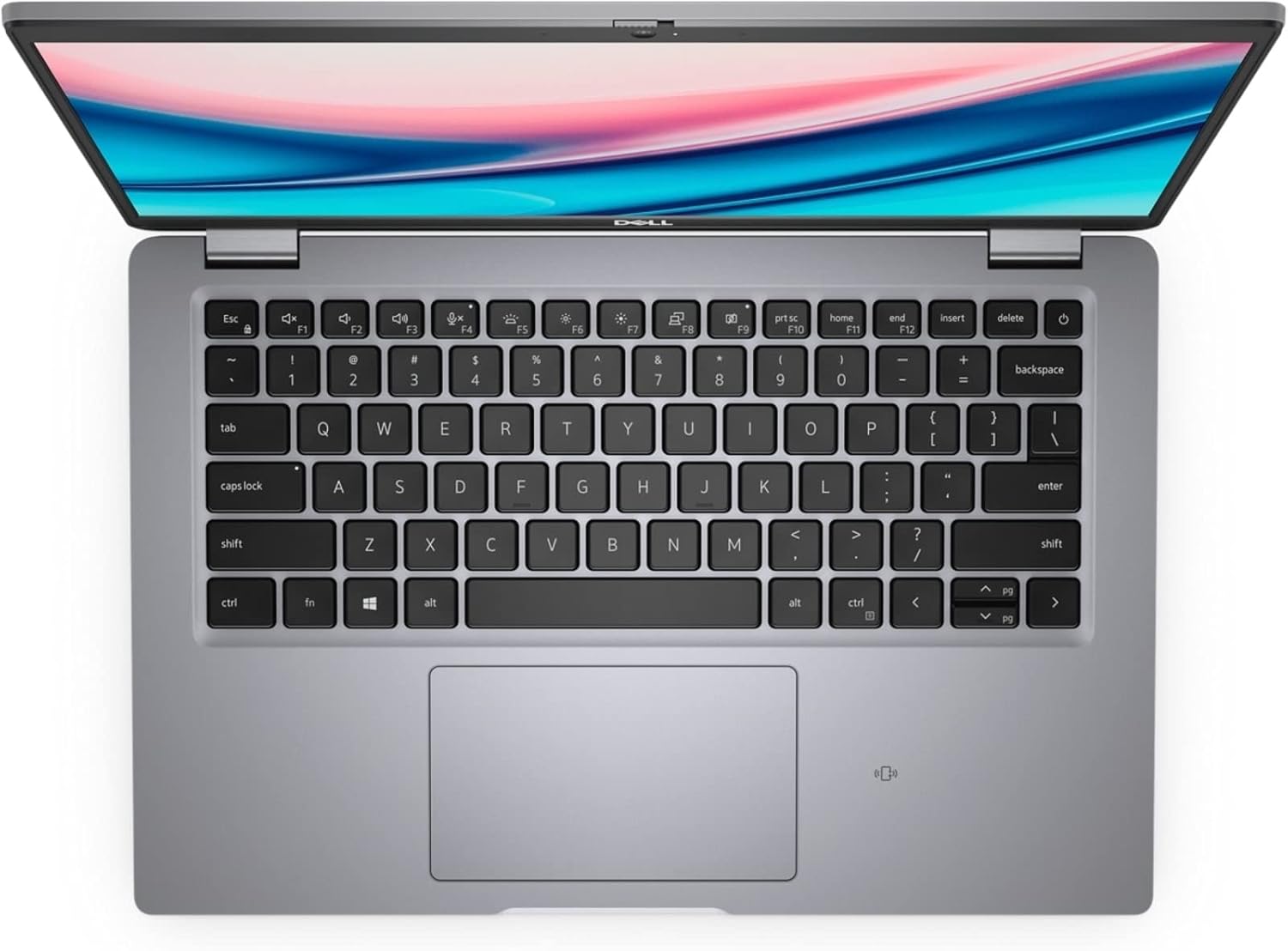

Sary: Ambony midina view of the Dell Latitude 5421 Laptop keyboard and touchpad.

2. Fifandraisana tsy misy tariby

• Wifi: Raha te hifandray amin'ny tamba-jotra tsy misy tariby, kitiho ny kisary Wi-Fi ao amin'ny fikandrana, safidio ny tambajotra tianao, ary ampidiro ny tenimiafina raha misy bitsika.
• Bluetooth: To pair Bluetooth devices, go to Fikirana > Bluetooth sy fitaovana, turn on Bluetooth, and select "Add device."

3. Display and External Monitors

The laptop features a 14-inch Full HD (1920x1080) display. You can connect an external monitor using the HDMI port or the USB-C Thunderbolt 4 port (with a compatible adapter) for extended or mirrored display modes.

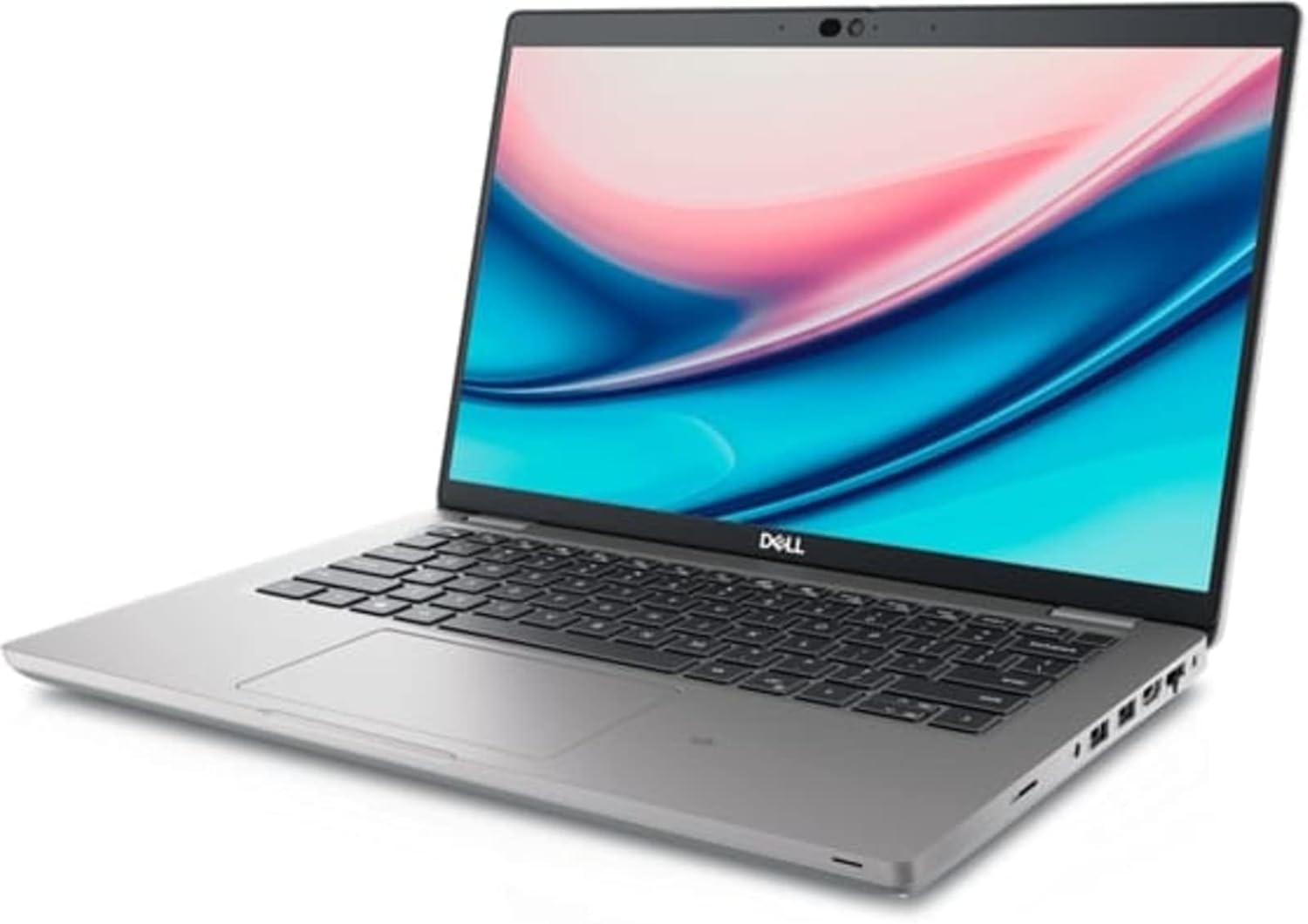

Sary: Front view of the Dell Latitude 5421 Laptop with the screen displaying content.

fikarakarana

1. Manadio ny Solosainao

• Mampiasà lamba malefaka sady tsy misy loko dampkobanina amin'ny rano na mpanadio efijery.
• Ho an'ny klavier sy chassis dia mampiasa lamba malefaka. Fadio ny zavatra simika mahery vaika.
• Use compressed air to clear dust from vents and keyboard crevices.

2. Fanavaozana rindrambaiko

Jereo tsy tapaka ary apetraho ny fanavaozana Windows amin'ny alàlan'ny Fikirana > Fanavaozana Windows. Also, ensure Dell drivers and firmware are up-to-date using the Dell SupportAssist application or Dell's official website.

3. Fikarakarana bateria

To prolong battery life, avoid extreme temperatures. For long-term storage, charge the battery to about 50% and store the laptop in a cool, dry place.

4. Fitantanana fitahirizana

Manadio tsindraindray tsy ilaina files and applications to maintain optimal performance of the 512GB SSD. Use Windows built-in tools like Disk Cleanup or Storage Sense.

Fanamboarana

1. Laptop Does Not Power On

• Ataovy azo antoka fa mifandray tsara amin'ny solosaina finday sy ny fivoahana herinaratra miasa ny adaptatera herinaratra.
• Hamarino fa miasa ny fivoahana herinaratra amin'ny alàlan'ny fampifandraisana fitaovana hafa.
• Andramo mihazona ny bokotra herinaratra mandritra ny 15-20 segondra hanaovana famerenana mafy.

2. Asehoy ny olana

• If the screen is blank, try connecting an external monitor to check if the issue is with the laptop's display.
• Adjust screen brightness using the function keys (Fn + F11/F12).
• Havaozy ny mpamily sary.

3. Wi-Fi or Bluetooth Connectivity Problems

• Hamarino tsara fa mandeha ny Wi-Fi/Bluetooth ao amin'ny fikirana Windows.
• Avereno indray ny router/modem-nao raha misy olana amin'ny Wi-Fi.
• Run the Windows Network Troubleshooter.
• Havaozy ny mpamily tsy misy tariby.

4. Fampisehoana miadana

• Akatona ny fampiharana tsy ilaina mandeha ao ambadika.
• Check for malware or viruses using antivirus software.
• Ataovy izay hahazoana toerana malalaka ampy eo amin'ny SSD.
• Manaova famerenana rafitra.

fepetra arahana

Below are the detailed technical specifications for the Dell Latitude 5421 Laptop:

Warranty sy fanohanana

This Dell Latitude 5421 Laptop is a renewed product. Please refer to the specific warranty terms provided by the seller at the time of purchase. For technical assistance, driver downloads, or further support, visit the official Dell Support website or contact your seller directly.

Dell Support Webtranokala: www.dell.com/support
