Sava lalana
This manual provides comprehensive instructions for the operation and maintenance of your YAOHUIMI replacement remote control. This remote is designed to be compatible with various Fujitsu air conditioner models, including AR-NJ1, ASY2U0, ASY25U, ASY35U, ASY25UA, ASY35UA, ASH9LSACW, ASH12LSACW, and ASY12USCCW, among others. Please read this manual carefully to ensure proper use and to maximize the lifespan of your remote control.

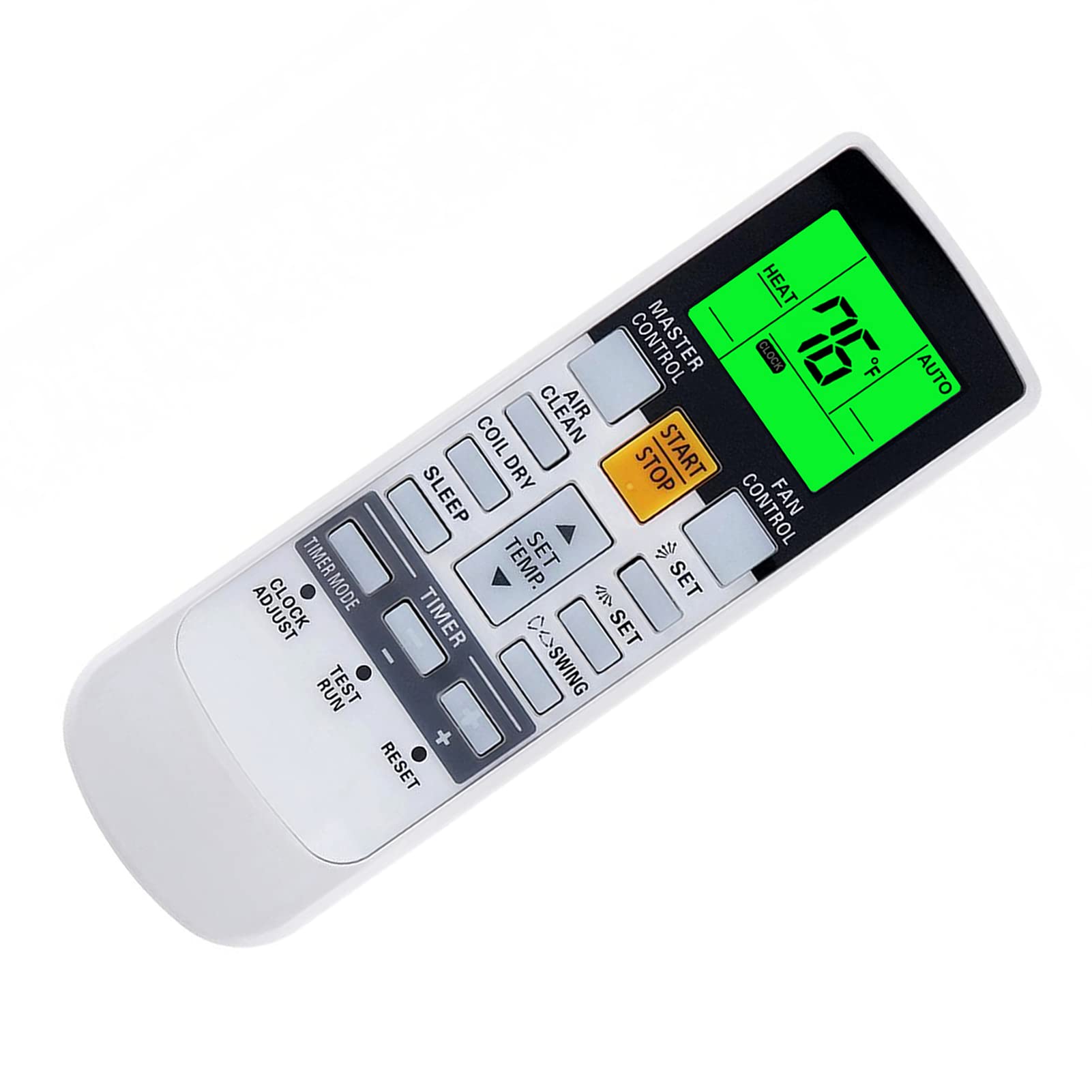

Sary: Front view of the YAOHUIMI Replacement Remote Control.
Hametraka
Fametrahana bateria
Mila bateria AAA roa (tsy tafiditra) ny fanaraha-maso lavitra mba hampiasaina. Araho ireto dingana ireto hametrahana ireo bateria:
- Tadiavo eo an-damosin'ny fanaraha-maso lavitra ny fonon'ny efitrefitra bateria.
- Atsofohy midina ny fonony mba hanokafana ny fizarana.
- Insert two new AAA batteries, ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
- Atsofohy amin'ny toerany ny fonon'ny efitry ny bateria mandra-pikitika tsara.
Sary: Eo anoloana sy aoriana view an'ny fanaraha-maso lavitra, izay mampiseho ny toerana misy ny fitoeran'ny bateria.
Fampiasana voalohany
This replacement remote control is pre-programmed and typically requires no additional setup or pairing. Simply install the batteries and point the remote towards your Fujitsu air conditioner to begin operation.
Torolàlana miasa
Asa fototra
- Bokotra START/STOP: Tsindrio raha hanodina na hamono ny vata fampangatsiahana.
- MASTER CONTROL: Cycles through operating modes such as Auto, Cool, Dry, Fan, and Heat.
- FAN CONTROL: Adjusts the fan speed (e.g., Auto, Low, Medium, High).
- SET TEMP. Buttons (Up/Down Arrows): Manitsy ny maripana ilaina.
- SWING Buttons: Controls the louver swing function for air distribution.
- TIMER Buttons: Used to set ON/OFF timers for the air conditioner.
Temperature Display (Fahrenheit/Celsius)
The remote control can display temperature in both Fahrenheit (°F) and Celsius (°C). To switch between these units:
- With the remote control powered on, observe the current temperature unit on the display.
- Press the designated button (often a small button near the temperature display or a combination of buttons) to toggle between °F and °C. Refer to the image below for visual guidance.
Image: Remote control display illustrating the Fahrenheit and Celsius temperature units and the green backlight.
Green Backlight Feature
The remote control features a green backlight for improved visibility in low-light conditions. This backlight activates automatically when buttons are pressed, making it easier to operate the air conditioner at night.
Advanced Heat Functions (If Applicable)
Some Fujitsu AC models support advanced heat functions such as "10°C HEAT", "50°F HEAT", "MINI.HEAT", or "ECONOMY". These functions are only available if your original remote control also had these specific buttons or capabilities. To activate these, you may need to press and hold a specific button for approximately 4 seconds. Consult your air conditioner's original manual for specific details on these functions.
Image: Diagram showing how to activate advanced heat functions by pressing and holding a button for 4 seconds.
fikarakarana
Manadio ny Remote Control
Ampiasao lamba malefaka sy maina mba hanadiovana ny fanaraha-maso lavitra. Aza mampiasa ranoka fanadiovana, famafazana, na fitaovana marokoroko, satria mety hanimba ny velaran'ny fanaraha-maso lavitra na ny singa anatiny izany.
Fanoloana bateria
Replace the batteries when the remote control's range decreases, or if the display becomes dim or unresponsive. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries.
Raha tsy hampiasaina mandritra ny fotoana maharitra ny fanaraha-maso lavitra dia esory ny bateria mba hisorohana ny fivoahan'ny rano sy ny fahasimbana mety hitranga.
Fanamboarana
Fanaraha-maso lavitra tsy mamaly
- Jereo ny bateria: Ensure batteries are inserted correctly with the correct polarity (+/-). Replace with fresh AAA batteries if necessary.
- tsipika fahitana: Ataovy azo antoka fa tsy misy sakana eo anelanelan'ny fanaraha-maso lavitra sy ny mpandray ny fampangatsiahana rivotra.
- Distance: Ensure you are within the effective operating range of the air conditioner's infrared receiver.
- Fifandirana amin'ny infrarouge: Mety hanelingelina ny famantarana infrarouge ny loharanon-jiro mahery (ohatra, ny tara-masoandro mivantana, ny jiro fluorescent). Andramo ampiasaina amin'ny toe-jiro hafa ny fanaraha-maso lavitra.
Asehoy ny olana
- Aseho manjavozavo: Matetika izany dia midika fa ambany ny herin'ny bateria. Soloy ireo bateria.
- Tsy misy fampisehoana: Check battery installation and ensure batteries are fresh. If the issue persists after replacing batteries, the remote may require service.
Functions Not Working
- mifanentana: While this remote is broadly compatible, some advanced functions might not be supported by all Fujitsu AC models, especially if your original remote did not have those specific features.
- AC Unit Status: Ensure your air conditioner unit is powered on and functioning correctly.
fepetra arahana
| Marika | YAOHUIMI |
| Laharana modely | A420220331-BEIGUANG-87 |
| Fitaovana mifanentana | Fujitsu AC models including AR-NJ1, ASH12LSACW, ASH9LSACW, ASY12USCCW, ASY25U, ASY25UA, ASY2U0, ASY35U, ASY35UA, and others. |
| Teknolojia fifandraisana | Infrarouge (IR) |
| Endri-javatra manokana | Ergonomic design, Green Backlight, Fahrenheit/Celsius display |
| Loharanon-kery | 2 x AAA Batterie (tsy tafiditra) |
| mpanamboatra | HUIMIKEJI |
MANAMPY
For further assistance or inquiries regarding your YAOHUIMI replacement remote control, please refer to the seller's contact information on the platform where the product was purchased. Ensure you have your product model number (A420220331-BEIGUANG-87) available when seeking support.
