1. Fampidirana
Thank you for choosing the NVS AMP50 B III UHF 1 Output Pole Amplifier. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your amplifier. Please read this manual thoroughly before using the product and retain it for future reference.
2. Information momba ny fiarovana
Torolàlana momba ny fiarovana:
- Ensure the power supply (PSUP01, not included) is disconnected before installation or maintenance.
- This device is designed for outdoor pole mounting. Ensure it is securely fastened.
- Protect all connections from moisture. The included rain cover must be used.
- Aza sarona ny amplifier to extreme temperatures or direct sunlight for prolonged periods without proper shielding.
- Only use a 12V DC power supply as specified. Using an incorrect power supply may damage the device and void the warranty.
- Tokony ho ataon'ny teknisiana mahafeno fepetra ny fametrahana raha misy tsy azonao antoka.
3. Ny votoatin'ny fonosana
Hamarino fa misy ny entana rehetra ao anaty fonosana:
- NVS AMP50 B III UHF 1 Output Pole AmpLifer
- Rain Cover
- User Manual (ity antontan-taratasy ity)
Note: The PSUP01 12V DC power supply is not included and must be purchased separately.
4. Toetran'ny vokatra
The NVS AMP50 is a vertical audio amplifier designed to boost B III and UHF signals, ensuring optimal reception.
- Vertical audio amplifier with wide-band input (B III + UHF).
- Separate gain adjustments for B III (max. 18 dB) and UHF (max. 30 dB).
- Single signal output with F-connectors.
- Powered by 12V DC from the signal drop line via a PSUP01 power supply (not included).
- Includes a rain cover for outdoor protection.

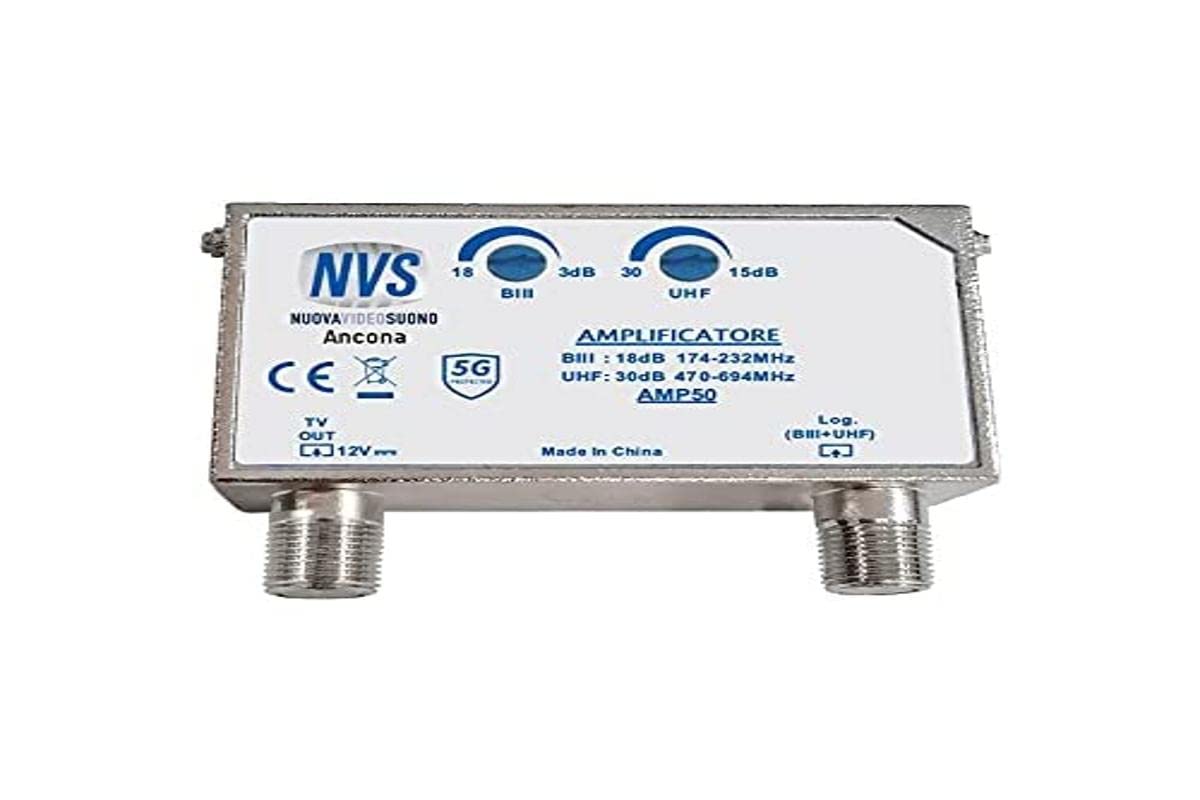

Sary 4.1: NVS AMP50 B III UHF 1 Output Pole Amplifier. This image shows the compact design of the amplifier, highlighting its F-connectors for signal input and output, and the robust casing designed for outdoor use with a rain cover.
5. Fametrahana sy fametrahana
Follow these steps for proper installation of your NVS AMP50 ampLitera:
- Mametraka: Apetaho tsara ny amplifier to a pole in a suitable outdoor location, preferably close to the antenna. Ensure the mounting is stable and can withstand environmental conditions.
- Antenna fifandraisana: Connect your B III and UHF antenna cables to the respective input F-connectors on the amplifier. Ensure connections are tight and secure.
- Fifandraisana Output: Connect ny amplifier's single output F-connector to your signal drop line, which leads to your television or distribution system.
- Rain Cover: Place the provided rain cover over the amplifier to protect it from weather elements. Ensure it is properly seated to prevent water ingress.
- Power Supply (PSUP01): Connect the 12V DC power supply (PSUP01, not included) to the signal drop line. The amplifier receives power through this line. Ensure the power supply is connected indoors and away from moisture.
- Herim-batana: Once all connections are secure and protected, plug in the PSUP01 power supply.
6. Torolàlana miasa
The NVS AMP50 amplifier is designed for continuous operation once installed.
- Mahazo fanitsiana: ny amplifier features separate rotary controls for B III and UHF gain adjustment. Use a small screwdriver to carefully adjust the gain for each band to achieve optimal signal strength without over-amplification. Start with the lowest gain setting and gradually increase until desired signal quality is achieved on your television.
- Fanaraha-maso famantarana: Monitor your television's signal strength and quality indicators while adjusting the gain. Over-amplification can lead to signal distortion.
- Tondro hery: The PSUP01 power supply typically has an LED indicator to confirm it is receiving power and supplying it to the ampLifer.
7. Fikojakojana
The NVS AMP50 amplifier requires minimal maintenance.
- Fanaraha-maso ara-potoana: Tsidiho tsindraindray ny amplifier and its connections for any signs of wear, corrosion, or damage, especially after severe weather conditions.
- Rain Cover: Ensure the rain cover remains securely in place and is not damaged. Replace if necessary.
- Fanadiovana: If necessary, gently clean the exterior of the ampLifier misy malefaka, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the power supply is disconnected before cleaning.
- Fifandraisana Integrity: Check F-connections for tightness to prevent signal loss or ingress of moisture.
8. Famahana olana
Raha sendra olana amin'ny tenanao ianao amplifier, refer to the following troubleshooting guide:
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| No signal or poor signal quality |
|
|
| Signal distortion or pixelation |
|
|
| Water ingress in ampLifer |
|
|
Raha mbola mitohy ny olana aorian'ny fanarahana ireto dingana ireto dia mifandraisa amin'ny serivisy ho an'ny mpanjifa.
9. Famaritana
| endri-javatra | antsipirihany |
|---|---|
| mpanamboatra | NVS |
| Laharana modely | AMP50 |
| ASIN | B0972HCQRK |
| Input Bands | B III, UHF |
| B III Gain Adjustment | Max. 18 dB |
| UHF Gain Adjustment | Max. 30 dB |
| Output Channels | 1 |
| Connectors | F-karazana |
| Power Supply (Input Voltage) | 12V DC (via PSUP01, not included) |
| Karazana fametrahana | Surface Mount (Pole Mount) |
| Refy (Fandefasana) | 18 x 12 x 5 cm |
| Lanja (Fandefasana) | 164 grama |
10. Warranty sy fanohanana
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official NVS website. Tehirizo ny porofon'ny fividiananao ho an'ny fitakiana fiantohana.
For further assistance, please contact NVS customer support through their official channels.
