Sava lalana
The INSPIRE ARCHITECTO Desk Lamp is a modern and functional lighting solution designed for various living spaces. Featuring a black metal finish and an adjustable arm, it provides directed and efficient illumination for your desk, shelf, or bedside table. This manual provides essential information for the safe and proper use, installation, and maintenance of your lamp.
Information momba ny fiarovana
- Fiarovana herinaratra: Ataovy antoka hatrany ny lamp is unplugged from the power outlet before performing any installation, cleaning, or maintenance.
- Fepetra takamoa: Ampiasao ihany ny jiro E27 izay manana herinaratra ambony indrindratag60W. Mihoatra ny herinaratra ambony indrindratage can cause overheating and damage to the lamp na mety hampidi-doza ny afo.
- Fiarovana IP20: Ity lamp has an IP20 protection class, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. It is suitable for indoor use in dry environments only. Do not use in damp rooms such as bathrooms or outdoors.
- Fametrahana: Apetraho ny lamp on a stable, flat surface to prevent tipping. Keep the lamp lavitry ny fitaovana mora mirehitra.
- Ankizy sy biby fiompy: Tazony ny lamp lavitra ny ankizy sy ny biby fiompy mba hisorohana ny loza.
Fonosana fonosana
Azafady, jereo fa misy ny singa rehetra ary tsy simba:
- 1 x ARCHITECTO Desk Lamp vondrona
- 1 x Power cord with integrated switch
Fanamarihana: The light bulb is tsy tafiditra with the purchase and must be acquired separately.
This image illustrates the required bulb type (E27) and maximum wattage (60W) for the lamp. It also indicates that the bulb is not included with the product.
Hametraka
- Esory ny Lamp: Carefully remove all packaging materials and inspect the lamp raha misy famantarana fahasimbana.
- Fametrahana takamoa: Tohizo ny lamp is unplugged from the power outlet. Gently screw an E27 bulb (maximum 60W) into the lamp holder until it is secure. Do not overtighten.
- Fametrahana: Mametraka ny lamp on a stable, flat surface such as a desk, shelf, or bedside table. Ensure there is enough space for the adjustable arm to move freely.
- Hery mampifandray: Ampidiro ny lampampidiro ao anaty faladia herinaratra mahazatra ny tariby herinaratra.

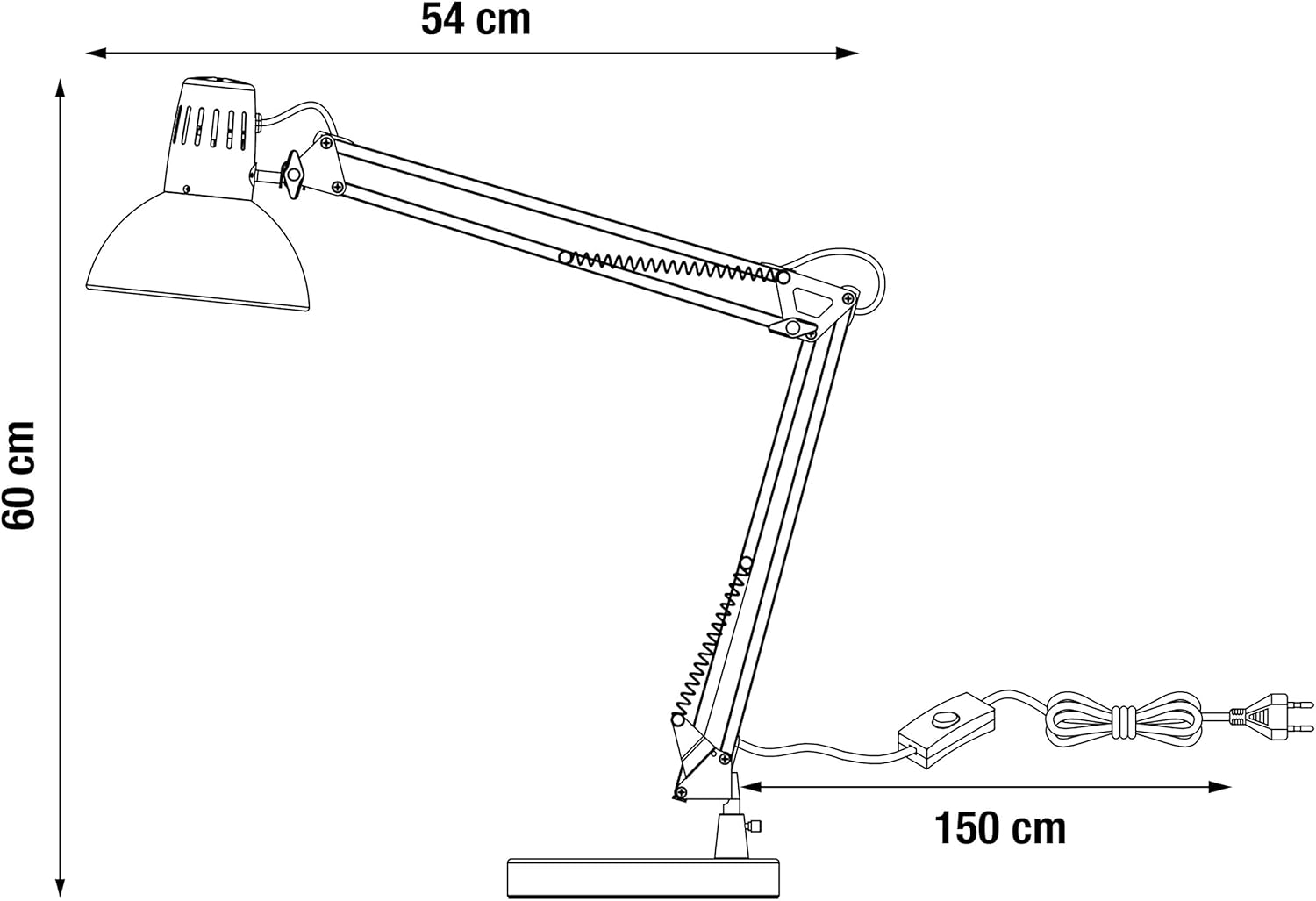

A technical drawing providing key dimensions of the desk lamp, including its height, arm reach, and power cord length.
Torolàlana miasa
- Herim-batana / maty: Use the integrated switch located on the power cord to turn the lamp on or off.
- Ahitsio ny hazavana (Adjusting the Light): Ny lamp features an articulated arm and an adjustable head. Gently move the lamp head and arm to direct the light to your desired position for optimal illumination.
The INSPIRE ARCHITECTO desk lamp positioned on a desk in a modern setting, demonstrating its functional illumination for work or reading.
fikarakarana
- Fanadiovana: Atsaharo ny lamp avy amin'ny famatsiana herinaratra alohan'ny fanadiovana. Fafao ny lamp with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Fanoloana takamoa: Tohizo ny lamp is unplugged and the bulb has cooled completely before attempting to replace it. Unscrew the old E27 bulb counter-clockwise and screw in a new E27 bulb (maximum 60W) clockwise until secure.
Fanamboarana
- Lamp tsy mandeha:
- Jereo raha ny lamp is properly plugged into a working power outlet.
- Verify that the bulb is correctly installed and not faulty. Replace the bulb if necessary.
- Ensure the power switch on the cord is in the 'on' position.
- Mitselatra ny hazavana:
- Ataovy azo antoka fa voahidy tsara ilay takamoa.
- Try replacing the bulb with a new one to rule out a faulty bulb.
fepetra arahana
| endri-javatra | famaritana |
|---|---|
| Marika | aingam-panahy |
| MODELY | ARCHITECTO |
| mpanamboatra | ADEO |
| Ny refin'ny vokatra | 11.6 x 22 x 63 sm (L x W x H) |
| lanja | 3.31 kg |
| loko | Mainty |
| KEVITRA | Metal |
| Style | ANKEHITRINY |
| Lamp Base | E27 |
| Max Wattage | 60 Watt |
| Herin'aratra | Corded Electric |
| Ahitana bateria | tsy misy |
| Endri-javatra manokana | Light, Flexible |
| Kilasy fiarovana (IP) | IP20 |
| EU Energy Label | Not concerned |
| Daty azo alaina voalohany | 28 Febroary 2021 |
Ny birao lamp shown alongside symbols indicating its IP20 protection class, signifying suitability for indoor use in dry environments.
Warranty sy fanohanana
This INSPIRE ARCHITECTO Desk Lamp dia rakotry ny a Warranty 2 taona manomboka amin'ny datin'ny fividianana. Ity antoka ity dia mandrakotra ny lesoka amin'ny famokarana sy ny lesoka amin'ny fitaovana ampiasaina ara-dalàna. Tazomy azafady ny porofon'ny fividiananao ho an'ny fangatahana antoka.
For technical support or warranty inquiries, please contact your retailer or the manufacturer, ADEO.
