1. Fampidirana
Thank you for choosing the Gladiator Overhead Max GearLoft™ Storage Shelf. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new storage solution. Designed for durability and versatility, this shelf helps maximize your storage space by utilizing overhead areas, ideal for garages, workshops, and utility rooms.
2. Information momba ny fiarovana
WARNING: [SAFETY WARNINGS EXIST]
- Always ensure the Gladiator wall system (GearTrack® or GearWall® panels) is securely fastened to wall studs before mounting the shelf.
- Do not exceed the maximum weight capacity of 200 lbs (90.7 kg). Overloading can cause damage to the shelf or wall system, leading to potential injury.
- Distribute weight evenly across the shelf surface.
- Arovy amin'ny zavatra mihetsika ny tanana sy ny rantsan-tànana mandritra ny fametrahana azy.
- Use appropriate safety gear, such as gloves and eye protection, during assembly and installation.
- If you are unsure about any installation step, consult a qualified professional.
3. Ny votoatin'ny fonosana
Hamarino fa misy ny singa rehetra alohan'ny hanombohan'ny fivoriambe:
- Overhead Max GearLoft™ Storage Shelf (1 unit)
- Dual-mounting shelf brackets (2 units)
- Hardware for assembly (bolts, nuts, washers, wing nuts)
- Boky torolalana
If any parts are missing or damaged, please contact Gladiator customer support.
4. Fametrahana sy fametrahana
The Gladiator Overhead Max GearLoft™ Storage Shelf is designed for easy installation on any Gladiator wall system (GearTrack® Channels or GearWall® Panels).
4.1. Fitaovana ilaina (Tsy tafiditra)
- Screwsriver an'ny lohan'i Phillips
- Wrench or socket set (for bolts)
- ambaratonga
- Stud finder (if installing new GearTrack/GearWall)
4.2. Dingana Fivoriambe
- Attach Brackets to Shelf: Secure the dual-mounting shelf brackets to the underside of the mesh shelf using the provided bolts, nuts, and washers. Ensure all connections are tight.
- Fidio ny toerana fametrahana: The brackets can be installed in an upward or downward position, offering flexibility for your storage needs. The upward position provides a lower shelf height, while the downward position allows the shelf to sit higher.
- Position on Wall System: Align the friction lock tabs on the back of the shelf brackets with the upper groove of your Gladiator GearTrack® or GearWall® panels.
- Arovy ny talantalana (Secure the Shelf): Once positioned, push the shelf down firmly to engage the friction lock tabs. Use the wing nuts on the brackets to further secure the shelf to the wall system, ensuring a stable and secure fit.
Figure 4.2.1: The Gladiator Overhead Max GearLoft Shelf with its dual-mounting brackets, ready for installation. The brackets can be oriented to position the shelf higher or lower on the wall system.
Figure 4.2.2: The shelf mounted on a Gladiator GearWall system, demonstrating the upward bracket position for a lower shelf height. This configuration is ideal for frequently accessed items.
Figure 4.2.3: The shelf mounted on a Gladiator GearWall system, demonstrating the downward bracket position for a higher shelf height. This configuration is suitable for storing less frequently used or bulkier items overhead.
5. Operating the Shelf
Once securely installed, the Gladiator Overhead Max GearLoft™ Storage Shelf provides a robust platform for organizing your items. Its 30-inch deep surface and 200 lbs weight capacity make it ideal for bulky or oversized items that typically clutter floor space.
- Mametraka entana: Place items onto the shelf, ensuring weight is distributed evenly to maintain stability.
- fahitana: The see-through mesh design allows you to easily identify stored items, even when the shelf is mounted high.
- Accessibility: Consider the height at which the shelf is mounted and use a sturdy step stool or ladder if necessary to safely access items.

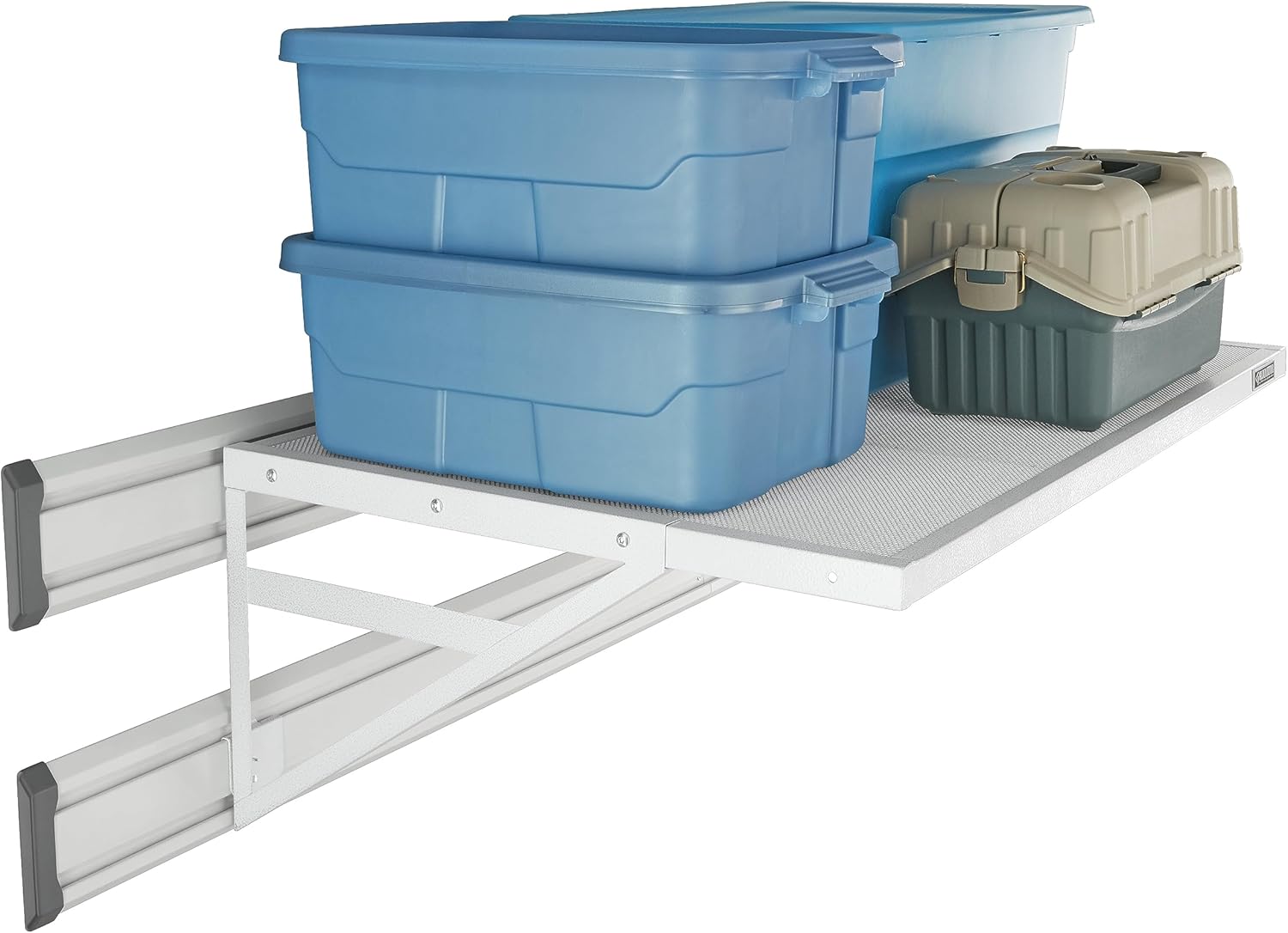

Figure 5.1: The Gladiator Overhead Max GearLoft Shelf effectively storing multiple large plastic totes and other bulky items, demonstrating its capacity and utility in a garage setting.
6. Fikojakojana
The Gladiator Overhead Max GearLoft™ Storage Shelf is designed for minimal maintenance. Follow these simple guidelines to ensure its longevity:
- Fanadiovana: Wipe the shelf with a dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners that could damage the finish.
- Fanaraha-maso ara-potoana: Periodically check all bolts, nuts, and wing nuts to ensure they remain tight and secure. Re-tighten if necessary.
- Weight Capacity: Always adhere to the 200 lbs (90.7 kg) weight limit.
7. Famahana olana
If you encounter any issues with your Gladiator Overhead Max GearLoft™ Storage Shelf, refer to the following common troubleshooting tips:
- Tsy milamina ny talantalana:
- Ensure all assembly hardware (bolts, nuts) is securely tightened.
- Verify that the friction lock tabs are fully engaged in the Gladiator wall system.
- Check that the wing nuts securing the brackets to the wall system are tightened.
- Confirm that your Gladiator GearTrack® or GearWall® panels are properly installed and anchored to wall studs.
- Difficulty Engaging with Wall System:
- Ensure the wall system is clean and free of obstructions.
- Align the shelf brackets correctly with the grooves of the wall system.
- Lavitra ny talantalana:
- Check if the shelf is overloaded. Remove items to ensure the total weight is below 200 lbs.
- Ensure weight is evenly distributed across the shelf surface.
If problems persist, contact Gladiator customer support for further assistance.
8. Famaritana
| endri-javatra | antsipirihany |
|---|---|
| Anarana modely | Overhead Max GearLoft™ Storage Shelf |
| Laharana modely | GAGL30WSJW |
| Haben'ny vokatra (D x W x H) | 30" D x 45" W x 16" H |
| Fetran-danja | 200 lbs (90.7 kg) |
| Lanja entana | 22.5 kg |
| Isan'ny talantalana | 1 |
| Endri-javatra manokana | See-through mesh design |
| Karazana vita | voaloko |
| Furniture vita | White |
| Karazana fametrahana | Wall Mount (Gladiator wall system compatible) |
| Ilaina ny fivoriambe | ENY |
| Anisan'ny singa | Hardware |
9. Warranty sy fanohanana
antoka: The Gladiator Overhead Max GearLoft™ Storage Shelf is backed by a Lifetime Limited Warranty. This warranty covers defects in material and workmanship under normal use and service. For full warranty details, please refer to the official Gladiator webtranokala na mifandray amin'ny serivisy mpanjifa.
Fanohanana ny mpanjifa: For product inquiries, technical assistance, or warranty claims, please visit the official Gladiator website or contact their customer support team. Keep your model number (GAGL30WSJW) and purchase information readily available when contacting support.
