AUTOWIKI Fog Lights Assembly Installation and Operation Manual

1. Fampidirana

This manual provides detailed instructions for the installation, operation, and maintenance of the AUTOWIKI Fog Lights Assembly, Model AW30-0072-09S-Z. This product is designed as a direct replacement for the 2006-2007 Mitsubishi Lancer. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Vokatra mihoatraview

2.1 Lafin-javatra fototra

• Exact OEM Style/Fitment: Designed for direct replacement on 2006-2007 Mitsubishi Lancer.
• Ampitomboina ny fahitana: Includes H3 halogen bulbs (12V 55W) for improved illumination in adverse weather conditions.
• Fanorenana maharitra: Made from high-quality OEM grade ABS plastic, ensuring resistance to moisture and dust.
• Fametrahana mora: Direct bolt-on replacement, requiring no modifications.
• Fanamarinana fiarovana: DOT Certified for compliance with safety standards.
• Lens mazava: Provides optimal light output.

2.2 Votoatin'ny fonosana

Ny fonosana dia ahitana ireto singa manaraka ireto:

• 2 x Fog Light Assemblies (Left and Right)
• 2 x H3 Halogen Bulbs (pre-installed)
• 1 x Wiring Harness
• 1 x Switch
• 1x relay
• Zip Ties and other necessary mounting hardware

Sary 2.2.1: Package contents including fog lights, wiring, and accessories. The fog light dimensions are approximately 11.46 inches wide, 5.03 inches deep, and 6.29 inches high.

3. Information momba ny fiarovana

• Esory foana ny bateria-n'ny fiara alohan'ny hanaovana asa elektrika.
• Wear appropriate safety gear, including gloves and eye protection, during installation.
• Ataovy azo antoka fa voaaro tsara ny fifandraisana rehetra mba tsy hisian'ny circuit fohy.
• Do not touch the halogen bulb glass with bare hands, as oils can cause hot spots and reduce bulb life.
• If unsure about any step, consult a qualified automotive technician.

4. Fametrahana (Fametrahana)

This section outlines the general steps for installing the AUTOWIKI Fog Lights Assembly. Specific vehicle disassembly procedures may vary. Refer to your vehicle's service manual for detailed instructions on bumper removal or access to the fog light housing.

4.1 Fitaovana ilaina

• Socket Wrench Set
• Andiany Visy (Phillips sy Flathead)
• Mpanapaka Tariby/Mpanamboatra Tariby
• Tape elektrika na Tubing Heat Shrink
• Famatorana Zip

4.2 Dingana fametrahana

1. Manomana fiara: Apetraho amin'ny toerana marin-toerana ny fiara, ampiasao ny frein à main, ary vonoy ny motera. Esory ny terminal négatif amin'ny bateria.
2. Access Fog Light Area: Depending on your vehicle model, you may need to remove the front bumper, fender liner, or splash guard to access the factory fog light housing.
3. Remove Old Fog Lights: Disconnect the wiring harness from the existing fog lights. Unscrew or unclip the old fog light assemblies from their mounting brackets.
4. Install New Fog Lights: Carefully position the new AUTOWIKI fog light assemblies into the factory mounting locations. Secure them using the original hardware or provided mounting hardware.


   Sary 4.2.1: New fog light assemblies showing the clear lens and mounting points.


   Sary 4.2.2: antsipiriany view of the fog light assembly, highlighting the pre-installed H3 bulb and durable ABS construction.



   Sary 4.2.3: aoriana view of the fog light assembly, illustrating the bulb connection, adjustment screw for aiming, and robust metal bracket.

5. Wire the Fog Lights:
   • Connect the new fog light wiring harness to the fog light assemblies.
   • Route the wiring harness through the engine bay, ensuring it is secured away from moving parts and hot surfaces using the provided zip ties.
   • Connect the relay to the designated point in the harness.
   • Connect the power wire (usually red) to a fused 12V power source (e.g., battery positive terminal or an accessory fuse).
   • Connect the ground wire (usually black) to a suitable chassis ground point.
   • Route the switch wire into the vehicle's cabin and mount the switch in a convenient location.
6. Ampifandraiso indray ny bateria: Avereno ampifandraiso ny terminal négatif amin'ny bateria-n'ny fiara.
7. Fampiasana fitsapana: Turn on the vehicle and test the fog lights to ensure they illuminate correctly.
8. Adjust Aim (if necessary): Use the adjustment screw on the back of the fog light housing to properly aim the light beam. This is typically done against a wall at a specific distance.
9. Averina amboarina ny fiara: Reinstall any removed bumper parts, fender liners, or splash guards.

5. Torolàlana miasa

Once installed, the AUTOWIKI Fog Lights Assembly operates via the included switch. Fog lights are designed to provide additional illumination in conditions of poor visibility, such as fog, heavy rain, or snow, by casting a wide, low beam of light.

• Fampahavitrihana: Press the installed fog light switch to turn the fog lights ON or OFF.
• Fampiasana tsara indrindra: Use fog lights in conjunction with your vehicle's low beam headlights during adverse weather conditions. Avoid using fog lights in clear weather, as they can cause glare for oncoming drivers.

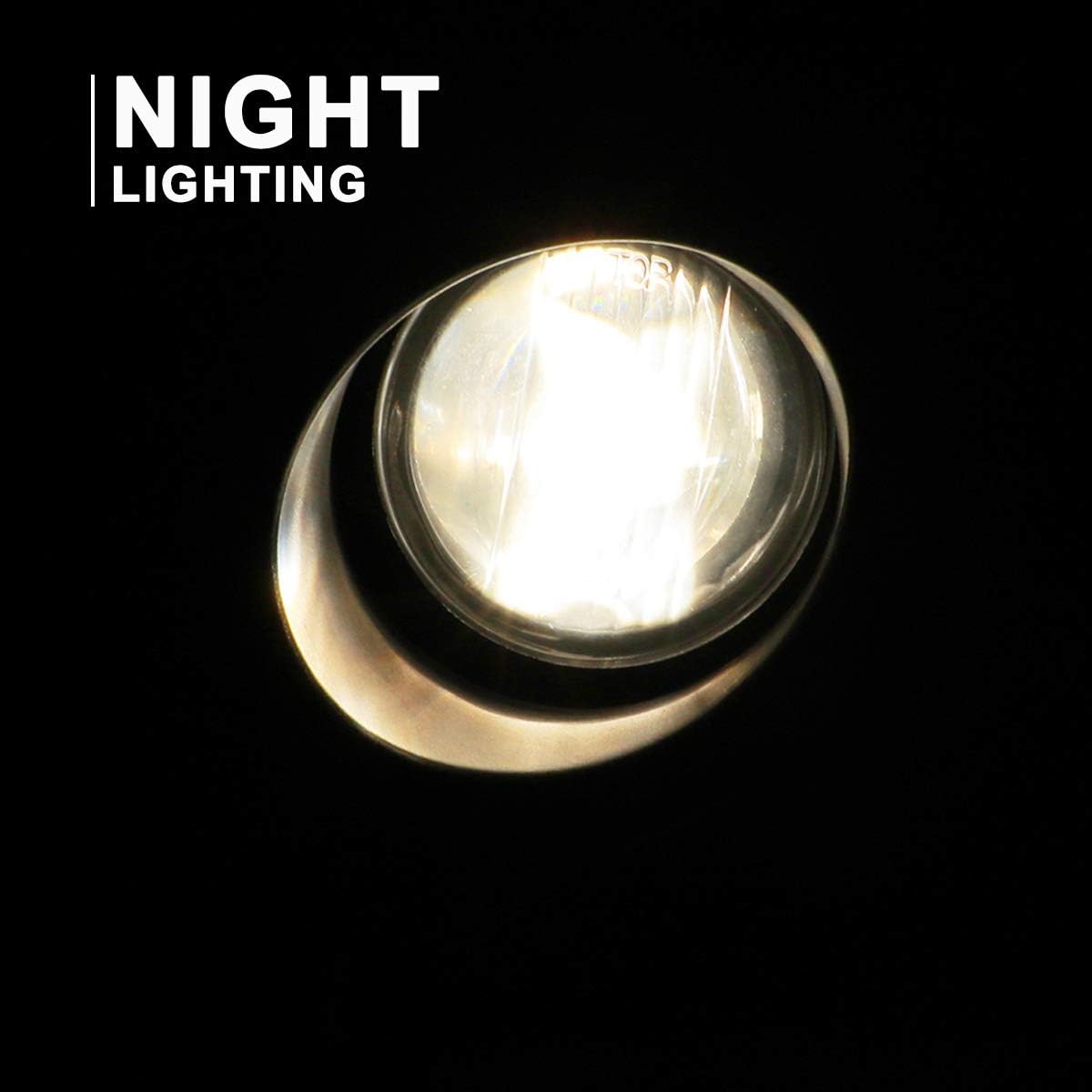

Sary 5.1: Night illumination provided by the fog light.

6. Fikojakojana

Regular maintenance ensures the longevity and optimal performance of your fog lights.

• Fanadiovana: Periodically clean the fog light lenses with a soft cloth and mild automotive cleaner to remove dirt and debris. Avoid abrasive cleaners that can scratch the lens.
• Fanoloana takamoa: If a bulb burns out, replace it with an H3 12V 55W halogen bulb. Refer to Section 4.2 for general access steps. Avoid touching the new bulb's glass with bare hands.
• Wiring Inspection: Annually inspect the wiring harness for any signs of wear, fraying, or corrosion. Ensure all connections remain secure.
• Tsy mahatanty rano: The fog lights are designed to be waterproof. However, if you notice moisture inside the housing, inspect the seals and ensure proper installation.


  Sary 6.1: The fog lights are designed for all-weather performance, featuring waterproof and dustproof construction.

7. Famahana olana

8. Famaritana

9. Fampahalalana momba ny fiantohana

AUTOWIKI offers a 180-day warranty on this product. Additionally, a free return policy is available within 30 days if you are not 100% satisfied. Please retain your proof of purchase for warranty claims.

10. Fanohanana

For further assistance or inquiries, please visit the official AUTOWIKI store or contact customer support through the platform where the product was purchased.
