Boky Torolàlana ho an'ny Mpampiasa Jiro Lahatsary LED LituFoto R16

1. Fampidirana

The LituFoto R16 is a compact and versatile LED video light designed for photographers and videographers. Featuring an OLED display, built-in lithium battery, and adjustable color temperature, hue, and brightness, it provides professional lighting for various shooting scenarios, from live broadcasts to product photography.

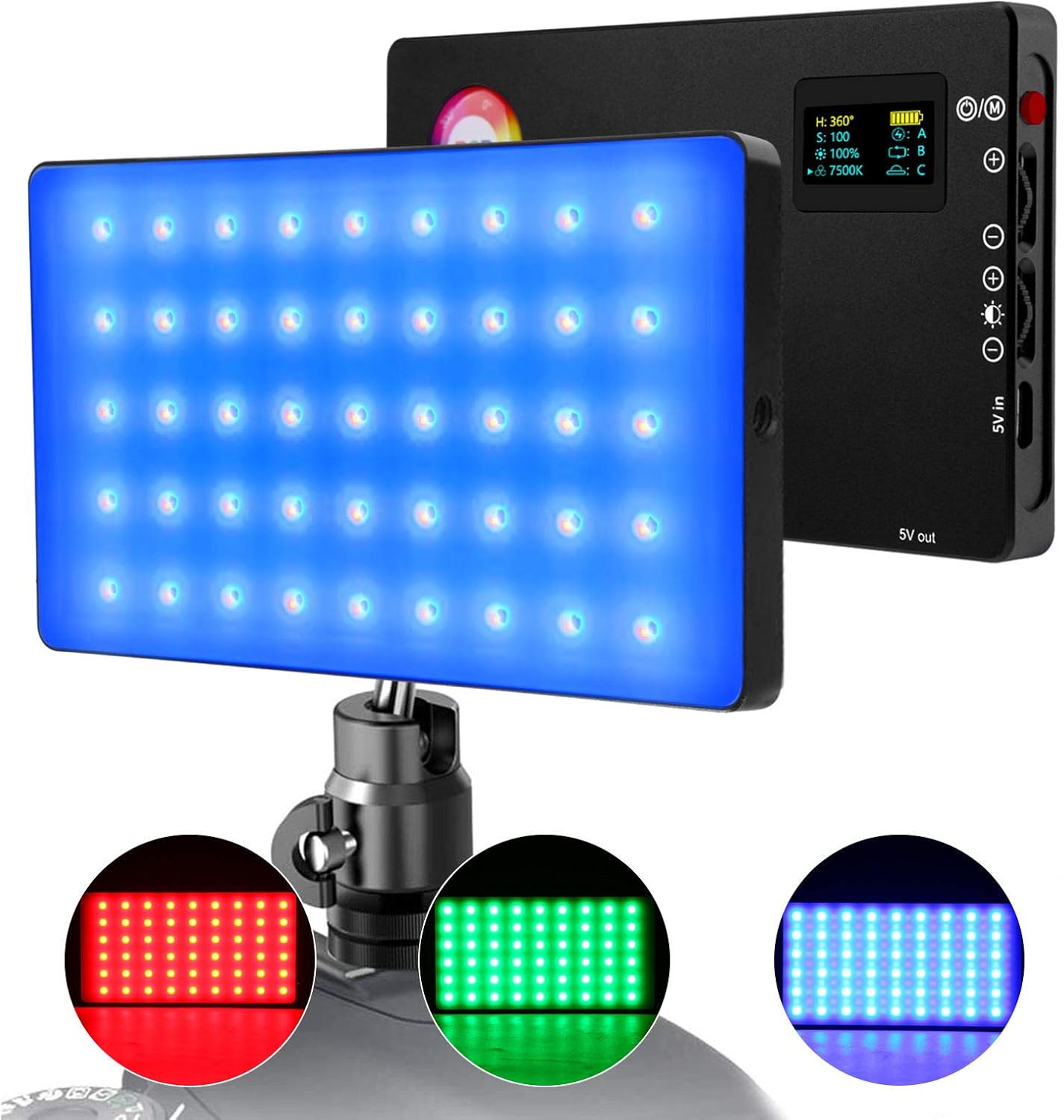

Figure 1.1: The LituFoto R16 LED Video Light, showcasing its compact design and various color outputs.

2. Vokatra mihoatraview

Familiarize yourself with the components of your LituFoto R16 LED Video Light.

Figure 2.1: Key components of the LituFoto R16 LED Video Light.

• OLED Display Screen: Provides real-time information on hue, saturation, brightness, color temperature, and battery status.
• Power/Switch Button: Used to power the device on/off and navigate menus.
• Function Adjustment Dial: Adjusts hue, color temperature, and cycles through lighting effects.
• Dial fanitsiana famirapiratana: Controls the light output intensity from 1% to 100%.
• Type-C seranan-tsambo: For charging the built-in lithium battery.
• USB Power Outlet (5V out): Can be used as a mobile power bank to charge other devices.
• 1/4'' Nut Mounts: Located on two sides for versatile mounting on tripods, cameras, or other accessories.

Figure 2.2: The OLED display provides comprehensive information for precise control.

3. Fametrahana

3.1 Fametrahana voalohany

Before first use, fully charge the LituFoto R16. Connect the provided USB Type-C cable to the charging port on the device and the other end to a compatible USB power adapter (not included).

• The OLED display will indicate charging status.
• Maharitra adiny 3 eo ho eo ny fiampangana feno.
• The device supports charging while in use.

3.2 Fametrahana ny hazavana

The R16 features 1/4'' screw mounts on two sides, allowing for flexible mounting options.

• Attach to a camera's hot shoe using a cold shoe adapter (often included).
• Mount on a tripod or light stand for standalone use.
• Connect to various brackets for custom setups.

4. Torolàlana miasa

4.1 Power On/off

Tsindrio ary hazòny ny Bokotra Hery/Safo hamono na hamono ny jiro.

4.2 Adjusting Light Settings

The LituFoto R16 offers comprehensive control over light output:

Figure 4.1: Adjusting Hue, Color Temperature, and Brightness on the LituFoto R16.

• Brightness (1%-100%): Rotate ny Dial fanitsiana famirapiratana to increase or decrease the light intensity.
• Color Temperature (3200K-7500K): Tsindrio ny Function Adjustment Dial to cycle to the CCT mode. Rotate the dial to adjust the color temperature from warm (3200K) to cold (7500K).
• Hue (0°-360°): Tsindrio ny Function Adjustment Dial to cycle to the HUE mode. Rotate the dial to select any color across the 360-degree spectrum.
• Saturation (0-100): In HUE mode, press the Function Adjustment Dial again to select saturation. Rotate the dial to adjust color saturation.

4.3 Vokatry ny jiro

The R16 offers 3 modes with 9 distinct lighting effects to enhance your creative shooting.

Figure 4.2: The LituFoto R16 offers various lighting effects for creative applications.

To access lighting effects, press the Function Adjustment Dial until you enter the effects mode. Rotate the dial to cycle through the available effects:

• Flash mitsambikina
• Flash matetika
• Monitor Simulation
• Slow Speed Color
• High Speed Color
• Simulation labozia
• Police Vehicle
• Ambulance Vehicle
• Fire Fighting Truck

5. Charging sy Battery

The LituFoto R16 is equipped with a built-in 4040mAh lithium battery, providing approximately 2 hours of continuous output at 100% brightness.

• famandrihana: Use the Type-C charging port. The OLED display shows battery level.
• Power Bank Function: The 5V out USB port allows the R16 to function as a portable power bank, providing emergency power to other devices like smartphones. Note that using this feature will reduce the light's operational time.

6. Fikojakojana

• Fanadiovana: Use a soft, dry cloth to clean the light's body and screen. Do not use harsh chemicals or abrasive materials.
• fitahirizana: Tehirizo ao amin'ny toerana mangatsiatsiaka sy maina ny fitaovana, lavitry ny tara-masoandro mivantana sy ny hafanana tafahoatra.
• Fikarakarana bateria: For optimal battery life, avoid fully discharging the battery frequently. Charge the device regularly, even if not in use, to maintain battery health.
• fanoherana ny rano: This device is not water resistant. Avoid exposure to water or high humidity.

7. Famahana olana

8. Famaritana

9. Warranty sy fanohanana

LituFoto products are designed for reliability and performance. For warranty information and customer support, please refer to the official LituFoto webtranokala na mifandraisa amin'ny mpaninjara eo an-toerana.

Raha mila fanampiana fanampiny dia tsidiho azafady ny LituFoto Store on Amazon.
