1. Fampidirana
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Schlage 163604 Addison Lower Half Front Entry Handleset with Accent Lever. This handleset is designed to enhance both the security and aesthetic appeal of your front door. All Schlage front entry handlesets are precision-engineered for security and ease of installation.

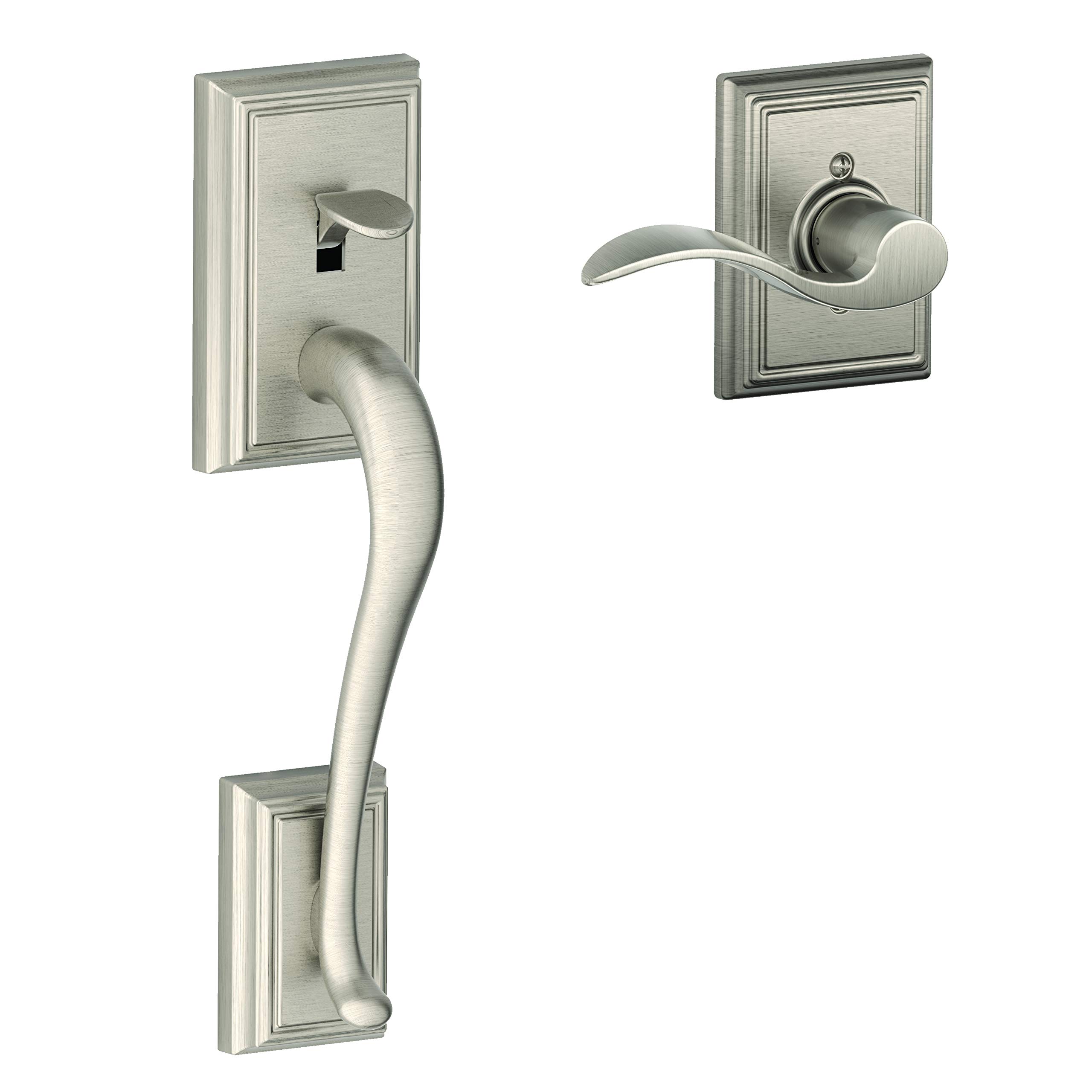

Image 1.1: Schlage 163604 Addison Handleset. This image displays the main components of the handleset, including the exterior handleset, interior lever, latch, and mounting hardware.
2. Information momba ny fiarovana
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in damage to the product, property, or personal injury.
- Always wear appropriate safety gear, such as safety glasses, during installation.
- Use only the tools specified in the installation guide.
- Arovy amin'ny ankizy ny ampahany kely.
- Do not modify the product in any way, as this may compromise its security features and void the warranty.
3. Ny votoatin'ny fonosana
Hamarino fa misy ny singa rehetra alohan'ny hanombohan'ny fametrahana:
- Exterior Handleset Assembly
- Interior Accent Lever Assembly
- Latch Mekanisma
- Takelaka fitokonana
- Fametrahana visy sy fatorana
- Fametrahana Template (raha misy)
- Keys (raha azo atao)
4. Fametrahana sy fametrahana
The Schlage 163604 handleset is designed for easy installation and can be fitted to both right-hand and left-hand door swings. Its patented adjustable bottom thru-bolt allows for vertical adjustment of 1-1/2 inches to accommodate various pre-existing door preparations.
4.1 Fanomanana ny varavarana
- Ensure your door has the correct bore holes and backset. Refer to the included template for precise measurements.
- If replacing an existing handleset, remove the old hardware.
4.2 Installing the Latch
- Insert the latch into the edge bore hole of the door.
- Secure the latch with the provided screws. Ensure the latch bolt faces the correct direction for your door swing.
4.3 Installing the Exterior Handleset
- Position the exterior handleset assembly on the outside of the door, aligning the spindle with the latch mechanism.
- Feed the thru-bolt through the lower hole in the door. Adjust its position as needed using the patented adjustable feature.
4.4 Installing the Interior Lever
- Place the interior lever assembly on the inside of the door, aligning it with the exterior handleset and latch.
- Secure the interior and exterior components together using the provided screws. Tighten all screws firmly but do not overtighten.
4.5 Fametrahana ny Plate Strike
- Align the strike plate with the latch bolt on the door frame.
- Mark and chisel out the necessary area for a flush fit, if required.
- Secure the strike plate with the provided screws.
5. Torolàlana miasa
To operate your Schlage Addison Handleset:
- Hihidy: From the interior, rotate the thumbturn to the locked position. From the exterior, insert the key and turn to lock.
- Hanokatra: From the interior, rotate the thumbturn to the unlocked position. From the exterior, insert the key and turn to unlock.
- Hanokatra: Depress the thumbpiece on the exterior handleset or the lever on the interior to retract the latch bolt.
6. Fikojakojana
Proper maintenance ensures the longevity and smooth operation of your handleset.
- Fanadiovana: Clean the handleset regularly with a soft, damp lamba. Fadio ny mpanadio mikikisana, ny ranoka solvents, na ny akora simika mahery vaika, satria mety hanimba ny endriny ireo.
- fanosorana: Periodically apply a small amount of graphite-based lubricant to the keyway and latch mechanism to ensure smooth operation. Do not use oil-based lubricants, as they can attract dirt.
- manenjana: Check all mounting screws periodically and tighten if necessary. Do not overtighten.
7. Famahana olana
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Lever/Thumbpiece is stiff or sticky | Lack of lubrication, dirt buildup, misaligned components | Apply graphite lubricant to the latch mechanism. Clean the exterior. Check for proper alignment during installation. |
| Key does not turn smoothly | Dirt in keyway, worn key, lock mechanism needs lubrication | Apply graphite lubricant to the keyway. Try a spare key. |
| Door does not latch properly | Strike plate misalignment, latch bolt obstruction | Adjust the strike plate position. Ensure no debris is blocking the latch bolt. |
| Handleset feels loose | Mounting screws are loose | Tighten all visible mounting screws. |
8. Famaritana
- Laharana modely: 163604
- marika: SEKOLY
- Fitaovana: Metal
- loko: Satin Nickel
- vita: Satin
- Style: ANKEHITRINY
- Haben'ny vokatra: 16.51 x 20.32 x 52.07 sm (6.5 x 8 x 20.5 santimetatra)
- Lanja entana: 2.04 kg (4.5 lbs)
- Karazan-tanana: fanoitra
- Endri-javatra manokana: Easy to Install, Patented adjustable bottom thru-bolt
- Mpanamboatra: Allegion Canada Inc
- Firenena nihaviana: Meksika
9. Warranty sy fanohanana
Schlage products are manufactured to the highest standards and are backed by a limited lifetime mechanical and finish warranty, and a 3-year electronics warranty (where applicable). For specific warranty details, product support, or to contact customer service, please visit the official Schlage webtranonkala na jereo ny karatra fiantohana miaraka amin'ny vokatrao.
Raha mila fanampiana fanampiny dia tsidiho azafady ny SCHLAGE Store.
