1. Vokatra mihoatraview
This manual provides instructions for the installation, maintenance, and troubleshooting of the Star Trac Rear Foot Platform Base, model 9-6230-SINTP0. This component is a replacement part designed to ensure the stable and safe operation of compatible Star Trac elliptical trainers.

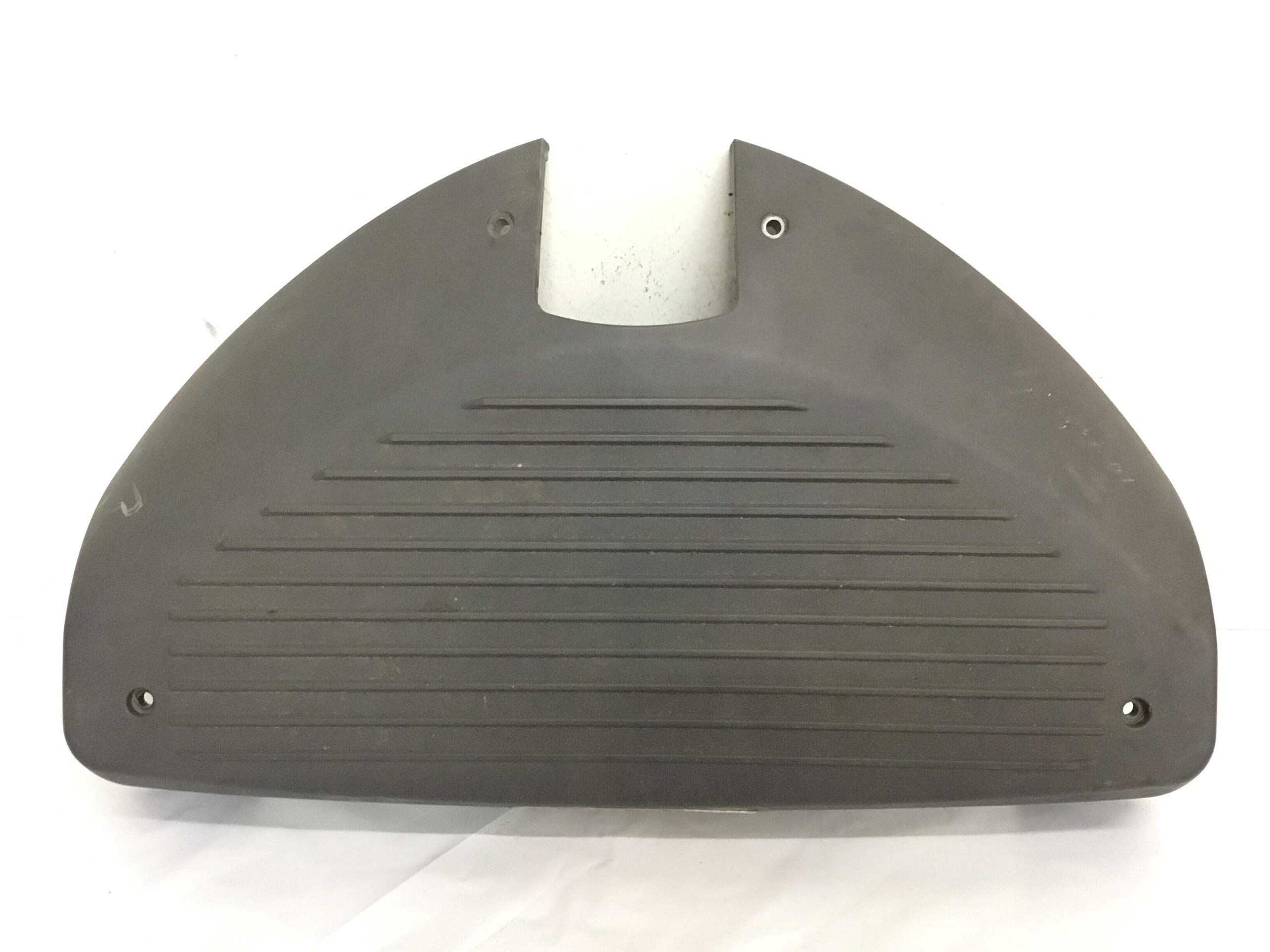

Image 1.1: Star Trac Rear Foot Platform Base, model 9-6230-SINTP0. This image displays the complete rear foot platform base component.
2. Mifanaraka
The Star Trac Rear Foot Platform Base (Model 9-6230-SINTP0) is compatible with the following Star Trac elliptical trainer models:
- Star Trac 9-6130-MINTP0
- Star Trac 9-6230-SINTP0
- Star Trac CT6100 Pro Cross Trainer (9-6130-SINTP0)
- Star Trac CT6200 Elite (9-6230-SINTP0 CT6200)
Always verify your elliptical's model number before purchasing or installing replacement parts.
3. Information momba ny fiarovana
Read all instructions carefully before installation. Failure to follow safety guidelines may result in injury or damage to equipment.
- Tapaka ny hery: Always unplug the elliptical trainer from the power outlet before performing any maintenance or installation.
- Mampiasà fitaovana mety: Ensure you have the correct tools for the installation. Refer to your elliptical's original manual for specific tool requirements.
- Fanampiana matihanina: If you are uncomfortable with diagnosing or installing replacement parts, it is recommended to consult a qualified fitness equipment technician.
- Arovy ny fasteners rehetra: Ensure all bolts, screws, and nuts are tightened securely after installation to prevent instability.
- Arovy ny ankizy sy ny biby fiompy: During installation, keep children and pets at a safe distance from the equipment.
4. Ny votoatin'ny fonosana
Rehefa manokatra ny fonosana, manamarina fa misy ny singa rehetra ary tsy simba:
- One (1) Star Trac Rear Foot Platform Base (Model 9-6230-SINTP0)
- Note: Mounting hardware (bolts, washers, nuts) may or may not be included. Retain existing hardware if not provided.
5. Torolàlana fametrahana
Follow these steps to replace the rear foot platform base on your Star Trac elliptical trainer. These are general guidelines; refer to your specific elliptical model's service manual for detailed diagrams and torque specifications.
- Prepare the Elliptical: Disconnect the elliptical from the power source. Move the elliptical to an open area where you have sufficient space to work around it.
- Locate Existing Platform: Identify the current rear foot platform base on your elliptical. It is typically located at the very back of the machine, providing stability.
- Remove Old Platform: Using appropriate tools (e.g., wrenches, hex keys), carefully unfasten and remove the bolts, screws, or other fasteners securing the old foot platform base to the elliptical frame. Keep all hardware organized.
- Position New Platform: Align the new Star Trac Rear Foot Platform Base (9-6230-SINTP0) with the mounting points on the elliptical frame.
- Secure New Platform: Insert the fasteners (retained from the old platform or new ones if provided) through the mounting holes of the new base and into the elliptical frame. Hand-tighten all fasteners first.
- Fanamafisana farany: Once all fasteners are in place, progressively tighten them using the appropriate tools. Ensure the platform is firmly secured and does not wobble. Do not overtighten.
6. Fanamarinana aorian'ny fametrahana
After installation, perform the following checks to ensure proper and safe operation:
- Fanamarinana ny fahamarinan-toerana: Gently rock the elliptical trainer from side to side and front to back. The machine should feel stable, and the new foot platform base should not show any signs of looseness or movement.
- Fanaraha-maso maso: Confirm that all fasteners are securely tightened and that the new platform is correctly seated against the elliptical frame.
- Fanamafisana: If your elliptical has adjustable leveling feet on the rear platform, ensure they are properly adjusted to prevent wobbling on uneven surfaces.
7. Fikojakojana
Regular maintenance helps prolong the life of your elliptical and its components.
- Fanadiovana: Periodically wipe down the foot platform base with a damp lamba hanesorana ny vovoka sy ny poti-javatra. Fadio ny mpanadio mikikitra.
- Fanaraha-maso: Every few months, inspect the foot platform base and its mounting hardware for any signs of wear, cracks, or looseness. Tighten any loose fasteners immediately.
8. Famahana olana
If you encounter issues after installing the rear foot platform base, consider the following:
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Elliptical wobbles after installation | Loose fasteners; uneven floor; incorrect installation | Check and tighten all mounting fasteners. Ensure the elliptical is on a level surface or adjust leveling feet. Re-evaluate installation steps. |
| Unusual noise from the rear of the elliptical | Loose components; friction between parts | Inspect all connections around the foot platform base for looseness and tighten as necessary. Ensure no foreign objects are lodged. |
9. Famaritana
Key specifications for the Star Trac Rear Foot Platform Base (Model 9-6230-SINTP0):
- Laharana modely: 9-6230-SINTP0
- marika: Star Trac
- Haben'ny vokatra: 15.24 x 20.32 x 2.54 sm (6 x 8 x 1 santimetatra)
- Lanja entana: Approximately 454 g (1 Pound)
- UPC: 826770907628
10. Warranty sy fanohanana
This product is covered by the manufacturer's standard warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact Star Trac customer support directly.
For technical assistance, replacement parts inquiries, or to locate a certified service technician, please contact Star Trac customer service through their official website or the contact information provided with your original elliptical purchase.
