Fampahalalana manan-danja momba ny fiarovana
Read all instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards that could cause injury or property damage.
- FAMPITANDREMANA: Atahorana ho tohina amin'ny herinaratra. Tapaho ny herin'aratra eo amin'ny fiatoan'ny circuit na ny boaty fuse alohan'ny hametrahana na serivisy.
- All wiring connections must be in accordance with local and national electrical codes (NEC). Consult a qualified electrician if you are unsure about wiring procedures.
- This fixture is designed for outdoor use and is water resistant. Ensure all connections are properly sealed to prevent water intrusion.
- Do not install this fixture near flammable materials or in areas with explosive atmospheres.
- Fampitandremana 65: Mety hampiharihary anao amin'ny zavatra simika fantatry ny Fanjakan'i Kalifornia fa miteraka homamiadana sy tsy fahatomombanana amin'ny fahaterahana na fahavoazana hafa amin'ny fananahana ity vokatra ity. Sasao ny tanana aorian'ny fikirakirana azy.
Fonosana fonosana
Hamarino fa misy ny singa rehetra alohan'ny hanombohan'ny fametrahana:
- LED Light Fixture (Sconce)
- Mounting Backplate
- filanjana
- Seeded Crystal Glass Element
- Fonosana fitaovana (visy, voanjo tariby, sns.)
Image: The Elk Home Emode 87110/LED outdoor sconce, featuring a matte black finish and a clear seeded crystal glass element.
Torolàlana fametrahana
Fitaovana ilaina (tsy tafiditra):
- Screwsriver an'ny lohan'i Phillips
- screwdriver flathead
- Mpitondra tariby
- Kasety elektrika
- Solomaso fiarovana
Fametrahana mialoha:
- Turn off electrical power at the main fuse box or circuit breaker.
- Carefully unpack the fixture and check for any damage.
- Ensure all parts listed in the 'Package Contents' section are present.
Mametraka ny Fixture:
- Attach the mounting backplate to the junction box using the provided screws. Ensure the backplate is securely fastened to the wall surface.
- Connect the fixture's ground wire (usually bare copper or green) to the house ground wire using a wire nut. If your junction box has a ground screw, wrap the fixture's ground wire around it.
- Connect the fixture's neutral wire (usually white) to the house neutral wire (white) using a wire nut.
- Connect the fixture's hot wire (usually black) to the house hot wire (black) using a wire nut.
- Ampidiro amim-pitandremana ny tariby rehetra ao amin'ny boaty junction.
- Align the fixture body with the mounting backplate and secure it with the provided screws.
- Install the seeded crystal glass element into the fixture frame according to the specific design.
Sary: Side view of the Elk Home Emode outdoor sconce, illustrating its profile and the seeded crystal detail.
Torolàlana miasa
Rehefa tafapetraka tsara ny fitaovana ary voafatotra ny tariby dia avereno amin'ny laoniny ny herinaratra.
- The Elk Home Emode 87110/LED Sconce is designed to be controlled via a standard wall switch or a compatible remote control system (remote control not included unless specified separately).
- Flip the wall switch to the 'ON' position to illuminate the fixture.
- Flip the wall switch to the 'OFF' position to turn off the fixture.
- If using a remote control system, refer to the remote control's specific instructions for pairing and operation.
Sary: akaiky view of the Elk Home Emode sconce with its integrated LED light illuminated, highlighting the seeded crystal effect.
fikarakarana
Regular maintenance ensures the longevity and optimal performance of your outdoor sconce.
- Fanadiovana: To clean the fixture, ensure power is turned off at the circuit breaker. Use a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or crystal.
- Loharano maivana LED: This fixture uses an integrated LED light source. There are no replaceable bulbs. If the LED light source fails, the entire fixture may need to be replaced.
- Fanaraha-maso: Tsidiho tsindraindray ny fitaovana raha misy soritr'aretina, fahasimbana, na fifandraisana mivaha. Alefaso haingana izay olana rehetra.
Fanamboarana
If your Elk Home Emode outdoor sconce is not functioning correctly, refer to the following common issues and solutions:
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tsy mirehitra ny jiro. | Tsy misy herinaratra amin'ny lalao. | Jereo ny "circuit breaker" na ny "fuse". Ataovy azo antoka fa eo amin'ny toerana "ON" ny "switch". |
| Mitsilopilopy na manjavozavo ny hazavana. | Ny fifandraisana wiring malalaka. | Turn off power at the circuit breaker. Check all wire connections for tightness. |
| Fixture is damaged. | Physical damage during installation or use. | If the fixture is physically damaged, it may need to be replaced. Do not attempt to repair electrical components unless qualified. |
If the problem persists after attempting these solutions, consult a qualified electrician or contact customer support.
fepetra arahana
| endri-javatra | antsipirihany |
|---|---|
| Laharana modely | 87110/LED |
| Marika | Elk Home |
| refy (L x W x H) | 2.5" x 4.75" x 14" |
| Lanja entana | 4.25 kilao |
| loko | Matte Black |
| KEVITRA | Aluminum, Glass (Seeded Crystal) |
| Karazana loharanon-jiro | LED Integrated |
| Wattage | 11 watts |
| ny famirapiratry ny mazava | 460 Lumens |
| Temperature loko | 3000 Kelvin |
| CRI | 80 |
| BOKYtage | 120 Volts |
| Loharanon-kery | Hardwired |
| Karazana fametrahana | Tendrombohitra Semi Flush |
| Fampiasana anatiny / ivelany | ivelan'ny trano |
| Ny haavon'ny fanoherana ny rano | Mahazaka rano |
| Certifications | UL List |

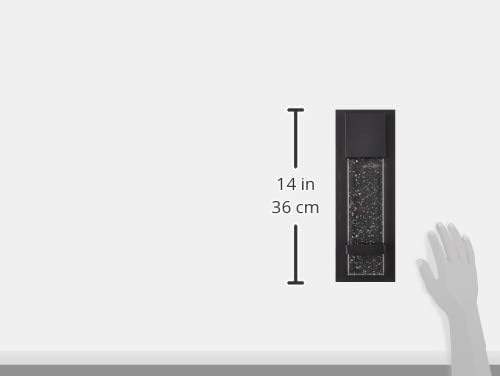

Image: A diagram illustrating the 14-inch (36 cm) height of the Elk Home Emode outdoor sconce.
Warranty sy fanohanana
This Elk Home Emode 87110/LED Outdoor Sconce is covered by a Garantie mpanamboatra 1 taona voafetra manomboka amin'ny datin'ny fividianana.
This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications.
For warranty claims or technical support, please contact Elk Home customer service. Keep your proof of purchase for warranty validation.
Fanohanana ny mpanjifa: For assistance, please visit the official Elk Home webtranonkala na jereo ny antontan-taratasin'ny fividiananao raha mila fanazavana momba ny fifandraisana.
