The LEXIVON 5/8" Swivel Magnetic Spark Plug Socket (Model LX-121) is designed for efficient and secure removal and installation of 5/8" spark plugs. This tool combines a 360-degree swivel action with a magnetic core and a thin-wall design to provide maximum flexibility and ease of use in various automotive applications, particularly in confined engine spaces.
Figure 1: LEXIVON 5/8" Swivel Magnetic Spark Plug Socket (LX-121)
Endriky ny vokatra
- 360° Swivel Action: The universal joint provides complete rotational flexibility, allowing access to spark plugs in challenging angles and tight spaces.
- Enhanced Magnetic Design: A strong magnetic core securely holds the spark plug during removal and installation, preventing accidental drops into the engine compartment, unlike traditional rubber gaskets.
- Thin Wall Construction: Ny ambany-profile design allows for smooth insertion into narrow spark plug compartments.
- Fitaovana mateza: Constructed from drop-forged, heat-treated Chrome Vanadium (Cr-V) alloy steel for increased torque and longevity.
- Faharatsiana fanoherana: Features a fully polished, chrome-plated mirror finish for resistance against rust and corrosion, ensuring easy cleanup.
- Fifehezana azo antoka: Ny knurled grip on the shaft provides a non-slip surface for improved handling during low torque applications.
- Fitsipika ANSI: Designed to meet and exceed ANSI (The American National Standard Institute) standards for quality and performance.

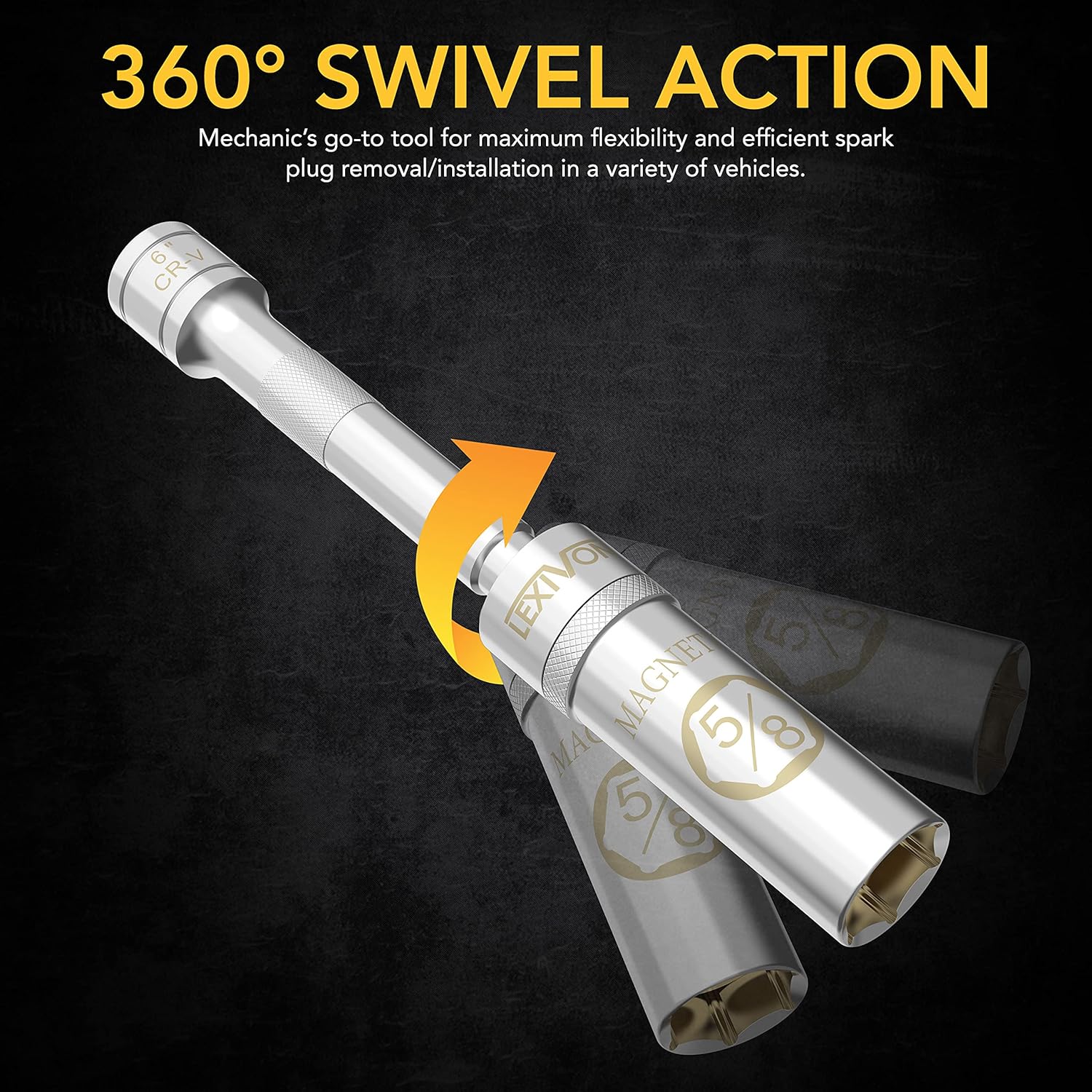

Figure 2: 360-Degree Swivel Action
Figure 3: Magnetic Spark Plug Retention
Figure 4: Thin Wall Design
Figure 5: Premium Quality Features
Fametrahana sy toromarika fampandehanana
Always ensure the engine is cool before attempting to remove or install spark plugs. Refer to your vehicle's service manual for specific spark plug replacement intervals and torque specifications.
Spark Plug Removal:
- Ensure the engine is off and cool. Disconnect the battery if necessary.
- Locate the spark plug wires or coil packs and carefully remove them from the spark plugs.
- Attach the LEXIVON 5/8" Swivel Magnetic Spark Plug Socket to a 3/8" drive ratchet or breaker bar.
- Carefully insert the socket onto the spark plug. The thin-wall design and swivel action will assist in reaching plugs in tight or angled locations.
- Turn the ratchet counter-clockwise to loosen and remove the spark plug. The magnetic core will hold the spark plug securely once it is loose, preventing it from falling.
- Lift the socket and spark plug out of the engine compartment.
Fametrahana ny fanilo:
- Ensure the new spark plug is correctly gapped according to your vehicle's specifications.
- Place the new spark plug into the LEXIVON 5/8" Swivel Magnetic Spark Plug Socket. The magnetic core will hold it firmly.
- Carefully lower the spark plug into its port. Hand-tighten the spark plug initially to avoid cross-threading. The swivel action helps align the plug.
- Once hand-tight, use a torque wrench with the socket to tighten the spark plug to the manufacturer's specified torque. Overtightening can damage the spark plug or engine head.
- Reattach the spark plug wires or coil packs.
- Reconnect the battery if it was disconnected.
Lahatsary 1: Vita ny vokatra ofisialyview demonstrating the features and benefits of the LEXIVON 5/8 inch Swivel Magnetic Spark Plug Socket.
fikarakarana
To ensure the longevity and optimal performance of your LEXIVON spark plug socket, follow these maintenance guidelines:
- Fanadiovana: After each use, wipe the socket clean with a dry cloth to remove any dirt, oil, or debris. For stubborn grime, use a mild degreaser and then wipe dry.
- fitahirizana: Store the socket in a clean, dry environment to prevent rust and corrosion. Avoid storing it in damp conditions or where it may be exposed to corrosive chemicals.
- Fanaraha-maso: Periodically inspect the socket for any signs of wear, damage, or deformation. Ensure the swivel mechanism operates smoothly and the magnetic core retains its strength. Replace the tool if any significant damage is observed.
fepetra arahana
| endri-javatra | antsipirihany |
|---|---|
| Marika | LEXIVON |
| Laharana modely | IG-121 |
| Haben'ny socket | 5/8 inch |
| Haben'ny fiara | 3/8 inch |
| Total Length | 6 santimetatra |
| Fitaovana fototra | Alloy Steel (Chrome Vanadium) |
| farany | Chrome Plated Mirror Finish |
| Endri-javatra manokana | 360° Swivel, Magnetic Core, Thin Wall Design, Knurled Grip |
| fanajana | Meets & Exceeds ANSI Standards |
| Lanja entana | 19g ny |
| Anisan'ny singa | 1 x 5/8" Swivel Magnetic Spark Plug Socket |
Warranty sy fanohanana
The LEXIVON 5/8" Swivel Magnetic Spark Plug Socket (LX-121) is backed by a Garantie voafetra mandritra ny androm-piainana. This warranty covers defects in material and workmanship under normal use. For warranty claims or technical support, please contact LEXIVON customer service directly. Keep your purchase receipt as proof of purchase.
