Walfront A4 LED Tracing Light Pad Instruction Manual

Sava lalana

This manual provides essential information for the safe and effective use of your Walfront A4 LED Tracing Light Pad. Please read these instructions carefully before operation and retain them for future reference.

Image: The Walfront A4 LED Tracing Light Pad displayed on a desk, ready for use with various art supplies.

Information momba ny fiarovana

• Aza atao rano na hamandoana be loatra ny fitaovana.
• Fadio ny milatsaka na mametraka ilay fitaovana amin'ny fiantraikany mahery vaika.
• Use only the provided USB cable for power.
• Aza manandrana manongotra na manamboatra ilay fitaovana. Mifandraisa amin'ny fanohanan'ny mpanjifa raha misy olana.
• Arovy amin'ny ankizy.

Fonosana fonosana

Hamarino fa misy ny entana rehetra ao anaty fonosana:

• 1 x Walfront A4 LED Tracing Light Pad
• 1 x Micro USB Cable

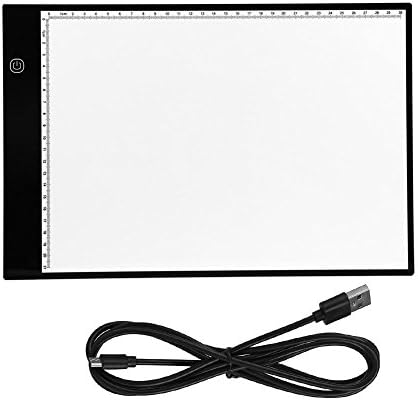

Image: The Walfront A4 LED Tracing Light Pad and its accompanying Micro USB cable.

Vita ny vokatraview

The Walfront A4 LED Tracing Light Pad is a portable and versatile tool designed for artists, animators, and hobbyists. It features a slim design, adjustable brightness, and eye-protected LED lighting.

Lafin-javatra fototra:

• Famolavolana faran'izay manify: With a thickness of only 0.2 inches (5mm) and a weight of 1.5 pounds (685g), it is highly portable.
• A4 Size with Scale: Standard A4 paper size with integrated measurement scales for convenience.
• USB Powered: Easily powered via any USB port (computer, power bank, wall adapter).
• Famirapiratana azo ahitsy: 3-level adjustable brightness with a simple touch control.
• Eye-Protected LED: Designed to provide stable, uniform light, reducing eye strain during extended use.
• Fanjifana herinaratra ambany: Operates at 5V with 2.2W power consumption, emitting minimal heat.

Image: Visual representation of the light pad's features, including eyesight protection, ultra-thin profile, low power consumption, and touch control.

Hametraka

1. Vahao: Carefully remove the light pad and USB cable from its packaging.
2. Hery mampifandray: Insert the micro USB end of the cable into the light pad's micro USB port.
3. Loharano herinaratra: Connect the standard USB end of the cable to a compatible 5V USB power source, such as a computer, power bank, or a USB wall adapter.

Image: Illustration demonstrating the various USB power source options for the light pad, including laptops, computers, power banks, and wall chargers.

Torolàlana miasa

1. Herim-batana / maty: Once connected to a power source, touch the power button icon on the light pad to turn it on. Touch it again to turn it off.
2. Ahitsio ny famirapiratana: With the light pad on, touch and hold the power button icon to cycle through the three brightness levels (low, medium, high). Release your finger when the desired brightness is reached.
3. Fanaraha-maso: Place your original image or design on the light pad. Then, place a blank sheet of paper over the original. The illuminated surface will allow you to see through both layers, enabling easy tracing.

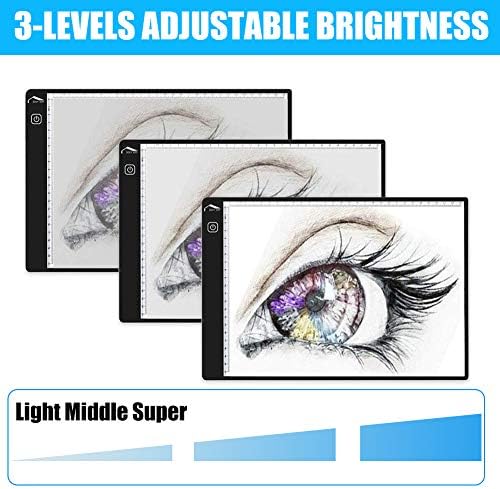

Image: Depiction of the three adjustable brightness levels (Light, Middle, Super) available on the tracing pad.

Image: Step-by-step visual guide on how to layer paper for tracing, illustrating its application in various creative fields.

fikarakarana

• Fanadiovana: Use a soft, dry cloth to wipe the surface of the light pad. For stubborn marks, slightly dampen ny lamba misy rano. Halaviro ny mpanadio na solvents.
• fitahirizana: Store the light pad in a dry, dust-free environment when not in use. Avoid placing heavy objects on it.
• Cable Care: Handle the USB cable gently. Do not bend or crimp it excessively.

Fanamboarana

fepetra arahana

Warranty sy fanohanana

For warranty information or technical support, please contact Walfront customer service through the retailer where the product was purchased or visit the official Walfront store page on Amazon: Fivarotana Walfront.

Please have your product model number (A4 LED Tracing Light Pad) and ASIN (B07G25WT4T) ready when contacting support.
