HAFELE 350mm Full Extension Soft Close Drawer Slides Instruction Manual

Vita ny vokatraview

These HAFELE 350mm full extension drawer slides are designed for side mounting, offering 100% full extension for complete access to drawer contents. They feature a soft-closing mechanism and a robust ball bearing system, ensuring smooth operation and high lateral stability. Constructed from durable steel with a corrosion-resistant finish, these slides are built for longevity and can support a load capacity of up to 35 kg per pair.

• Fanitarana feno: Provides complete access to the drawer interior.
• Fanakatonana malefaka: Integrated mechanism ensures quiet and gentle drawer closure.
• Fahaizana enta-mavesatra: Supports up to 35 kg (77 lbs) per pair.
• Fanorenana maharitra: Made from steel with a corrosion-resistant finish.
• Release Lever: Allows for easy drawer removal and re-installation.

Image: A single HAFELE 350mm full extension drawer slide, showcasing its robust construction and design.

Sary: akaiky view of the HAFELE drawer slide, highlighting the brand logo and the precision ball bearings that ensure smooth movement.

Fametrahana sy fametrahana

Proper installation is crucial for the optimal performance of your HAFELE drawer slides. Follow these steps carefully:

1. Prepare the Cabinet and Drawer: Ensure the cabinet opening and drawer box dimensions are accurate. The required gap between the drawer and the side panel is 12.7 mm (product thickness). For optimal performance, allow an additional +0.2 mm to +0.5 mm on the nominal slide thickness for the slide space.
2. Mount Cabinet Member: Attach the outer slide member (cabinet member) to the inside of the cabinet side panel using the provided screws. Ensure the slide is perfectly level and parallel to the cabinet bottom. Use the 32 mm hole pattern for screw mounting.
3. Mount Drawer Member: Attach the inner slide member (drawer member) to the outside of the drawer box. Align it correctly with the cabinet member.
4. Ampidiro drawer: Carefully align the drawer member with the cabinet member and push the drawer into the cabinet until it engages with the slides. The soft-closing mechanism will guide it into the final closed position.
5. Fitsapana asa: Open and close the drawer several times to ensure smooth movement and proper soft-closing function. Adjust if necessary.

Hevitra manan-danja:

• Small deviations in parallel mounting can result in stiff or uneven drawer movement.
• The load capacity of 35 kg is for a pair of 450mm slides installed 450mm apart. For larger drawers or specific applications, a test installation is recommended.

Image: A dimensional diagram illustrating the minimum carcase depth, installed length, full extension length, and installed gap for the 350mm drawer slides.

Image: A visual guide detailing the assembly steps for installing the drawer slides into a cabinet and attaching them to the drawer box.

Torolàlana miasa

These drawer slides are designed for simple and reliable operation:

• fanokafana ny drawer: Pull the drawer handle to open. The full extension design allows the drawer to extend completely, providing full access to its contents.
• Fanakatonana ny vata (closing the drawer): Push the drawer gently towards the cabinet. The integrated soft-closing mechanism will engage, slowly and quietly pulling the drawer to a fully closed position. The Stop Control feature ensures the drawer remains securely closed.
• Esory ny Drawer: To remove the drawer, locate the release levers on both sides of the drawer slides. Simultaneously press or lift these levers (depending on the specific design, refer to the image) and pull the drawer out completely. This allows for easy cleaning or access to the cabinet interior.
• Re-installing the Drawer: Align the drawer members with the cabinet members and push the drawer back into place until the release levers click, securing the drawer.

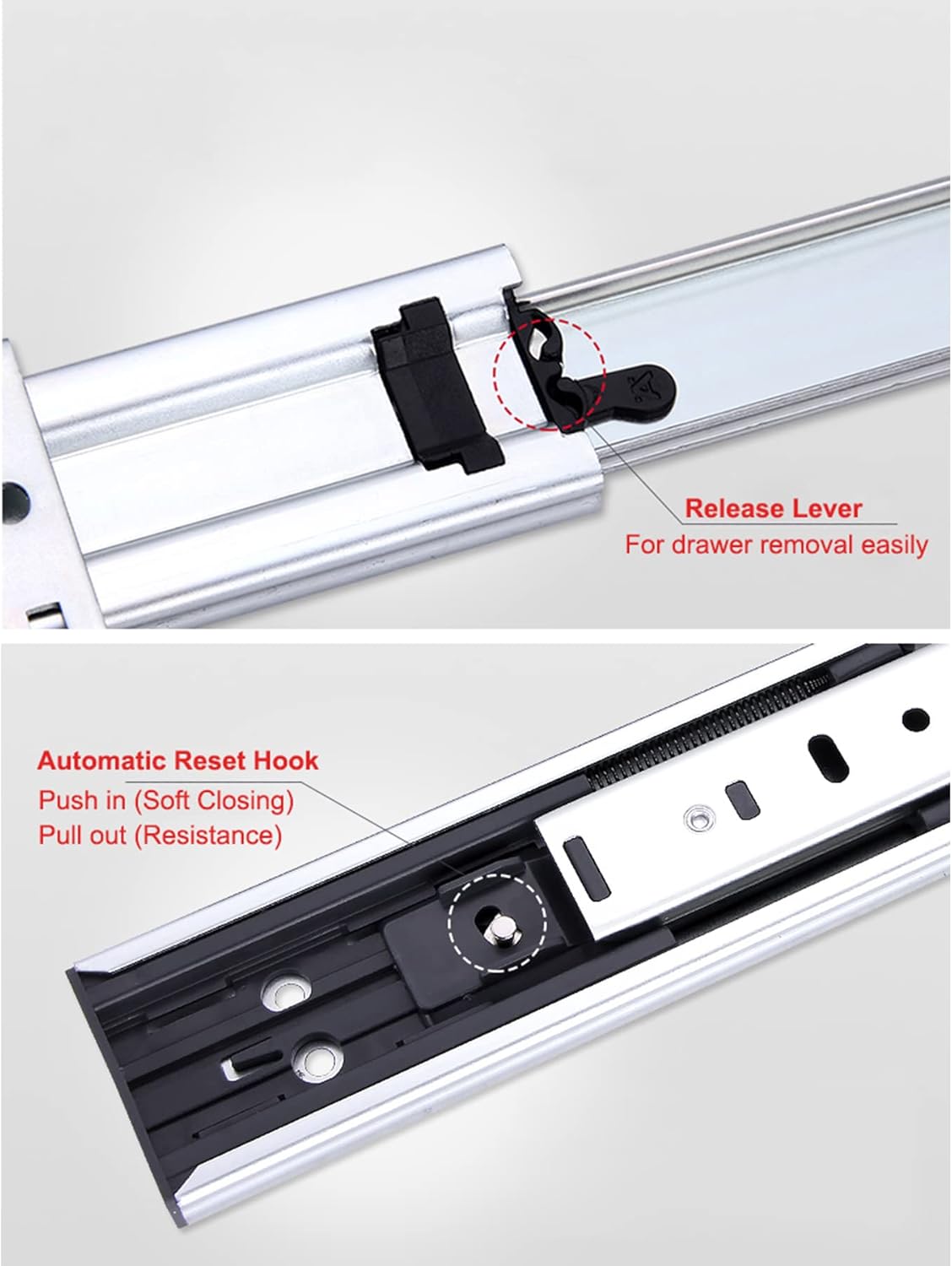

Image: A close-up of the release lever mechanism on the drawer slide, used for easy removal of the drawer.

Sary: A antsipirihany view of the automatic reset hook and the soft closing mechanism, which ensures smooth and controlled drawer closure.

fikarakarana

The HAFELE drawer slides are designed for low maintenance. Follow these guidelines to ensure their longevity:

• Fanadiovana: Periodically wipe the slides with a clean, dry cloth to remove dust and debris. Avoid using abrasive cleaners or solvents that could damage the finish or lubrication.
• fanosorana: The ball bearings are pre-lubricated and generally do not require additional lubrication under normal use. If movement becomes stiff over time, a small amount of silicone-based lubricant can be applied to the ball bearings, but avoid over-lubricating.
• Fanaraha-maso: Regularly inspect the slides for any signs of wear, damage, or loose screws. Tighten any loose screws immediately.
• Aza be loatra ny entana: Do not exceed the maximum load capacity of 35 kg per pair, as this can cause premature wear and damage to the slides.

Fanamboarana

If you encounter issues with your drawer slides, refer to the following troubleshooting tips:

• Drawer is Stiff or Difficult to Open/Close:
  • Check for obstructions: Ensure no debris (e.g., dust, small objects) is caught in the slide mechanism.
  • Verify parallel installation: Small deviations in the parallel alignment of the slides can cause stiffness. Re-check the installation and adjust if necessary.
  • Check for overloading: Ensure the drawer's weight does not exceed the 35 kg capacity.
• Drawer Does Not Close Completely or Soft Close Not Engaging:
  • Inspect the soft-closing mechanism: Look for any visible damage or obstructions preventing the mechanism from engaging fully.
  • Ensure proper alignment: Misalignment can prevent the soft-close from functioning correctly.
• Drawer Wobbles or Has Excessive Play:
  • Tighten mounting screws: Check all screws securing the slides to both the cabinet and the drawer. Tighten any that are loose.
  • Verify drawer construction: Ensure the drawer box itself is sturdy and not flexing.

fepetra arahana

Image: A visual representation of the drawer slide with key measurements, including height, width, and thickness, for precise installation planning.

Warranty Information

Specific warranty details for this product are not provided in the available information. Please refer to the manufacturer's official website or contact their customer service for current warranty terms and conditions.

Fanohanana ny mpanjifa

For further assistance, technical support, or inquiries regarding your HAFELE drawer slides, please contact HAFELE customer service directly. Contact information can typically be found on the official HAFELE webtoerana na fonosana vokatra.
