1. Fampidirana
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Elk Home Delphine 14-Light Chandelier. This modern/contemporary style chandelier features a satin brass finish and is designed for indoor use only. Please read all instructions carefully before beginning installation.
2. Information momba ny fiarovana
FAMPITANDREMANA: Mety hisy fahatapahan'ny herinaratra. Esory ny herinaratra eo amin'ny boaty fius na ny "circuit breaker" alohan'ny hametrahana na hanamboarana azy.
- Ny fifandraisana elektrika rehetra dia tsy maintsy mifanaraka amin'ny fehezan-dalàna eo an-toerana, ny didim-panjakana, na ny Fehezan-dalàna Nasionaly momba ny Herinaratra (NEC).
- Miresaha amin'ny elektrisianina mahafeno fepetra raha tsy azonao antoka ny fizotran'ny fametrahana.
- This fixture is intended for indoor use only. Do not expose to moisture.
- Ampiasao ihany ny karazana takamoa voatondro sy wattage to avoid fire or electrical hazard.
- Ity vokatra ity dia mety misy akora simika fantatra any amin'ny Fanjakan'i Kalifornia mahatonga ny homamiadana sy ny fahaterahana amin'ny fahaterahana na ny fahasimbana amin'ny fananahana. Sasao tanana rehefa avy nikarakara.
3. Ny votoatin'ny fonosana
Hamarino tsara fa eo daholo ny singa rehetra alohan'ny hanariana ny fonosana.
- Chandelier Body (1)
- Mounting Hardware Kit (1) - Includes mounting plate, screws, wire nuts, chain, and canopy.
Fanamarihana: Fourteen (14) A19 medium base (E26) bulbs, up to 60 watts each, are required and are NOT included with this fixture.
4. Fametrahana sy fametrahana
Professional installation is recommended for this hardwired, ceiling-mounted fixture.
- Miomana amin'ny fametrahana:
- Turn off electrical power at the main fuse box or circuit breaker.
- Clear the work area and ensure you have all necessary tools (screwdriver, wire strippers, ladder, etc.).
- Attach Mounting Plate:
- Secure the mounting plate to the junction box in the ceiling using the provided screws. Ensure it is firmly attached.
Image: The ceiling canopy and downrod, illustrating the components for ceiling mounting.
- Ahitsio ny halavan'ny rojo:
- Determine the desired hanging height for the chandelier. Adjust the chain length by removing links as needed.
- Feed the electrical wires through the chain and canopy.
- Manaova fifandraisana elektrika:
- Ampifandraiso amin'ny tariby miraikitra amin'ny tany ny tariby miraikitra amin'ny tany (matetika varahina mibaribary na maitso) an'ny fitaovana.
- Ampifandraiso amin'ny tariby mafana an-trano (mainty) ny tariby mafana an'ny fitaovana (matetika mainty).
- Ampifandraiso amin'ny tariby tsy miandany (fotsy) an'ny jiro (matetika fotsy) ny tariby tsy miandany an'ny jiro.
- Ampifandraiso amin'ny voanjo tariby ny fifandraisana rehetra ary fonosy amin'ny kasety elektrika mba ho azo antoka kokoa.
- Lakandrano azo antoka:
- Atsofohy amim-pitandremana ireo tariby ao amin'ny boaty junction.
- Raise the canopy to the ceiling and secure it to the mounting plate with the provided screws.
- Mametraka takamoa:
- Screw fourteen (14) A19 medium base (E26) bulbs into the sockets. Do not exceed 60 watts per bulb. LED bulb compatible.

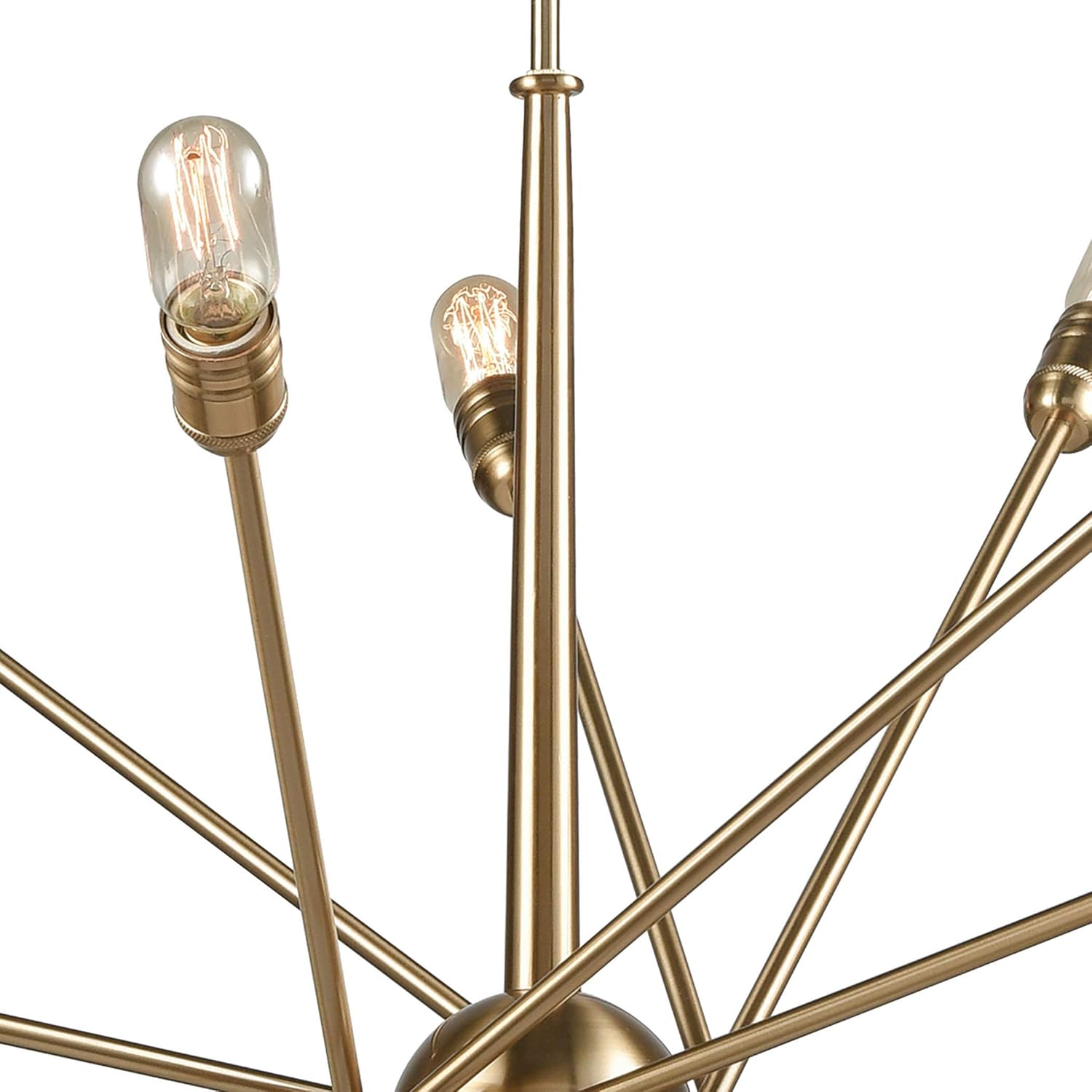

Image: A close-up of the chandelier's bulb sockets, showing where bulbs are to be installed.

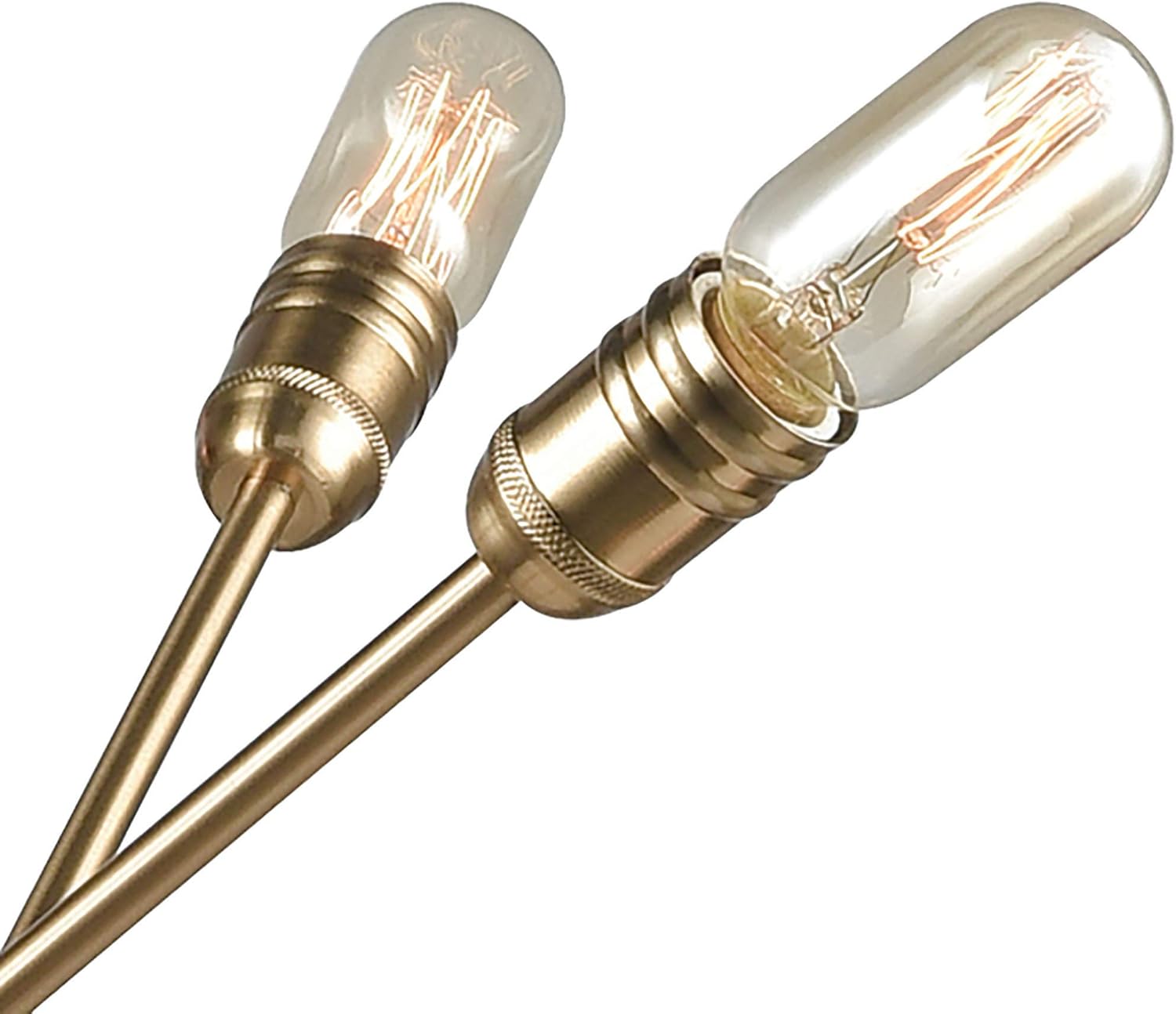

Sary: A antsipirihany view of the bulb sockets and arms, highlighting the satin brass finish.
- Ampodio hery:
- Turn the electrical power back on at the main fuse box or circuit breaker.
Image: The central sphere and radiating arms of the chandelier, demonstrating its structural design.
5. Torolàlana miasa
The Elk Home Delphine Chandelier is operated via a standard wall switch. It is designed to be dimmable, allowing you to adjust the light output when connected to a compatible dimmer switch (sold separately) and using dimmable bulbs.
6. Fikojakojana
- Fanadiovana: To clean the fixture, ensure power is off. Wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents as they may damage the finish.
- Fanoloana takamoa: Always turn off power before replacing bulbs. Allow bulbs to cool completely before touching. Replace with A19 medium base (E26) bulbs, not exceeding 60 watts.
7. Famahana olana
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tsy mirehitra ny jiro | No power to fixture; Faulty bulb; Loose wiring connection; Defective switch | Check circuit breaker/fuse; Replace bulb; Verify all wire connections are secure; Test or replace switch. |
| Jiro mitsilopilopy | Loose bulb; Incompatible dimmer switch; Loose wiring connection | Tighten bulbs; Ensure dimmer switch is compatible with LED/incandescent bulbs; Check wiring connections. |
| One or more sockets not working | Defective socket; Wiring issue within the fixture | Ensure bulb is correctly seated. If issue persists, contact a qualified electrician or Elk Home customer support. |
If you experience persistent issues not covered here, please consult a qualified electrician.
8. Famaritana
- Modely: 46242/14
- refy: 38" L x 38" W x 21" H
- Lanja: Tokony ho 10 lbs
- Fitaovana: Metal
- vita: Satin Brass
- Karazana takamoa: 14 x A19 Medium Base (E26)
- Max Wattage: 60 Watts per bulb (800 Lumens total)
- BOKYtage: 120 Volts
- Loharano herinaratra: AC/DC, Hardwired
- Karazana fametrahana: Ceiling Mount, Chain Hung (suitable for sloped ceilings)
- Endri-javatra manokana: Dimmable, LED bulb compatible, Open framework design, Adjustable Height
- Fampiasana anatiny/ ivelany: Fampiasana anatiny ihany
- Ilaina ny fivoriambe: ENY
9. Warranty sy fanohanana
This Elk Home Delphine Chandelier comes with a Garantie mpanamboatra 1 taona voafetra manomboka amin'ny datin'ny fividianana. Ity fiantohana ity dia manarona ny lesoka amin'ny fitaovana sy ny asa amin'ny fampiasana mahazatra.
For warranty claims, technical support, or replacement parts, please contact your retailer or Elk Home customer service directly. Please have your model number (46242/14) and proof of purchase available.
