Whirlpool Magicook 20BC 20 L Convection Microwave Oven

1. Fampidirana

Thank you for choosing the Whirlpool Magicook 20BC 20 L Convection Microwave Oven. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before using the oven and keep it for future reference.

2. Torolàlana manan-danja momba ny fiarovana

Rehefa mampiasa fitaovana elektrika dia tokony harahina ny fepetra fiarovana fototra, anisan'izany ireto manaraka ireto:

• Vakio ny toromarika rehetra alohan'ny hampiasana ny fitaovana.
• Do not operate the oven if the cord or plug is damaged, if it is not working properly, or if it has been damaged or dropped.
• Aza manafana ranon-javatra na sakafo hafa ao anaty fitoeran-javatra voaisy tombo-kase fa mety hipoaka.
• Mampiasà fitaovana mety amin'ny lafaoro microwave ihany.
• Aza mampiasa akora simika na etona manimba amin'ity fitaovana ity.
• Ilaina ny fanaraha-maso akaiky rehefa ampiasain'ny ankizy na eo akaikin'ilay fitaovana.
• Do not use this appliance for commercial purposes. It is intended for household use only.
• Hamarino tsara ny rivotra manodidina ny lafaoro.
• Always ensure the turntable is correctly positioned before operation.

3. Vokatra mihoatraview

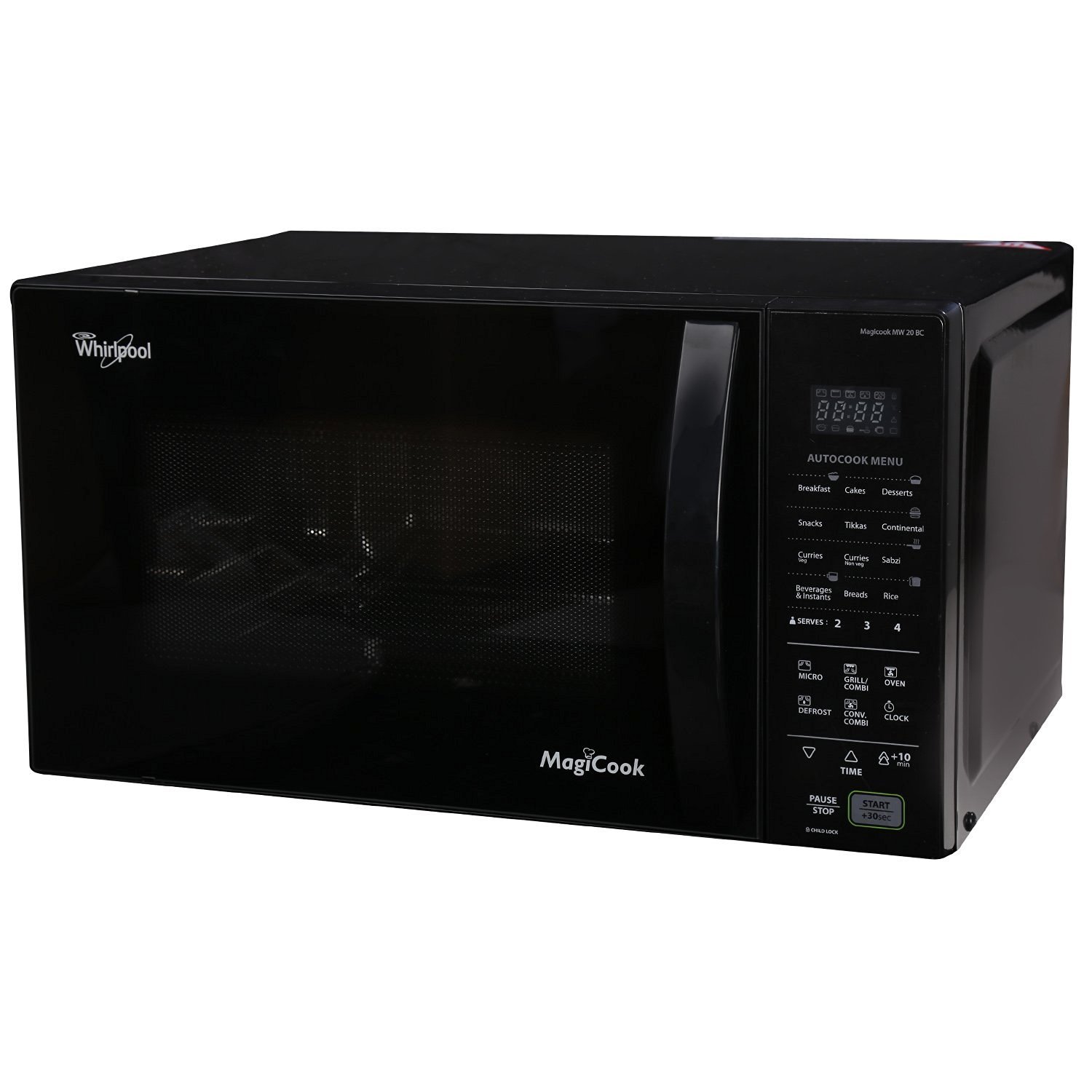

The Whirlpool Magicook 20BC is a versatile 20-liter convection microwave oven designed for a family of 3-4 people. It features a feather touch control panel for easy operation and a 24.5 cm recessed turntable.

Lafin-javatra fototra:

• Fahaizana 20 litatra: Ideal for small to medium-sized families.
• 118 Auto Cook Menus: A wide variety of pre-programmed settings for different dishes.
• 10 ambaratonga hery: Offers precise control over cooking intensity.
• Combi Mode: Combines microwave, grill, and convection for efficient cooking.
• Convection fomba: Allows for baking and roasting.
• Fomba fanelanelanana: Ho an'ny fanendasana sy fanendasana sakafo.
• Function defrost: Manually defrosts food by weight.
• Feather Touch Panel: Easy-to-use and clean control interface.
• Manomboka mandeha ho azy: Simplifies cooking by setting mode and time.

singa:

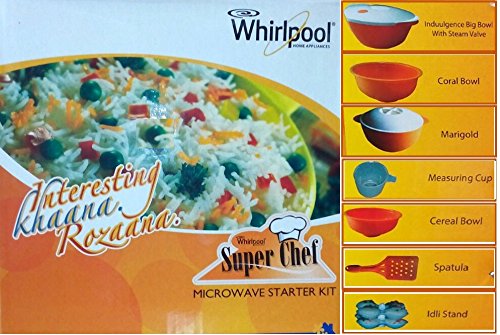

Included Components (Starter Kit):

Your microwave oven comes with a starter kit to enhance your cooking experience. The kit typically includes:

• 1 Cooking Bowl
• 1 Coral Bowl
• 1 Marigold Bowl
• 1 Kaopy fandrefesana
• 1 Cereal Bowl
• 1 Spatula
• 1 Idli Stand

4. Fametrahana sy fametrahana

Proper installation is crucial for the safe and efficient operation of your microwave oven.

Famoahana:

• Esory ny entana rehetra ao anaty lafaoro sy ivelan'ny lafaoro.
• Jereo raha misy fahasimbana ao amin'ny lafaoro, toy ny dona na varavarana tsy milamina. Aza ampiasaina raha simba.
• Ensure all accessories, including the turntable and roller ring, are present.

Fametrahana:

• Apetraho eo amin'ny tany fisaka sy miorina mafy tsara ny lafaoro mba hitazonana ny lanjany.
• Ensure adequate ventilation: leave at least 10 cm of space at the back, 20 cm at the sides, and 30 cm above the oven.
• Arovy ny lafaoro amin'ny loharano mafana sy sahan'andriamby matanjaka.
• Aza sakanana ny rivotra.

Fifandraisana elektrika:

• Plug the oven into a properly grounded electrical outlet.
• Aza mampiasa tady fanitarana na adaptatera.
• Ataovy azo antoka ny voltagMifanaraka amin'ny marika naoty eo amin'ny lafaoro ny e.

5. Torolàlana miasa

This section details how to use the various functions of your Whirlpool Magicook 20BC microwave oven.

Fanaraha-masoview:

The feather touch control panel allows for easy selection of cooking modes, time, and power levels. Refer to Figure 4 for a visual guide to the control panel buttons.

Fandrahoan-tsakafo fototra amin'ny alalan'ny lafaoro « micro-ondes »:

1. Apetraho ao anaty fitoeran-javatra azo antoka amin'ny microwave eo amin'ny latabatra fihodinana ny sakafo.
2. Akatona tsara ny varavaran'ny lafaoro.
3. Tsindrio ny madinika bokotra.
4. Ampiasao ny Time bokotra (+ or -) mba hametrahana ny fotoana mahandro sakafo.
5. mpanao gazety START/+30sec manomboka mahandro.
6. To adjust power levels, press the LEVEL HERY button (if available, or cycle through MICRO presses) and then use the Time buttons to select from 10 power levels.

Fandrahoan-tsakafo convection:

Use this mode for baking and roasting, similar to a conventional oven.

1. Place food on the appropriate rack (if provided) in the oven.
2. Tsindrio ny CONV/COMBI bokotra mandra- CONV mode no voafidy.
3. Mametraha ny mari-pana ilaina amin'ny fampiasana ny Time bokotra.
4. Mametraha fotoana mahandro amin'ny fampiasana ny Time bokotra.
5. mpanao gazety START/+30sec hanomboka.

Fandrahoan-tsakafo:

Ideal for browning and crisping food.

1. Apetraho eo amin'ny fitoeran-jiro ny sakafo.
2. Tsindrio ny GRILL/COMBI bokotra mandra- GRILL mode no voafidy.
3. Apetraho ny fotoana fandrahoana tiana amin'ny alalan'ny Time bokotra.
4. mpanao gazety START/+30sec hanomboka.

Combi Mode (Convection Combi, Grill Combi):

This mode combines different heating methods for faster and more even cooking.

1. Apetraho ao anaty lafaoro ny sakafo.
2. Tsindrio ny CONV/COMBI or GRILL/COMBI button to select the desired combi mode (e.g., C-1, C-2).
3. Mametraha fotoana mahandro amin'ny fampiasana ny Time bokotra.
4. mpanao gazety START/+30sec hanomboka.

Sakafo mahandro ho azy:

The oven features 118 pre-programmed auto cook menus for various dishes.

1. Refer to the auto cook menu chart (usually inside the oven door or in a separate guide) to find the appropriate menu number for your food.
2. Tsindrio ny MENU AUTO COOK button (or corresponding food category button).
3. Ampiasao ny Time buttons to select the menu number and/or food weight/servings.
4. mpanao gazety START/+30sec manomboka mahandro.

Function defrost:

This function allows you to defrost frozen food based on its weight.

1. Apetraho ao anaty fitoeran-jiro azo antoka ny sakafo mangatsiaka.
2. Tsindrio ny FARITRA bokotra.
3. Ampiasao ny Time buttons to input the weight of the food.
4. mpanao gazety START/+30sec hanombohana ny fandroahana.

Fameram-potoana:

The timer can be used independently or during cooking.

• Raha hametraka ny famantaranandro, tsindrio ny CLOCK bokotra ary ampiasao ny Time buttons to set the current time. Press CLOCK manamafy indray.
• To use as a kitchen timer, press the fameram-potoana button (if separate) or set time without selecting a cooking mode, then press START/+30sec.

6. Fikojakojana sy fanadiovana

Ny fanadiovana sy fikojakojana tsy tapaka dia hiantoka ny faharetana sy ny fahombiazan'ny lafaoro microwave anao.

Fanadiovana ankapobeny:

• Esory foana ny fatana alohan'ny hanadiovana.
• Diovy amin'ny doka ny atiny sy ivelanyamp lamba sy savony malefaka. Halaviro ny mpanadio abrasive.
• Raha misy sakafo miparitaka mafy dia asio rano ao anaty vilia iray misy silaka voasarimakirana ary andrahoy amin'ny lafaoro « micro-ondes » mandritra ny minitra vitsy mba hanesorana ny sisa tavela, dia fafao madio.
• Wash the turntable and roller ring in warm, soapy water. They are usually dishwasher safe.
• Clean the door seals and surrounding areas to ensure a proper seal.

Care for the Starter Kit:

• The bowls and other accessories in the starter kit are typically microwave-safe and can be washed with regular dish soap.
• Always check for specific care instructions provided with the kit.

7. Famahana olana

Raha sendra olana amin'ny lafaoro microwave-nao ianao dia jereo ireto olana sy vahaolana mahazatra ireto alohan'ny hifandraisana amin'ny serivisy.

If the problem persists after trying these solutions, please contact Whirlpool customer service.

8. Famaritana

9. Warranty sy fanohanana

Information momba ny fiantohana:

Your Whirlpool Magicook 20BC Convection Microwave Oven comes with a 2-year warranty on the magnetron manomboka amin'ny datin'ny fividianana. Azafady, tehirizo ny tapakila fividiananao ho porofon'ny fiantohana.

The warranty covers manufacturing defects in the magnetron. It does not cover damage caused by misuse, accident, unauthorized repair, or normal wear and tear.

Fanohanana ny mpanjifa:

For any service requests, technical assistance, or warranty claims, please contact Whirlpool customer service. You can find contact details on the official Whirlpool webtranonkala na ny karatra fisoratana anarana momba ny vokatrao.

When contacting support, please have your model number (Magicook 20BC) and purchase details ready.
