Vivitar 4-Device Jumbo Universal Remote Control User Manual

1. Fampidirana

Misaotra anao nividyasing the Vivitar 4-Device Jumbo Universal Remote Control. This remote is designed to simplify your home entertainment experience by controlling up to four different audio/video devices from a single unit. It is compatible with most major brands of televisions, Blu-Ray players, DVD players, VCRs, cable boxes, satellite receivers, and home theater systems. Please read this manual thoroughly to ensure proper setup and operation.

2. Fametrahana

2.1 Fametrahana bateria

The Vivitar Jumbo Universal Remote requires two (2) AAA batteries (not included).

1. Tadiavo eo an-damosin'ny fanaraha-maso lavitra ny fonon'ny efitrefitra bateria.
2. Tsindrio midina eo amin'ny tabilao ary esory ny fonony.
3. Insert two new AAA batteries, ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
4. Atsofohy amin'ny toerany ny fonon'ny efitry ny bateria mandra-pikitika tsara.

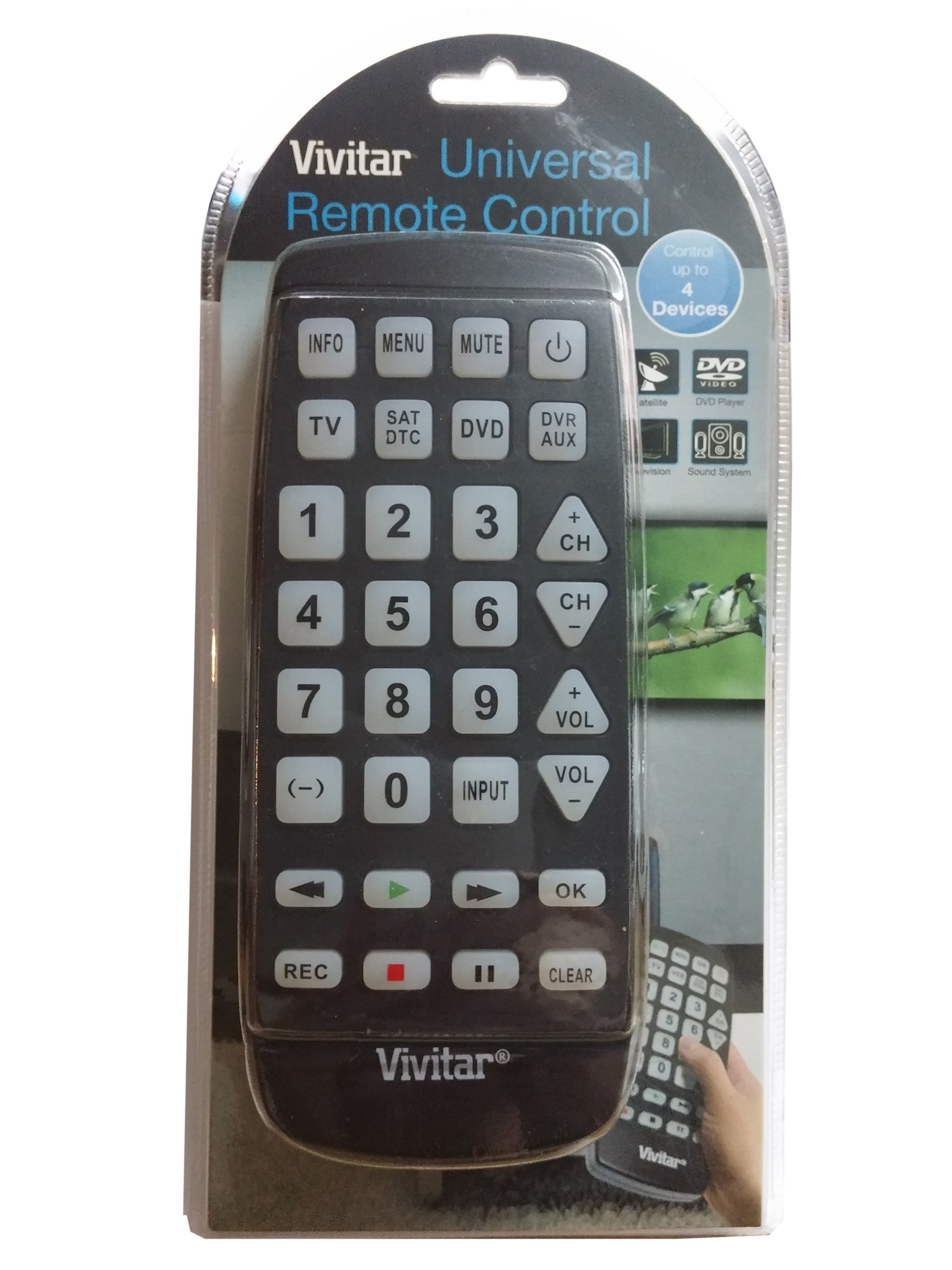

Sary: Front view of the Vivitar 4-Device Jumbo Universal Remote Control, showing its large buttons and ergonomic design. The battery compartment is located on the rear.

2.2 Programming Your Remote (Code Entry Method)

To program the remote for your specific device, you will need to enter a 3-digit code corresponding to your device's brand. A list of common codes is usually provided in a separate code booklet (not included in this digital manual).

1. Alefaso ny fitaovana tianao fehezina (oh: fahitalavitra, mpilalao DVD).
2. Tsindrio ary hazòny ny SET button on the remote until the red indicator light illuminates.
3. Nandritra ny fihazonana SET, press the desired device button (e.g., TV, DVD, CBL) once. The red indicator light will blink once and then remain lit.
4. Alefaso ny SET bokotra.
5. Enter the 3-digit code for your device brand using the number buttons. After entering the third digit, the red indicator light should turn off.
6. Andramo ny lavitra amin'ny fanindriana ny fahefana button. If the device turns off, the code was accepted. If not, repeat the process with the next code listed for your brand.

Fanamarihana: If your device does not respond after trying all codes for its brand, proceed to the Auto Code Search method.

2.3 Fikarohana kaody mandeha ho azy

If you cannot find a working code for your device, the remote can search for it automatically.

1. Alefaso ilay fitaovana tianao hifehezana.
2. Tsindrio ary hazòny ny SET tsindrio ny bokotra mandra-pirehitra ny jiro mena.
3. Nandritra ny fihazonana SET, press the desired device button (e.g., TV, DVD, CBL) once. The red indicator light will blink once and then remain lit.
4. Alefaso ny SET bokotra.
5. Atondroy amin'ilay fitaovana ny fanaraha-maso lavitra ary tsindrio imbetsaka ilay fahefana bokotra (na CH+ for TV/VCR, MILAY for DVD/VCR) slowly, pausing briefly after each press. The remote is sending different codes with each press.
6. As soon as your device turns off (or performs the desired function), immediately press the SET button once to save the code. The red indicator light will turn off.
7. Test the remote's functions (Volume, Channel, Playback) to ensure all controls work correctly. If not, repeat the auto code search.

3. Fampiasana ny fanaraha-maso lavitra anao

Once programmed, operating your Vivitar Jumbo Universal Remote is straightforward.

3.1 Fifantenana fitaovana

To control a specific device, press the corresponding device button at the top of the remote (TV, DVD, CBL, les). The remote will then send commands only to the selected device.

3.2 Asa fototra

• HERY: Mamelona na mamono ny fitaovana voafantina.
• VOL + / VOL-: Increases or decreases the volume of the selected device.
• CH+/CH-: Changes the channel up or down on the selected device.
• Mute: Mangina na manala ny feo.
• BOTOANA LARA (0-9): Used for direct channel entry or code programming.
• PLAY/PAUSE/STOP/REW/FF: Controls playback functions for DVD, Blu-Ray, or VCR devices.
• MENU: Miditra amin'ny menio an'ny fitaovana voafantina.
• Tari-dalana: Displays the program guide (for Cable/Satellite boxes).
• INPUT/SOURCE: Changes the input source on your TV.

4. Fikojakojana

4.1 Fanadiovana

Mba hanadiovana ny fanaraha-maso lavitra anao dia ampiasao lamba malefaka sy somaryamp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the remote's finish or internal components. Ensure no liquid enters the remote.

4.2 Fanoloana bateria

Replace batteries when the remote's performance degrades or the indicator light fails to illuminate. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries, or different types of batteries. Remove batteries if the remote will not be used for an extended period to prevent leakage.

4.3 Fitehirizana

Tehirizo ao amin'ny toerana mangatsiatsiaka sy maina lavitry ny tara-masoandro mivantana sy ny maripana tafahoatra ny remote.

5. Famahana olana

5.1 Remote Not Working

• Jereo ny bateria: Ensure batteries are inserted correctly with the correct polarity (+/-) and are not depleted. Replace with fresh AAA batteries if necessary.
• tsipika fahitana: Make sure there is a clear line of sight between the remote and the device you are trying to control. Obstructions can block the infrared signal.
• Fifantenana fitaovana: Confirm you have pressed the correct device button (TV, DVD, CBL, AUX) for the device you intend to control.

5.2 Device Not Responding to Commands

• Incorrect Code: The remote may be programmed with an incorrect code. Try reprogramming the remote using a different code from the code list for your device's brand, or use the Auto Code Search method.
• Fitaovana mifanentana: While this remote is universal, some older or very new devices may not be compatible.

5.3 Indicator Light Not Illuminating

• This usually indicates dead or incorrectly inserted batteries. Replace batteries and check polarity.

5.4 Resetting the Remote

If you encounter persistent issues, you can try resetting the remote to its factory default settings. Remove the batteries, wait for 30 seconds, then reinsert them. You will need to reprogram all your devices after a reset.

6. Famaritana

7. Warranty sy fanohanana

7.1 Garantie voafetra

Vivitar warrants this product against defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty does not cover damage caused by misuse, abuse, accident, unauthorized modification, or normal wear and tear. Proof of purchase is required for all warranty claims.

7.2 Fanohanana ny mpanjifa

For technical assistance, troubleshooting, or warranty inquiries, please contact Vivitar Customer Support. Refer to the Vivitar official website for the most current contact information, including phone numbers and email addresses.
