Westek In-Wall Programmable Digital Timer (Model ATW-T24) Instruction Manual

1. Fampidirana

This manual provides instructions for the installation, operation, and maintenance of the Westek In-Wall Programmable Digital Timer, Model ATW-T24. This device is designed to add automated programming functionality to various electrical devices such as lights, heaters, and fans. It features an LCD display for easy programming and a rechargeable battery backup to retain settings during power interruptions.

The timer supports up to 7 weekly programs and includes a random option for enhanced security.

2. Information momba ny fiarovana

FAMPITANDREMANA: To avoid fire, shock, or death; turn off power at the circuit breaker or fuse box and test that the power is off before wiring. All wiring should be performed by a qualified electrician or in accordance with local electrical codes. This device is for indoor use only. Do not exceed the specified electrical ratings.

• Tapaho foana ny herinaratra alohan'ny fametrahana na serivisy.
• Ataovy azo antoka fa voaaro tsara ny fifandraisana rehetra.
• Aza ampiasaina amin'ny mando na damp toerana.
• Arovy amin'ny ankizy.

3. Ny votoatin'ny fonosana

The package for the Westek In-Wall Programmable Digital Timer (Model ATW-T24) includes:

• One (1) Westek In-Wall Programmable Digital Timer, 120 V, 1 HP
• One (1) Lithium Ion battery (pre-installed)

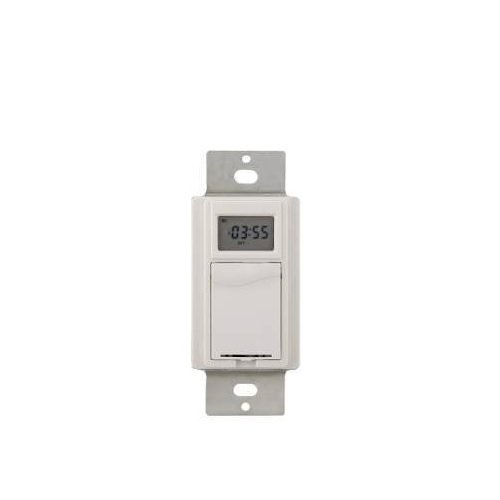

Sary 1: Eo anoloana view of the Westek In-Wall Programmable Digital Timer. The timer features a white faceplate with a digital display and control buttons.

4. Fametrahana

Installation of this in-wall timer requires electrical wiring knowledge. If you are unsure about any part of the installation process, consult a qualified electrician.

1. Vonoy ny hery: Locate the circuit breaker or fuse that supplies power to the switch box where the timer will be installed. Turn off the power completely. Verify power is off using a voltage tester.
2. Esory ny Switch efa misy: Esory tsara ny takelaka rindrina ary esory amin'ny boaty rindrina ny switch efa misy. Esory amin'ny switch taloha ny tariby.
3. Ampifandraiso amin'ny tariby ny Timer: Connect the wires to the Westek timer according to the wiring diagram provided with the product packaging. Typically, this involves connecting line (hot), load, and ground wires. Ensure all connections are tight and secure.
4. Mametraka ny Timer: Gently push the wired timer into the wall box. Secure it with the provided screws.
5. Mametraka takelaka rindrina: Attach the new or existing wall plate over the timer.
6. Ampodio hery: Avereno indray ny herinaratra eo amin'ny fiatoan'ny faritra na ny boaty fuse.

Image 2: The Westek In-Wall Programmable Digital Timer shown with its internal components and wiring connections. This image illustrates the back of the timer where electrical connections are made.

5. Torolàlana miasa

The Westek In-Wall Programmable Digital Timer allows for flexible scheduling of connected devices. The LCD display and control buttons facilitate programming.

5.1 Fametrahana voalohany sy fametrahana fotoana

1. Upon initial power-up or after a prolonged power outage, the display may show a default time or require setting.
2. Use the designated buttons (e.g., "SET," "HOUR," "MINUTE," "DAY") to adjust the current time and day of the week. Refer to the specific button labels on your device for precise controls.
3. Confirm the settings to save the current time.

5.2 Programming On/Off Cycles

The timer supports up to 7 custom weekly programs.

1. Press the "PROG" or "PROGRAM" button to enter programming mode.
2. The display will typically show "PROG 1 ON" or similar. Use the "HOUR," "MINUTE," and "DAY" buttons to set the desired ON time and days for the first program.
3. Press "PROG" again to set the "PROG 1 OFF" time and days.
4. Repeat for up to 7 programs as needed.
5. Exit programming mode by pressing a dedicated "RUN" or "CLOCK" button, or by allowing the timer to time out.

5.3 Random Option

To deter intruders, the timer includes a random ON/OFF feature. When activated, the timer will randomly vary the programmed ON/OFF times by a small interval (e.g., +/- 30 minutes) to simulate occupancy.

• Locate the "RANDOM" or "RND" button.
• Press it to activate or deactivate the random function. An indicator on the LCD may confirm its status.

5.4 Famerenana amin'ny tanana

Most digital timers allow for a temporary manual override of the current program without erasing azy.

• Press the "MANUAL" or "ON/OFF" button to toggle the connected device on or off, overriding the current program until the next programmed event.

5.5 Famerenana bateria

The integrated rechargeable Lithium Ion battery maintains the time and programmed settings during power outages. The battery recharges automatically when main power is restored.

6. Fikojakojana

The Westek In-Wall Programmable Digital Timer requires minimal maintenance.

• Fanadiovana: To clean the timer, wipe the surface with a soft, dry cloth. Do not use abrasive cleaners, solvents, or spray directly onto the unit.
• Batterie: The internal rechargeable battery is designed for long-term use and typically does not require replacement. If the timer consistently loses settings during power outages, the battery may need servicing by a qualified technician.

7. Famahana olana

8. Famaritana

• marika: Westek
• Laharana modely: Sary ATW-T24
• Laharan'ny ampahany: TMDW30CC
• BOKYtage: 120 V
• Horsepower (HP): 1 HP
• Fitaovana: plastika
• loko: White
• Lanja entana: 5.9 oz
• Haben'ny vokatra: 1.25 x 1.75 x 3 santimetatra
• Batterie: 1 Lithium Ion bateria (tafiditra)
• Safidy fomba: Toggle
• UPC: 700814916251, 889932723870, 070686506066, 696746170994
• Misy voalohany: 26 Jolay 2005

9. Warranty sy fanohanana

Warranty Description: The manufacturer states "Not applicable" for warranty information. Please refer to your retailer's return policy for details on returns or exchanges.

For technical assistance or further inquiries, please contact Westek customer support through their official webtoerana na ny mpivarotra nividianana ny vokatra.
