Boky Torolalana ho an'ny Jiro Elk Home Xenia 6-Jiro

Sava lalana

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Elk Home Xenia 6-Light Chandelier. Please read all instructions carefully before beginning installation and retain this manual for future reference. Proper installation is crucial for safety and optimal performance.

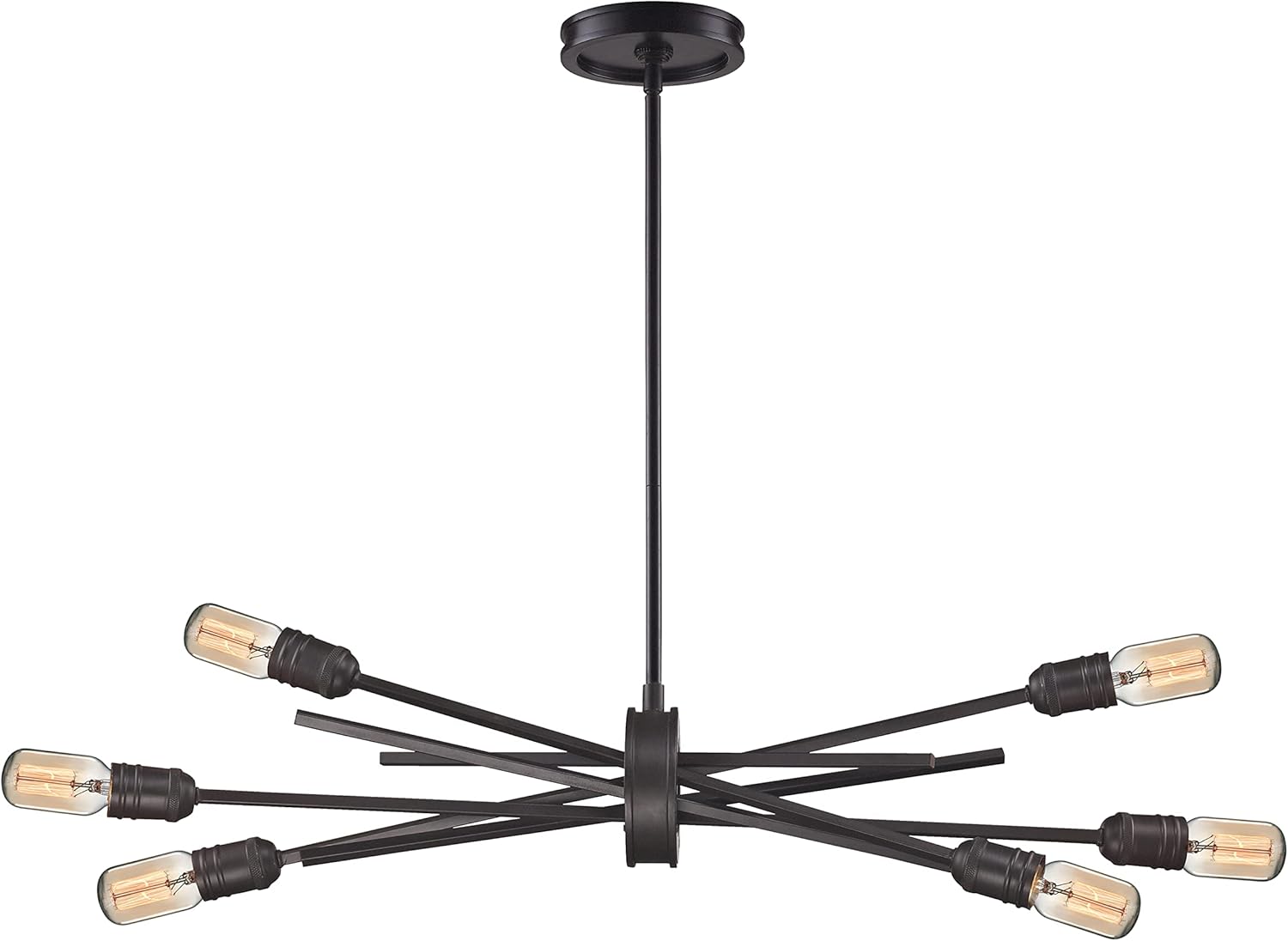

Image: The Elk Home Xenia 6-Light Chandelier, featuring a central connection with six adjustable arms extending outwards, each terminating in an exposed bulb socket. The fixture has an oil rubbed bronze finish.

Information momba ny fiarovana

FAMPITANDREMANA: Mety hisy fahatapahan'ny herinaratra. Esory ny herinaratra eo amin'ny boaty fius na ny "circuit breaker" alohan'ny hametrahana na hanamboarana azy.

• Tsy maintsy mifanaraka amin'ny fehezan-dalàna eo an-toerana, ny didim-pitondrana, na ny Fehezan-dalàna Nasionaly momba ny Herinaratra (NEC) ny fifandraisana elektrika rehetra. Mifandraisa amin'ny elektrisianina mahafeno fepetra raha tsy mahazatra anao ny fifandraisana tariby elektrika sahaza.
• Mampiasà connecteur tariby voatanisa UL/cUL ihany.
• Ity fitaovana ity dia natao ho an'ny fampiasana anatiny ihany.
• Aza mihoatra ny wat ambony indrindratage voafaritra ho an'ny takamoa.
• Ensure the fixture is securely mounted to a structural ceiling component.

Fonosana fonosana

Hamarino tsara fa eo daholo ny singa rehetra alohan'ny hanariana ny fonosana.

• Chandelier Frame with Arms and Sockets
• Canopy/Mounting Plate
• Extension Rods (various lengths for adjustable height)
• Fitaovana fametrahana (visy, voanjo tariby, sns.)
• Boky torolalana

Note: Six (6) 60 Watt A19 bulbs with E26 Medium bases are required and are not included.

Fametrahana sy fametrahana

Soso-kevitra ny fametrahana azy amin'ny alalan'ny matihanina. Ataovy azo antoka fa tapaka ny herinaratra eo amin'ny "circuit breaker" alohan'ny hanohizana.

1. Omano ny toerana fametrahana: Turn off power at the main electrical panel. Remove the existing fixture and mounting bracket from the junction box.
2. Mametraka Plate: Secure the new mounting plate to the junction box using the provided screws. Ensure it is firmly attached to a structural ceiling element.
3. Assemble Extension Rods: Determine the desired hanging height for your chandelier. The fixture includes multiple extension rods (e.g., 6-inch, 12-inch, 24-inch) that can be combined to achieve the preferred length. Thread the chosen rods together and attach them to the fixture body and the canopy.
4. Adjust Chandelier Arms: The Xenia chandelier features adjustable arms. These can be positioned from a near parallel configuration to a more spread-out, loosely gathered look to suit your aesthetic preference. Carefully adjust each arm by hand.

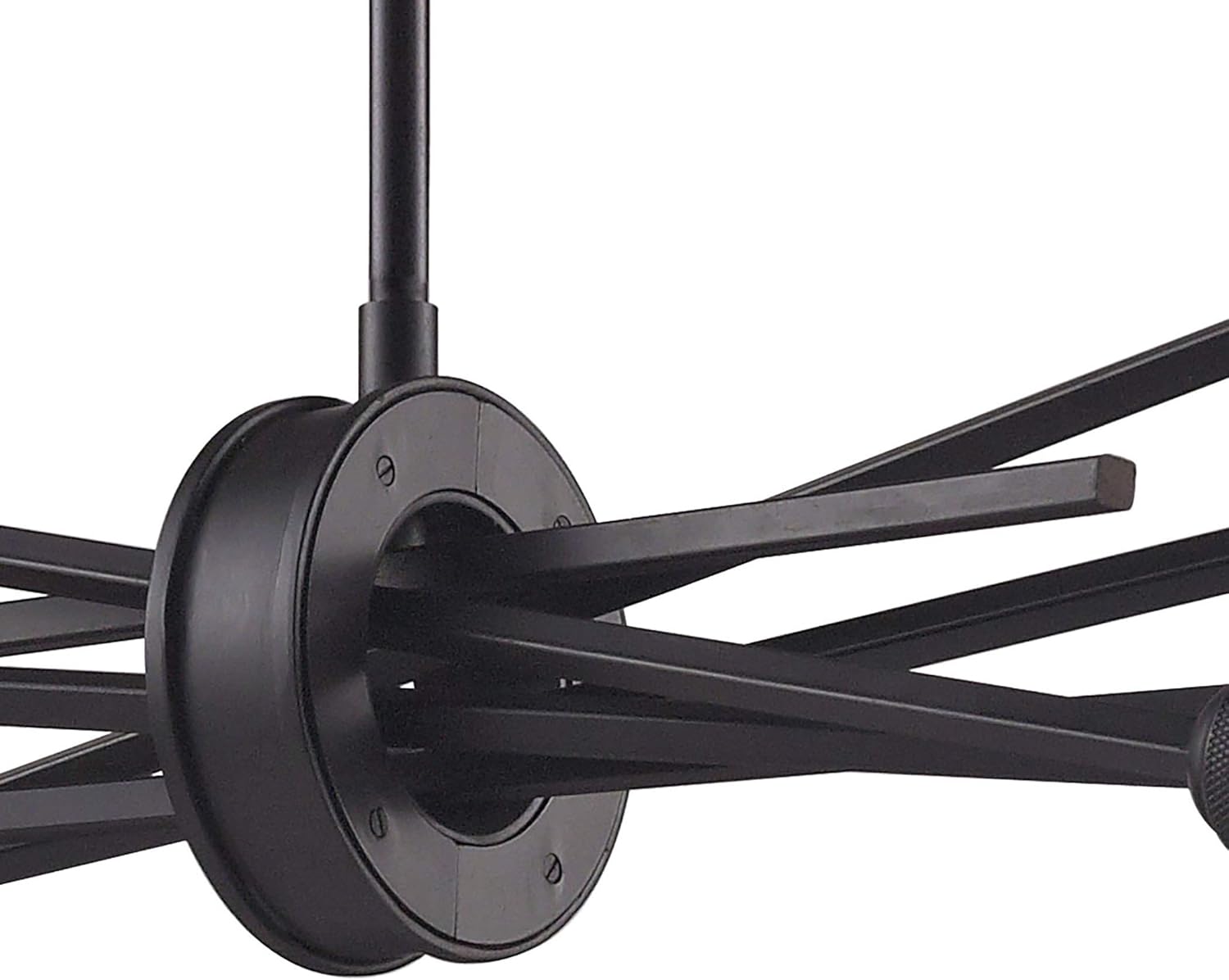

Sary: A antsipirihany view of the chandelier's central hub, showing how the metal arms intersect and can be adjusted. This image highlights the mechanism for arm positioning.
5. Wire fifandraisana: Carefully lift the fixture and make the electrical connections. Connect the fixture's black wire to the house's black (hot) wire, the fixture's white wire to the house's white (neutral) wire, and the fixture's ground wire to the house's ground wire (or green ground screw on the mounting plate). Secure connections with wire nuts.
6. Tendrombohitra Canopy (Mount Canopy): Tuck all wires into the junction box. Secure the canopy to the mounting plate using the provided screws or nuts, ensuring a snug fit against the ceiling. This fixture is compatible with sloped or vaulted ceilings.
7. Mametraka takamoa: Screw six (6) 60 Watt A19 bulbs (E26 Medium base) into the sockets. Do not overtighten.

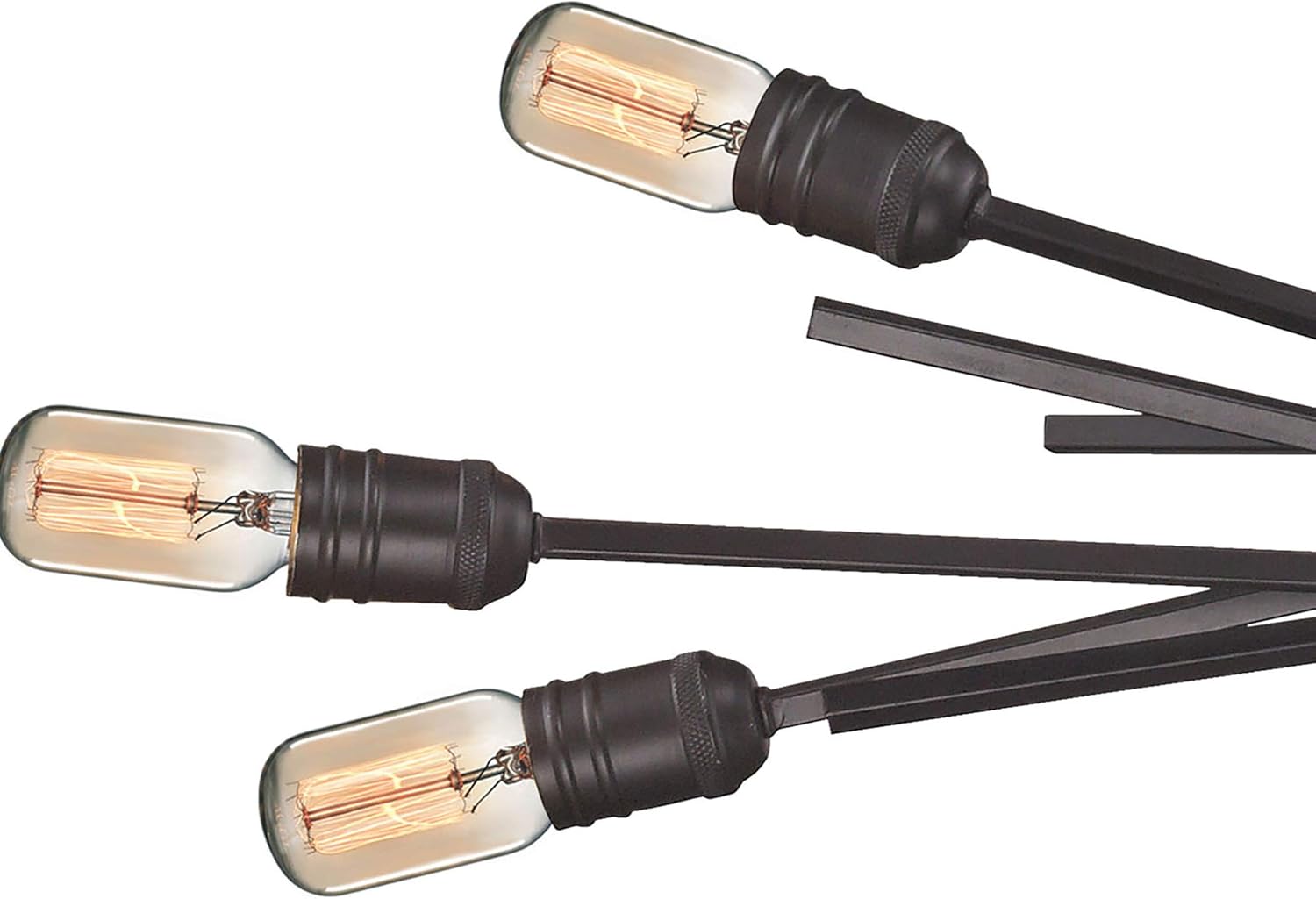

Image: A close-up of the chandelier's exposed bulb sockets, showing the E26 medium base. Edison-style bulbs are shown installed, demonstrating the fixture's aesthetic.

8. Ampodio hery: Once installation is complete, restore power at the circuit breaker and test the fixture.

Torolàlana miasa

The Elk Home Xenia Chandelier is operated via a standard wall switch. For dimming functionality, ensure you use dimmable bulbs and a compatible dimmer switch (both not included). This allows for adjustment of brightness and ambiance.

fikarakarana

To maintain the appearance and functionality of your chandelier, follow these guidelines:

• Fanadiovana: Tapaho ny herinaratra alohan'ny hanadiovana. Ampiasao malefaka, maina, na kely damp cloth to wipe the metal surfaces. Avoid abrasive cleaners, solvents, or polishes as they may damage the oil rubbed bronze finish.
• Fanoloana takamoa: Ensure power is off before replacing bulbs. Allow bulbs to cool completely before handling. Replace with six (6) 60 Watt A19 bulbs (E26 Medium base) or equivalent LED/CFL bulbs.
• Fanaraha-maso: Hamarino tsindraindray ny fifandraisana rehetra sy ny fitaovana fametrahana mba hahazoana antoka fa ho azo antoka izy ireo.

Fanamboarana

fepetra arahana

Warranty sy fanohanana

antoka: This Elk Home Xenia Chandelier comes with a 1-year manufacturer's warranty against defects.

Fanohanana ny mpanjifa: For technical assistance, missing parts, or warranty claims, please contact Elk Home customer service. Refer to the packaging or the official Elk Home webtranokala ho an'ny fampahalalana mifandraika amin'izao fotoana izao.

Azafady, jereo ny lalàna eo an-toerana alohan'ny hividiananaasing ity vokatra ity.
