Sava lalana
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Elk Home 66894/6 Laboratory 6-Light Chandelier. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Information momba ny fiarovana
FAMPITANDREMANA: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing. Consult a qualified electrician if you are unsure about the installation process.
- Ensure the electrical supply to the fixture is disconnected before installation, maintenance, or bulb replacement.
- All wiring connections must be in accordance with local and national electrical codes.
- Aza mihoatra ny wat ambony indrindratage voafaritra ho an'ny takamoa.
- Ity fitaovana ity dia natao ho an'ny fampiasana anatiny ihany.
- Tandremo tsara ireo singa fitaratra mba tsy ho vaky.
Fonosana fonosana
Hamarino fa misy ny singa rehetra alohan'ny hanombohan'ny fametrahana.
- Chandelier fixture body
- Glass shades (6 pieces)
- Fametrahana fitaovana fitaovana
- Boky torolalana

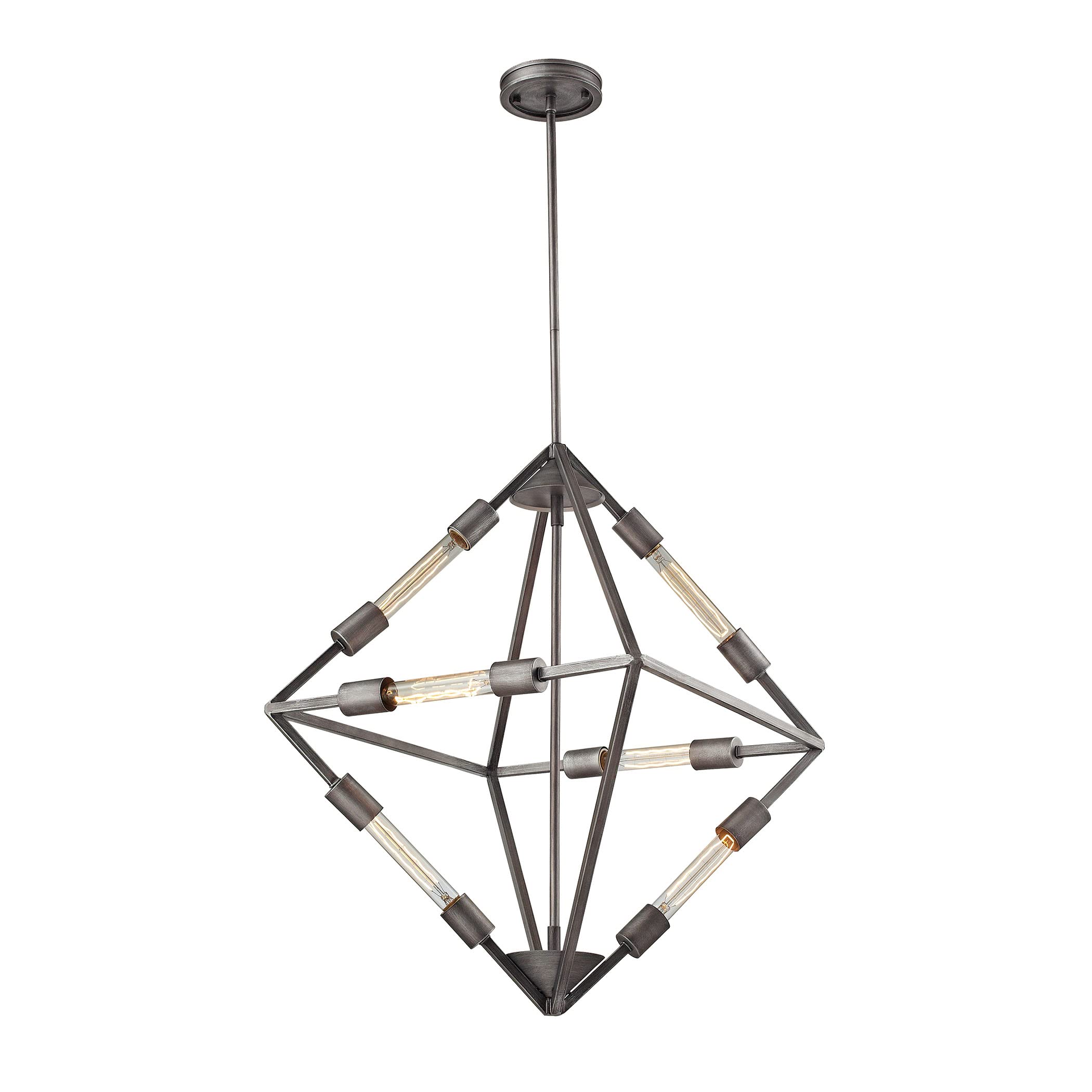

Image: The Elk Home 66894/6 Laboratory 6-Light Chandelier in Weathered Zinc finish, showcasing its six light sources and overall design.
Fametrahana sy fametrahana
- Miomana amin'ny fametrahana:
- Turn off the main power supply at the circuit breaker or fuse box.
- Ensure the mounting surface is structurally sound to support the weight of the fixture.
- Gather necessary tools: screwdriver, wire strippers, electrical tape, safety glasses.
- Mametraka ny Fixture:
- Ampifandraiso amin'ny boaty fampifandimbiasana ny bracket amin'ny fampiasana ireo visy nomena.
- Adjust the chain length to your desired hanging height. Secure the chain to the canopy and the fixture loop.
- Carefully lift the fixture and thread the wires through the center hole of the mounting bracket.
- Wiring fifandraisana:
- Connect the fixture's black wire to the house's black (live) wire using a wire connector.
- Connect the fixture's white wire to the house's white (neutral) wire using a wire connector.
- Connect the fixture's ground wire to the house's ground wire (bare copper or green) and to the mounting bracket's ground screw.
- Ataovy azo antoka fa mafy tsara ny fifandraisana rehetra ary asiana kasety elektrika raha ilaina.
- Fametrahana ny tafo:
- Tuck all wires neatly into the junction box.
- Push the canopy up against the ceiling, covering the junction box and mounting bracket.
- Secure the canopy with the provided screws or decorative nuts.
- Installing Bulbs and Shades:
- Screw in six E26 base bulbs (not included) into the sockets. Do not exceed 60 watts per bulb.
- Carefully attach the glass shades to each light socket according to the fixture design.
- Dingana farany:
- Avereno indray ny herinaratra ao amin'ny fiatoan'ny circuit na boaty fuse.
- Andramo ilay fitaovana mba hahazoana antoka fa miasa tsara izy.
Torolàlana miasa
The Elk Home 66894/6 Chandelier is a hardwired fixture operated by a standard wall switch (not included). Simply toggle the wall switch to turn the light fixture on or off. If a dimmer switch is installed, ensure it is compatible with the type of bulbs used.
fikarakarana
- Fanadiovana: Always disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish. Clean glass shades with a mild glass cleaner and a soft cloth.
- Fanoloana takamoa: Disconnect power before replacing bulbs. Allow bulbs to cool completely before touching. Replace with E26 base bulbs, not exceeding 60 watts per bulb.
Fanamboarana
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tsy mirehitra ny jiro. |
|
|
| Jiro mitsilopilopy. |
|
|
fepetra arahana
- Laharana modely: 66894/6
- refy: 20" L x 20" W x 28" H
- Fitaovana: Metal (Weathered Zinc finish), Glass shades
- Isan'ny jiro: 6
- Tany fototra: E26
- Max Wattage isaky ny takamoa: 60 watts
- BOKYtage: 120 Volts
- Karazana fametrahana: Hardwired, Ceiling Mounted
- Fampiasana anatiny/ ivelany: Fampiasana anatiny ihany
- Lanja entana: 8 kilao
Garantie
This Elk Home fixture comes with a Garantie voafetra 1 taona from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accidents, misuse, abuse, or unauthorized modifications. For warranty claims, please contact Elk Home customer support.
Fanohanana ny mpanjifa
For technical assistance, missing parts, or warranty inquiries, please visit the official Elk Home website or contact their customer service department. Please have your model number (66894/6) and proof of purchase ready when contacting support.
