1. Fampidirana
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Titus 10096701 1/6HP 277V CCW Right Hand Motor. This motor is designed for specific applications requiring a 1/6 horsepower, 277-volt, counter-clockwise rotation (CCW) motor with a right-hand shaft configuration. Please read this manual thoroughly before installation or use.
2. Information momba ny fiarovana
FAMPITANDREMANA: Mety hisy fahatapahan'ny herinaratra sy ratra. Ny olona mahafeno fepetra ihany no tokony hanao ny fametrahana sy ny fikojakojana azy.
- Always disconnect power to the equipment before installing, servicing, or performing any maintenance on the motor.
- Ataovy azo antoka fa mifanaraka amin'ny kaody elektrika eo an-toerana sy nasionaly ny tariby rehetra.
- Hamarino ny voltage supply matches the motor's rated voltage (277V).
- Do not operate the motor if it is damaged or if any electrical connections are loose.
- Manaova fitaovana fiarovana manokana (PPE) sahaza mandritra ny fametrahana sy fikojakojana.
- Arovy amin'ny zavatra mihetsika ny tanana sy ny fitaovana mandritra ny fampiasana.
3. Fametrahana sy fametrahana
Proper installation is critical for the motor's performance and longevity. Professional installation is highly recommended.
3.1 Fanamarinana mialoha ny fametrahana
- Inspect the motor for any shipping damage.
- Confirm the motor specifications (voltage, horsepower, rotation, shaft type) match the application requirements.
- Ensure the mounting surface is clean, stable, and capable of supporting the motor's weight.
3.2 Fametrahana
Mount the motor securely using appropriate fasteners. Ensure proper alignment with the driven component to prevent excessive vibration and premature wear. The motor is designed for a right-hand shaft configuration.
3.3 Fifandraisana elektrika
Connect the motor to a 277V power supply. Refer to the wiring diagram provided with your specific equipment or consult a qualified electrician. Ensure all connections are tight and insulated. This motor operates with a Counter-Clockwise (CCW) rotation when viewed from the shaft end.

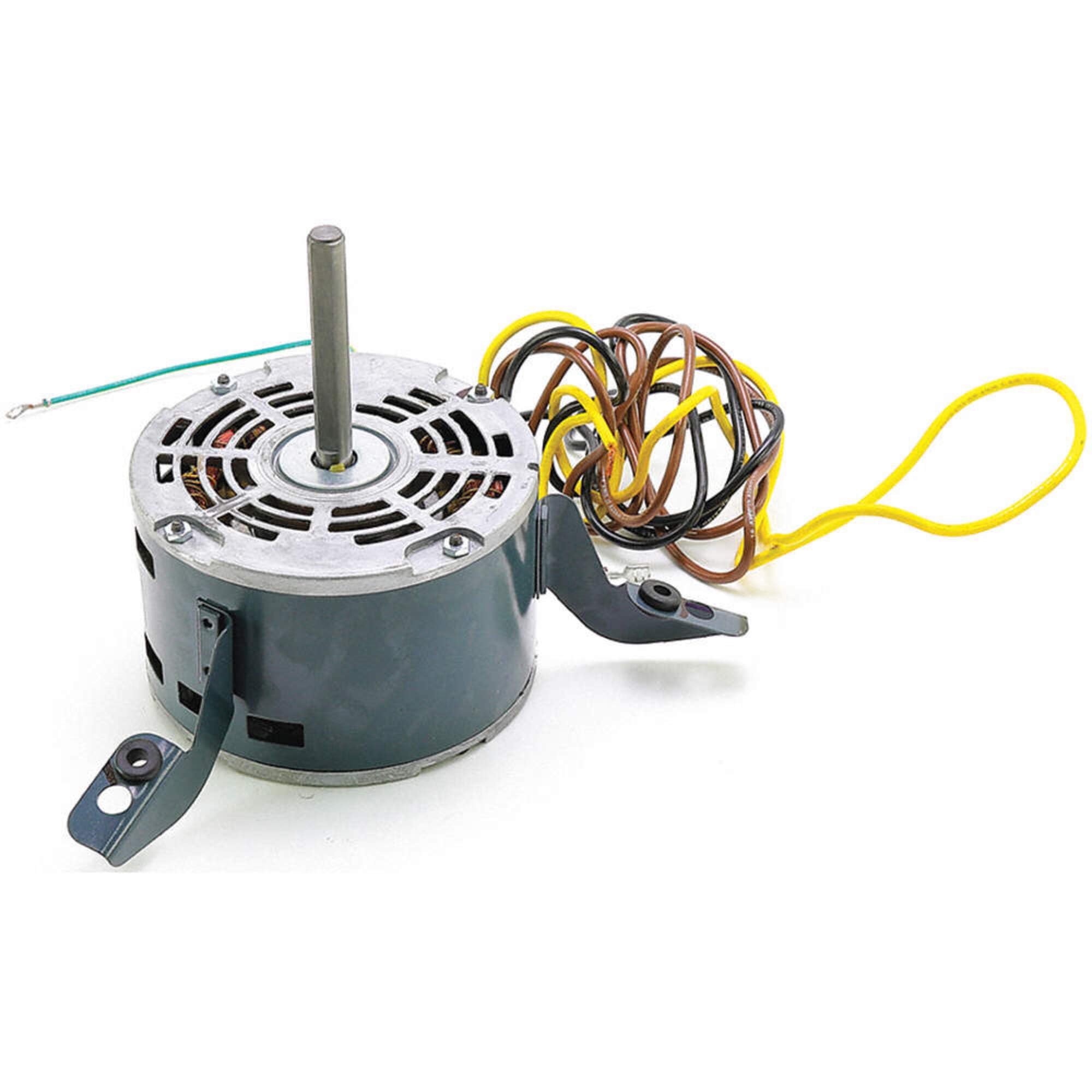

Image of the Titus 10096701 motor, showing its general appearance and connection points. This image illustrates the typical form factor of the motor.
4. Torolàlana miasa
Once installed and wired correctly, the motor is ready for operation. As a component, its operation is typically controlled by the larger system it is integrated into.
- Ensure all safety guards are in place before starting the system.
- Activate the power supply to the motor.
- Monitor the motor during its initial operation for any unusual noises, vibrations, or signs of overheating.
- The motor is designed for continuous duty within its specified ratings.
5. Fikojakojana
Regular maintenance helps ensure optimal performance and extends the motor's lifespan. Always disconnect power before performing any maintenance.
- Fanadiovana: Keep the motor's exterior clean and free from dust, dirt, and debris. Ensure ventilation openings are unobstructed to prevent overheating.
- Fanaraha-maso: Periodically inspect electrical connections for tightness and signs of corrosion. Check for any visible damage to the motor casing or wiring.
- Bearings: This motor typically features sealed bearings that do not require lubrication. Do not attempt to lubricate sealed bearings unless specifically instructed by the manufacturer.
- Vibration: If excessive vibration occurs, check mounting bolts for tightness and inspect the driven component for balance or alignment issues.
6. Famahana olana
Refer to the following table for common issues and potential solutions. For complex problems, consult a qualified technician.
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tsy manomboka ny motera | No power supply, incorrect wiring, faulty switch/control, motor overload | Check power, verify wiring, inspect control circuit, reduce load |
| Mafana be ny maotera | Insufficient ventilation, excessive load, incorrect voltage, bearing failure | Clear obstructions, reduce load, verify voltage, inspect/replace bearings |
| Feo na vibration tsy mahazatra | Loose mounting, misaligned shaft, worn bearings, foreign object | Tighten mounts, check alignment, inspect/replace bearings, remove debris |
7. Famaritana
The following are the technical specifications for the Titus 10096701 motor:
- marika: TITOSY
- Laharan'ny ampahany: 10096701
- Horsepower: 0.17 HP (1/6 HP)
- BOKYtage: 277 Volts
- Fihodinana: Mifanohitra amin'ny famantaranandro (CCW)
- Shaft Hand: Tanana havanana
- Haingana: 100 RPM (as listed in specifications)
- Lanja entana: 10.9 kilao
- Ny haben'ny fonosana: 2 x 2 x 2 santimetatra
- UPC/GTIN: 696333102452
8. Warranty sy fanohanana
For warranty information and technical support, please refer to the documentation provided with your purchase or contact Titus directly. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase. Keep your proof of purchase for warranty claims.
Mpanamboatra: TITOSY
