This manual provides detailed instructions for the installation, operation, and maintenance of the Westbrass D206P-62 2-inch No-Caulk PVC Compression Shower Drain. Designed for pre-formed shower stall floors, it features a durable plastic body compatible with 2-inch ABS or PVC pipes and a 4-1/4 inch round grid cover. Please read these instructions thoroughly before beginning installation to ensure proper function and longevity of your shower drain.
Information momba ny fiarovana
- Manaova fitaovana fiarovana manokana (PPE) sahaza toy ny solomaso fiarovana sy fonon-tanana mandritra ny fametrahana azy.
- Ensure the water supply to the shower area is turned off before beginning any plumbing work.
- Raha tsy azonao antoka ny dingana rehetra dia miresaha amin'ny plumber mahay.
- Arovy amin'ny ankizy ny ampahany kely.
Fonosana fonosana
Hamarino tsara fa eo daholo ireo singa rehetra alohan'ny hanombohana ny fametrahana:
- (1) Shower Drain Body (Plastic)
- (1) 4-1/4 inch Round Grid Cover (Matte Black)
- (1) Keyed Rubber Compression Gasket
- (1) Caulk Nut Tightening Tool

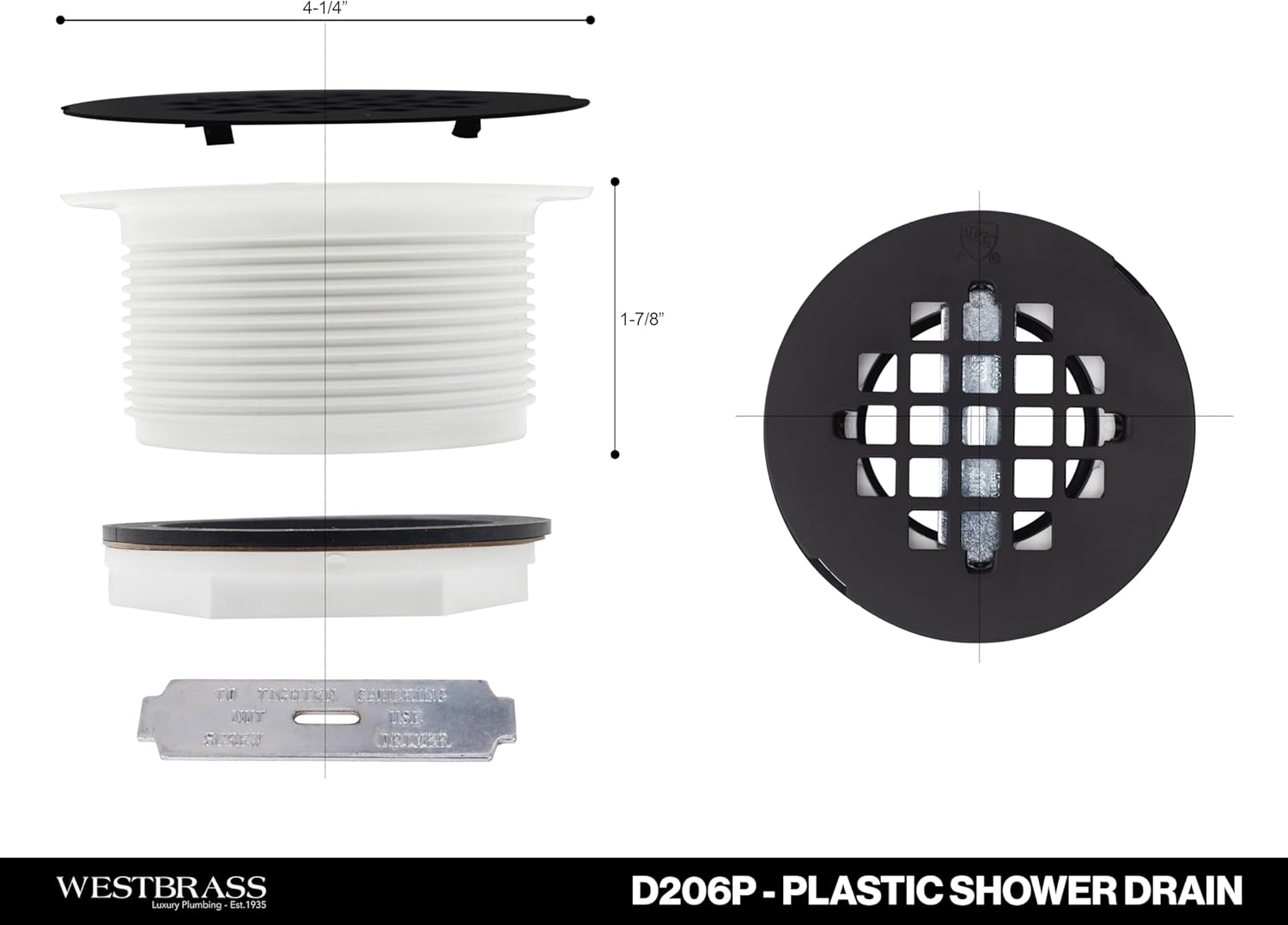

Sary 1: Nipoaka view of the Westbrass D206P-62 shower drain components, showing the grid cover, drain body, compression gasket, and tightening tool.
Vita ny vokatraview
The Westbrass D206P-62 shower drain is designed for efficient water drainage in pre-formed shower stall floors. Its robust plastic construction ensures durability, while the no-caulk compression gasket system simplifies installation and provides a reliable seal. The 4-1/4 inch round grid cover in matte black offers a clean and modern aesthetic.
Sary 2: Ambony view of the assembled Westbrass D206P-62 shower drain, highlighting the matte black grid cover.
Sary 3: lafiny view of the Westbrass D206P-62 shower drain, showing the plastic body and the grid cover.
Torolàlana fametrahana
This shower drain is designed for installation in pre-formed shower stall floors with a 2-inch ABS or PVC pipe connection. No caulking is required for the pipe connection due to the compression gasket system.
- Prepare the Shower Floor Opening: Ensure the opening in the shower floor is clean and free of debris. The drain is designed to fit standard 2-inch drain openings.
- Mifandraisa amin'ny fantsona fako: Insert the lower threaded portion of the plastic drain body into the 2-inch ABS or PVC waste pipe. The keyed rubber compression gasket will create a watertight seal.
- Tighten the Compression Nut: From above the shower floor, place the compression nut over the drain body. Use the provided caulk nut tightening tool (or a screwdriver) to securely tighten the compression nut. This will compress the rubber gasket, sealing the drain to the pipe. Do not overtighten.
- Install the Grid Cover: Align the tabs on the underside of the 4-1/4 inch round grid cover with the corresponding slots on the drain body. Press down firmly until the cover snaps securely into place.
Figure 4: Illustration showing the snap mechanism for attaching the grid cover to the drain body.
Figure 5: Technical drawing providing detailed dimensions and components of the D206P-62 plastic shower drain.
Lahatsary 1: Vita ny vokatra ofisialyview video for the Westbrass 206P PVC Compression Shower Drain, demonstrating its features and components.
hetsika
Once properly installed, the Westbrass D206P-62 shower drain operates automatically to channel water away from your shower area. The grid cover is designed to prevent larger debris from entering the drain pipe, minimizing the risk of clogging while allowing efficient water flow.
fikarakarana
Regular cleaning will help maintain the appearance and functionality of your shower drain.
- Fanadiovana mahazatra: Clean the grid cover regularly with a soft cloth and mild soap or a non-abrasive bathroom cleaner. Rinse thoroughly with water.
- Removing Debris: Periodically remove the grid cover by gently prying it up (if necessary, use a flat tool carefully to avoid scratching) to clear any accumulated hair or debris from the drain opening.
- Ialao ny simika mahery vaika: Do not use abrasive cleaners, scouring pads, or harsh chemical drain cleaners, as these can damage the finish of the grid cover and the plastic drain body.
Fanamboarana
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tatatra miadana | Hair or debris accumulation under the grid. | Remove the grid cover and clear any obstructions. |
| Fidirana rano | Compression gasket not properly seated or tightened. | Ensure the compression gasket is correctly positioned and the compression nut is adequately tightened. Do not overtighten. |
| Grid Cover Loose | Tabs not fully engaged. | Press the grid cover firmly until it snaps into place. |
fepetra arahana
- Modely: Sary D206P-62
- marika: Westbrass
- Fitaovana: Plastic body, Metal grid cover
- vita: Matte Black
- Haben'ny tatatra: 2 inches (fits ABS or PVC pipes)
- Grid Cover Diameter: 4-1/4 santimetatra
- Total Diameter (including grid): 4-1/2 santimetatra
- Endri-javatra manokana: Anti-Clogging design
- Lanja entana: 8 oz
- Haben'ny vokatra: 4.25" W x 1.88" H
Warranty Information
This Westbrass product comes with a Garantie voafetra 1 taona. For specific details regarding warranty coverage and claims, please refer to the official Westbrass warranty documentation or contact customer support.
Fanohanana ny mpanjifa
For further assistance, technical support, or inquiries regarding your Westbrass D206P-62 shower drain, please contact Westbrass customer service.
- marika: Westbrass
- Adiresy: 2429 E. Olympic Blvd., Los Angeles, CA 90021
- Telefaonina: (213) 627-8441
- Webtranokala: Visit the Westbrass Store on Amazon
