Janome Sew Mini 2-Stitch Sewing Machine User Manual

1. Fampidirana

The Janome Sew Mini 2-Stitch Sewing Machine is a compact and lightweight sewing machine designed for ease of use, making it ideal for beginners, young enthusiasts, or as a secondary machine for experienced users. It offers essential features for various sewing projects, from quick mending to crafting. This manual provides detailed instructions for safe and efficient operation, maintenance, and troubleshooting.

2. Torolàlana momba ny fiarovana

• Always unplug the machine from the electrical outlet when cleaning, making adjustments, or when not in use.
• Keep fingers away from all moving parts, especially the needle area, while the machine is operating.
• Never operate the machine with any air openings blocked. Keep air openings free from lint, dust, and loose cloth.
• Aza miasa any amin'ny toerana ampiasaina ny vokatra aerosol (tsipy) na amin'ny toerana misy oksizenina.
• Ity fitaovana ity dia tsy natao hampiasain'ny olona (anisan'izany ny ankizy) manana fahasahiranana ara-batana, ara-pihetseham-po na ara-tsaina, na tsy fahampian'ny traikefa sy fahalalana, raha tsy hoe nomena fanaraha-maso na toromarika mikasika ny fampiasana ny fitaovana avy amin'ny olona iray tompon'andraikitra amin'ny fiarovana azy ireo.
• Tokony hojerena ny ankizy mba hahazoana antoka fa tsy milalao amin'ny fitaovana izy ireo.

3. Vita ny milinaview

Familiarize yourself with the main components of your Janome Sew Mini sewing machine.

Sary 1: anoloana view of the Janome Sew Mini, showing the stitch pattern guide on the machine body.

Sary 2: Close-up of the stitch selector dial, used to choose different stitch types.

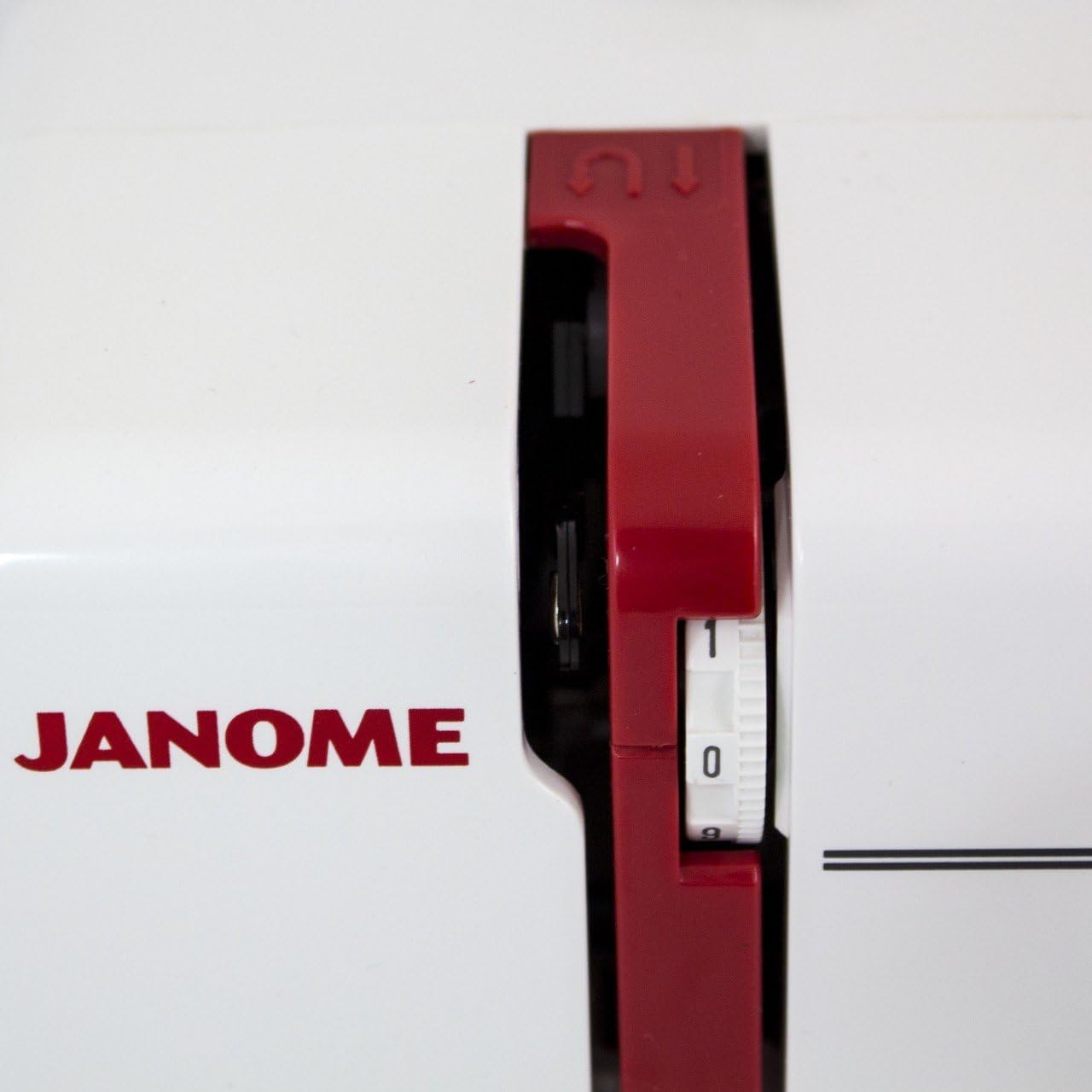

Sary 3: Close-up of the tension dial, which controls the tightness of the thread.

Sary 4: View of the top drop-in bobbin area with its clear cover.

Sary 5: Close-up of the needle, needle bar, and presser foot.

4. Fametrahana

4.1. Fampifandraisana herinaratra

1. Hamarino tsara fa ao amin'ny toerana OFF ny bokotra famatsian-jiro an'ny milina.
2. Ampifandraiso amin'ny jack-n'ny milina ny plug-n'ny mpanara-tongotra.
3. Connect the power supply cord into the machine's power supply jack.
4. Plug the power supply cord into a suitable electrical outlet.

4.2. Thread Spool Installation

1. Place the thread spool onto the spool pin located on the top of the machine.
2. Secure the spool with the spool cap to prevent the thread from unwinding too quickly.

4.3. Famolahana Bobbine

1. Apetraho eo amin'ny spindle mpamoaka bobbin ny bobine foana.
2. Guide the thread from the spool through the thread guide and around the tension disc for bobbin winding.
3. Insert the thread end into the small hole on the bobbin.
4. Atseho miankavanana ny spindle winder bobbin.
5. Gently press the foot controller (or turn the handwheel if applicable) to start winding. Stop when the bobbin is full.
6. Hetezo ny kofehy ary atosika miverina miankavia ny kodiaran'ny bobine. Esory ny bobine voahodina.

4.4. Upper Threading

1. Atsangano ny fantsom-bokon'ny presser.
2. Guide the thread from the spool through the upper thread guide.
3. Bring the thread down the right channel, around the tension dial (Figure 3), and up the left channel.
4. Ampifandraiso amin'ny lefa fakana avy any ankavanana miankavia ny kofehy.
5. Ampidino midina amin'ny alalan'ny mpitari-dalana ny kofehin'ny fanjaitra ny kofehy.
6. Thread the needle from front to back. Pull about 6 inches of thread through the needle eye.

4.5. Lower Threading (Bobbin Insertion)

1. Remove the bobbin cover plate (Figure 4).
2. Ampidiro ao anaty fonony ny bobine ahodinkodina, ary ataovy izay hivaha amin'ny lalana marina ny kofehy (matetika mifanohitra amin'ny fihodin'ny famantaranandro).
3. Guide the bobbin thread through the tension spring in the bobbin case.
4. Hold the upper thread lightly with one hand and turn the handwheel towards you to lower and raise the needle. This will catch the bobbin thread.
5. Pull both the upper and bobbin threads under the presser foot and towards the back of the machine.
6. Soloy ny takelaky ny bobbin.

5. Torolàlana miasa

5.1. Fifantenana zaitra

The Janome Sew Mini offers a selection of straight and zigzag stitches. Refer to the stitch pattern guide on the machine body (Figure 1) and use the stitch selector dial (Figure 2) to choose your desired stitch.

• Stitch mahitsy: Available in 4 lengths.
• Zigzag Stitch: Available in 3 widths.

5.2. Fototra amin'ny fanjairana

1. Apetraho eo ambanin'ny tongotra fanerena ny lambanao, ampifanaraho amin'ny elanelan'ny zaitra irina ny sisiny.
2. Ampidino ny fanerena tongotra.
3. Gently press the foot controller to start sewing. The machine operates at a single, slow speed, which is beneficial for beginners.
4. To sew in reverse (for securing stitches), locate the reverse lever or button (if available on your model) and hold it down while sewing.
5. When finished, raise the needle to its highest position, lift the presser foot, and gently pull the fabric away from the machine.
6. Cut the threads using scissors or the built-in thread cutter (if available).

5.3. Fampiasana sandry malalaka

The Janome Sew Mini features a free arm, which is useful for sewing cylindrical items. To access the free arm, slide off the accessory storage compartment located at the base of the machine. This allows you to easily sew cuffs, sleeves, pant hems, and small children's clothing.

6. Fikojakojana

6.1. Fanadiovana

• Regularly clean the bobbin area and feed dogs using a small brush to remove lint and dust.
• Fafao amin'ny lamba malefaka sy maina ny ivelany amin'ny milina. Aza mampiasa akora simika mahery vaika.

6.2. Fanoloana fanjaitra

• Always use the correct type and size of needle for your fabric.
• Replace bent or dull needles immediately to prevent skipped stitches or fabric damage.

7. Famahana olana

Raha sendra olana ianao dia jereo ireto vahaolana mahazatra ireto:

• Jaitra natsipy (Skipped Stitches): Check if the needle is inserted correctly, not bent, and is the appropriate type for the fabric. Re-thread the machine completely.
• Fizarana kofehy: Ensure the machine is threaded correctly, the tension is not too tight (Figure 3), and the thread is not snagging on the spool. Use good quality thread.
• Fabric Not Moving: Check if the presser foot is lowered and if the feed dogs are engaged.
• Tsy mandeha ny milina: Verify the power cord and foot controller are securely plugged in, and the power switch is ON.

8. Famaritana

9. Warranty sy fanohanana

The Janome Sew Mini 2-Stitch Sewing Machine typically comes with a 1-year manufacturer's warranty. For specific warranty details, please refer to the documentation included with your product or contact Janome customer support directly.

Online technical support may also be available for assistance with product operation or troubleshooting.
