StarTech.com DisplayPort to DVI-D Adapter (DP2DVI2) Instruction Manual

1. Fampidirana

This manual provides instructions for the StarTech.com DisplayPort to DVI-D Adapter, model DP2DVI2. This adapter allows you to connect a DVI-D monitor to a DisplayPort-enabled computer or device. It is a passive video converter designed for ease of use and portability.

Image 1.1: The DisplayPort to DVI-D adapter connecting a computer to a monitor.

Lafin-javatra fototra:

• DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter.
• Supports resolutions up to 1920x1200 or 1080p at 60Hz.
• HDCP 1.4 mifanaraka.
• Features a 6-inch (15cm) attached cable for added flexibility.
• Passive video converter, requiring a DisplayPort++ (DP++) port on the source device.
• Includes a latching DisplayPort connector for secure connection and supports DVI screw-locking cables to prevent accidental disconnection.
• Plug-and-play functionality, requiring no software or driver installation.

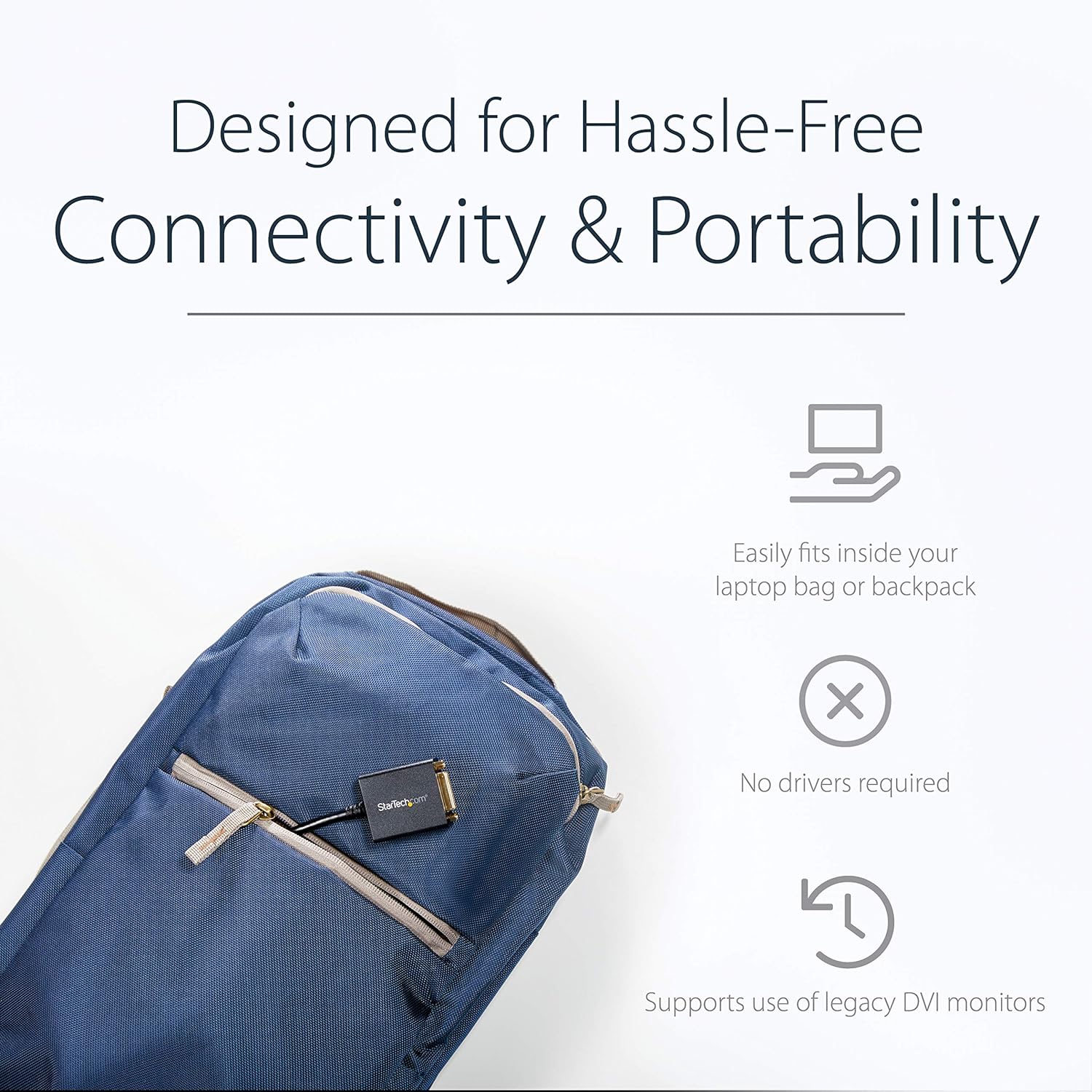

Image 1.2: The compact adapter fits easily into a laptop bag, highlighting its portability.

2. Ny votoatin'ny fonosana

Hamarino fa misy ireto entana manaraka ireto ny fonosanao:

• 1 x StarTech.com DisplayPort to DVI-D Adapter (DP2DVI2)

Image 2.1: The adapter shown in its retail packaging, displaying product information and warranty details.

3. Drafitra momba ny vokatra

The following diagram illustrates the connectors on the DisplayPort to DVI-D adapter.

Sary 3.1: A antsipirihany view of the adapter, highlighting the DisplayPort (male) and DVI (female) connectors.

4. Torolàlana fananganana

Mampifandray ny adaptatera

Follow these steps to connect your DisplayPort-enabled device to a DVI monitor:

1. Connect the DisplayPort male connector of the adapter to the DisplayPort output on your computer or video source. Ensure the latching connector is securely engaged.
2. Connect a DVI-D cable (not included) from your DVI monitor to the DVI-D female port on the adapter. If your DVI cable has screw locks, secure them to the adapter for a stable connection.
3. Power on your computer and monitor. The display should automatically detect the signal.

Image 4.1: An illustration of the adapter connecting a desktop computer's DisplayPort to a DVI monitor.

5. Torolàlana miasa

Asehoy Configuration

Once connected, your operating system should automatically detect the DVI monitor. You can configure display settings such as resolution, extended desktop, or duplicate display through your computer's display settings.

• Windows: Right-click on the desktop and select "Display settings" or "Screen resolution."
• macOS: Go to "System Preferences" > "Displays."

Fanapahan-kevitra tohanana

This adapter supports PC resolutions up to 1920x1200 and HDTV resolutions up to 1080p at 60Hz.

Image 5.1: A visual representation of the adapter providing a clear, high-definition picture on a large display.

6. Famahana olana

No Display Signal

• Hamarino ny fifandraisana: Ensure all cables (DisplayPort, DVI, and power for both devices) are securely connected.
• Source Compatibility: Confirm your computer's DisplayPort supports DP++ (DisplayPort++), as this is a passive adapter. Active adapters are required for DisplayPort sources that do not support DP++.
• Input fanaraha-maso: Check that your monitor is set to the correct DVI input source.
• fanapahan-kevitra: Try a lower resolution on your computer if the monitor does not display an image. The monitor might not support the current output resolution.
• Halavan'ny tariby: Ensure the DVI cable length does not exceed 25 feet (7.6 meters), as longer cables can degrade signal quality.

Olana momba ny kalitaon'ny sary

• Cable kalitao: Use a high-quality DVI-D cable to ensure optimal signal transmission.
• Tsy fitoviana amin'ny vahaolana: Adjust the display resolution on your computer to match your monitor's native resolution for the clearest picture.

7. Famaritana

8. Warranty sy fanohanana

This StarTech.com product is backed by a 3-year warranty. For technical support, troubleshooting, and additional resources, please visit the official StarTech.com webtranokala na mifandray amin'ny serivisy mpanjifany.

For more information, you can visit the product page: http://startech.com/q/DP2DVI2
